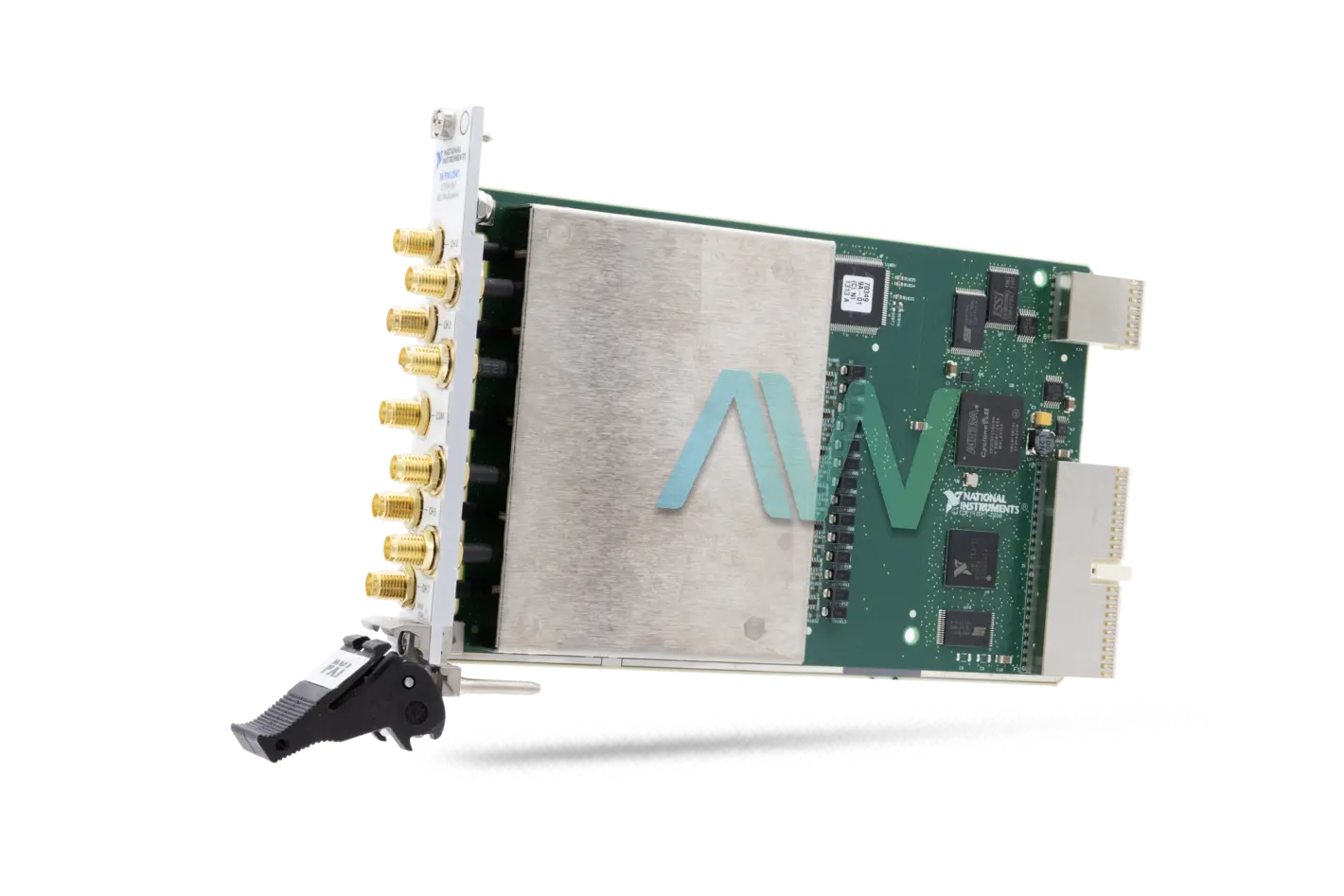

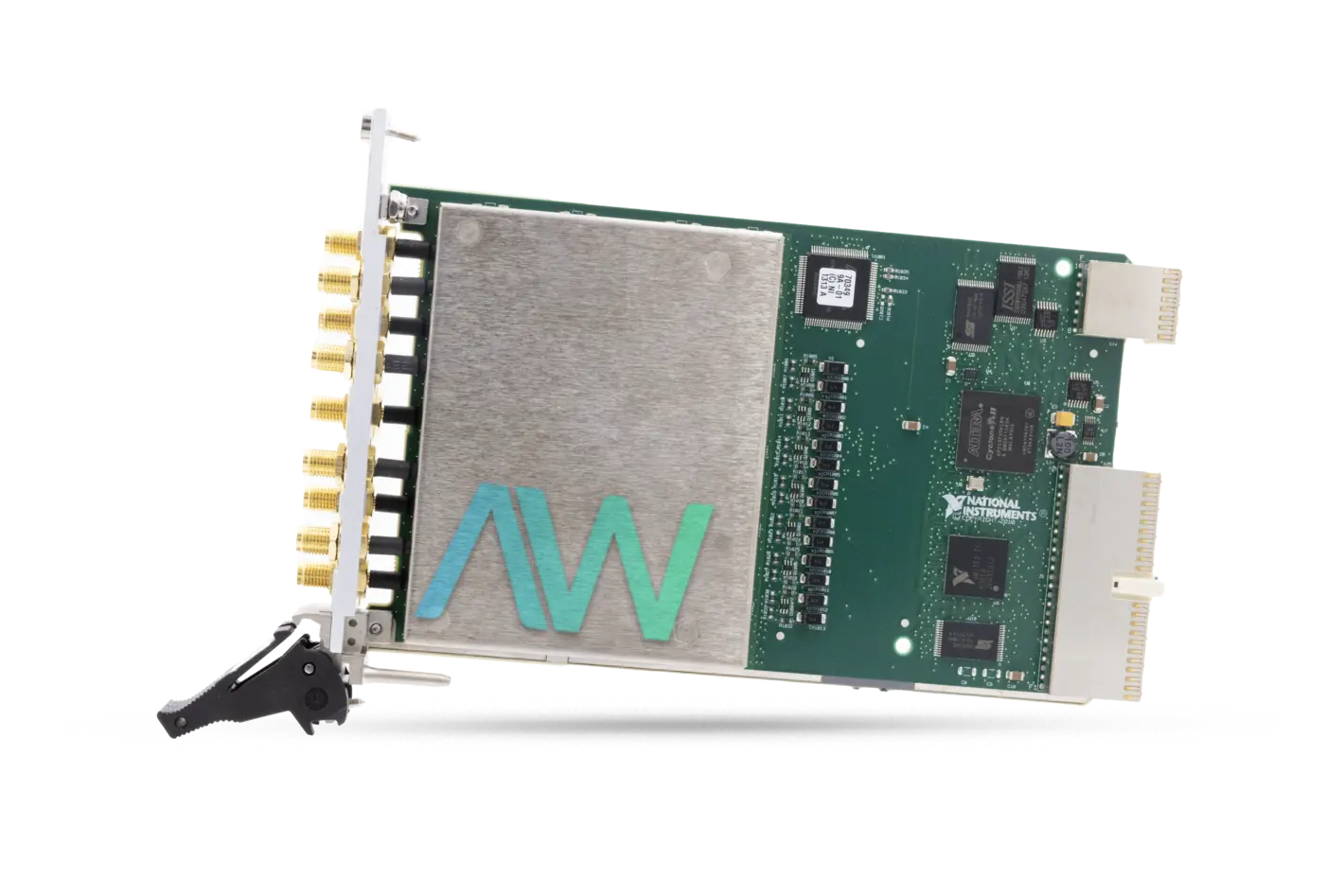

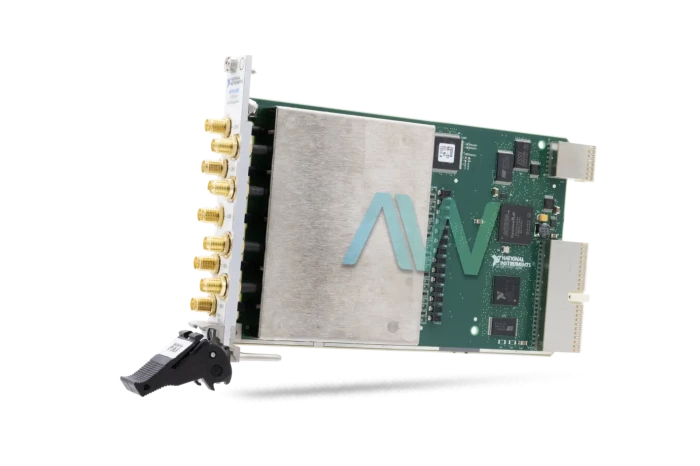

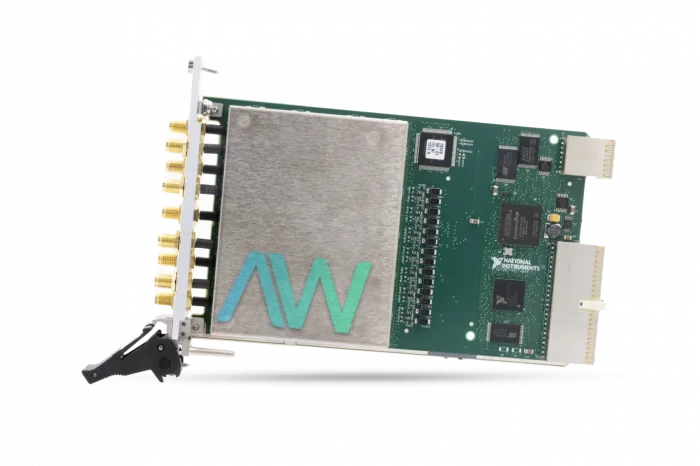

National Instruments PXI-2547 PXI RF Multiplexer Switch Module
The PXI-2547 (part number: 778572-47) is a 50 Ω, 2.7 GHz, RF PXI multiplexer switch module featured with a higher channel count. This model is an ideal solution for test systems where a significant number of RF signals must be switched. This module is known for its voltage standing wave ratio, excellent insertion loss, and isolation parameters, which results in the minimization of signal degradation. The user can utilize the integrated tracking feature for the relay count to diminish unexpected system downtime and to predict relay lifetime. The PXI-2547 provides 0.5 A maximum switching current (per channel) and 30 V maximum switching voltage.
This switch module comes with an electromechanical, latching relay and gold-plated 9 SMA jacks as I/O connectors. This model is a smart device with 8.5 in. × 0.8 in. × 5.1 in. dimensions and weighs around 9 oz. This model can operate with <0.25 Ω typical DC path resistance initially and ≥1.0 Ω at end of life. The characteristic impedance remains 50 Ω nominal, and it is designed to work with <1.05 dB (<0.7 dB typical) and <2.0 dB (<1.6 dB typical) insertion loss while operating at ≤1 GHz and ≤2.7 GHz, respectively.
By design, the NI PXI-2547 comes with SP8T topology. This module is suitable for routing signals from DC to 2.7 GHz. It can also switch up to 30 V or 0.5 A, with a power limit of 10 W maximum. The PXI-2547 can be used for switching multiple devices under test while connected to one channel on the RF analyzer. t
| Model | PXI-2547 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778572-47 |
| Type | PXI RF Multiplexer Switch Module |
| Topology | 8×1 (SP8T) |
| Characteristic Impedance | 50 Ω, nominal |
| Maximum Switching Voltage | 30 V |
| Maximum Switching Current | 0.5 A |
| Maximum Switching Power | 10 W |
| Insertion Loss (≤2.7 GHz) | <2.0 dB (<1.6 dB typical) |
| Channel-to-Channel Skew | <15 ps, typical |
| Rise Time (10% to 90%) | 93 ps, typical |
| Relay Type | Electromechanical, latching |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 9 oz. (255 g) |
| PXI-2547 Manual | User Manual and Specifications Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-2547:
National Instruments PXI-2547 Frequently Asked Questions
Question: Is the PXI-2547 a good device to test systems that require switching many RF signals?
Answer: Yes, the PXI-2547 is ideal for test systems that require the switching of many RF signals.
Question: Does the NI PXI-2547 process voltage standing wave ratio?
Answer: No, the PXI-2547 does not process VSWR. However, it is characterized by excellent VSWR performance, which indicates minimal signal reflection and strong signal integrity across its 2.7 GHz bandwidth.
Question: Does the NI PXI-2547 have onboard relay count tracking?
Answer: Yes, the NI PXI-2547 has a relay count tracking feature to help predict relay lifetime.
Question: What is the bandwidth on the PXI 2547?
Answer: The PXI 2547 has 2.7 GHz bandwidth.
