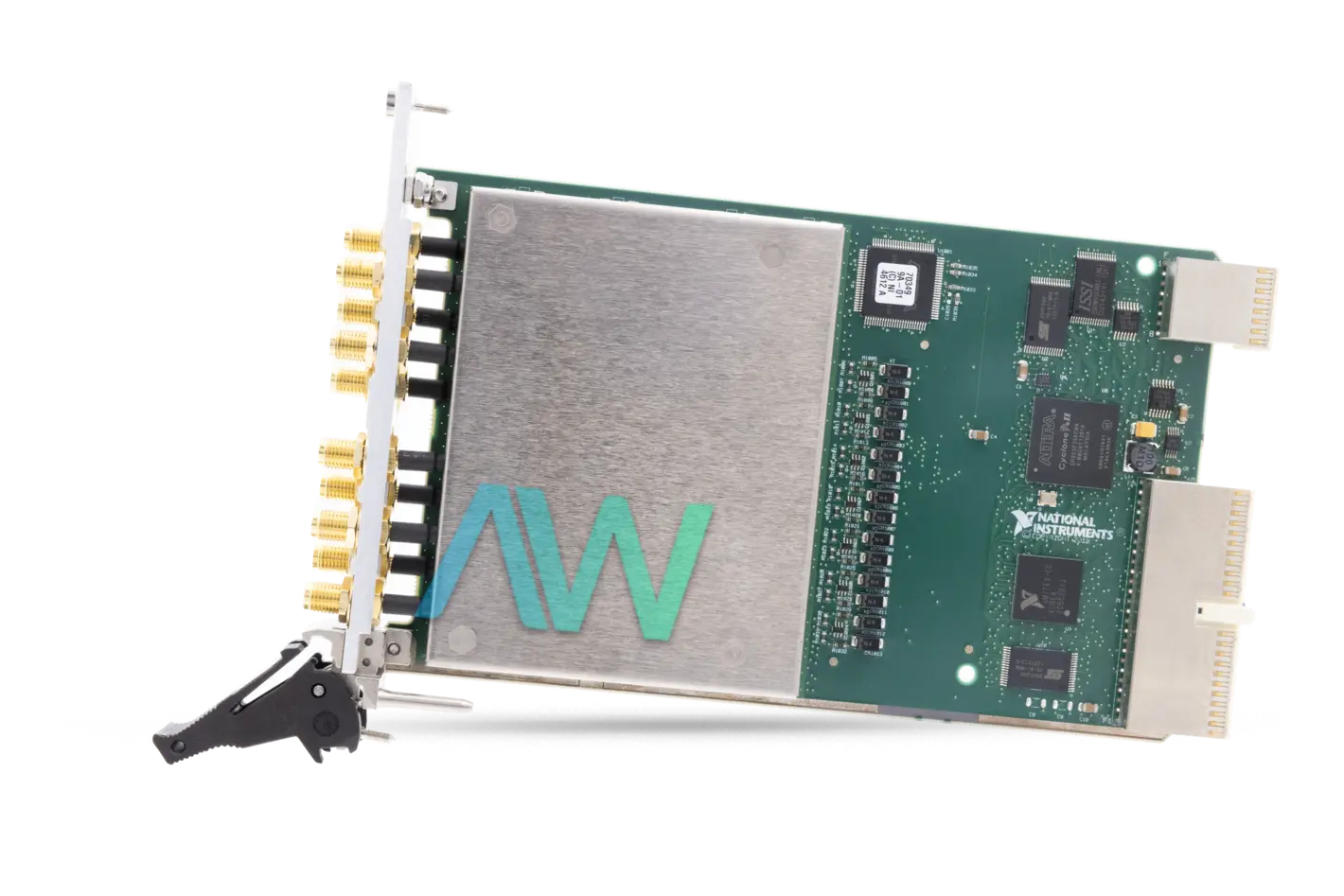

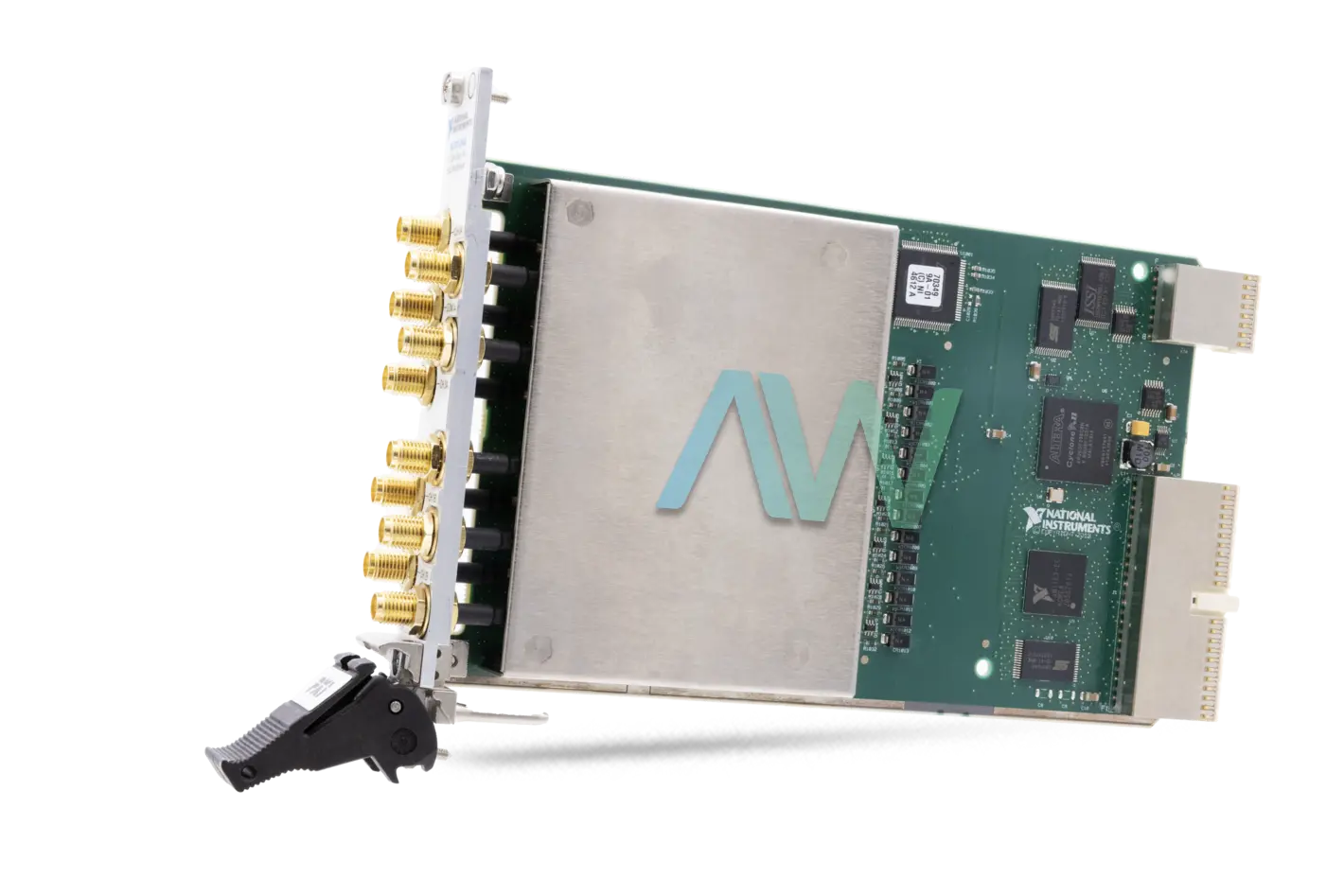

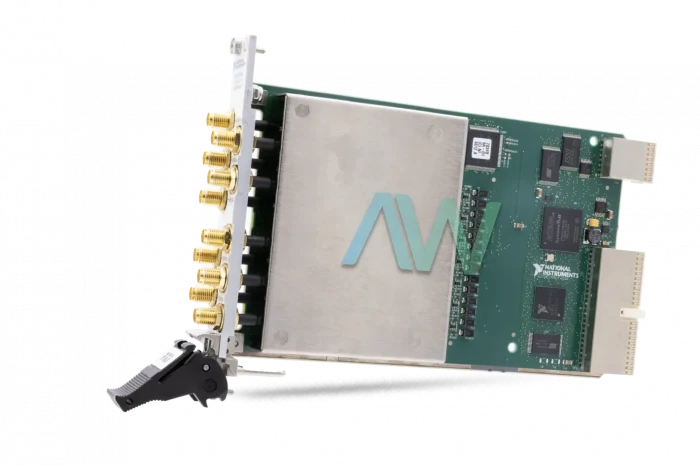

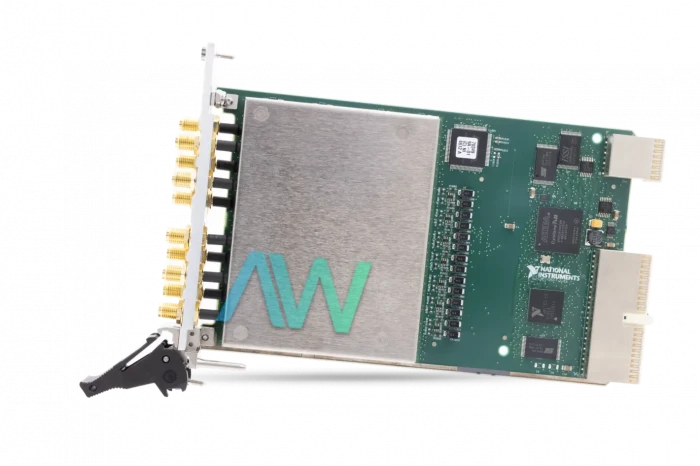

National Instruments PXI-2546 PXI RF Multiplexer Switch Module
The National Instruments PXI-2546 (Part Number: 778572-46) is an RF signal multiplexer switching module. In many hardware-in-the-loop (HIL) test systems, fault insertion or signal insertion is used to simulate failures between the electronic control unit (ECU) and the rest of the system in order to test, characterize, or validate ECU behavior under fault conditions. Fault insertion is often critical when verifying that an ECU responds appropriately to specific fault scenarios—common use cases include automotive, aerospace, and industrial control systems.
To accomplish this, Fault Insertion Units (FIUs) are placed between the I/O interfaces of a test system and the ECU. The test system can then switch between normal operation and various failure conditions such as short circuits to power, shorts to ground, or open circuits.
The PXI-2546 offers many key features, including hardware triggering, onboard relay count tracking, and a wide range of reconfigurable topologies, allowing the user to customize the switch configuration for their application needs. These advanced features make the module a smart solution for demanding applications across industries such as consumer electronics, aerospace, and defense.
This model supports up to 2.7 GHz bandwidth, with the following typical RF characteristics at 2.7 GHz: Insertion loss: <1.5 dB (typical <1.25 dB) and VSWR: <1.7 (typical <1.6). It also includes onboard relay counting and is compatible with NI Switch Executive for configuring and managing switch routes.
| Model | PXI-2546 |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI RF Multiplexer Switch Module |
| Banks | 2 |
| Channels | 4 |
| Switch Bandwidth | 2.7 GHz |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 9 oz. |
| Maximum Switching Voltage | 30 V |
| Maximum RF Power | 10 W |
| Relay Type | Electromechanical, Latching |
Associated part numbers for PXI-2546:
National Instruments PXI-2546 Frequently Asked Questions
Question: What are the maximum switching voltage AC and maximum carry current AC for the PXI-2546?
Answer: The maximum switching voltage AC is 30 V, and the maximum carry current AC is 0.5 A for the PXI-2546.
Question: Does the NI PXI-2546 have termination?
Answer: No, the PXI-2546 does not have termination.
Question: What type of I/O connectors are on the PXI-2546?
Answer: 10 SMA jacks, gold-plated, are on the PXI-2546.
Question: What is the pulse width of the PXI-2546?
Answer: The PXI-2546 has a programmable pulse width of 1 µs to 62 µs.
PXI-2546 PDF Manuals
NI-PXI-2546-SPECIFICATIONS.PDF
PXI-2545-46-47-48-49-LETTER-OF-VOLATILITY.PDF
PXI-2546 Diagrams
