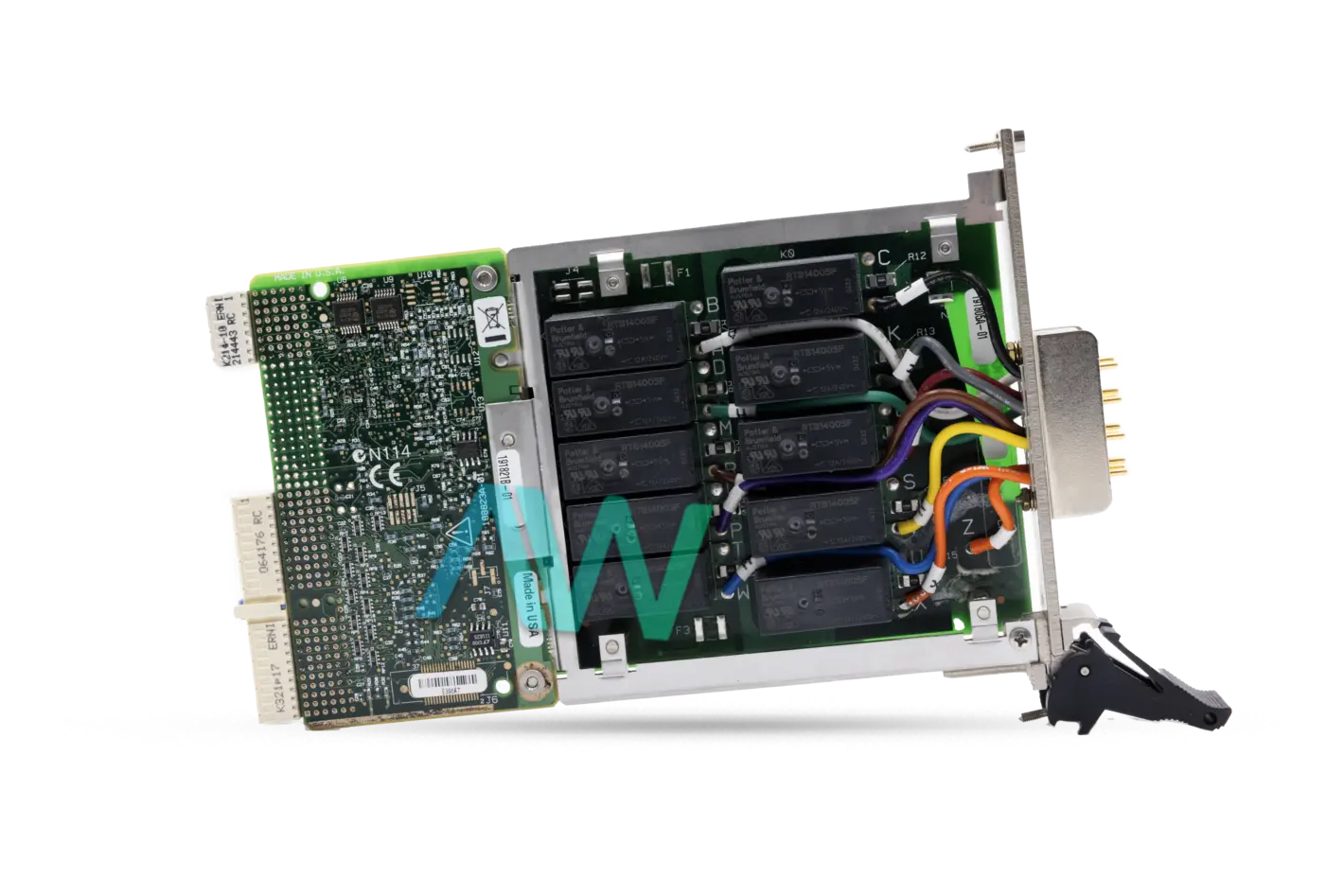

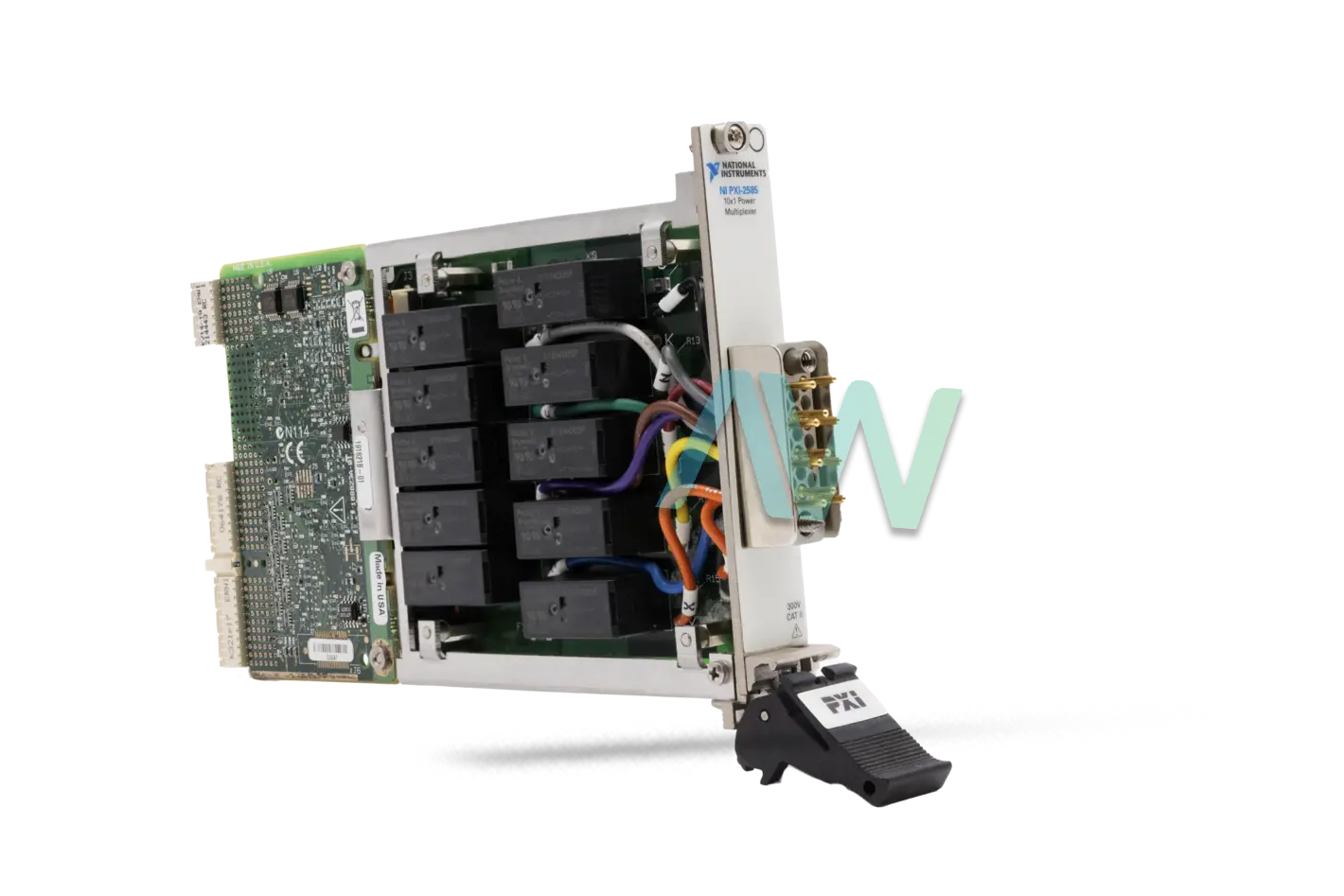

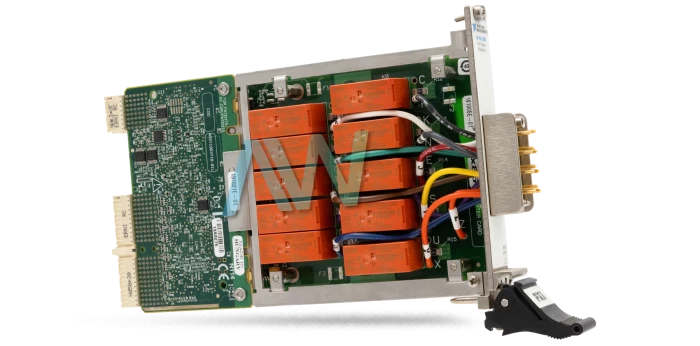

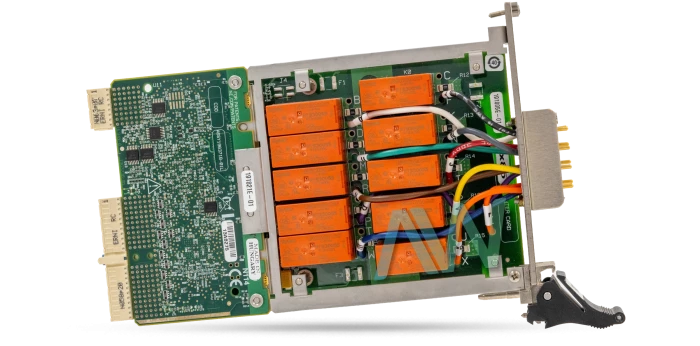

National Instruments PXI-2585 PXI Multiplexer Switch Module

The National Instruments PXI-2585 (Part Number: 778572-85) is a 12 A, 1-Wire, 10-Channel Multiplexer Switch Module. This high-power module is an ideal solution for various control applications and automotive, battery, and power supply testing. The NI PXI-2585 can be configured as a 10x1 multiplexer offering both high isolation voltage and low contact resistance. With this module, the user can acquire 300 V channel-to-channel and 300 V (Measurement Category II) channel-to-ground maximum switching voltage. In AC systems, this Multiplexer Switch Module offers 3 kVA (up to 60 Hz) maximum switching power per channel.

 The relays used in the NI PXI-2585 are electromechanical single-side stable relays with a silver-nickel relay contact material. These relays are designed to actuate within 15.4 milliseconds maximum. The relay’s expected life is 1 × 107 cycles (mechanical), 1 × 105 cycles electrical (@ 30 V DC, 10 A DC resistive), and 3 × 104 cycles electrical (@ 30 V DC, 12 A DC resistive). The National Instruments PXI-2585 comes equipped with a Positronic GMCT series plug I/O connector featuring 20-positions.

By design, this module is a compact one slot, 3 U PXI module and its physical dimensions are 21.6 cm × 2.0 cm × 13.0 cm. Various National Instruments and third-party accessories are sold separately for the PXI-2585, including: 1M/2M switch cable, custom cable kit, front connector mating pins, etc. This Multiplexer Switch Module tends to receive input trigger signals and to generate them as well.

ModelPXI-2585 (778572-85)
ManufacturerNational Instruments
TypePXI Multiplexer Switch Module
Banks1
Channels10
Switch Bandwidth10 MHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight14 oz.
Warranty2-3 Year Warranty
PXI-2585 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2585:

19180.5, 191805A-01, 191805F-01L, 19182.1, 191821A-01, 191821B-01, 191821C-01, 191821F-01L, 191821G-01L, 191821H-01L, 778572-85

National Instruments PXI-2585 Frequently Asked Questions



Question: What is the scan rate of the PXI-2585?



Answer: The scan rate of the PXI-2585 is 65 cycles/s.



Question: What is the maximum switching current DC of the NI PXI-2585?



Answer: The NI PXI-2585 has a maximum switching current DC of 12 A.



Question: What type of I/O connector is on the PXI-2585?



Answer: A 20-position, Positronic GMCT series plug is the I/O connector on the PXI-2585.



Question: What is the relay operating time for the PXI-2585?



Answer: The relay operating time for the PXI-2585 is 15.4 ms, maximum.
