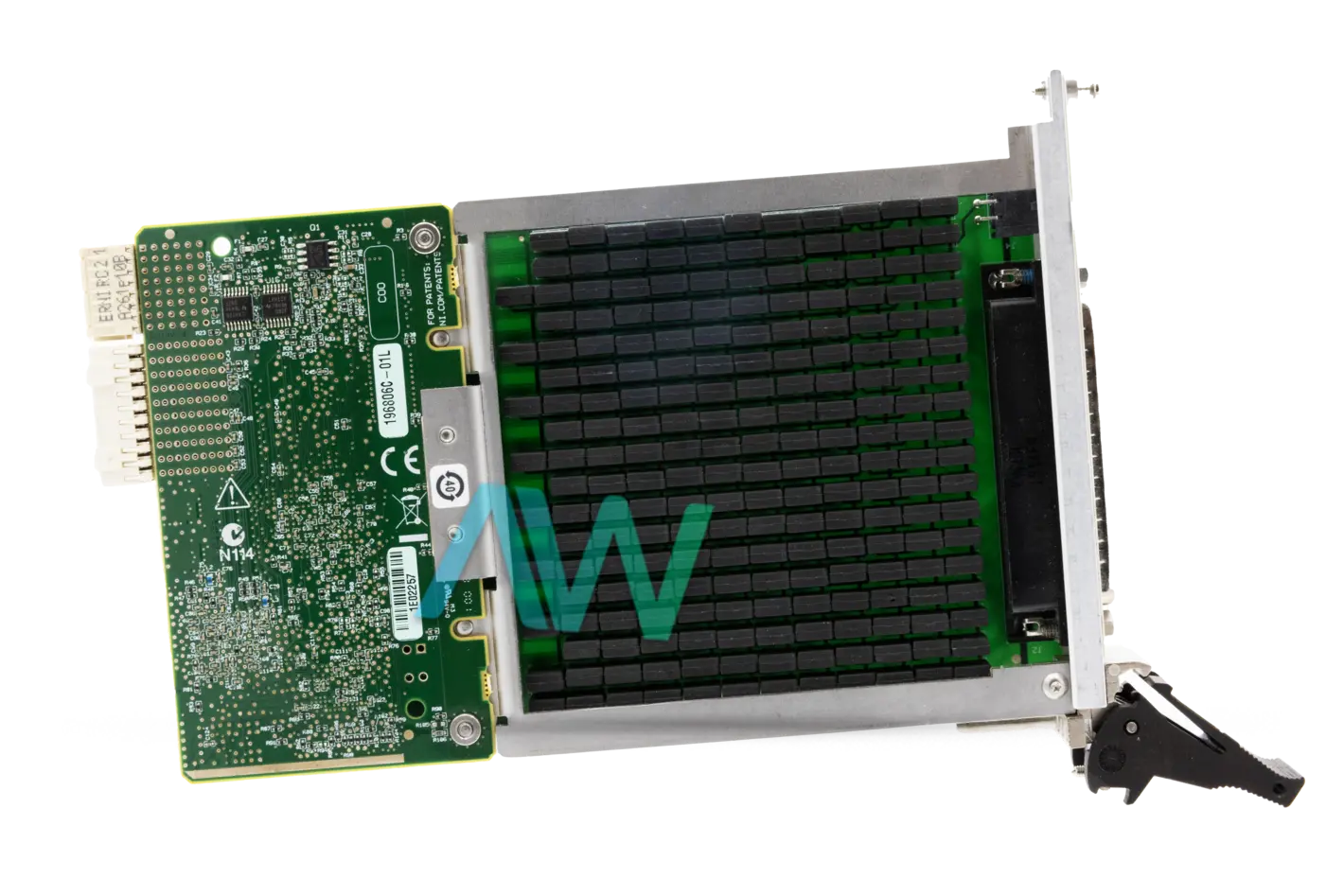

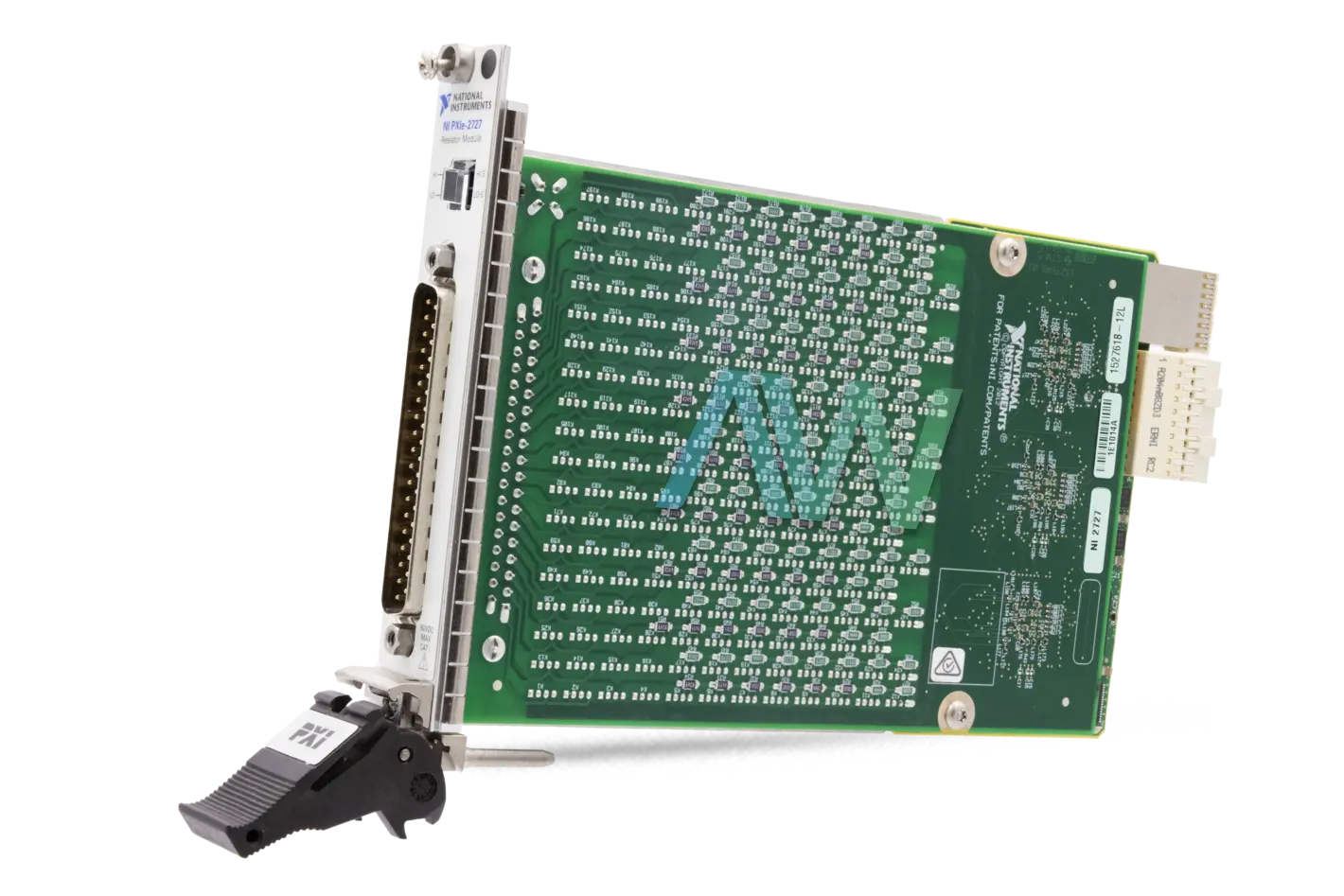

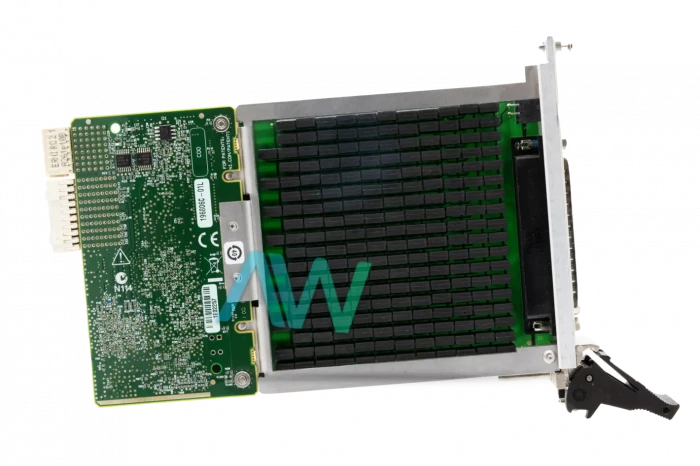

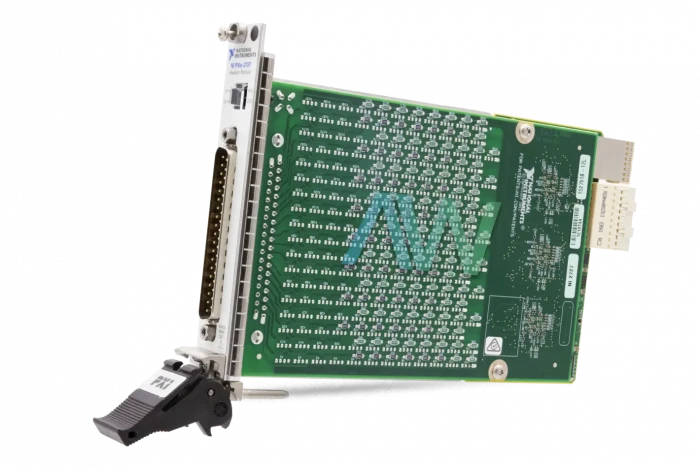

National Instruments PXIe-2727 PXI Programmable Resistor Module

The National Instruments PXIe-2727 (Part Number: 781986-27) Programmable Resistor Module is a test module that simulates the behavior of resistance-based inputs and is configurable as a potentiometer, resistance temperature detector (RTD), voltage divider, and bridge element. The NI PXIe-2727 is a 9-channel, 16-bit Programmable Resistor Module that has the capability of outputting resistance values up to 16 kiloohm in 0.25 ohm steps.

For channel set between 20 Ω and 64 Ω, the channel accuracy is <5.0%, whereas the accuracy is <2.0% for channel set between 64 Ω and 255 Ω. For channel set between 20 Ω and 40 Ω, channel accuracy is <10.0%; <5.0% for channel set between 40 Ω and 120 Ω, <2.0% for Channel set between 120 Ω and 400 Ω, and <1.0% for Channel set between 400 Ω and 16,000 Ω. Channel accuracy is a function of the complete resistor accuracy, relay and trace path resistance, along with any effects of temperature.

This module has 0.3 A maximum current per channel and 0.25 W maximum power for each channel. There is a simultaneous drive limit of 161 relays. The operating temperature of the PXIe2727 is 0 °C to 55 °C and the storage temperature should be within the range of -20 °C to 70 °C. The dimensions (L × W × H) of the NI PXIe‑2727 PXI Programmable Resistor Module are 21.6 × 2.0 × 13.0 cm (8.5 × 0.8 × 5.1 in.) and it weighs 323 g (11.3 oz).

ModelPXIe-2727
Part Number781986-27
ManufacturerNational Instruments
TypePXI Programmable Resistor Module
Input Channels9
Relay TypeReed
Front Panel Connector37-pin D-SUB
Dimensions8.5 x 0.8 x 5.1 in.
Weight11.3 oz.
WarrantyOne Year Warranty
PXIe-2727 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-2727 Frequently Asked Questions



Question: What is the maximum current for each channel on the PXIe-2727?



Answer: Each channel on the PXIe-2727 has a maximum current of 0.3 A.



Question: Can the relays in the NI PXIe-2727 be replaced in the field?



Answer: Yes, the relays in the NI PXIe-2727 can be replaced in the field.



Question: What is the resolution of the PXIe-2727 module?



Answer: The PXIe-2727 module has 16-bits resolution.



Question: What type of DMM port does the NI PXIe-2727 have?



Answer: The NI PXIe-2727 has a 2 x 2 Micro-Fit connector for the DMM port.

  PXIe-2727 PDF Manuals
