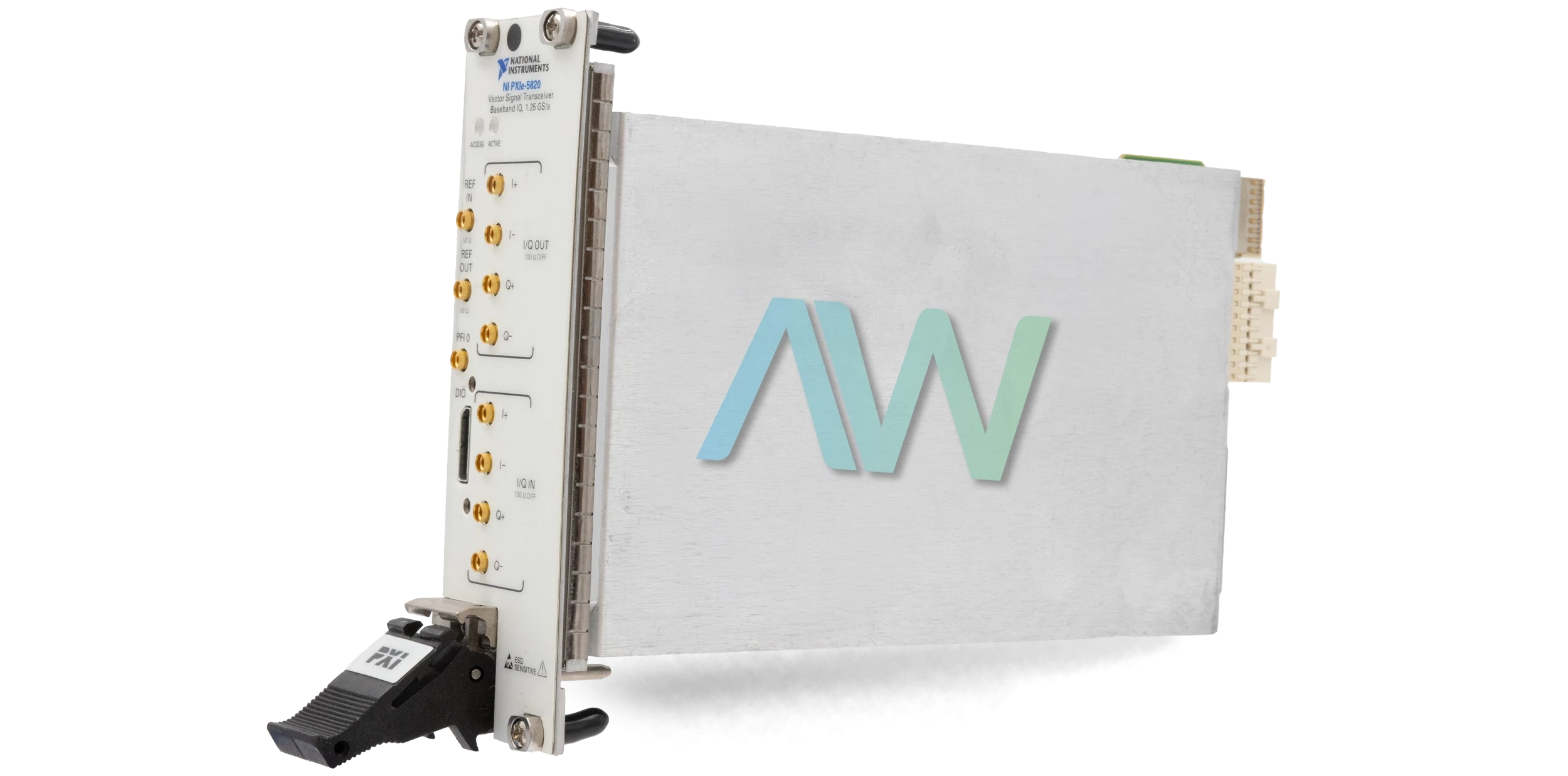

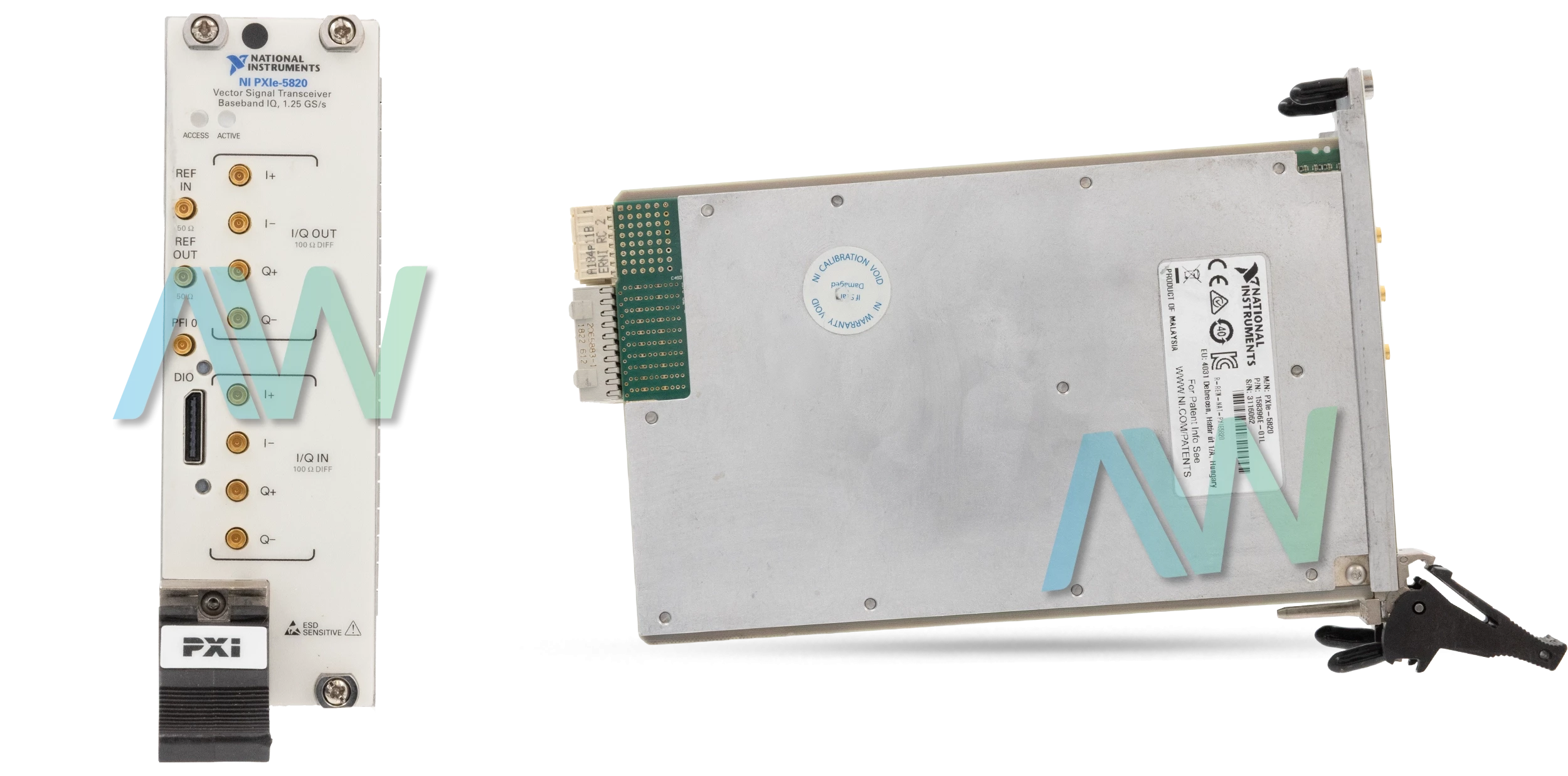

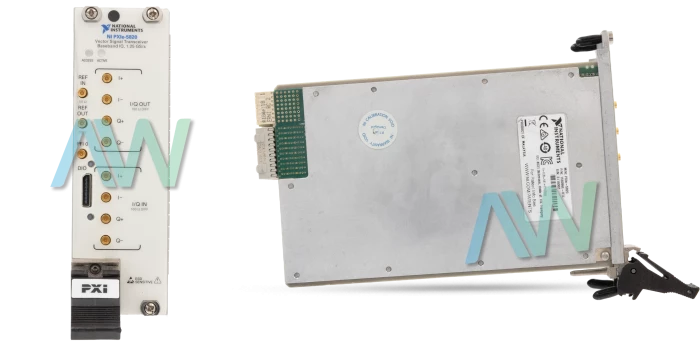

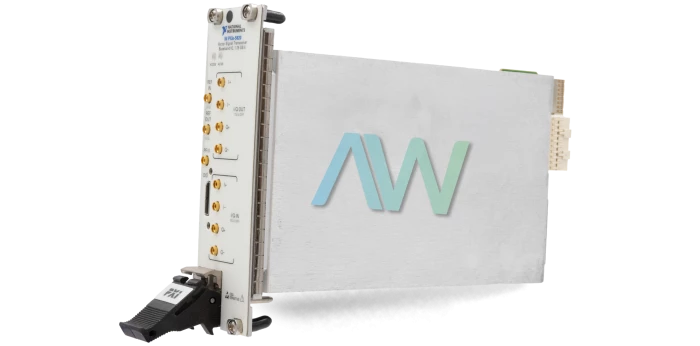

National Instruments PXIe-5820 PXI Vector Signal Transceiver
The PXIe-5820 (Part Number: 783967-01) is a 2-Slot Vector Signal Transceiver from National Instruments, which incorporates extraordinary operational capabilities. The NI PXIe-5820 offers the frequency bandwidth of 1 GHz. This frequency spectrum is of I/Q type and extremely complex. The modul integrates various advanced capabilities, including a wideband I/Q digitizer and wideband I/Q arbitrary waveform generator. It also includes a high-performance FPGA module, which is user programmable. Each of these functionalities are combined on a single PXI Express module.
The National Instruuments PXIe-5820 Vector Signal Transceiver has an exceptional tuning time for the built-in generators. Their typical tuning time is approximately 0.38 milliseconds. The instrument also incorporates onboard dynamic RAM, which includes 2 banks of the DRAM. Each bank has the memory size of 2 GB per second. The theoretical maximum data rate of each bank is 12 GB per second per bank. This Vector Signal Transceiver has an onboard static RAM memory size of 2 MB. The maximum data reading rate is 31 MB per second and the maximum data writing rate is 29 MB per second.
The NI PXIe-5820 Vector Signal Transceiver comes with DC and per terminal input coupling. The input type for the instrument is differential. It also incorporates two channels for the input. This model also has a DC differential input impedance with a typical value of 100 ± 10 Ohms. It has the dimensions of 1.6 x 5.1 x 8.5 inches. The NI PXIe-5820 weighs 1.8 lb.
| Model | PXIe-5820 |
|---|---|
| Part Number | 783967-01 |
| Manufacturer | National Instruments |
| Type | PXI Vector Signal Transceiver |
| Bandwidth | 1 GHz |
| RF Generator Frequency Range | 0 MHz to 500 MHz |
| RF Analyzer Frequency Range | 0 Hz to 500 MHz |
| Dimensions | 1.6 x 5.1 x 8.5 in. |
| Weight | 28.0 oz. |
| PXIe-5820 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-5820:
National Instruments PXIe-5820 Frequently Asked Questions
Question: What is the typical generator tuning time for the PXIe-5820?
Answer: The typical generator tuning time is 0.38 ms for the PXIe-5820.
Question: What is the ADC resolution of the NI PXIe-5820?
Answer: The NI PXIe-5820 has an ADC resolution of 14 bits.
Question: What is the sample rate of the PXIe-5820?
Answer: The sample rate of the PXIe-5820 is 1.25 GS/s.
Question: What is the memory size of the NI PXIe-5820?
Answer: The NI PXIe-5820 has 2 banks with 2 GB per bank for the onboard DRAM and 2 MB for the onboard SRAM.
