National Instruments PXIe-3610 Waveform Generator

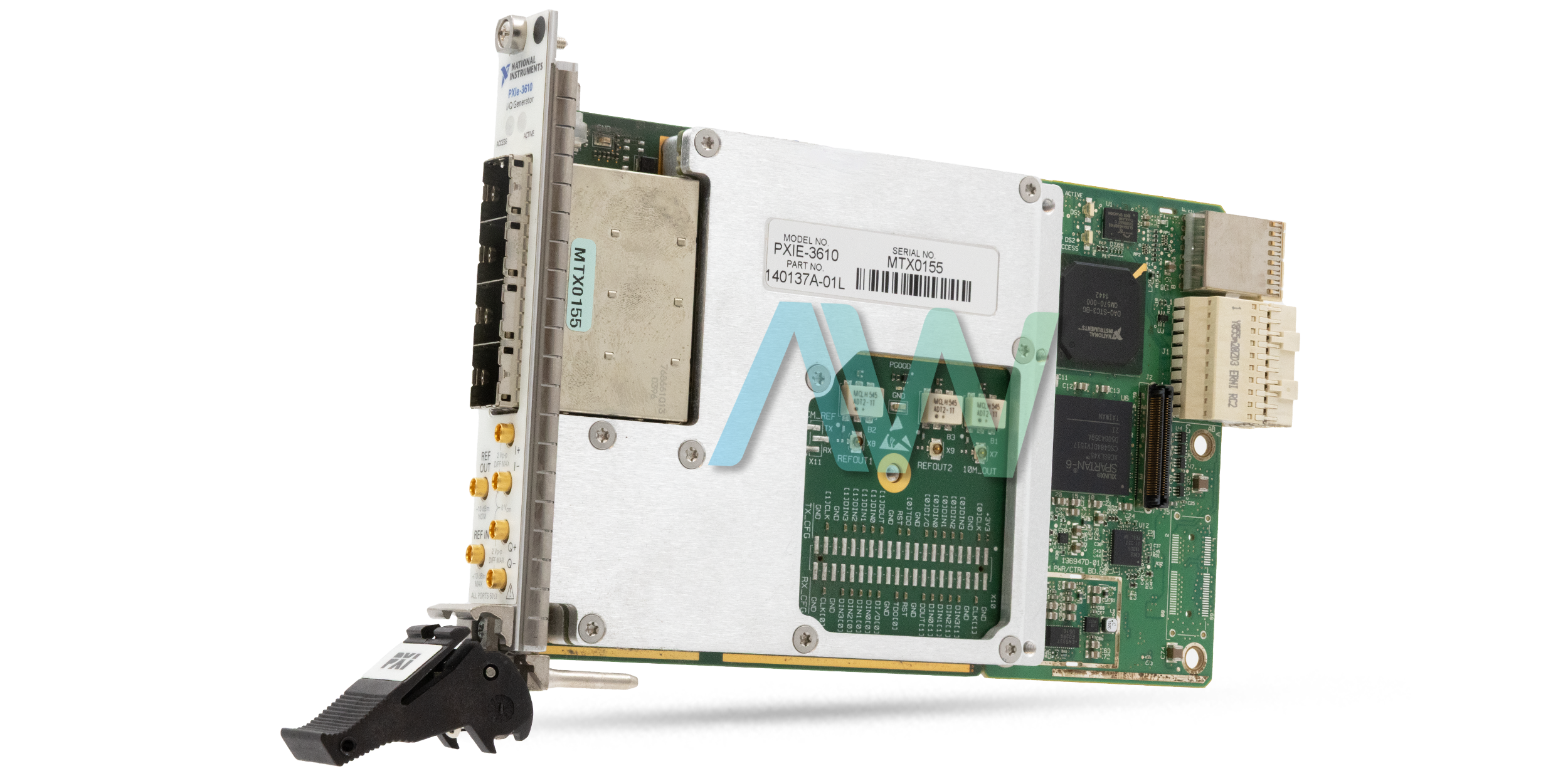

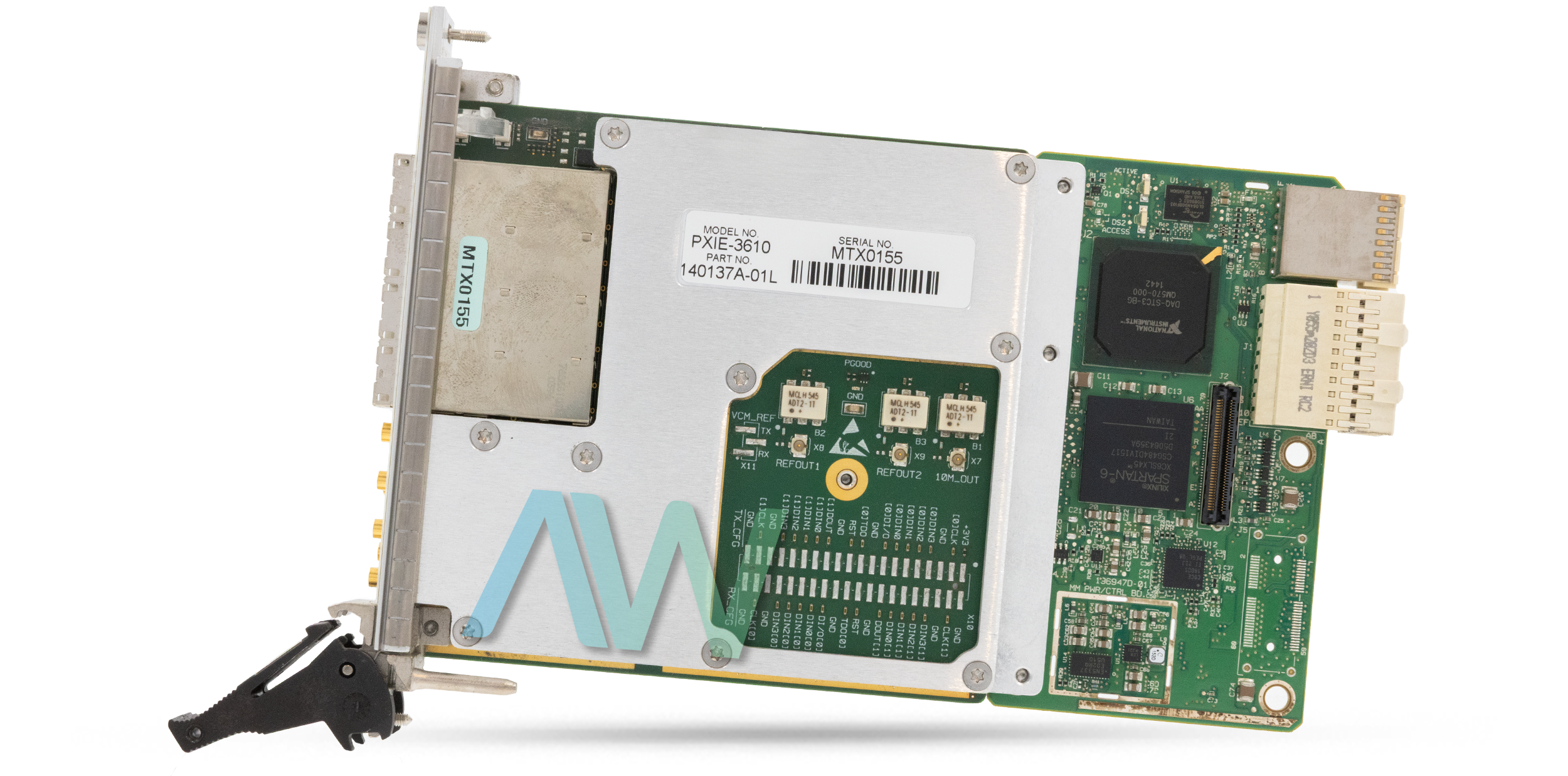

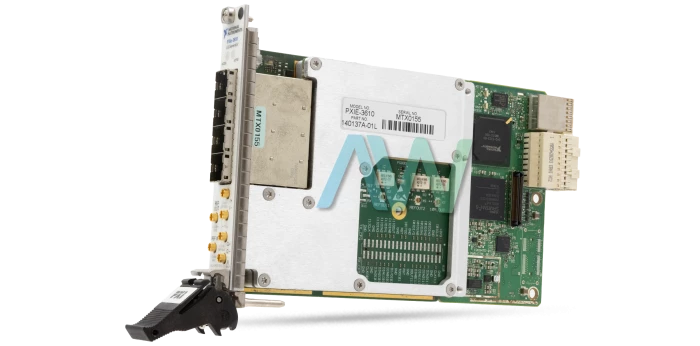

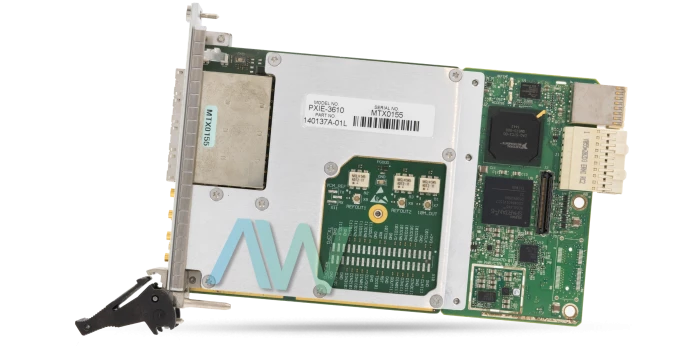

The PXIe-3610 (Part number:140137A-01L) is a Waveform Generator from National Instruments. This baseband waveform generator has sample rates of 2.94912 GS/s and 3.072 GS/s, with a DC offset of ±40 mV. As a PXI waveform generator, the PXIe-3610 is able to generate accurate arbitrary waveforms by utilizing data from a host or peer-to-peer instrument inside the PXI system.
The PXIe-3610 utilizes two different types of connectors. For the I or Q channels use a differential 100Ω MMPX connector, while both the Ref In and Ref Out have a 50Ω MMPX connector. The Ref In power of the PXIe-3610 is 0 to +13 dBm, and the Ref Out power is +10 dBm. The frequency of both the Ref In and Ref Out is 10 MHz. Additionally, the PXIe-3610 is equipped with two LED indicators that show the status of the digital-to-analog (DAC) converter that is located within the module.
The PXIe-3610 is one of the many modules that make up the mmWave transceiver system (MTS). The MTS is a modular collection of gear that may be utilized for a wide range of tasks- including channel sounding and the development of real-time two-way communication systems.The radio heads of the mmWave transceiver system are modular, and they may be exchanged for alternative front ends to study a variety of frequencies using the same baseband hardware and software.
The PXIe-3610 has differential I and Q outputs, and can be used in conjunction with the upconverter / downconverter module PXIe-3620 by connecting to its differential I and Q connectors. The front panel of the PXIe-3610 includes 4 digital connectors for the I/Q data. These connectors must be connected to the PXIe-7902, which is a 24 channel high speed serial instrument.
| Model | PXIe-3610 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 140137A-01L |
| Type | Waveform Generator |
| DC Offset | ±40 mV |
| Second harmonics | -60 dBc |
| Third harmonics | -65 dBc |
| Bandwidth | DC to 1GHz (Per I or Q), 2 GHz (Complex) |
| Connector Types | 100Ω MMPX, 50Ω MMPX |
| Recommended For | mmWave Transceiver System |
| PXIe-3610 Manual | Getting Started Guide and PDFs available for download |
Associated part numbers for PXIe-3610:
National Instruments PXIe-3610 Frequently Asked Questions
Question: What does it mean when the ACTIVE LED is blinking yellow on the PXIe-3610?
Answer: If the ACTIVE LED light is blinking yellow, it indicates that the module is currently being configured.
Question: What is the noise density of the PXIe-3610?
Answer: The noise density of the PXIe-3610 is -155 dBm/Hz
Question: What is the sample rate of the PXIe-3610?
Answer: The PXIe-3610 has a sample rate of 3072 MS/s
