National Instruments 779063-01 Multifunction IO Module

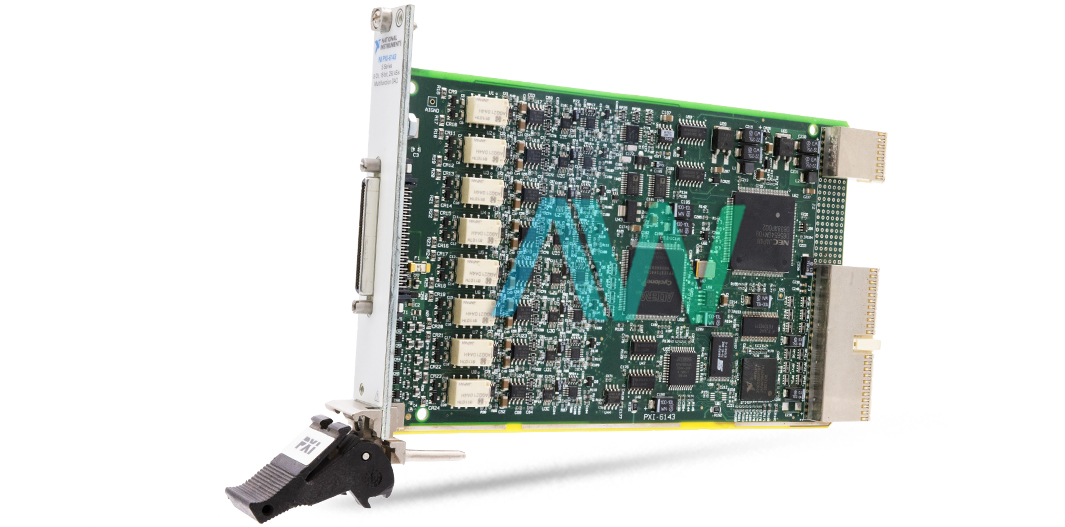

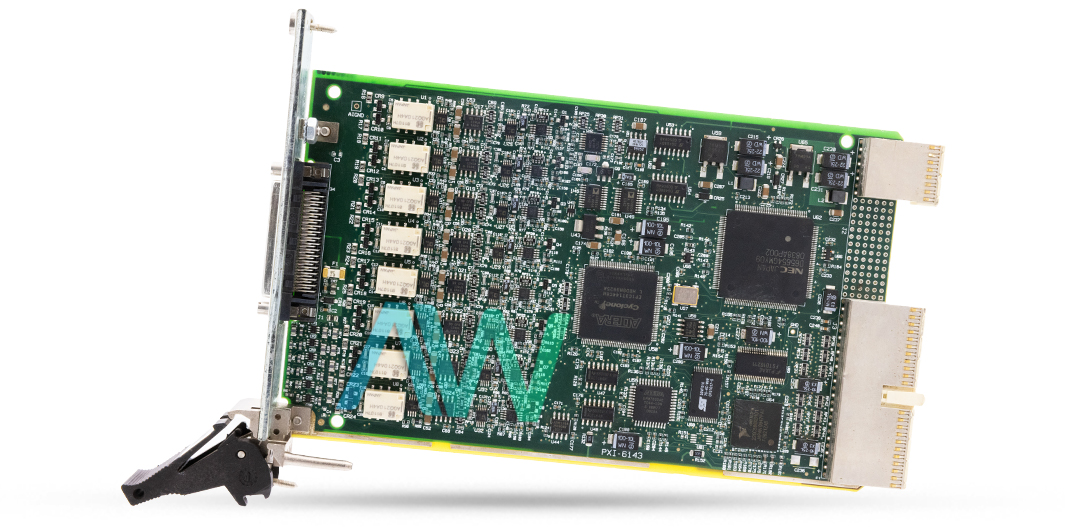

The part number 779063-01 from National Instruments is the identifying part number for the PXI-6143 Multifunction IO Module. This Module features 8 differential input channels and each channel is equipped with a 16-bit analog-to-digital converter (ADC), ensuring high-resolution signal acquisition. The input ranges are programmable, offering ±5 V to accommodate various signal levels. The maximum sampling rate of the 779063-01 is 250 KS/s and minimum of 0 S/s with an accuracy of ±50 ppm for internal time base, providing flexibility and high-speed data acquisition. It also features 2,046 samples of FIFO memory buffer size with various data transfer methods including the DMA, interrupts and programmed I/O.

The 779063-01 has physical dimensions of 15.5 cm by 10.6 cm (6.10 in. by 4.17 in.). It has a 68-pin VHDCI I/O connector that makes it suitable for this device to integrate into various digital devices. It operates at a temperature of 0 degrees Celsius to 50 degrees Celsius and operating relative humidity of 10% to 90%, noncondensing. Its storage temperature is -20 degrees Celsius to 70 degrees Celsius with a storage relative humidity of 5 to 95%, noncondensing.

This multifunction I/O module provides 8 digital I/O lines with these lines compatible with TTL/CMOS and can handle input voltages up to 2.2 to 5 V and output voltages of up to 0.4 V. The 779063-01 also features two 24 bits general-purpose counters/timers also compatible with TTL/CMOS. Its base clock frequency is 20 MHz with a base clock accuracy of ±0.01%. Its maximum source frequency is 20 MHz minimum source pulse duration of 10 ns, edge-detect mode and data transfer methods such as the DMA, interrupts, and programmed I/O.

The 779063-01 PXI Multifunction I/O Module is designed with operational shocks of 30 g peak, half-sine,11 ms pulse (Tested in accordance with IEC-60068-2-27) with operating random vibrations of 5 to 500 Hz, 0.3 grms and nonoperating vibrations of 5 to 500 Hz, 2.4 grms (Tested in accordance with IEC-60068-2-64). It is made to operate at power of 40 mA at +5 VDC, 140 mA at +3.3 VDC, 150 mA at +12 VDC and 80 mA at –12 VDC.
