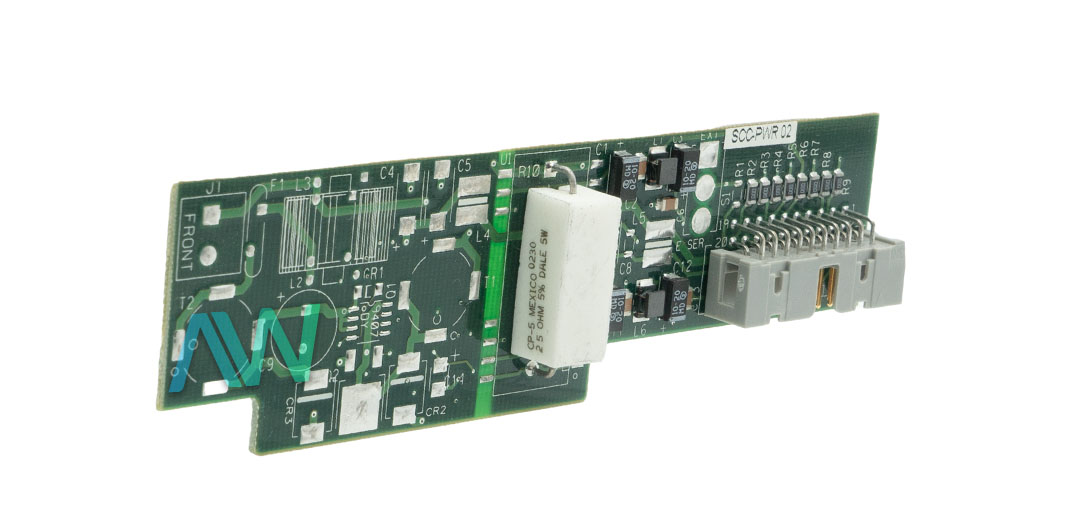

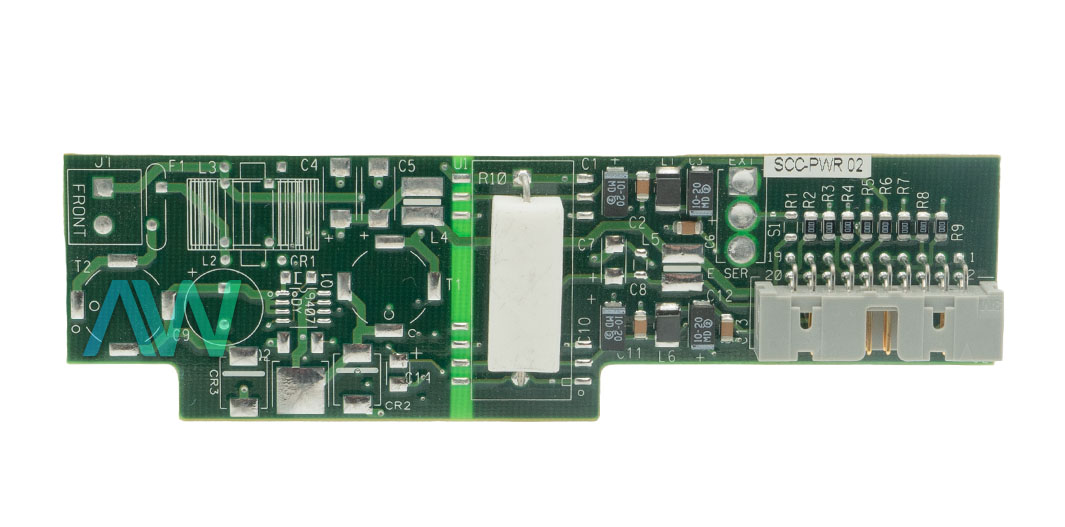

National Instruments SCC-PWR02 Power Supply Board

The SCC-PWR02 (Part Number: 183971-02) is a Power Supply Board from National Instruments. This model is used to fulfill the power needs of SCC and SC modules. Data acquisition systems are used to measure different phenomenon. DAQ systems are used to measure current, voltage, pressure, sound and temperature. SC and SCC modules offer portable and modular signal conditioning to these systems. The SC and SCC carriers condition a variety of digital I/O signals. These modules also condition analog I/O signals. The current input value of this SCC-PWR02 module is 1 A (Ampere) maximum.

The SCC-PWR02 Power Supply Board is a two-part system. This Power Supply Board consists of a desktop power supply and a filtering component. The desktop power supply is called PS01. The PS01 is a 15W switching supply. This switching supply is powered by Alternating Current. The PS01 has a range of 90 VAC – 264 VAC (Alternating Current).  The filtering component is inside the carrier enclosure. The NI device is equipped with removable screw terminal or minithermocouple connector and a 20-pin right-angle male connector.

The SCC-PWR02 provides a +5 VDC output voltage or 1 A output current. The other values of the voltage output of this Power Supply Board are -15 VDC and 15 VDC. The other current output values are - 0.3 Amperes and + 0.3 Amperes. The maximum analog power available for the NI SCC-PWR02 is 8.74 Watts and its maximum digital power is 6.97 Watts. The device has AC input voltage and frequency ranges of 100 to 240 VAC, and 47 to 63 Hz respectively. It provides different maximum digital power for the SC-2350. The value of the maximum digital power for the SC-2350 is 6.89 Watts due to the TEDS (Transducer Electronic Data Sheets) circuitry of the SC-2350.

The SCC-PWR02 measures 6.1 x 3.3 x 1.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 40 °C and –20 to 80 °C respectively, and a non-condensing relative humidity range of 10 to 90%. The NI device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 3121-1, UL 61010C-1, and CAN/CSA C22.2 No. 1010.1.

ModelSCC-PWR02
ManufacturerNational Instruments
Part Number183971-02
TypePower Supply Board
Input90 to 264 VAC, 1 A maximum
Output+5 VDC, 1 A
±15 VDC, ±0.3 A
Dimensions3.5 by 1.2 by 0.7 in.
WarrantyThree Year Warranty
SCC-PWR02 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-PWR02 Frequently Asked Questions



Question: What are the power cord options for the SCC-PWR02?



Answer: The SCC-PWR02 has the following power cord options: U.S. 120 VAC (Part Number: 763000-01), Japan 100 VAC (Part Number: 763000-01), United Kingdom 240 VAC (Part Number: 763064-01), Swiss 220 VAC (Part Number: 763065-01), Australian 240 VAC (Part Number: 763066-01), Universal Euro 240 VAC (Part Number: 763067-01), and North American 240 VAC (Part Number: 763068-01).



Question: How do I install the PS01 part of the SCC-PWR02?



Answer: The user can install the PS01 part of the SCC-PWR02 by plugging the 6-position connector into connector J25 on the SC-2345/2350.



Question: Does the PS01 part of the SCC-PWR02 have short-circuit protection?



Answer: Yes, the PS01 part of the SCC-PWR02 has short-circuit protection.
