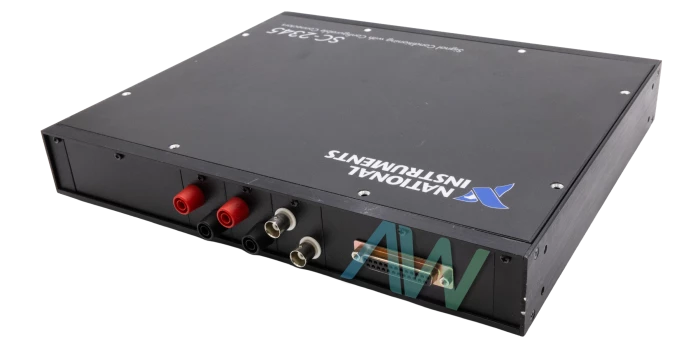

SC-2345 National Instruments Shielded Carrier | Apex Waves | Image

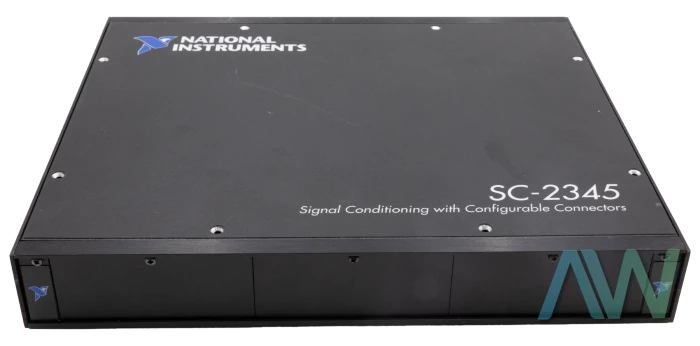

SC-2345 National Instruments Shielded Carrier | Apex Waves | Image
SC-2345 New
SC-2345 | Legacy, Refurbished and New Surplus

SC-2345

4.5/5 | 13 ratings

Modular Systems > National Instruments > SCC

Part Number SC-2345
Manufacturer/Brand National Instruments
Description: SC-2345, 16 Analog I/O, 18 Digital I/O, 20-Pin Connectors, Shielded Carrier
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

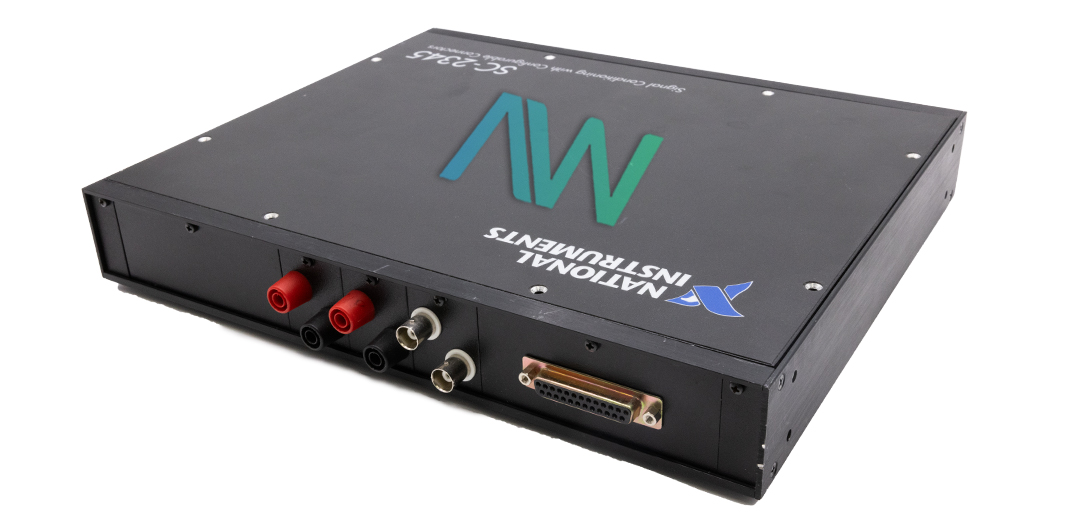

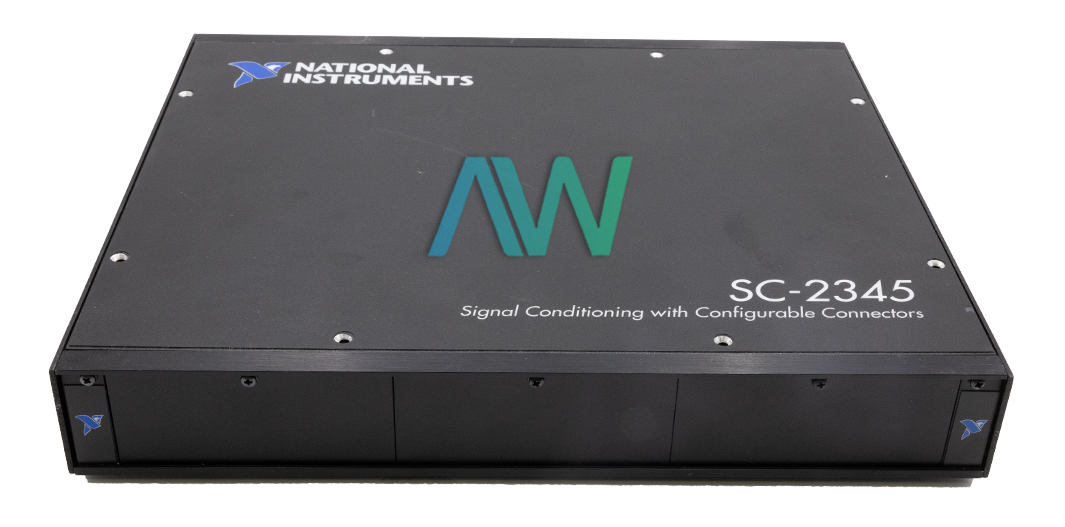

National Instruments SC-2345 Shielded Carrier

The SC-2345 (Part Numbers: 777458-01, 777458-02, 777458-03, 777722-01, 777722-02, 777722-03, 778018-01, 778018-02, 778018-03) is an efficient Shielded Carrier from National Instruments. This carrier comes equipped with the capability to transfer signals to and from DAQ devices, including a 68-pin E/M DAQ device. The NI SC-2345 Signal Conditioning Connector Block offers various useful features, such as low-noise, a rugged build, and easy to use signal conditioning. The signal conditioning feature is separate for each channel. The model also incorporates 42 screw terminals, which enables the model for direct connectivity to a DAQ device and boosts the operational capabilities of the NI SC-2345 Signal Conditioning Connector Block. For digital I/O connections, 8 20-pin connectors are provided with the module. Additionally, 16 20-pin connectors are available for analog I/O connections.

The SC-2345 is run using the NIDAQ driver software (version 7.4 or later) which is compatible with software packages/application development environments such as LabVIEW or LabWindows/CVI. It can be configured using the Measurement & Automation Explorer (MAX) tool.

The NI SC-2345 supports various modules, which includes analog I/O and digital I/O SCC modules. It offers the onboard output voltage reference of 5 V ± 2.5 mV. The long-term stability of the SC-2345 Carrier is ±15 ppm per 1000 hours and the peak-to-peak value is four micro-volts. The NI SC-2345 Signal Conditioning Connector Block comes with configurable connectors. The user can complete the required setting in real time to fulfill various requirements.  It allows the user to maximize the flexibility for I/O with the help of panelettes. The SC-2345 Carrier is portable, since it only weighs around 1.51 kilograms and has the physical dimensions of 10.00 W x 12.11 L x 1.93 D inches. This model is suitable for use in laptop and desktop applications. The model’s package also includes a rack mount and stack mount accessories, so the user can mount the NI SC-2345 for their desired application. The rack mount option supports the standard 19-inch rack.

The NI device has recommended operating and storage temperature ranges of 0 to 50 °C and –20 to 70 °C respectively, and a non-condensing humidity range of 10 to 90% RH.

ModelSC-2345
ManufacturerNational Instruments
SeriesSCC
TypeShielded Carrier/SCC Block
Output Voltage5.000 V ±2.5 mV
Digital Input and Output I/O ConnectionsEight, 20-pin connectors
Analog Input and Output I/O Connections16, 20-pin connectors
WarrantyThree Year Warranty
SC-2345 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SC-2345:

184872B-02, 184872B-03, 184872C-01, 184872C-02, 184872C-03, 184872D-01, 184872D-02, 184872D-03, 186474A-01, 186474B-01, 186474C-01, 186723A-01, 186723A-02, 186723A-03, 186723B-01, 186723B-02, 186723B-03, 186723C-01, 186723C-02, 186723C-03, 777458-01, 777458-02, 777458-03, 777722-01, 777722-02, 777722-03, 778018-01, 778018-02, 778018-03, 183684B-01, 183684C-01, 183684D-01, 183687A-01, 183687A-02, 183687A-03, 183687B-01, 183687B-02, 183687B-03, 183687C-01, 183687C-02, 183687C-03, 184865A-01, 184865B-01, 184872A-01, 184872A-02, 184872A-03, 184872B-01

National Instruments SC-2345 Frequently Asked Questions



Question: What is the difference between the part numbers of the SC-2345?



Answer: The difference between the many part numbers are the following distinctions of the SC-2345777458-01- with SCC-PWR01, 777458-02 - with SCC-PWR02, 777458-03 - with SCC-PWR03, 777722-01 - with Configurable Connectors - PWR01, 777722-02 - with Configurable Connectors - PWR02, 777722-03 - with Configurable Connectors - PWR03, 778018-01 - with Configurable Connectors (FOR DAQPAD) -PWR01, 778018-02 - with Configurable Connectors (FOR DAQPAD)-PWR02, 778018-03 - with Configurable Connectors (FOR DAQPAD)-PWR03.



Question: How can I set up a trigger to start an acquisition using the PFI connection on a SC 2345 connector block?



Answer: The trigger on a SC 2345 connector block is located on pin 37.



Question: How do I provide power to the SC 2345 National Instruments from an external source?



Answer: The SC 2345 National Instruments requires a SCC-PWR03 module to be powered from an external power supply.



Question: How can I isolate my digital signals and specifically my signal ground for encoders using the SC-2345 NI



Answer: The SC-2345 NI connector block's digital ground pin is directly connected to the DAQ card and the digital grounds on each of those is tied to chassis ground.

  SC-2345 PDF Manuals


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: SS-2345, SF-2345, SC-E345, SC-2R45, SC-234R

SC-2345



SC-2345
4.5/5 | 13 ratings

SC-2345, 16 Analog I/O, 18 Digital I/O, 20-Pin Connectors, Shielded Carrier

In Stock | Ships Today
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

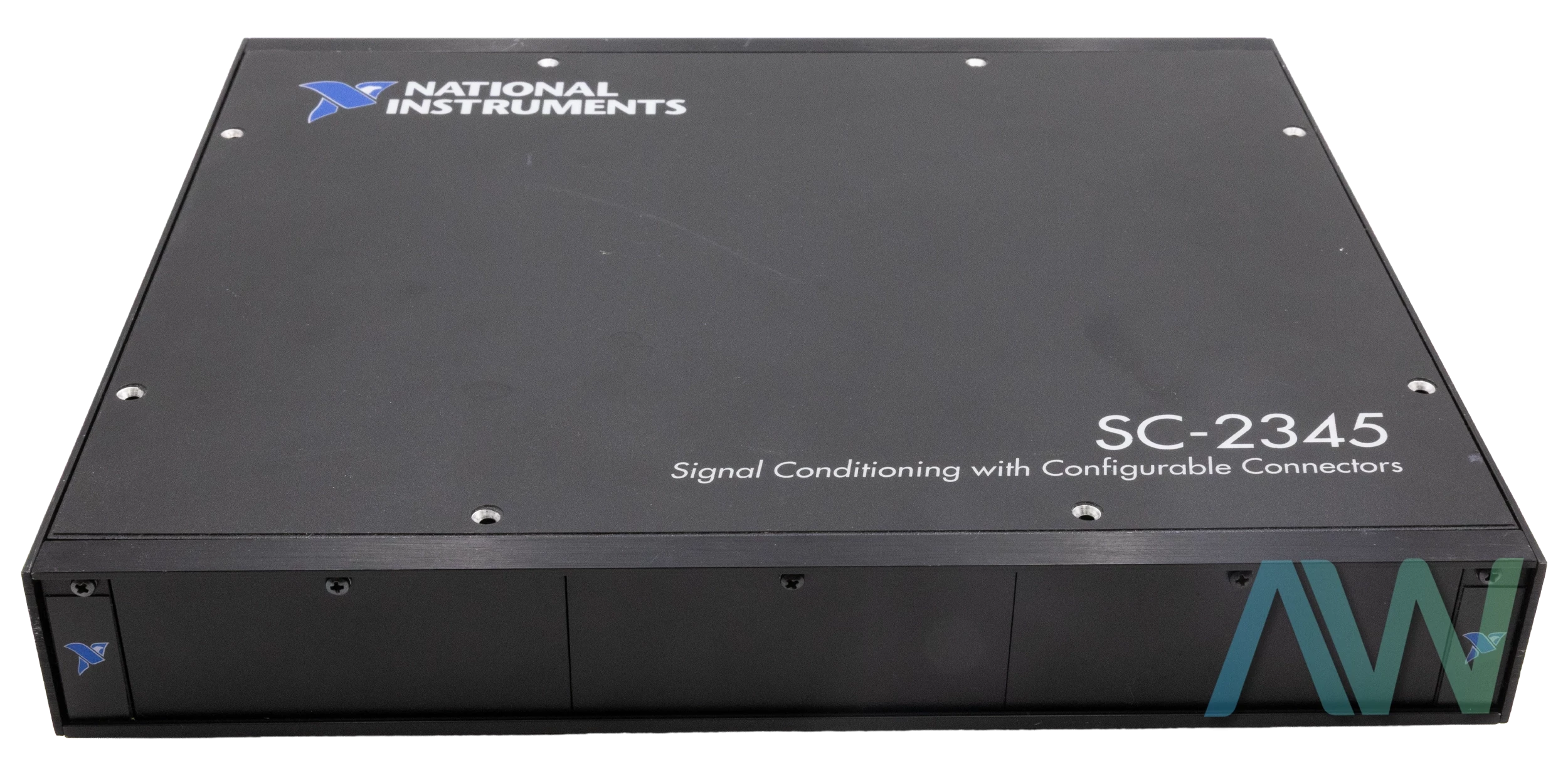

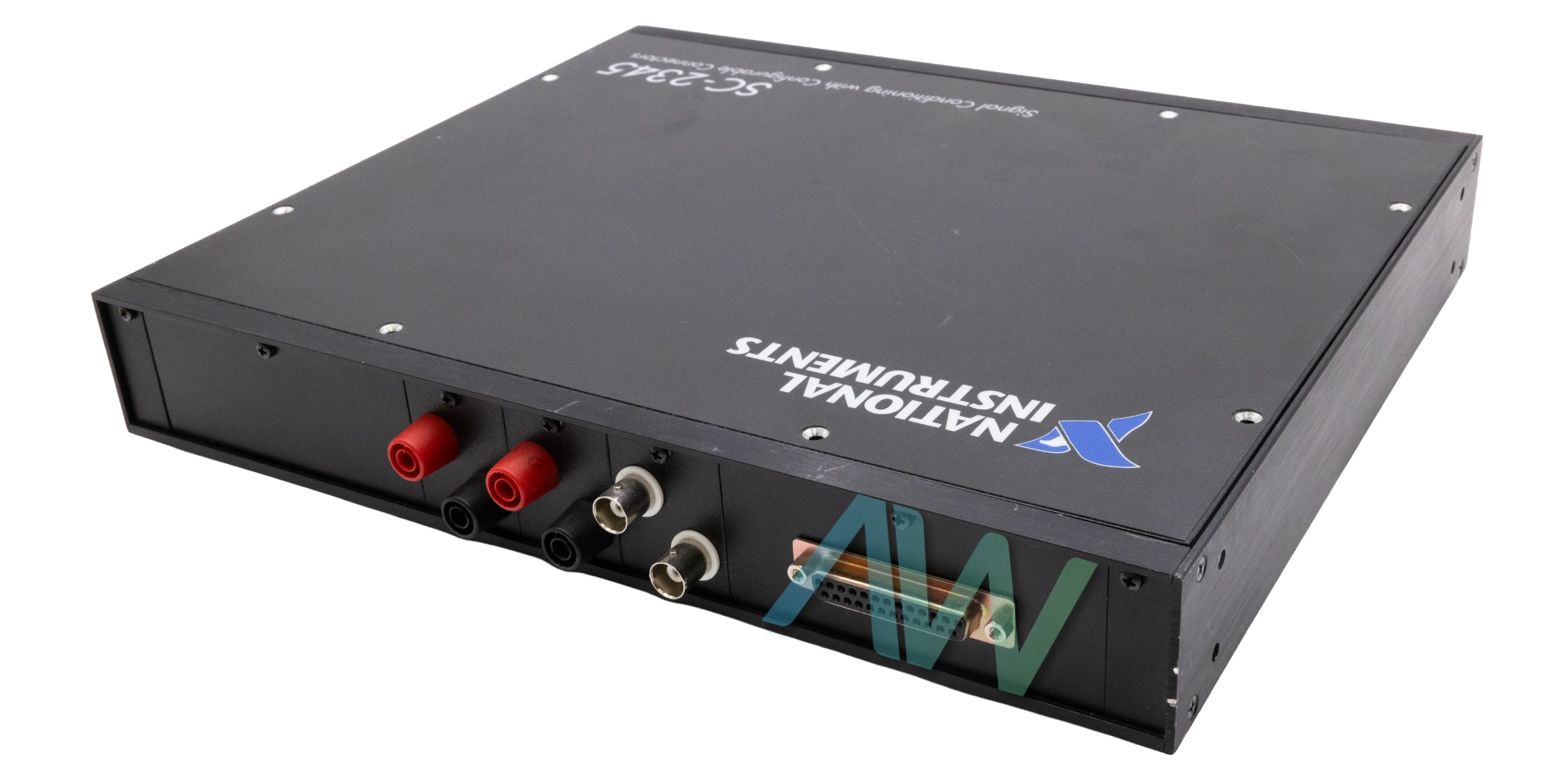

National Instruments SC-2345 Shielded Carrier
