PCI-232-2

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCI-232-2
Manufacturer/Brand National Instruments
Description PCI-232/2 2-Port Serial Interface
In Stock | Ships 2-4 Weeks

Speak to a sales representative for pricing & lead time:


National Instruments PCI-232/2 Serial Interface

The National Instruments PCI-232/2 (Part Number: 777642-02) is a 2-port, RS-232 Serial Interface. This model is fully compatible with PCI Specs Ver 2.2 standard and supports both 32-bit and 64-bit PCI bus, as well as 3.3 V and 5 V connector keys. This 2-port RS232 PCI Card comes with a DB-9 male connector with standard pin assignments for RS232 and RS485 connectors.

 The NI PCI-232/2 offers up to 115.2 kb/s maximum transfer rate, 64 B FIFO, and 15 kV Line ESD protection. This Multi-2/PCI 232 Serial Interface operates in the hand-shaking mode with RS-232 Full-duplex bus transceivers, RS-232 1 Driver per line, and RS-232 1 Receiver per line. With this interface card, it is possible to use any Windows-based personal computer since it supports Windows OS (up to XP). In addition, the NI PCI-232/2 supports the Linux operating system.

This Serial Interface can work with a broad range of DB9M/DB25M serial devices. Because of its efficient performance and reliability, the PCI-232/2 is an ideal choice in various fields, including: automatic postal machines, telecommunication industry, power distribution control systems, and more.

Another notable feature of the NI PCI-232/2 is its plug-and-play compatibility. Thus, the user can have this module installed and configured automatically. This module is available in three other versions, which are: a 4-port model, an 8-port model, and a 16-port version. This board is designed to work with the RS-232 communication protocol and can be utilized for up to 50 ft distance serial communications.

PCI-232/2 Obsolete Status has been announced by National Instruments, but it will still be available for purchase and repairs by Apex Waves.

ModelPCI-232/2
ManufacturerNational Instruments
Part Number777642-02
TypeSerial Interface
Ports2
I/O ConnectorsDB-9 male
FIFO Size64 Bytes
Dimensions4.2 x 5.6 in.
Driver SoftwareNI-Serial
WarrantyOne Year Warranty
PCI-232/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-232/2 Frequently Asked Questions



Question: What are the power requirements for the PCI-232/2?



Answer: The power requirements for the PCI-232/2 are 50 mA typical and 100 mA maximum for +5 VDC.



Question: Which type of I/O connectors are on the NI PCI-232/2?



Answer: The NI PCI-232/2 has DB-9 male I/O connectors.



Question: What is the maximum transfer rate of the PCI-232/2?



Answer: The maximum transfer rate of the PCI-232/2 is 115.2 kb/s.

PCI-232-2 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-232/2
Part Number:777642-02
Type:Serial Interface
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PCI-232-2

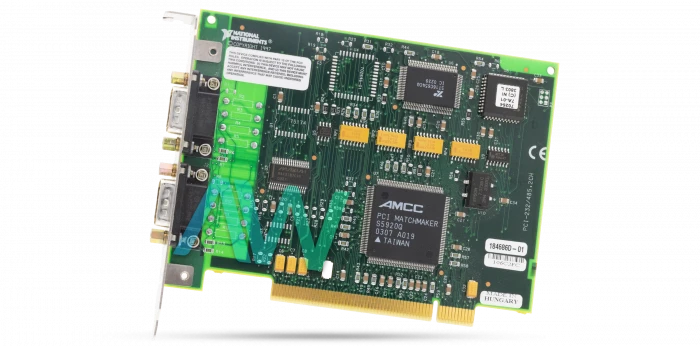

PCI-232/2 National Instruments Serial Interface | Apex Waves | Image

Main Image

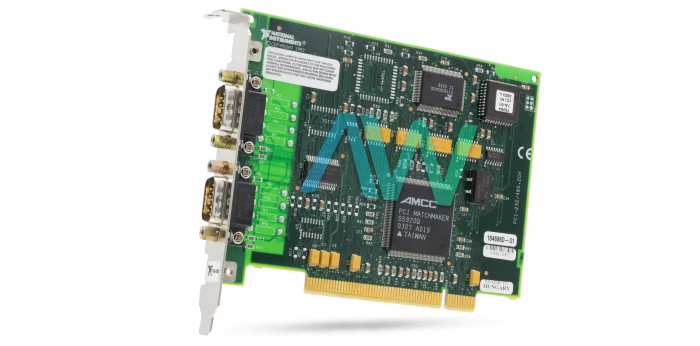

PCI-232/2 National Instruments Serial Interface | Apex Waves | Image
