PCI-8430-16

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCI-8430-16
Manufacturer/Brand National Instruments
Description PCI-8430/16 16-Port Serial Interface Device
In Stock - Ships Today
In Stock | Ships Today

Speak to a sales representative for pricing & lead time:


National Instruments PCI-8430/16 Serial Interface Device

The PCI-8430/16 (Part Number: 779645-01) is a high-performance, 16-port serial interface for fast communication with RS232 gadgets. High-performance RS232 Serial Interface Devices are additionally accessible in two-, four-, and eight-port adaptations. The NI PCI-8430/16 comes with flexible baud rates for exchange of information superior to 1,000 kb/s to inside 1 percent precision for not common baud rates and 0.01 percent of precision for the most basic baud rates. By using the newest DMA motor, the user can utilize their CPU at its minimum while still accomplishing high throughput.  With hyper-threading and multicore processor similarity, the user can work with the latest PC innovation for bigger velocities and more productivity. The NI PCI-8430/16 device is equipped for keeping up full bus stacks over every one of the 16 ports at the same time. NI also brings simple to use, ground-breaking programming that diminishes the improvement time for frameworks that utilization serial correspondence with the PCI-8430/16. The PCI-8430/16 RS232 Serial Interface Device also includes new coordinated breakout links that kill the breakout box utilized on the legacy PCI-8420/16.

This model does not have a supported power input or any type of isolation available. The FIFO size is 128 Bytes and there are 68-pin VHDCI front panel connectors on the National Instruments PCI-8430/16 Serial Interface Device. The FIFO settings on this model are adjustable, ensuring the user can maximize the features of the PCI-8430/16. There is also an RS-232 transceiver state and a get interface type feature.

PCI-8430/16 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-8430/16
ManufacturerNational Instruments
Part Number779645-01
TypeRS232 Serial Interface Device
StandardRS232
IsolatedNo
Maximum Baud Rate1000 kbits/s (1 Mbps)
Connector Type68-pin VHDCI
FIFO Size128 Bytes
Power Requirements+5 VDC -- 935 mA
Dimensions4.2 in.× 6.9 in.
Weight0.22 lb.
Software DriverNI-Serial
WarrantyOne Year Warranty
PCI-8430/16 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

PCI-8430-16 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-8430/16
Part Number:779645-01
Type:Serial Interface
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PCI-8430-16

PCI-8430/16 National Instruments Serial Interface | Apex Waves | Image

Main Image

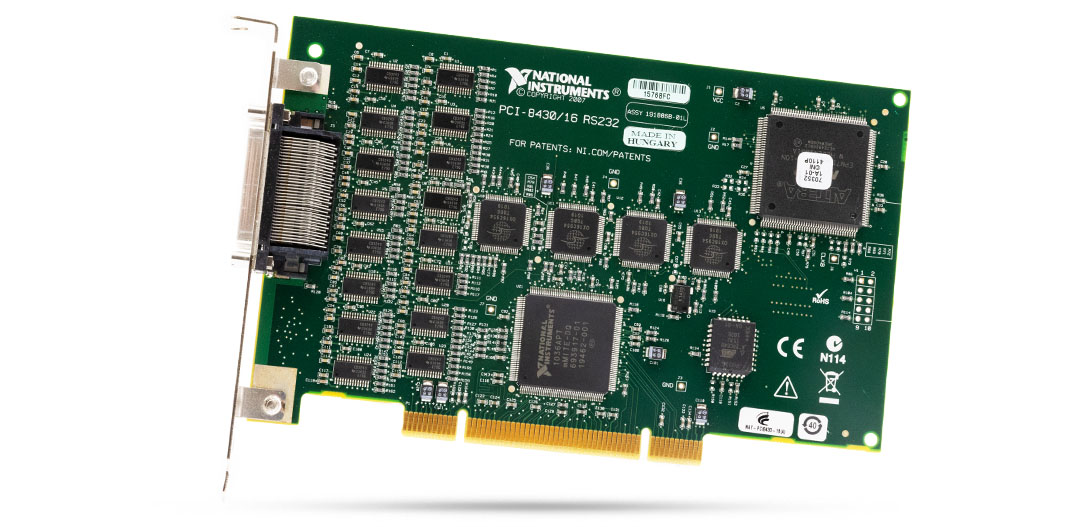

PCI-8430/16 National Instruments Serial Interface | Apex Waves | Image
