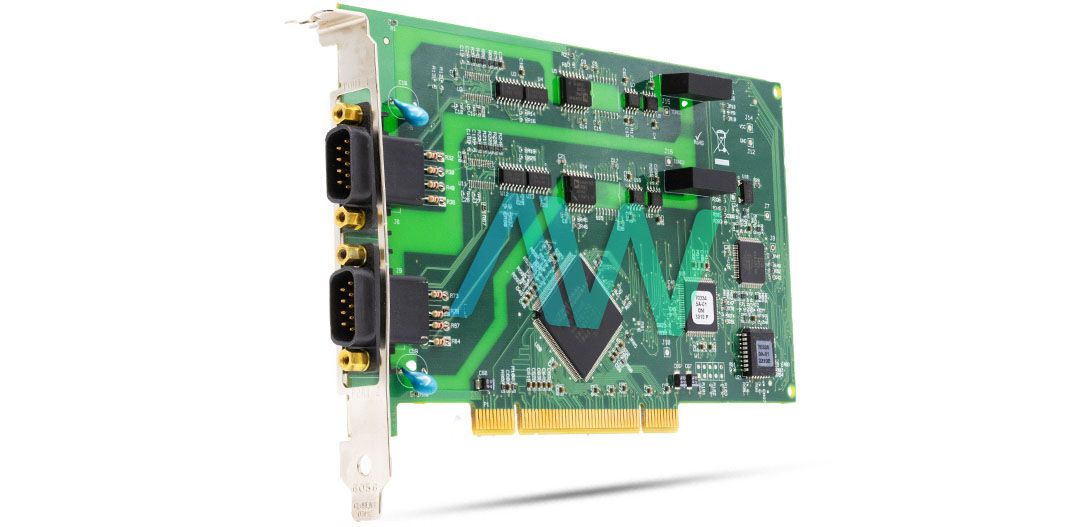

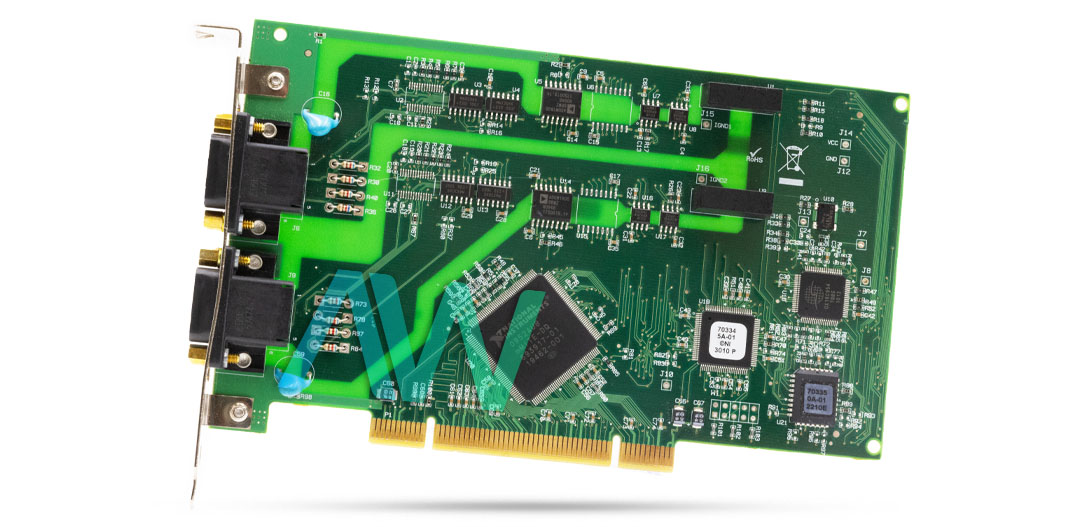

National Instruments PCI-8433/2 Serial Instrument Control Device

The PCI-8433/2 (Part Number: 779144-01) can communicate with both RS485 and RS422 devices. As a matter of course, the RS485 interface utilizes the automatically controlled predisposition resistors, which are associated with the signals of each port to keep up a known state when the transport is sitting still. The estimations of the automatically controlled inclination resistors have been ascertained with the end goal that there is a voltage of no less than 200 mV between the differential match. As opposed to utilizing the automatically controlled predisposition resistors, the user can stack custom estimations of resistors into the attachments before every connector or utilize outer inclination resistors. If these resistors are introduced, ensure the automatically controlled inclination resistors are debilitated. The RS-485 interface can automatically control the locally available (non-socketed) inclination resistors. Of course, these resistors are empowered amid typical gadget tasks and impaired amid USB suspend. The NI-Serial programming utilizes automatic control codes and the Device-Low-Control Windows work for programming the RS-485 predisposition resistor mode.

The RS-485 interface that comes with the National Instruments PCI-8433/2 underpins four methods of equipment handset control. The user can utilize equipment handset control to empower and debilitate transmitters and beneficiaries with the goal that they work on various transport topologies. On the other hand, the included RS-422 utilizes adjusted (or differential) transmission lines. Adjusted transmission lines utilize two transmission lines for each signal.

PCI-8433/2 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-8433/2
ManufacturerNational Instruments
Part Number779145-01
TypeRS485/RS422 Serial Interface Device
StandardRS-485/RS-422
Number of Ports2
IsolatedYes
Maximum Baud Rate3000 kbits/s (3 Mbps)
Connector TypeDB-9 Male
FIFO Size128 Bytes
Power Requirements+5 VDC -- 380 mA
Dimensions4.2 in.× 6.9 in.
Weight0.23 lb.
Software DriverNI-Serial
WarrantyOne Year Warranty
PCI-8433/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
