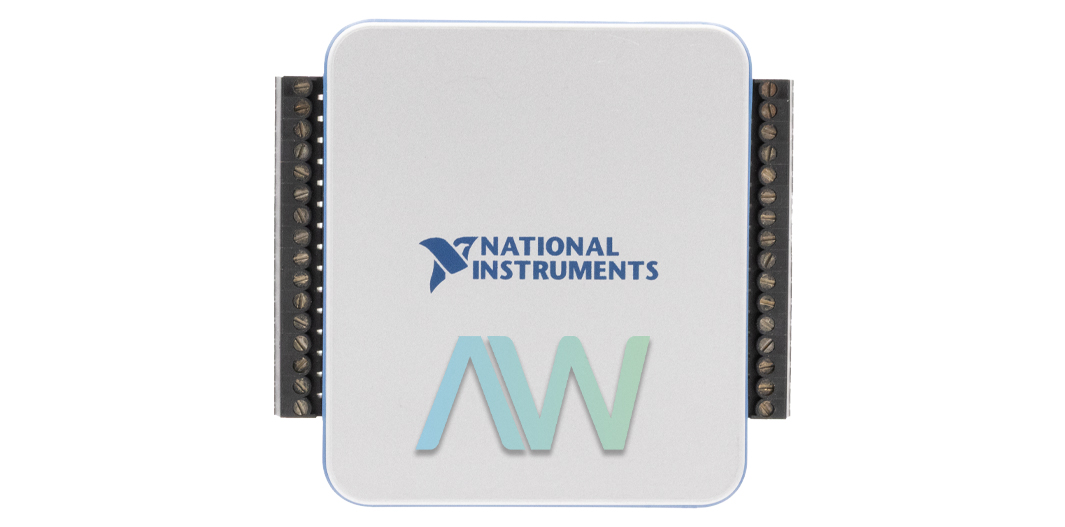

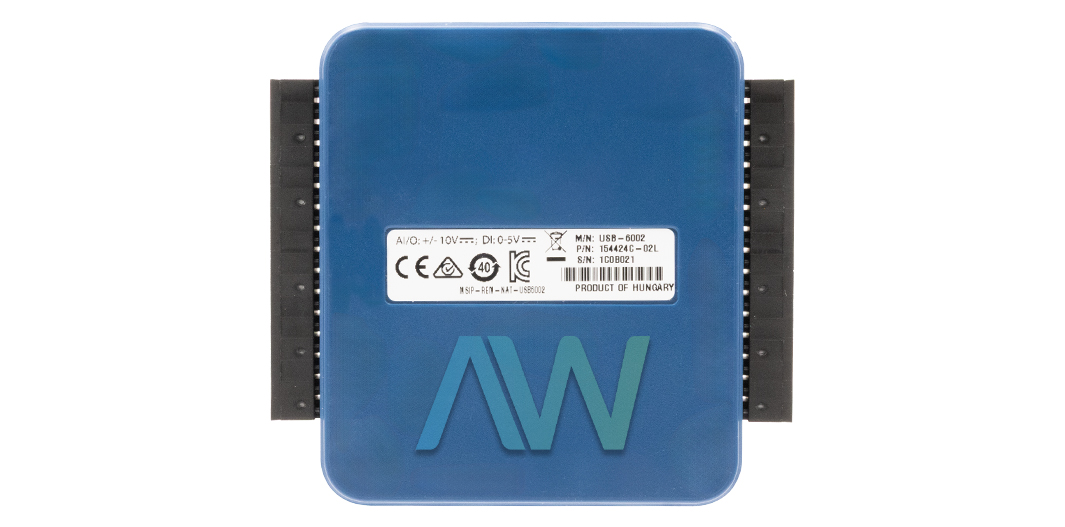

National Instruments USB-6002 Multifunction I/O Device
The USB-6002 is a Multifunction I/O Device. National Instruments is the leading company in selling electronics equipment that manufactures the NI USB-6002 device. The part number that corresponds to the USB-6002 device is 782606-01. The USB-6002 device comes from the family of Multifunction I/O Devices by National Instruments. The NI USB-6002 can be installed and programmed with the NI-DAQmx driver software. The USB-6002 device is configured as a data acquisition module. A high-speed micro USB cable is required for making connections between the USB-6002 device and other devices.
The National Instruments USB-6002 Multifunction I/O Device is a low-cost device. The USB-6002 device supports multiple functions with analog and digital inputs/outputs. The NI USB-6002 can be utilized for simple data logging and portable measurements. The USB-6002 device can be incorporated in academic laboratory experiments. The NI USB-6002 Multifunction I/O Device includes a lightweight mechanical enclosure. The USB-6002 can be used in a portable manner since it can easily be bus powered.
The NI USB-6002 Multifunction I/O Device provides terminal connections for the sensors and signals. The USB-6002 device is manufactured with 13 digital I/O lines. The NI USB-6002 is equipped with eight analog input channels and two analog output channels. The sampling rate for the input channels is 50 kS/s, while the sampling rate for the output channels is 5 kS/s. The USB-6002 device contains 16-bit ADC and DAC resolutions. The time-base frequency for the NI USB-6002 is 80 MHz. The NI USB-6002 Multifunction I/O Device is designed with a single timer with 32-bit resolution.
| Model | USB-6002 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782606-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 8 single-ended, 4 differential |
| Maximum Sample Rate | 50 kS/s |
| Analog Input Resolution | 16 bits |
| Front Connection Type | Screw Terminal |
| Dimensions | Without screw terminals: 2.97 in. × 3.40 in. × 0.93 in.With screw terminals: 3.67 in. × 3.40 in. × 0.93 in. |
| Weight | Without screw terminals: 2.93 oz.With screw terminals: 3.70 oz. |
| USB-6002 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for USB-6002:
USB-6002 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-BUS-POWERED-USB.PDF
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST--NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
DC3A9MARRAGE-RAPIDE-DES-PC3A9RIPHC3A9RIQUES-NI-USB-6001-6002-6003.PDF
GUIDE-D_INITIATION-DAQ-POUR-LES-PC3A9RIPHC3A9RIQUES-USB-ALIMENTC3A9S-PAR-BUS.PDF
GUIDE-D_INITIATION-DAQ-POUR-PCI-PCI-EXPRESS.PDF
MULTIFUNCTION-IO-PRODUCT-FLYER.PDF
NI-6002-DEVICE-SPECIFICATIONS.PDF
NI-USB-6001-6002-6003-LETTER-OF-VOLATILITY.PDF
NI-USB-6001-6002-6003-OEM-USER-GUIDE.PDF
NI-USB-6001-6002-6003-QUICK-START.PDF
NI-USB-6001-6002-6003-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
NI-USB-6001-6002-6003-USER-GUIDE.PDF
C3A0-LIRE-EN-PREMIER---GUIDE-DE28099INSTALLATION-DE-NI-DAQMX-ET-DES-PC3A9RIPHC3A9RIQUES-DAQ.PDF
