USB-6210 In Stock | Ships in 5-10 Days
USB-6210, Screw Terminal, 16 AWG to 28 AWG, 4 Digital I/O Channels, NI Multifunction I/O Device from the M Series
Need an Official Quote?

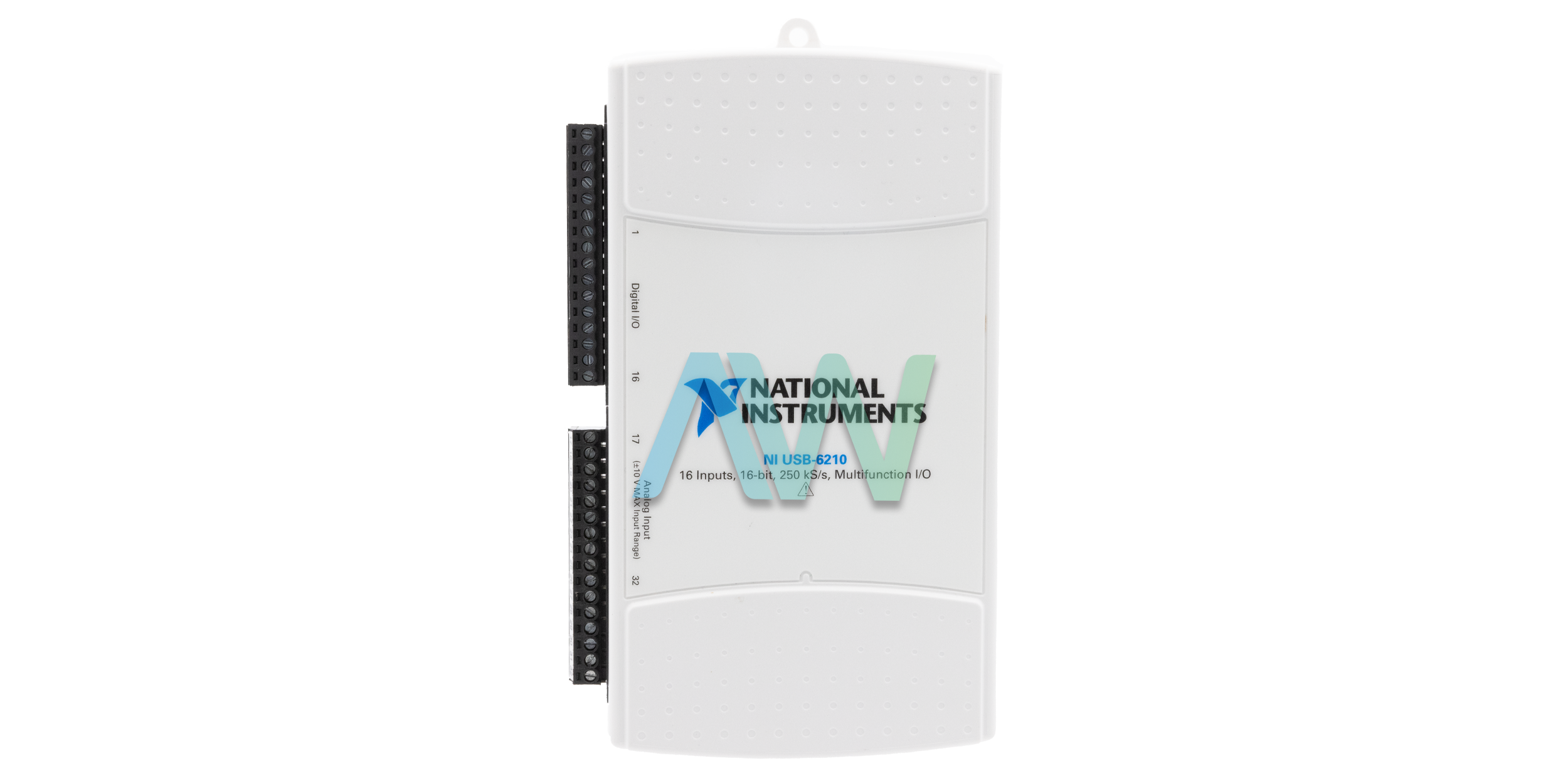

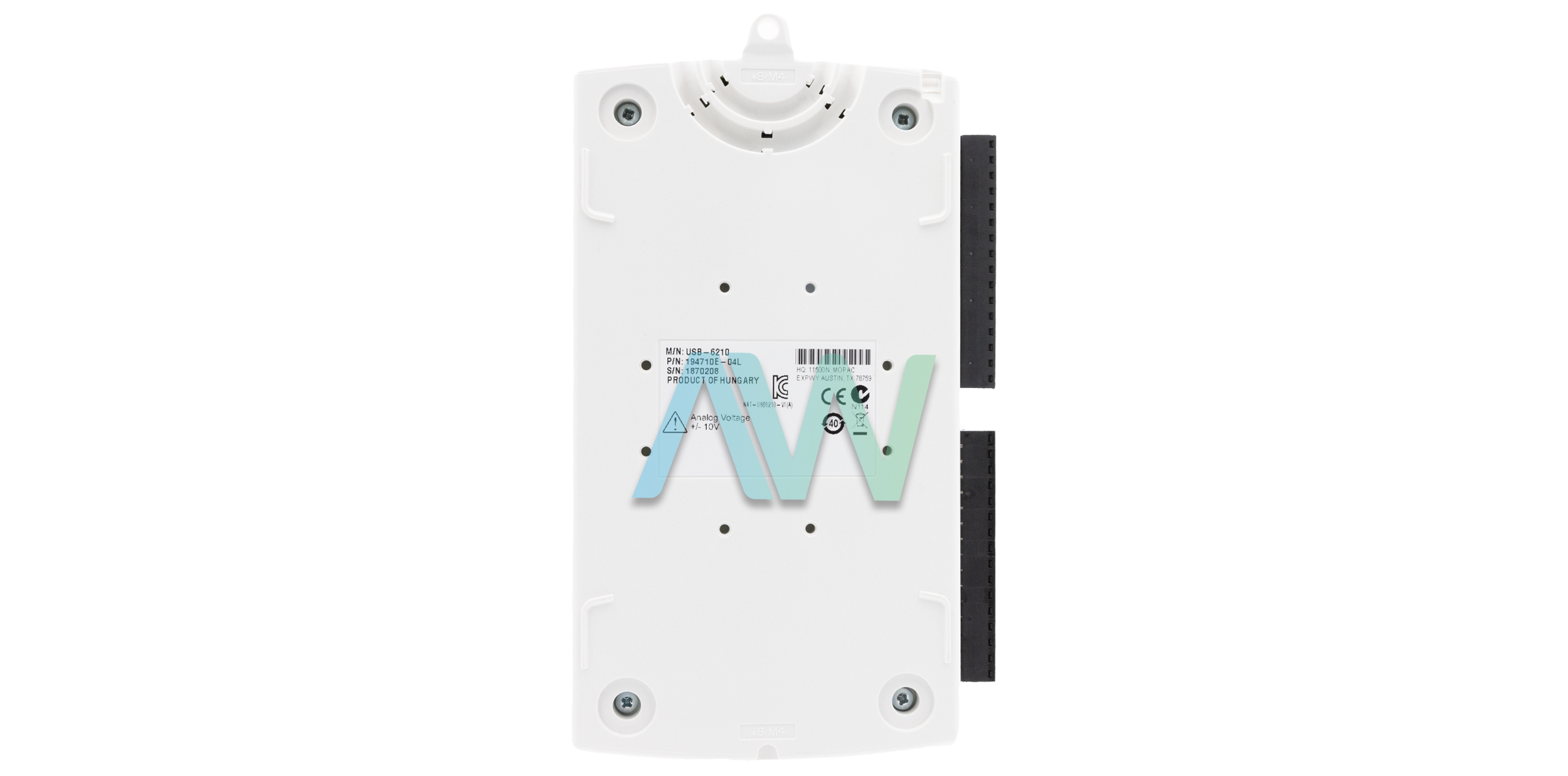

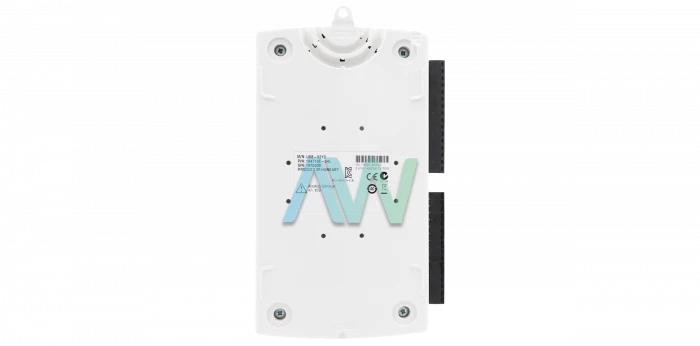

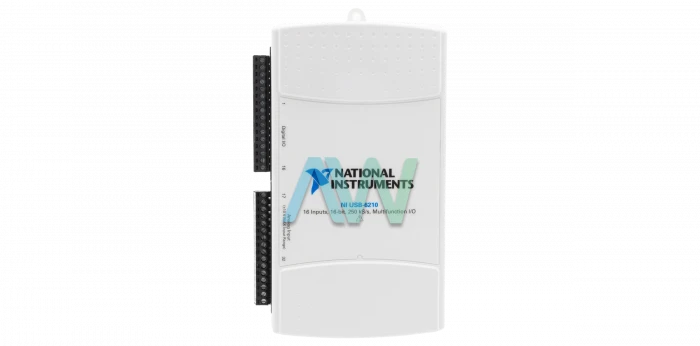

National Instruments USB-6210 Multifunction I/O Device
The USB-6210 (Part numbers 787936-01, 780103-01, 780124-01, and 779675-01) is a versatile USB Multifunction I/O Device from the M Series by National Instruments. An excellent choice for portable control, design, and test applications- the USB-6210 features 16 single-ended analog input channels that are configurable as 8 differential channels. These channels are designed with 16 bits of ADC resolution, paired with a sample rate of 250 kS/s. The I/O device also features 4 digital input channels and 4 digital output channels, offering high-speed data rates through a USB 2.0 bus interface.
Part number 780124-01 is the version of the NI USB-6210 that is equipped with Signal Express LE, while the 780103-01 is specifically designed for LINUX and MAC. Part numbers 787936-01 and 779675-01 are both standard variations of the device, with similar specifications. Activated and installed by using the NI-DAQmx driver, the USB-6210 is compatible with LabVIEW, Measurement Studio, and LabWindows/CVI software tools.
Two 16-position combicon I/O connectors are featured on the NI USB-6210, allowing for versatile connectivity with a wide range of applications. In addition, the device has a USB connector (series B) which has an input voltage of 4.5 V to 5.25 V when in a configured state. The screw terminals of the USB-6210 have a wiring of 16 AWG to 28 AWG, and a torque of 0.22 N · m to 0.25 N · m (2.0 lb · in. to 2.2 lb · in.).
Designed to comply with the electrical safety standards of IEC 61010-1, EN 61010-1, UL 61010-1, and CSA C22.2 No. 61010-1, the channel-to-earth ground of the NI USB-6210 should not exceed 11 V. Built for indoor use only, the multifunction I/O device has an operating temperature range of 0 ºC to 45 ºC. When not in use, the device can be safely stored in an even wider range of temperatures from -20 ºC to 70 ºC. For both operational and non-operational scenarios, it's recommended to utilize the NI USB-6210 within a non-condensing humidity level ranging from 10% to 90%. The NI USB-6210 has a weight of 206 grams (7.2 ounces) and measures 16.9 cm × 9.4 cm × 3.1 cm (6.65 inches × 3.70 inches × 1.20 inches).
| Model | USB-6210 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779675-01, 787936-01, 780103-01, 780124-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 16 single-ended, 8 differential |
| Maximum Sample Rate | 250 kS/s |
| Analog Input Resolution | 16 bits |
| Front Connection Type | Screw terminal |
| Dimensions | 6.65 in. × 3.70 in. × 1.20 in. |
| Weight | 7.2 oz. |
| Warranty | Three Year Warranty |
| USB-6210 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the USB-6210:
194710B-04, 194710C-04, 194710D-04L, 194710E-04L, 194710F-04L, 196203-04, 196203A-04L, 196203B-04L, 779675-01, 779802-01, 780103-01, 780124-01, 787936-01
National Instruments USB-6210 Frequently Asked Question
Question: What is the timing resolution and accuracy of the USB-6210?
Answer: The timing resolution of the USB-6210 is 50 ns, while the timing accuracy is 50 ppm of the sample rate.
Question: What is the input FIFO size of the USB-6210?
Answer: The USB-6210 has an input FIFO size of 4,095 samples.
Question: How many general purpose counters / timers does the USB-6210 have?
Answer: The USB-6210 has 2 general purpose counter / timers.
USB-6210 PDF Manuals
DAQ GETTING STARTED GUIDE FOR BUS POWERED USB.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI USB 621X DEVICE LABELS NOTE TO USERS.PDF
NI USB 621X LETTER OF VOLATILITY.PDF
