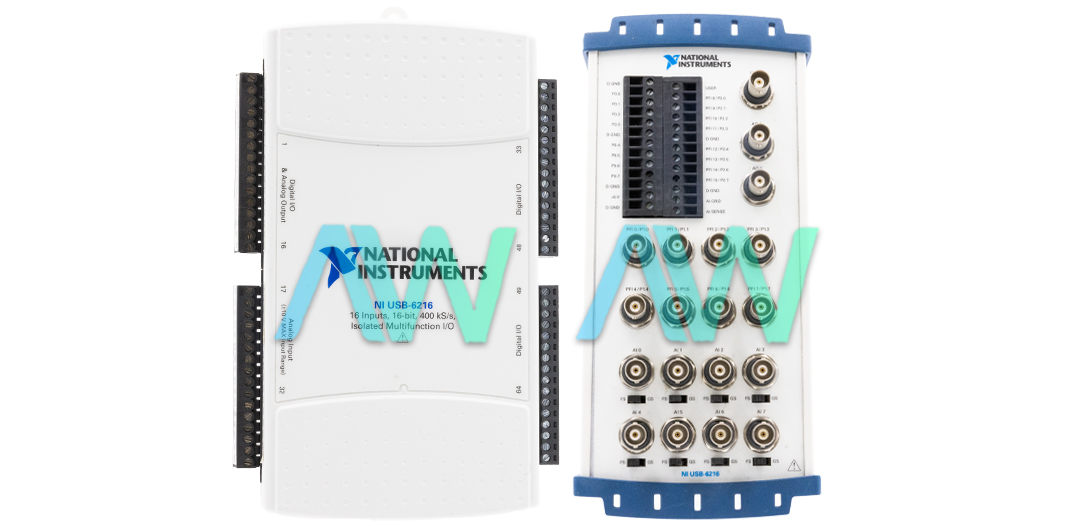

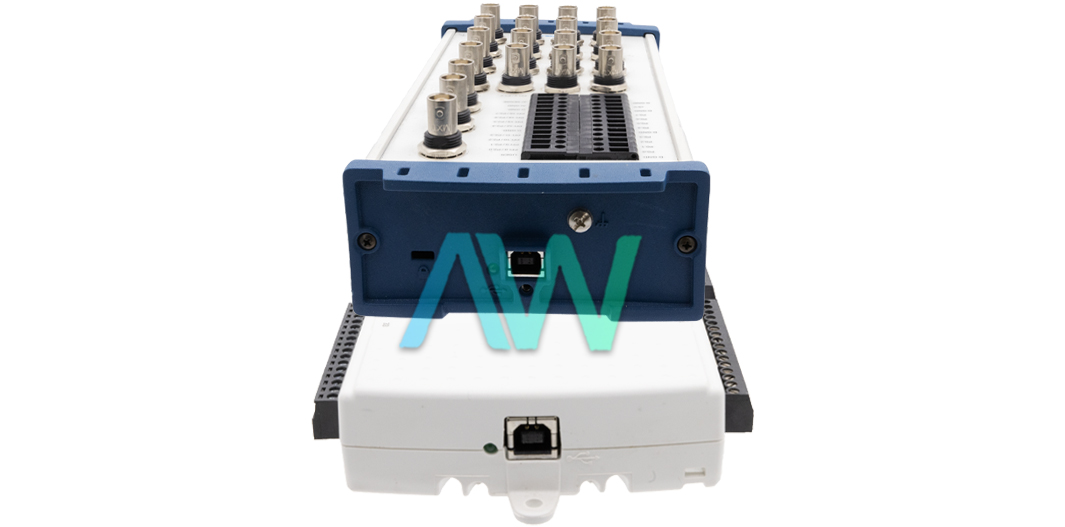

National Instruments USB-6216 Multifunction I/O Device
The USB-6216 (Part numbers: 780108-01, 780170-01, 781004-01, 780172-01, 197504-01) is a Multifunction I/O Device. National Instruments is the developer of the NI USB-6216 device. National Instruments offers the USB-6216 with a couple different part numbers. The NI USB-6216 with part number 780108-01 has screw-type terminal connections, part number 780170-01 has the SCSI terminal connections, and part number 781004-01 has BNC connectivity. Both part numbers 197504-01 and 780172-01 are for the OEM Board Only version of the USB-6216, with part number 780172-01 describes when the multifunction device is in a pack of 10. The USB-6216 device is a multifunctional product which can be used for a wide range of applications including, but not limited to, instrument design and testing, academic lab experimentations, data logging services with portability, and data acquisition.
The National Instruments USB-6216 Multifunction I/O Device is a compact and portable bus-powered device that features 16 single-ended and 8 differential analog input channels featuring a sampling frequency of 400 kS/s. The analog-to-digital (ADC) resolution of the NI USB-6216 device is 16 bits. The USB-6216 has 2 analog output channels which support a maximum sample rate of 250 kS/s for each channel. The analog absolute accuracy of the NI USB-6216 Multifunction I/O Device is 2710 µV. Besides analog I/O channels, the USB-6216 device contains 32 bidirectional digital I/O channels and 2 general-purpose timer/counters featuring 32-bit resolution. The maximum internal base clock frequency of the timers is 80 MHz. Moreover, the NI USB-6216 device provides 1 frequency generator channel with base clocks of 10 MHz and 100 kHz.
The USB-6216 device is designed to bear 60 VDC continuous voltage between the channel and earth ground. Besides, the NI USB-6216 is capable of withstanding an overvoltage up to 1000 Vrms between the channel and earth ground for 5 sec.
Associated Part Numbers: 197504-01, 198402A-01L, 780108-01, 780170-01, 780172-01, 781004-01
| Model | USB-6216 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780108-01, 780170-01, 781004-01, 780172-01, 197504-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 8 differential or 16 single-ended |
| Maximum Sample Rate | 400 kS/s |
| Analog Input Resolution | 16 bits |
| Connector Type | Screw Terminal, SCSI, or BNC |
| Dimensions | BNC: 9.25 in. × 4.40 in. × 2.50 in. Mass Termination: 7.61 in. × 3.68 in. × 1.20 in. Screw Terminal: 6.65 in. × 3.70 in. × 1.20 in. |
| Weight | BNC: 33.5 oz. Mass Termination: 8.1 oz. Screw Terminal: 7.2 oz. |
| Warranty | Three Year Warranty |
| USB-6216 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
