PCI-6513
Modular Systems > National Instruments > DIO Series
| Description: | PCI-6513, 64-Channel, Sink Outputs, Bank-Isolated, Digital I/O Device |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

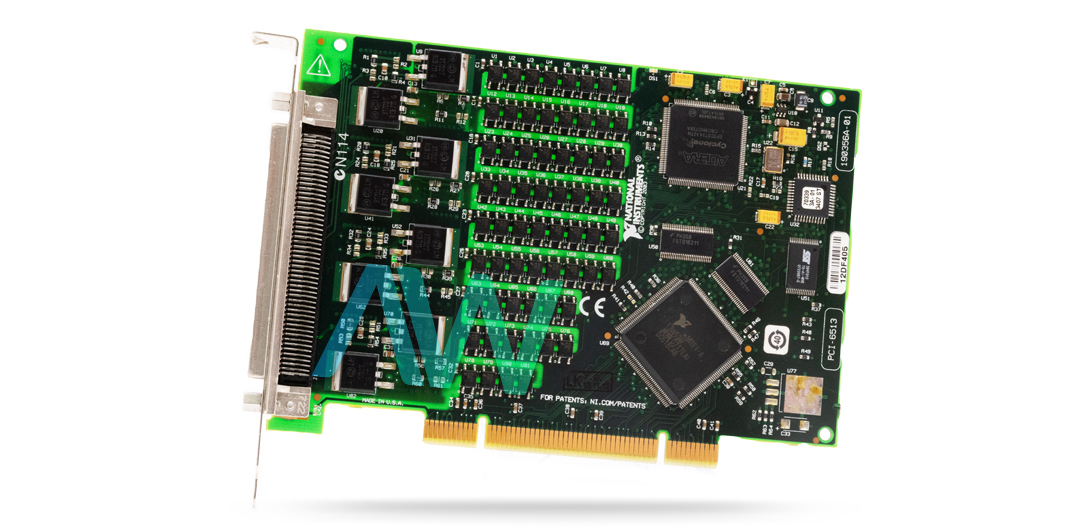

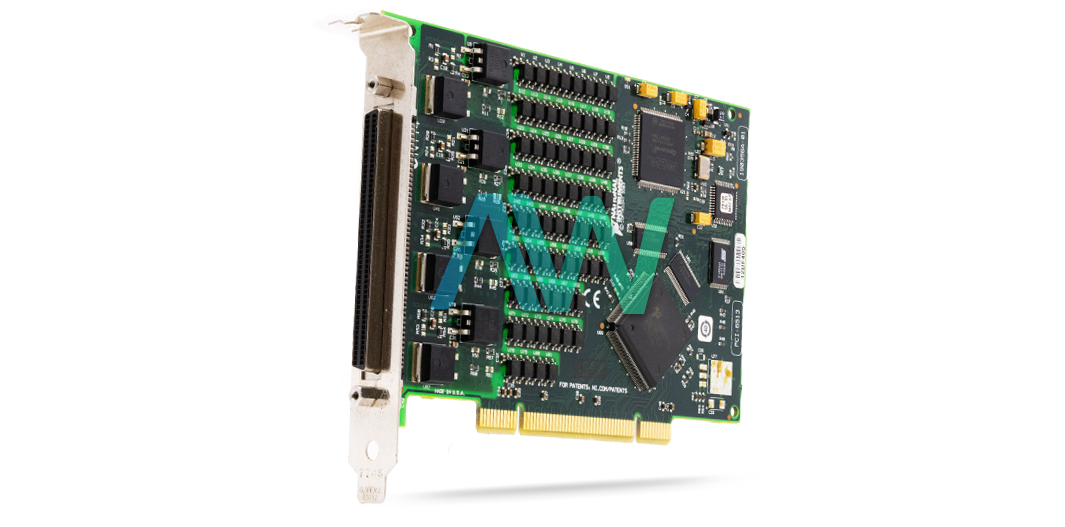

National Instruments PCI-6513 Digital I/O Device
The PCI-6513 (Part Number: 778970-01, 778974-01) has a computerized channel alternative accessible for information lines to take out glitches on input information. When it is utilized with change recognition, separating can lessen the quantity of changes to look at and process. The user can design the advanced info channels to go through a computerized channel after the photocouplers; additionally, the user can control the planning interim for the channel employments. The channel square pulses that are shorter than half of the predefined timing interim pass beats that are longer than the predetermined interim. Halfway length pulses, pulses longer than half of the interim, however not as much as the interim, could conceivably pass the channel. The digital device is equipped with a 100-pin keyed female SCSI I/O connector. It has a maximum input voltage of ±30 VDC and a maximum input current of 12.5 mA per line. Part number 778974-01 is for the PCI-6513 Bundle.
The channel works on the contributions from the photocouplers. Photocouplers turn on quicker than they turn off and pass rising edges speedier than falling edges. The user can empower floating on the same number of info lines as is essential for the application. All filtered lines share a similar planning interim, which ranges from 200 μs to 200 ms. Inside, the channel utilizes two clocks: the sample clock and the channel clock. The sample clock on the NI PCI-6513 has a 100 ns period. The channel clock is produced by a counter and has a period equivalent to one portion of the predefined timing interim. The information signal on the NI PCI 6513 is inspected on each rising edge of the example clock, which is 100 ns. Nonetheless, an adjustment in the information signal is perceived if it keeps up its new state for no less than two successive rising edges of the channel clock.
The NI device is run using the NIDAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio.
The PCI-6513 weighs 2.5 oz, and measures 5.54 x 4.47 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C.
| Model | PCI-6513 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778970-01, 778974-01 |
| Type | Digital I/O Device |
| Input Lines | 0 |
| Output Lines | 64 Sink |
| Isolation | Bank |
| Maximum Input Voltage | ±30 VDC |
| Maximum Input Current | 12.5 mA/line |
| Propagation Delay | 75 μs |
| I/O Connector | 100-pin keyed female SCSI |
| Power Requirements | +4.3 to +6.3 VDC, 20 mA/port |
| Dimensions | 5.54 in × 4.47 in. |
| Weight | 2.5 oz. |
| Driver Software | NI-DAQmx |
| Warranty | Three Year Warranty |
| PCI-6513 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6513:
190356A-01, 190356B-01L, 778970-01, 778974-01
National Instruments PCI-6513 Frequently Asked Questions
Question: What should I do if the NI PCI-6513 device is not showing up in MAX?
Answer: If the NI PCI-6513 device is not showing up in MAX, first make sure you are using NI-DAQ version 7.3 or later. Next, try refreshing the MAX window by pressing <F5> or by closing and re-opening MAX. You can also try rebooting the computer or powering off and unplugging the computer or chassis, then installing the PCI-6513 in another slot.
Question: Does the PCI-6513 support programmable power-up states?
Answer: Yes, the PCI-6513 supports programmable power-up states. These states have a response time of 400 ms.
Question: What is the output current of the PCI 6513 device?
Answer: The output current of the PCI 6513 device is 500 (120) mA.
Question: Do the isolated photocouplers on the NI PCI 6513 deliver isolation?
Answer: Yes, the isolated photocouplers on the NI PCI 6513 deliver isolation.
PCI-6513 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 651X 20 21 LETTER OF VOLATILITY.PDF
NI 65XX PINOUT LABEL FOR THE SCB 100A NOTE TO USERS.PDF
NI 65XX PINOUT LABELS FOR THE SCB 100 NOTE TO USERS.PDF
STATIC DIO REGISTER LEVEL PROGRAMMER MANUAL FOR 6509 651X 6520 6521 AND 6528 DEVICES.PDF
