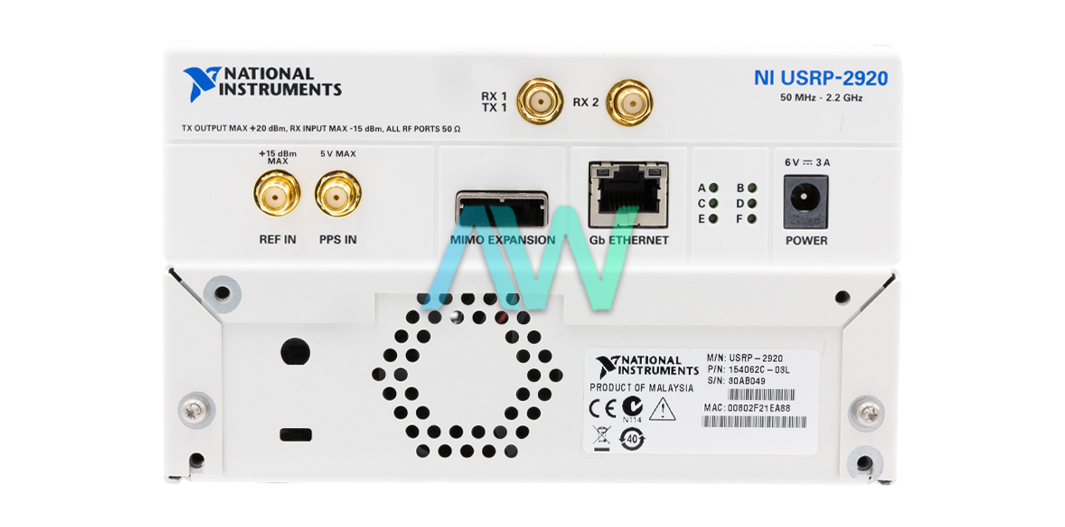

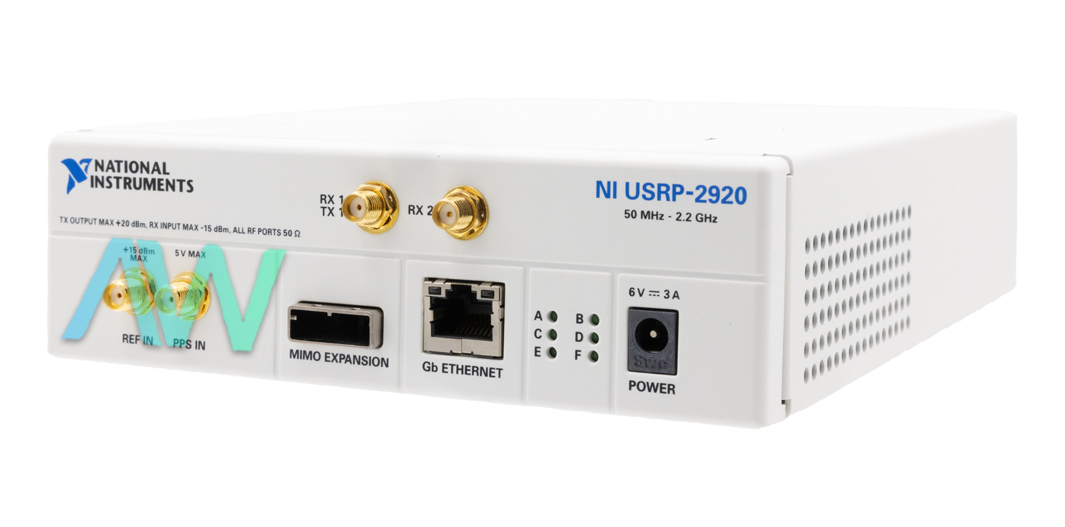

National Instruments 781906-01 Software Defined Radio Device
National Instruments part number 781906-01 is an identifying part number for the USRP-2920, a Software Defined Radio Device. The 781906-01 is equipped with 20 MHz Bandwidth and a Frequency range of 50MHz to 2.2GHz.
It is a tunable radio frequency transceiver with a fast digital-to-analog and analog-to-digital converter. It uses a 1 Gigabit Ethernet connection to stream baseband I and Q signals to a host PC. A wide range of applications are supported by this device, such as sensor networks, cell phones, amateur radio, GPS, land-mobile, white space, broadcast FM, public safety, and low-power unlicensed devices in industrial, scientific, and medical (ISM) bands. One of the standout features of the 781906-01 is its RF bands, which boast a substantial bandwidth of 20 MHz. This wide bandwidth facilitates the transmission and reception of signals with high fidelity and precision. Whether it's capturing subtle nuances in signal modulation or transmitting data-rich streams, the 781906-01 excels in delivering reliable performance across diverse frequency bands.
The 781906-01 is an advanced USRP Software Defined Radio Device designed for seamless operation within the RF frequency range. This broad frequency coverage ensures versatility, allowing users to engage with a wide spectrum of radio signals across various applications and scenarios.
| Model | 781906-01 |
|---|---|
| Model Name | USRP-2920 |
| Part Type | USRP Software Defined Radio Device |
| Number of Inputs/Output Channels | 1 |
| Bus Connector | Ethernet |
| Bandwidth | 20 MHz |
| Frequency Range | 50 MHz to 2.2 GHz |
| Power Consumption | 12 to 18 W |
| Output Power | 0.031 to 0.1 W |
| Weight | 2.63 lb. |
Associated part numbers for 781906-01:
