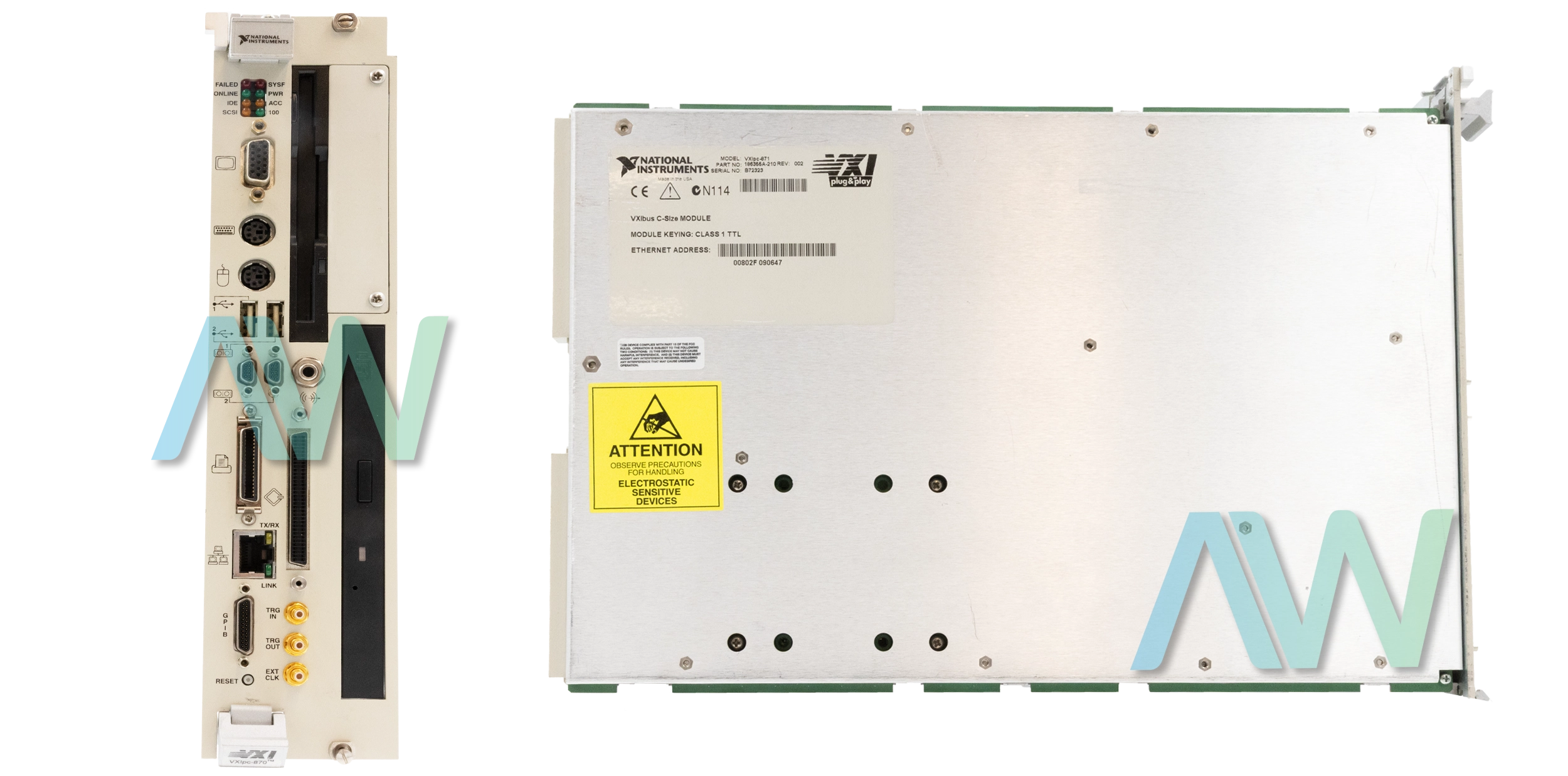

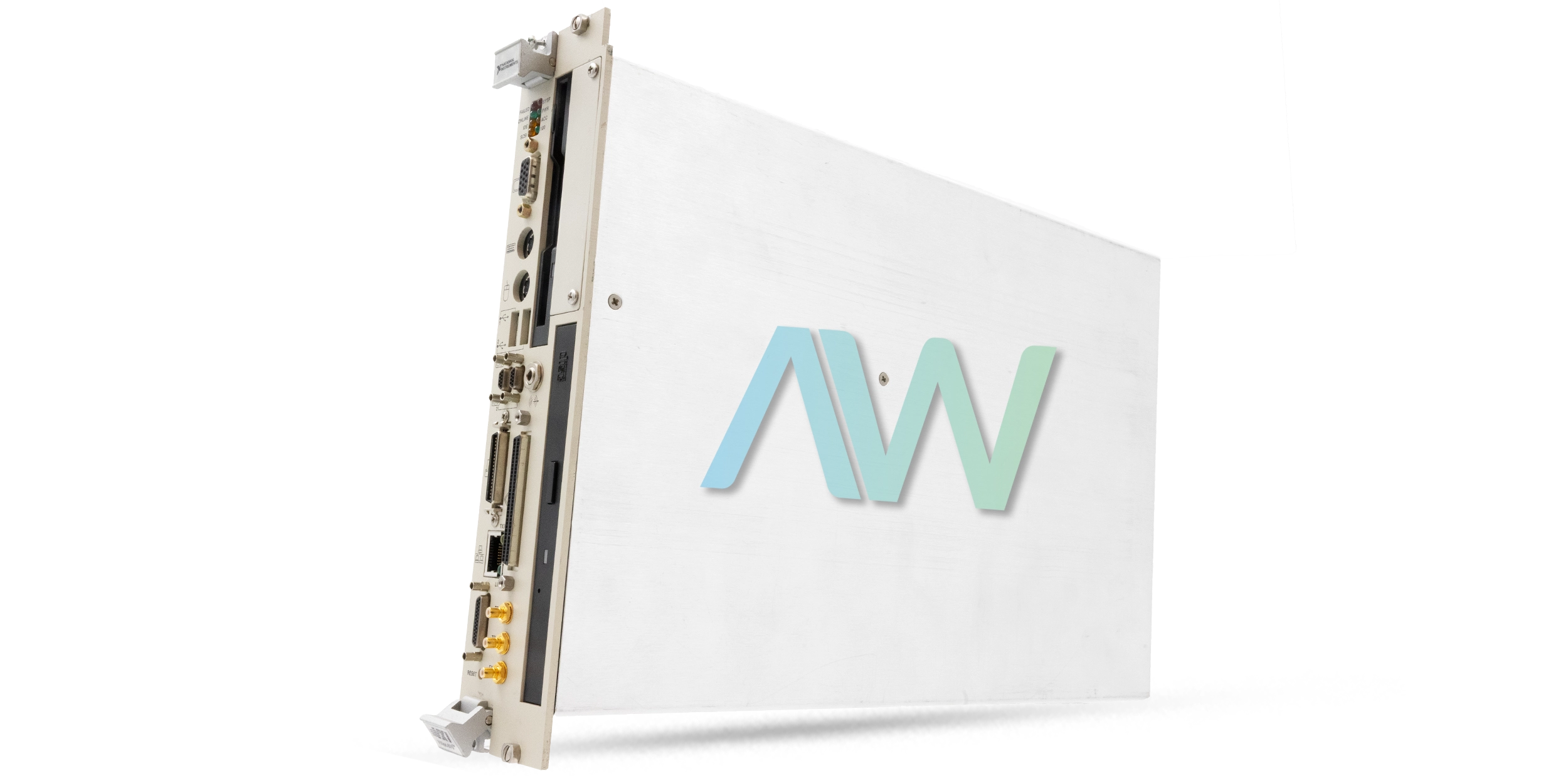

National Instruments VXIpc-871 Embedded VXI Computer
The VXIpc-871 from National Instruments is an Embedded VXI Computer from the VXIpc 870 Series. Designed to provide customized control of VXIbus systems, this C-size controller is compatible with the full range of VXI specification. The VXIpc-871 combines the architecture of an x86 processor with the features of a PCI bus and an advanced graphics port, offering versatile functionality in a single convenient device. Equipped with an internal CD-ROM drive, this VXI controller allows the user to have direct control over the VXI interrupts, triggers, memory, and registers- maximizing the capabilities of the VXI backplane.
The user-friendly platform of the VXIpc-871 can be easily installed into a VXI mainframe with 2 C-size slots. The device features an IEEE 488.2 interface that is compatible with NI-488.2 architecture, as well as with bus interface software including NI-VISA and NI-VXI. Capable of connecting to ethernet, the Plug & Play VXIpc-871 controller is also fully compatible with application software tools such as LabVIEW and LabWindows/CVI. 64 KB of VXIbus configuration space are required for the device to achieve optimal functionality.
Physically, the VXIpc-871 computer is fully enclosed and shielded. The 64 MB of DRAM installed, the device weighs 2.5 Kg (5.51 lb.). The physical dimensions measure 233.35 x 340 mm (9.187 x 13.386 in.). The operating temperature range of the VXI controller spans from 0 to 50 °C, paired with a noncondensing relative humidity of 10 to 90%. When in storage, the VXIpc-871 can safely handle temperatures ranging from –20 to 70 °C, with a relative humidity ranging from 5 to 95% (also noncondensing).
Model Name | VXIpc-871 |
---|---|
Part Type | Embedded VXI Computer |
Part Series | VXIpc 870 Series |
Configuration Space (VXIbus) | 64 KB |
Slot Requirements | 2 VXI C-Size Slots |
VXI Keying Class | Class 1 TTL |
Operating Temp Range | 0 to 50 °C |
Dimensions | 233.35 mm x 340 mm (9.187 in x 13.386 in.) |
Weight | 2.5 Kg (5.51 lb.) |
Warranty | Three Year Warranty |
Manufacturer | National Instruments |
VXIpc-871 PDF Manuals
ARCHIVED VXIPC 870 SERIES USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED VXIPC 870 SERIES FRO WINDOWS NT98.PDF
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
VXIpc-871
Modular Systems > National Instruments > VXI and VME
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs

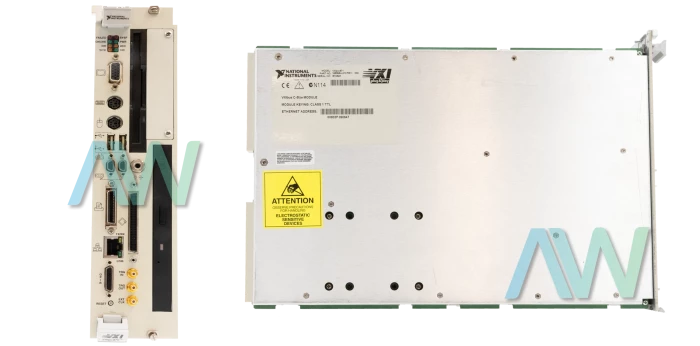

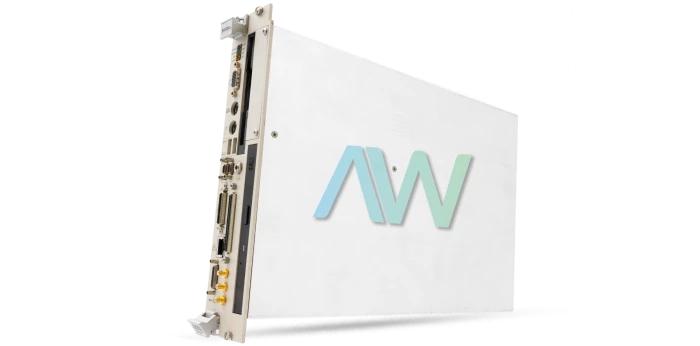

National Instruments VXIpc-871 Embedded VXI Computer
