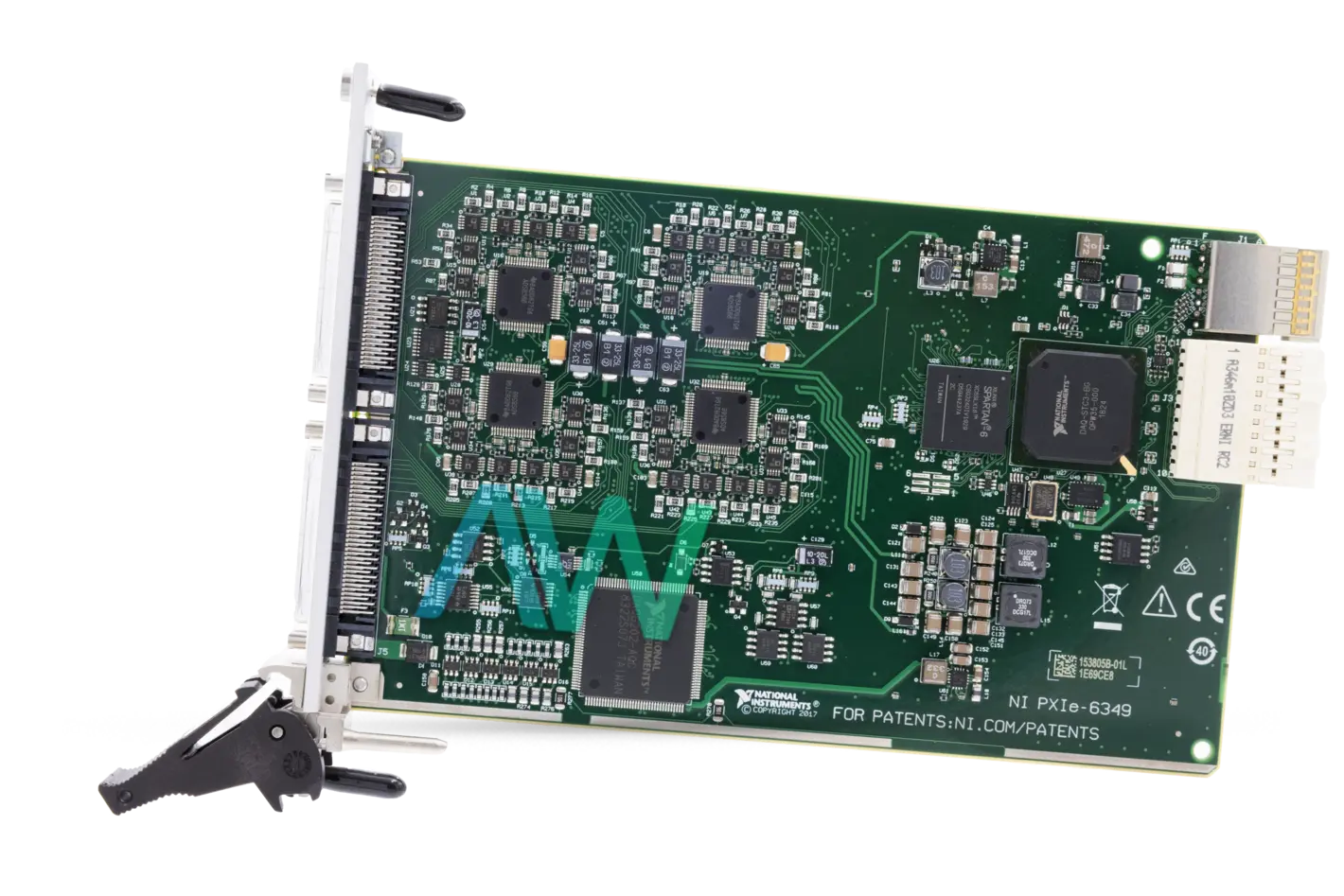

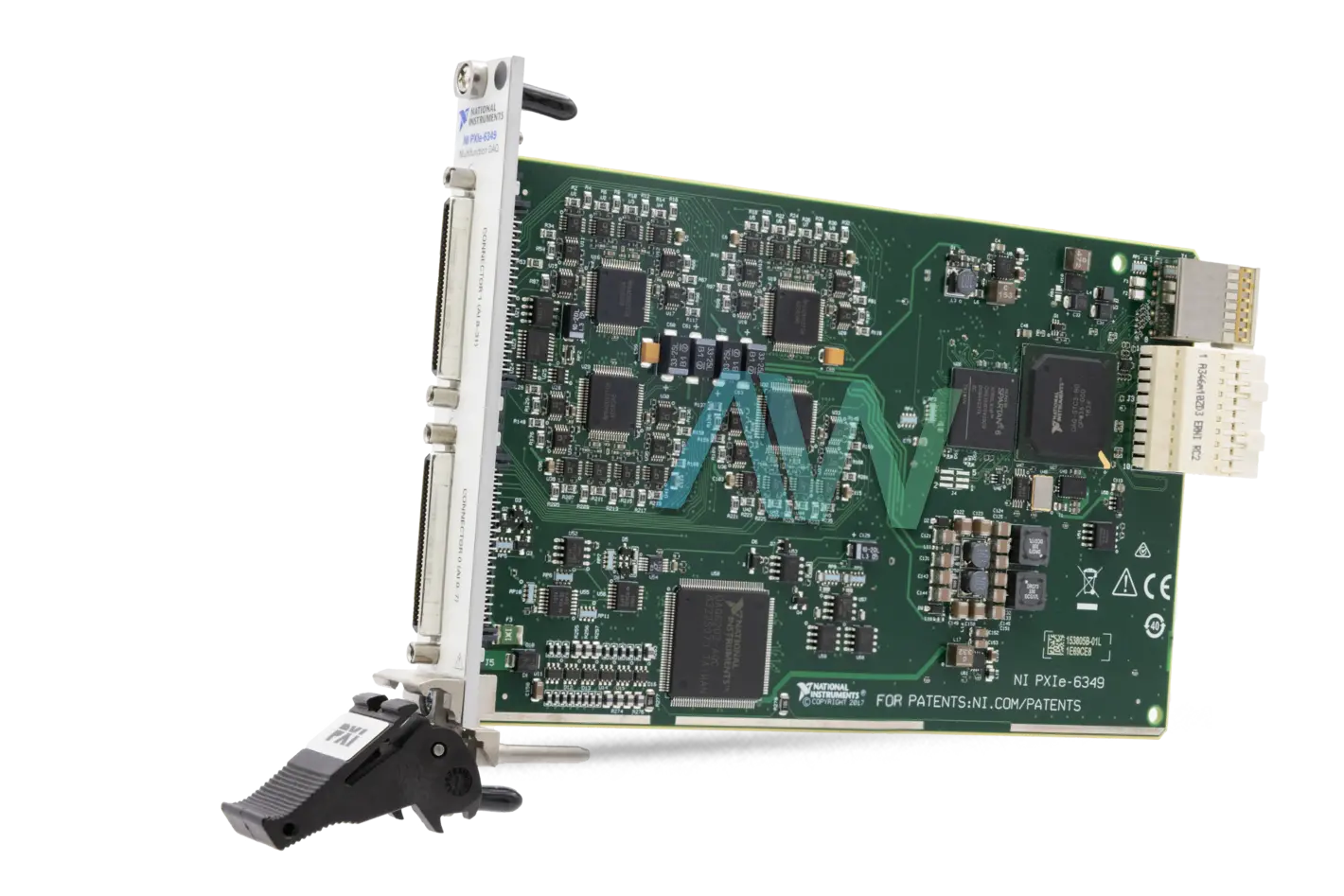

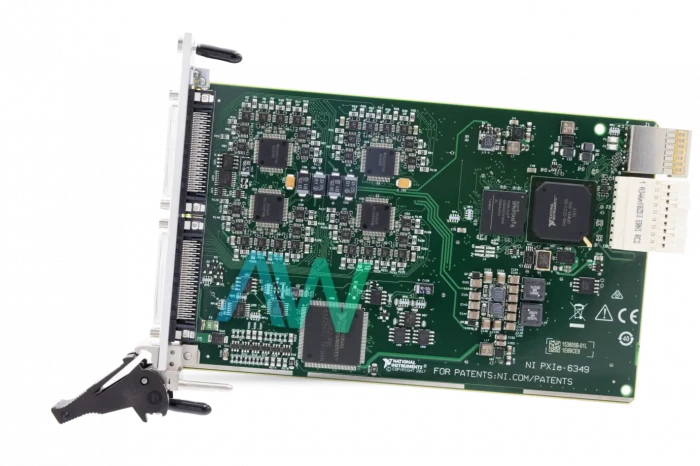

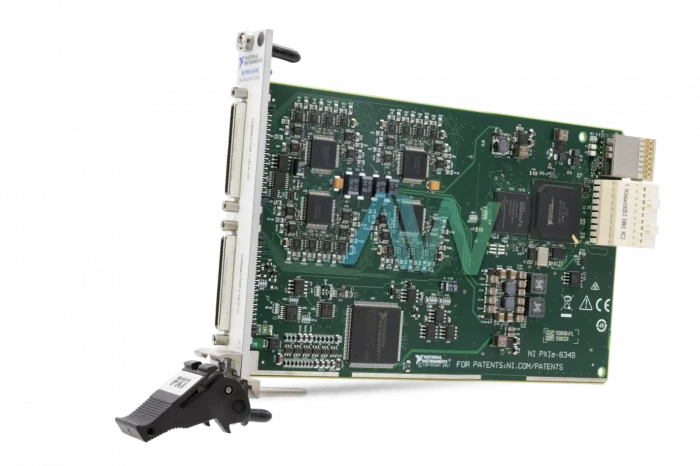

National Instruments PXIe-6349 PXI Multifunction I/O Module
The PXIe-6349 is a Multifunction I/O Module. The PXIe-6349 is announced by National Instruments. National Instruments designs the hardware enclosure of the NI PXIe-6349 module with the part number 785808-01. The PXIe-6349 module can be used with a PXIe cable to connect to other devices. The NI PXIe-6349 module belongs to the product series of PXIe input/output modules. The PXIe-6349 module is built with multiple functions. The NI-DAQmx driver software is used for configuration and measurement calibration for the NI PXIe-6349 input/output module.
The PXIe-6349 Multifunction I/O Module supports analog and digital input/output functions. The NI PXIe-6349 module is equipped with 4 timers/counters of 32-bit resolution for the PWM and event counting. The PXIe-6349 module performs communications with 32 analog input channels that are differentially distributed. The NI PXIe-6349 module is prepared with a sampling rate of 500 kS/s/channel. The PXIe-6349 module works with simultaneous sampling. The NI PXIe-6349 module is comprised of 16-bit analog input resolution.
The National Instruments PXIe-6349 Multifunction I/O Module is available with onboard NI-STC3 technology that is used for advanced timing functionality. The PXIe-6349 module is capable of retriggerable measurement applications based on the NI-STC3 timing module. The NI PXIe-6349 module can be used for simple data logging, control, and test automation tasks. The PXIe-6349 module supports 3225 μV absolute accuracy for analog inputs. The NI PXIe-6349 module is composed of 2 analog output channels with 900 kS/s maximum update rate. The PXIe-6349 module contains a FIFO buffer size of 4095 samples for the analog inputs.
| Model | PXIe-6349 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 785808-01 |
| Series | X Series |
| Type | PXI Multifunction I/O Module |
| Analog Input Channels | 32 differential |
| Analog Input Resolution | 16 bits |
| Analog Output Channels | 2 |
| PXIe Module Connector | 68-Pos Right Angle Single Stack PCB-Mount VHDCI (Receptacle) |
| Cable Connector | 68-Pos Offset IDC Cable Connector (Plug) (SHC68-*) |
| Weight | 4.8 oz. |
| PXIe-6349 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
