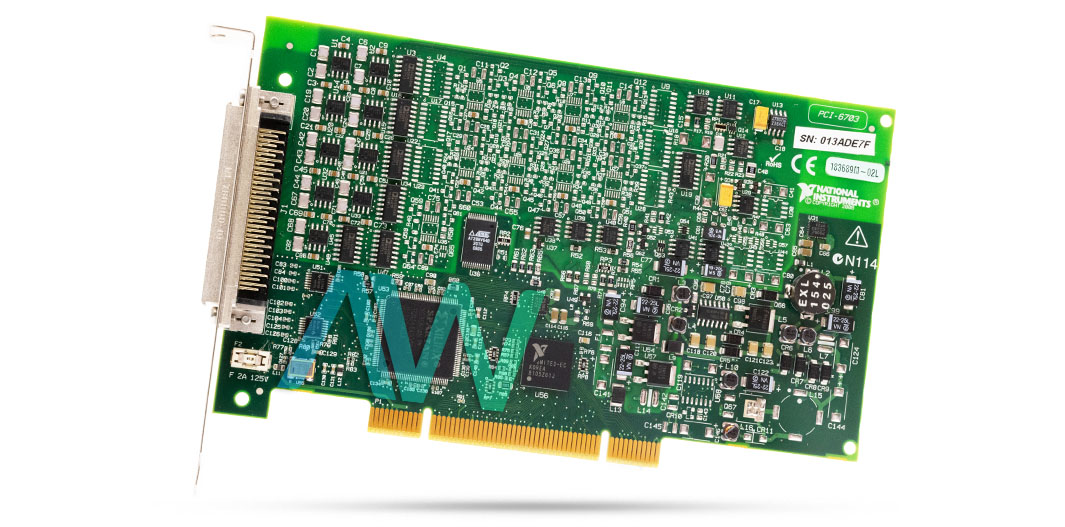

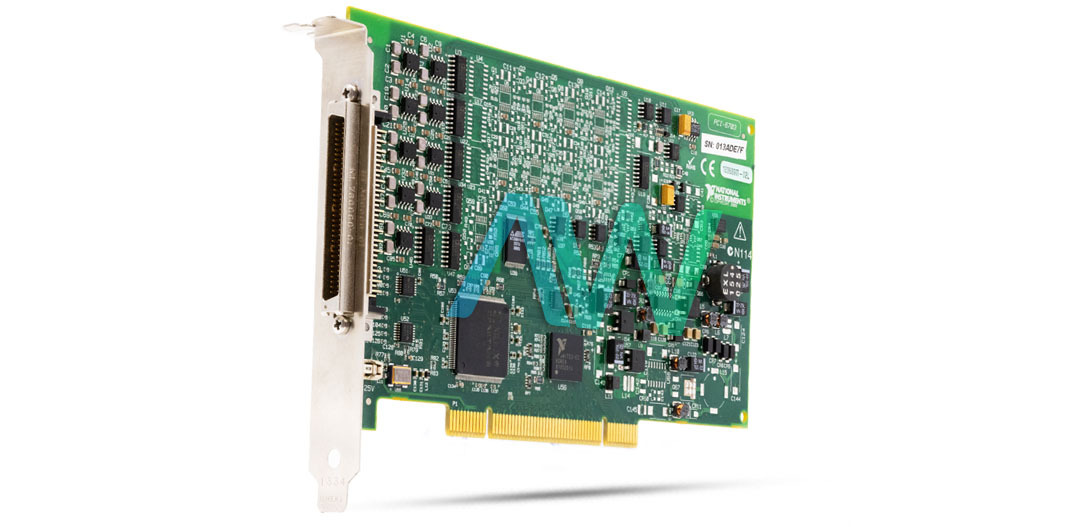

National Instruments PCI-6703 Analog Output Device

The PCI‑6703 (Part number: 778316-01) is a static 16 Voltage Output Channel Analog Output Device with a 16-bit resolution, that can be utilized for software‑timed voltage output applications. The user can interface a floating or grounded load to the NI PCI-6703 device at the output channel. It is not necessary to bother with an outside floating power supply to finish the controlled current loop. The user can control the current loop from 0.1 to 20.2 mA. The consistence for the present loop is 0 V to 10 VDC. Since every channel shares a ground line with a voltage channel, limit the impact of the arrival current from the current channel on the voltage being yielded on the voltage channel. For instance, if the user yields 20 mA on a channel and restores that channel to the NI PCI-6703 along the mutual ground line in a link with an impedance of 0.1 Ω, the voltage output will drop 2 mV on the voltage channel sharing the ground line.

This Analog Output Device has user-defined power-up states, ±10 V range, 8 digital I/O lines, DC output coupling, and independent, user-defined values for the power-on state. The PCI-6703 can link to numerous signal types, such as LEDs, voltage and current excitation for precision transducers, electromechanical relays, and optically isolated, solid-state relays and I/O module mounting racks. This device can be used with NI-DAQ 7.4 or later, along with .NET Languages without NI Application Software, LabVIEW for Windows, ANSI C without NI Application Software, Measurement Studio, and LabWindows/CVI for Windows. It is equipped with a 68-pin male I/O connector.

The user should take caution not to surpass the maximum ratings for the output or input signals on the Analog Output Device because this can cause harm to the computer or the device. The NI device measures 3.9 x 6.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of -20 to 70 °C.

PCI-6703 Obsolete Status has been announced by National Instruments, but the device is still available for purchase and repairs at Apex Waves.

The PCI-6703 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PCI-6703 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PCI-6703 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PCI-6703!

ModelPCI-6703
ManufacturerNational Instruments
Part Number778316-01
TypeAnalog Output Device
Analog Output Channels16
Resolution16-bit
DriverNI-DAQmx
Dimensions3.9 × 6.9 in.
I/O Connector68-pin male
WarrantyThree Year Warranty
PCI-6703 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PCI-6703:

1836.89, 183689-02, 183689D-02, 183689F-02, 183689G-02, 183689H-02, 183689L-02, 183689L-02L, 183689M-02L, 183689N-02L, 183689R-02L, 777306-02, 778316-01


Associated NSNs for the PCI-6703:

5998-01-566-6830 (5998015666830)

National Instruments PCI-6703 Frequently Asked Questions



Question: Which accessories are recommended for the PCI-6703?



Answer: The SCB-68 Shielded Connector Block and the SH68-68-D1 Shielded Cable are recommended for the PCI-6703.



Question: What is the power requirement for the NI PCI-6703?



Answer: The power requirement for the NI PCI-6703 is +5V, 1.5 A.



Question: What is the power available at the I/O connector for the PCI 6703?



Answer: The power available at the I/O connector for the PCI 6703 is +4.5 to +5.25 VDC at 0.75 A.



Question: What is the output impedance of the NI PCI 6703?



Answer: The output impedance of the NI PCI 6703 is 0.1 Ω maximum.
