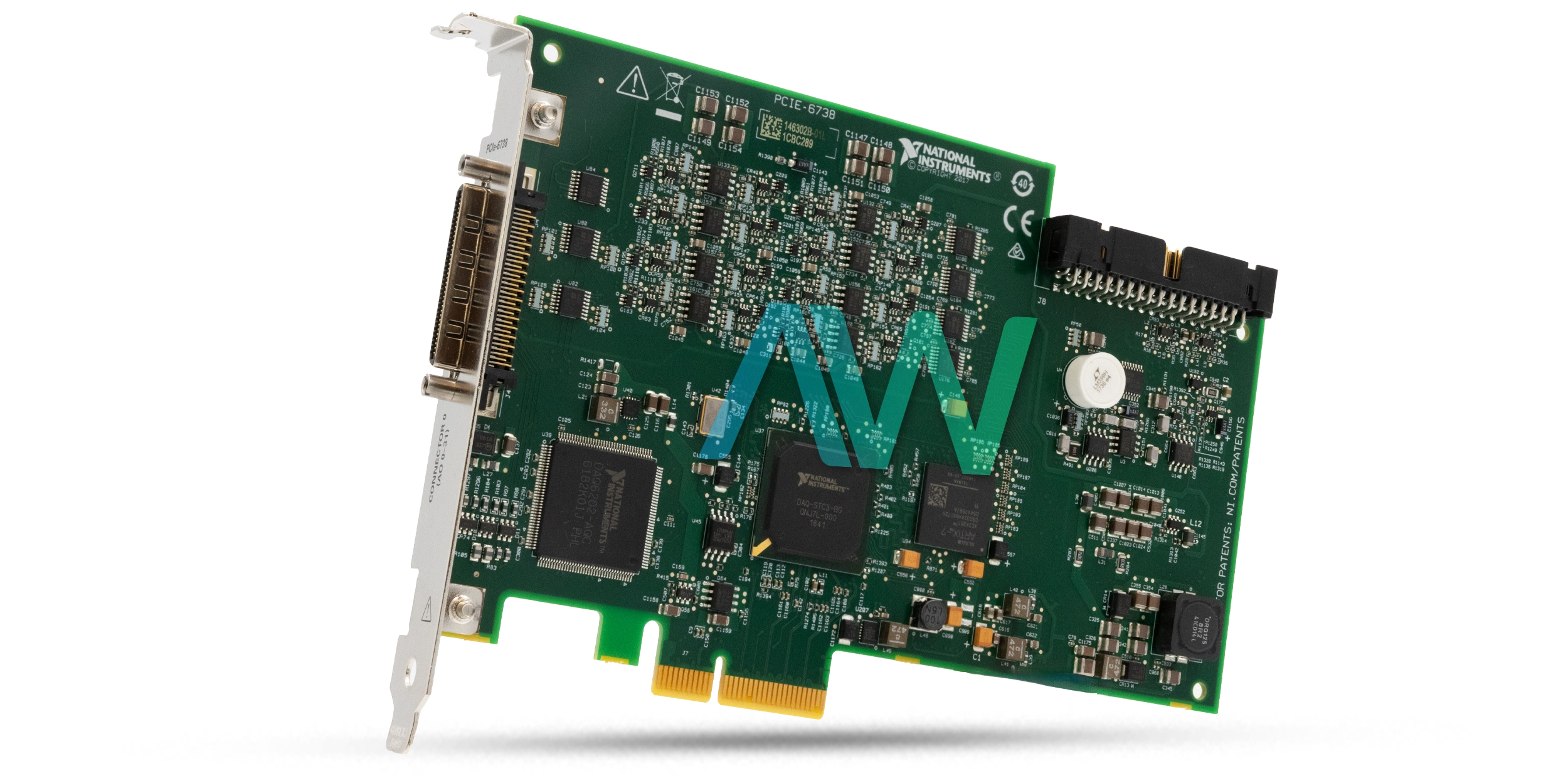

PCIe-6738 National Instruments Analog Output Device | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

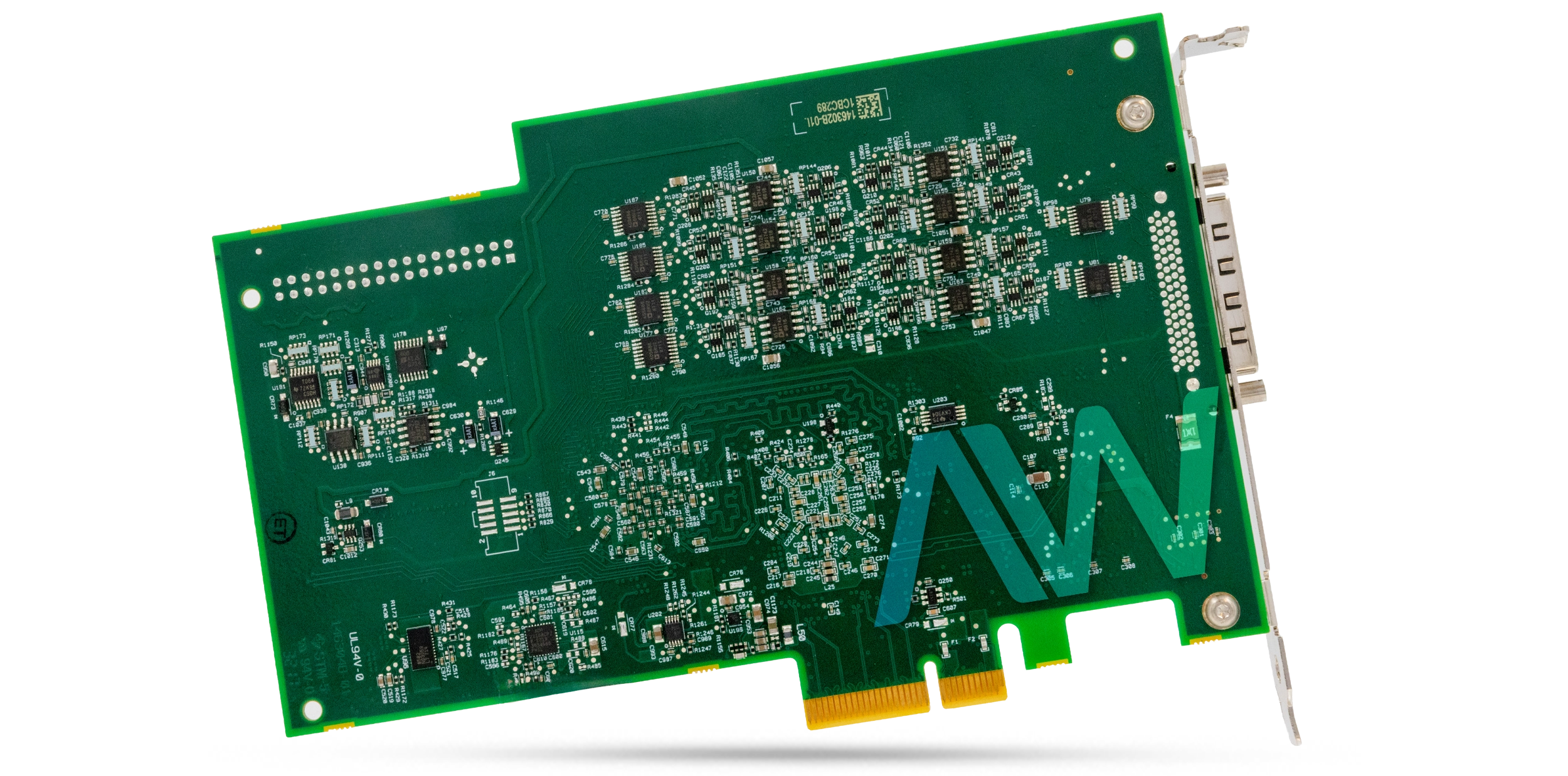

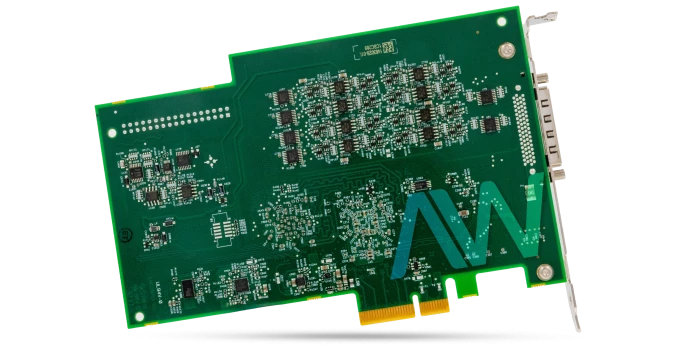

PCIe-6738 National Instruments Analog Output Device | Apex Waves | Image

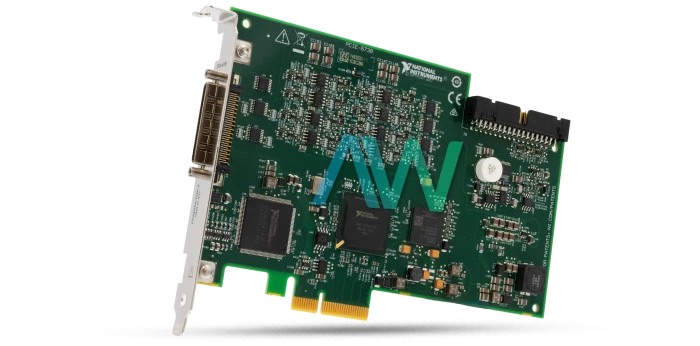

PCIe-6738 National Instruments Analog Output Device | Apex Waves | Image
PCIe-6738 New
PCIe-6738 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the PCIe-6738

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments PCIe-6738 Analog Output Device

The PCIe-6738 is a high-speed Analog Output Device developed by National Instruments. The part number of the PCIe-6738 is 785822-01. This device offers the simultaneous update of multiple channels. The PCIe-6738 also features digital triggering and external clocking options. The data points of all the channels can be programmed for common waveforms. This model can transmit simple waveforms like square, sine, and sawtooth. It also supports complex waveforms. The PCIe-6738 has so many features that it can replace many devices. These devices include PID controllers, function generators, and low-speed waveform generators.

The PCIe-6738 Analog Output Device has 32 AO terminals. The AO terminals are categorized into different banks. Each bank consists of four channels and incorporates a DAC. The NI PCIe-6738 also has an AO FIFO buffer. This device supports two types of data generation methods. These methods are software-timed and hardware-timed generations. Each bank can be programmed independently for either task.  In the software-timed mode, software is used to control the data generation rate. Multiple banks can be updated simultaneously in this mode. In the hardware-timed mode, a digital signal is needed to control the generation rate. This mode can also use hardware triggering.

The PCIe 6738 device supports two modes of triggering for the analog outputs. These modes are start-trigger and pause-trigger. The PCIe-6738 offers three sample clock frequencies, with a default frequency of 100 MHz. Other frequency options are 20 MHz and 100 kHz.

The PCIe-6738 Analog Output Device is used in a variety of applications but is mainly designed for waveform output and control applications. This device is used for stimulus-response tests and 3-phase power simulation, along with power supply control and simulation for signals and sensors.

ModelPCIe-6738
ManufacturerNational Instruments
Part Number785822-01
TypeAnalog Output Device
Analog Output Channels32 (16-Bit, 1 MS/s)
Digital Inputs/Outputs8
Digital Outputs2
TIming I/O4 Counter/Timer I/O (32 bits, 100 MHz)
Phase-Locked Loop (PLL)1
I/O Connector1 68-pin VHDCI
Power Requirements+3.3 V, +12 V - 1 A, 3.0 W, 14.0 W
Dimensions6.60 in. × 4.38 in.
Weight0.24 lb.
Software DriverNI-DAQmx 17.6
PCIe-6738 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-6738:

National Instruments PCIe-6738 Frequently Asked Questions



Question: How many counters are available on the NI PCIe-6738?



Answer: There are four counters available on the NI PCIe-6738.



Question: My computer screen goes black when installing the PCIe-6738. What can I do?



Answer: If you get a black screen when installing the PCIe-6738, check to make sure it’s not a bad card. First, install the card in a different slot or a different PC. If the card is working, update the firmware/BIOS for the computer motherboard or change the BIOS settings for the PCIe-6738 card from AUTO to GEN1.



Question: Will the PCIe-6738 perform acoustic distortion testing?



Answer: Yes, the PCIe-6738 is designed for stimulus-response tests, including acoustic distortion testing.
