National Instruments NI-9233 Analog Input Module

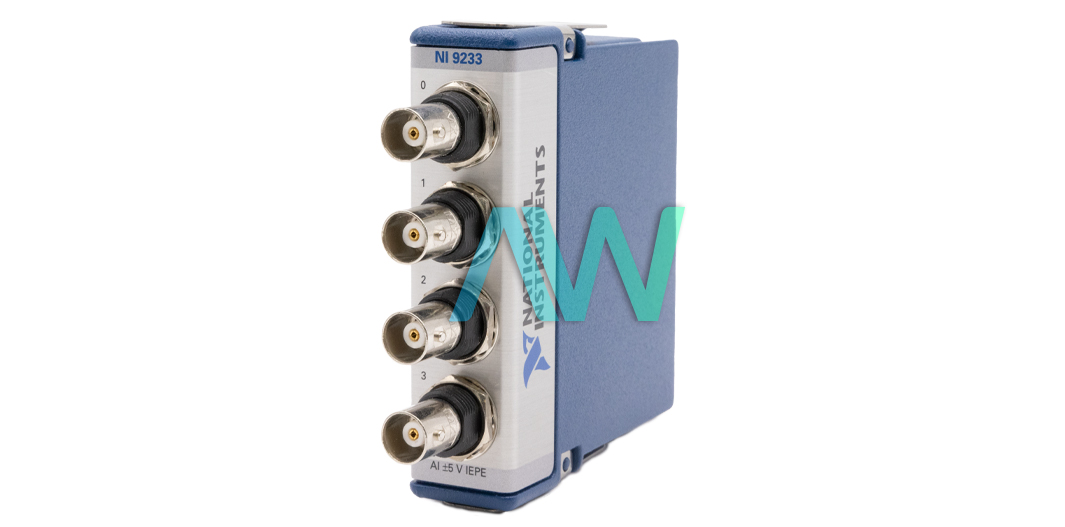

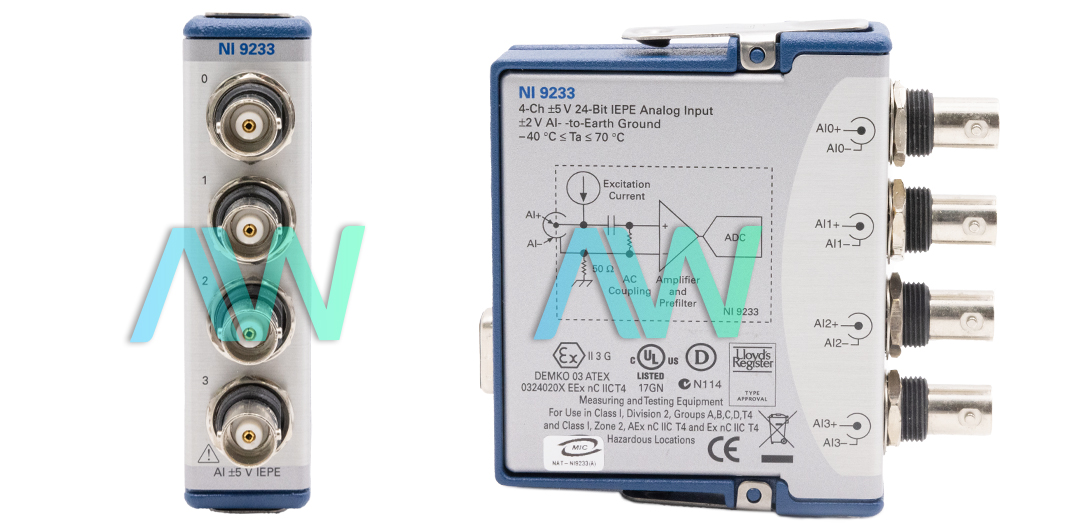

The NI-9233 (Part number: 779015-01) is an Analog Input Module from the C Series manufactured by National Instruments. The National Instruments NI-9233 Analog Input Module comes with a dynamic range of 102 decibels. The instrument incorporates four analog input channels. These channels are numbered from 0 to 3. These input channels are labeled as AIx. The subscript “x” represents the number of channel in this notation. These input channels come with the BNC connector type interface. The National Instruments NI-9233 Analog Input Module also offers a resolution of 24 bits for ADC. The device should be externally calibrated at least once a year.

The National Instruments NI-9233 Analog Input Module incorporates a time base clock, which provides the frequency of 12.8 MHz. The user can extract the clock only in the single-cycle timed loop mode of operation. The instrument also has built-in start and stop channels. These channels offer control to the user to start to acquire data or not. There is also a TEDS read/write capability. The NI-9233 Module also has a built-in USB interface with integrated signal conditioning. This feature enables the user to fulfill various testing requirements.

The National Instruments NI-9233 Analog Input Module is a compact and lightweight instrument, with the physical dimensions of 140.66 L x 88.12 W x 25.34 D mm and a weight of 6.1 oz. The instrument also complies with various safety specifications of the industrial level. The instrument offers an AC input coupling mechanism. The NI-9233 Analog Input Module offers amazing accuracy for the internal master time base, with the value of ± 100 ppm. It has a power consumption of up to 620 mW when active, and 0.5 mW maximum when in sleep mode.

The NI device has recommended operating and storage temperature ranges of –40 to 70 °C and –40 to 85 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, random and sinusoidal operating vibrations of 5 grms and 5 g–all at a frequency ranges of 10 to 500 Hz. The NI-9233 is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1.
