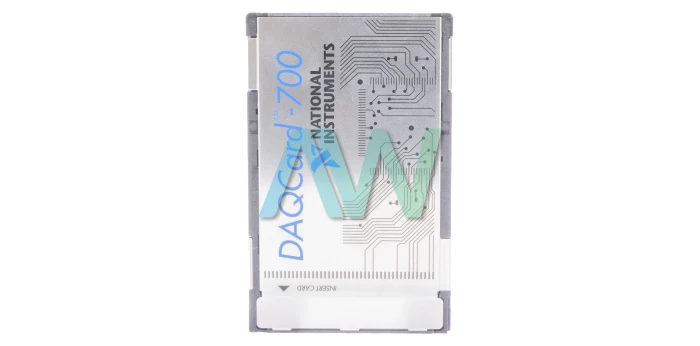

DAQCard-700 National Instruments Multifunction I/O Device | Apex Waves | Image

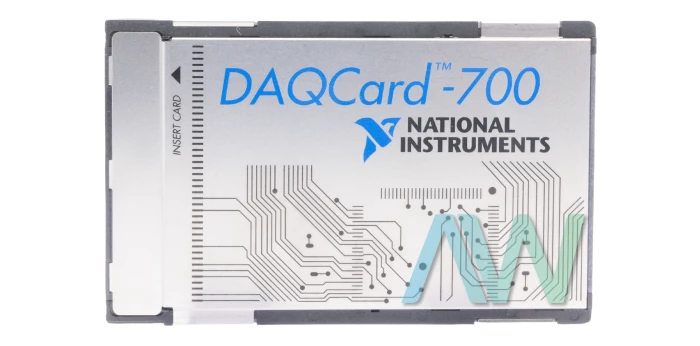

DAQCard-700 National Instruments Multifunction I/O Device | Apex Waves | Image
DAQCard-700 New
DAQCard-700 | Legacy, Refurbished and New Surplus

DAQCard-700

4.7/5 | 14 ratings

Modular Systems > National Instruments > DAQCards

Part Number DAQCard-700
Manufacturer/Brand National Instruments
Description: DAQCard-700, 16 DIO, 16 SE/8 DI, 12 bits, Multifunction I/O Device
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

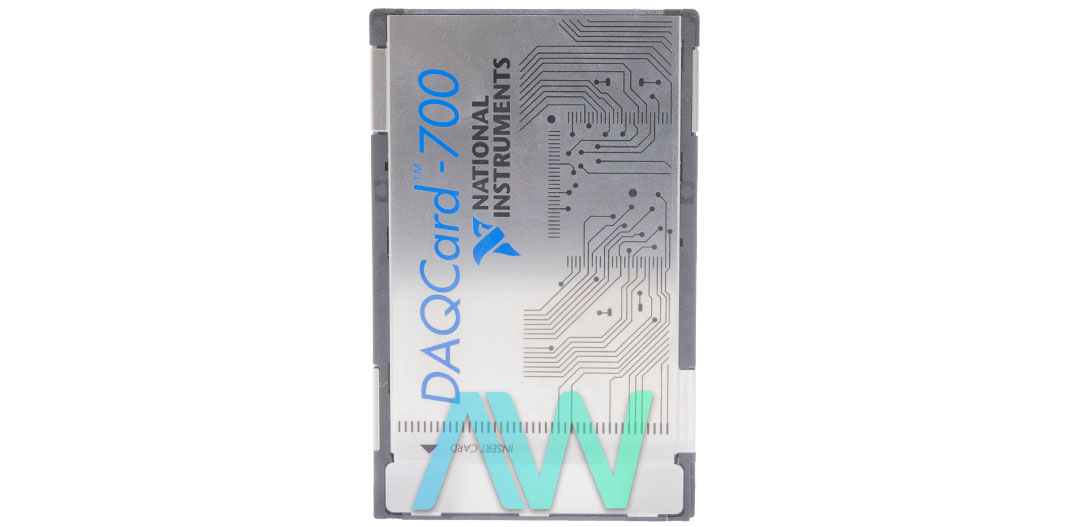

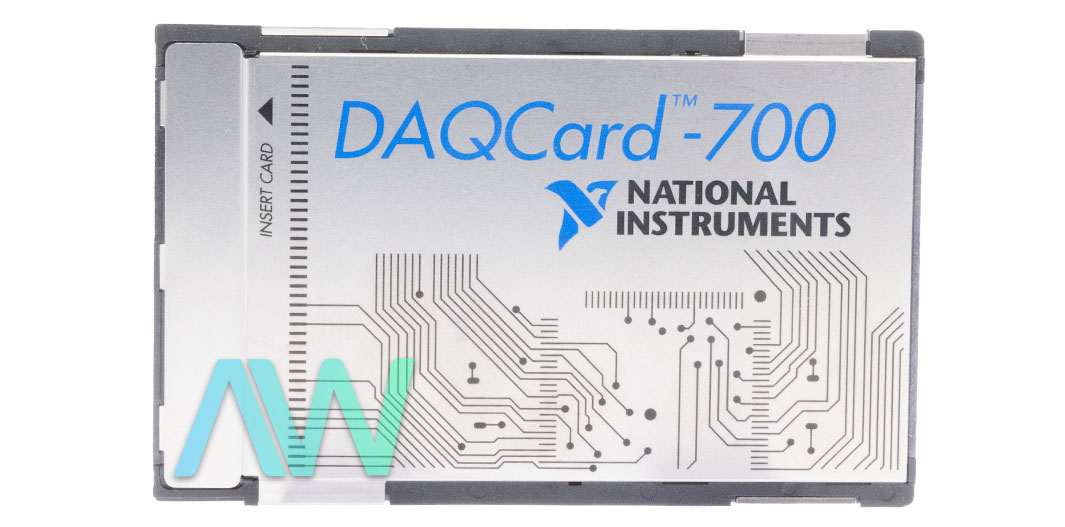

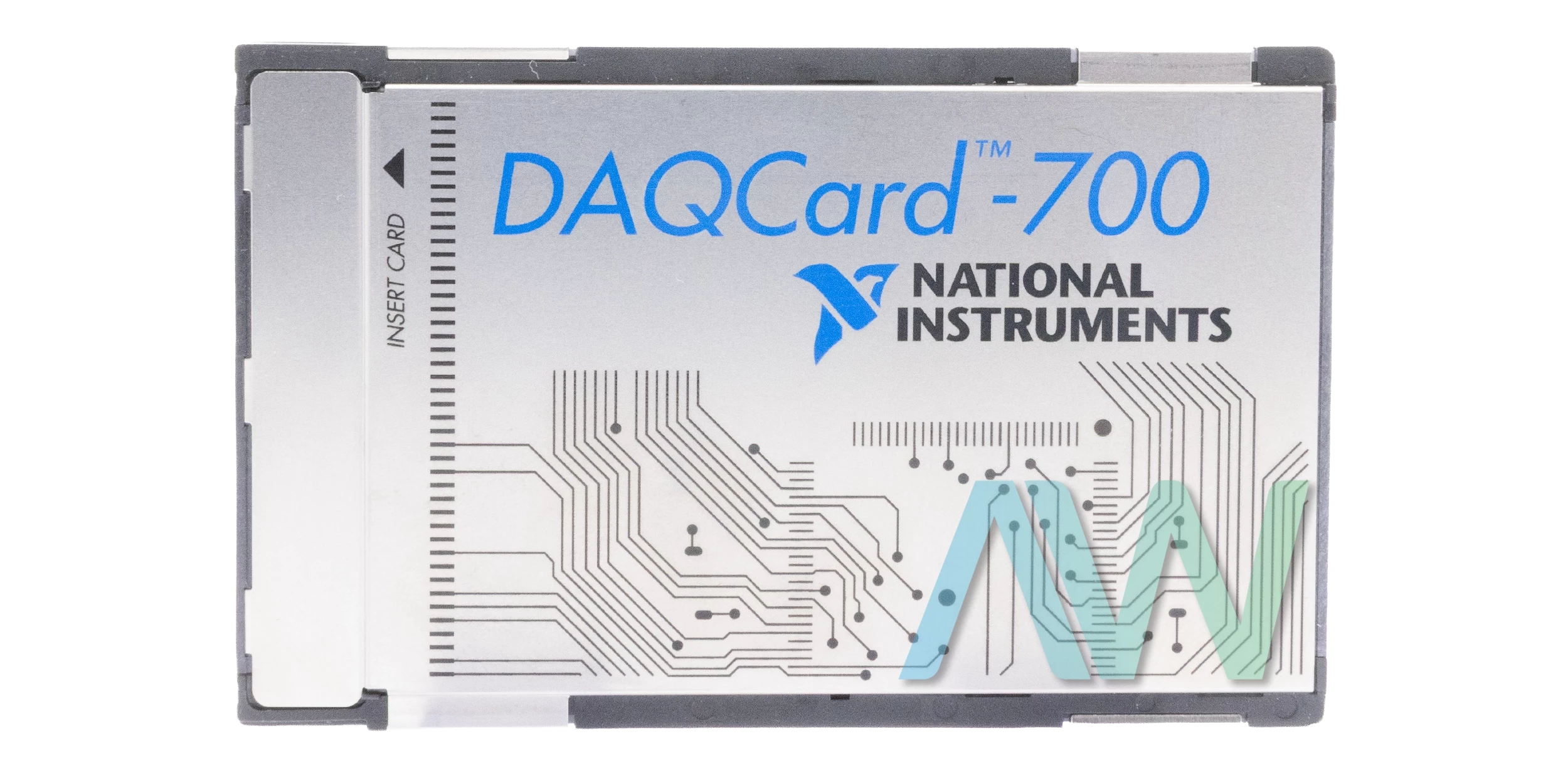

National Instruments DAQCard-700 Multifunction I/O Device

The DAQCard-700 is an efficient Multifunction I/O Device compatible with the PCMCIA bus interface. The DAQCard-700 is a product of National Instruments. The DAQCard-700 hardware can be programmed and configured with the NI-DAQ driver. The NI-DAQ driver utilizes each feature of the DAQCard-700 that is listed in the datasheet. The DAQCard-700 can be used with application software such as LabWindows and LabVIEW.

The NI DAQCard-700 is an affordable device, making it a great choice for lab work. The DAQCard-700 is a low-power device specially fabricated for computers with a Type II PCMCIA port. Since this device has a low power consumption, it is perfect for portable computers and ensures that remote data acquisition is simple to implement. There is also a standby mode available which utilizes even less power and helps prolong the computer battery life. This Multifunction I/O Device is built with 16 single-ended analog input channels and analog to digital converters for successive approximation. The DAQCard-700 can join digital, analog, or timing signals directly to a card with a 50-pin input/output connector that is fixed as an optional feature. The DAQCard-700 contains 8 input digital lines of TTL standard and 8 digital lines of standard output.

The NI DAQCard-700 features easy to handle calibration and configuration processes for acquisition so that less time is required. The DAQCard-700 has two 16-bit timers for measuring input/output time. This Multifunction I/O Device has DC input coupling available. The input impedance of the DAQCard-700 is 1 GΩ in parallel with 40 pF.

ModelDAQCard-700
ManufacturerNational Instruments
TypeMultifunction I/O Device
Analog Input Channels16 SE/8 DI
Analog Input Resolution12 bits
DIO Channels16
Timing I/O Channels3 counter/timers
FIFO Buffer Size512 samples
Input CouplingDC
Maximum Sampling Rate100 kS/s
Bus Interface TypeSlave
I/O Connector50-pin male
SizeType II PC Card
Warranty2-3 Year Warranty
DAQCard-700 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the DAQCard-700:

182435-01, 182435C-01, 182435G-01, 18246, 182460-01, 182460-02B, 182460C-01, 182460D-01, 182460F-01, 776793-01, 776793-91, 776985-00, 776985-01, 776985-02, 777053-01


Associated NSNs for the DAQCard-700:

5998-01-419-4869 (5998014194869)

National Instruments DAQCard-700 Frequently Asked Questions



Question: What type of ADC does the DAQCard-700 have?

Answer: The DAQCard-700 has successive approximation ADC.



Question: What is the overvoltage protection of the DAQCard-700?

Answer: The overvoltage protection is ±30 V when powered on or off



Question: What are the input signal ranges of the DAQCard-700?

Answer: The DAQCard-700 has software-selectable input signal ranges, including ±10 V, ±5 V, ±2.5 V
