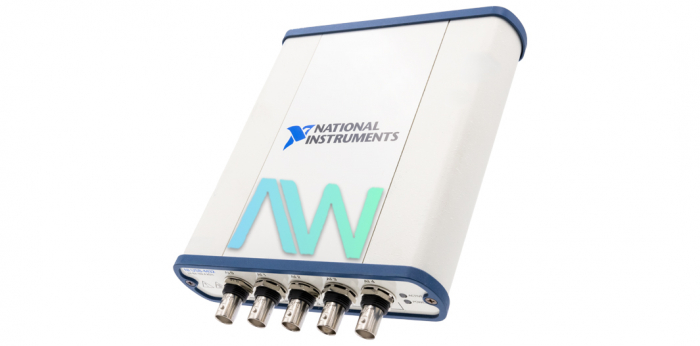

USB-4432 National Instruments Sound and Vibration Device | Apex Waves | Image
USB-4432 National Instruments Sound and Vibration Device | Apex Waves - Wiring Diagram Image
USB-4432 New
USB-4432 | Legacy, Refurbished and New Surplus

USB-4432

5/5 | 18 ratings

Modular Systems > National Instruments > DSA Devices

Part Number USB-4432
Manufacturer/Brand National Instruments
Description: USB-4432, 5 Analog Input Channels, Sound and Vibration Device
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

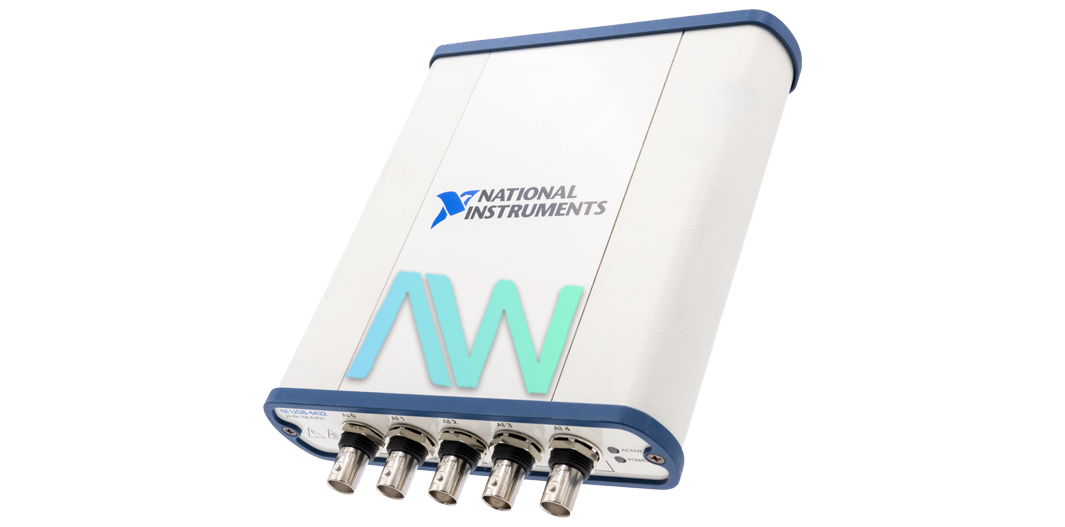

National Instruments USB-4432 Sound and Vibration Device

The USB-4432 (Part Number: 780421-01) is a Sound and Vibration Device from National Instruments. This model has five differential analog input channels and does not have any analog output channels. The input channels offer 24-bit measurements. This impressive Signal Acquisition Module is used for making measurements from IEPE sensors.  The USB-4432 buffers and pre-filters each signal. This process is executed by a 24-bit delta-sigma ADC (analog-to-digital converter). This device can read and write TEDS Class 1 sensor.

The National Instruments NI USB-4432 device also features a dynamic range of 100 dB. The device’s voltage range is -40V and +40V. The device also has ±60V overvoltage protection. The USB-4432 includes three modes of measurement operations which are software-selectable. Two modes with AC-coupling are IEPE-on mode and IEPE-off mode. The third mode is the IEPE-off mode with DC coupling. The NI USB-4432 uses delta-sigma modulation. This is a method of converting signals from analog form to digital form. This method rejects the out-of-band signals and only provides the most accurate and desirable signals.

The NI DAQ USB 4432 has a built-in antialiasing filter, which can easily differentiate between different types of signals. This Sound and Vibration Device is ideal for noise analysis applications, along with vibration analysis applications. This device includes many helpful features like distortion analysis and noise measurements. Another useful feature is sound quality analysis. The NI USB-4432 provides one BNC input connector per channel. This model performs well in extensive working environments.

ModelUSB-4432
ManufacturerNational Instruments
Part Number780421-01
TypeSound and Vibration Device
Analog Input Channels5
Maximum Sample Rate102.4 kS/s
Analog Input CouplingAC/DC
Dimensions5.6 in. × 7.1 in. × 1.5 in.
Weight1.5 lbs.
WarrantyOne Year Warranty
USB-4432 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments USB-4432 Frequently Asked Questions



Question: What is the high-pass filter cutoff frequency for the NI USB-4432?



Answer: The high-pass filter cutoff frequency for the NI USB-4432 is 0.1 Hz.



Question: Does the NI DAQ USB 4432 have software-selectable IEPE signal conditioning?



Answer: Yes, the NI DAQ USB 4432 has software-selectable IEPE signal conditioning on four of the five channels.



Question: What is the FIFO buffer size of the National Instruments NI USB-4432?



Answer: The FIFO buffer size of the National Instruments NI USB-4432 is 1,023 samples.



Question: What is the sample rate resolution for the USB-4432?



Answer: The USB-4432 has a sample rate resolution of less than or equal to 2.10 mS/s.
