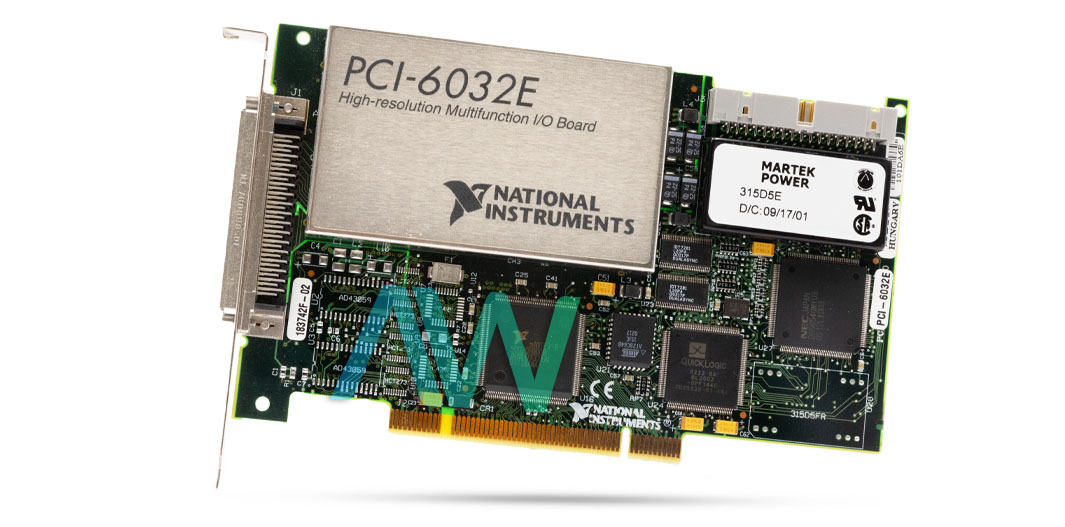

PCI-6032E National Instruments Multifunction DAQ | Apex Waves | Image PCI-6032E National Instruments Multifunction DAQ | Apex Waves | ImagePCI-6032EPCI-6032E | Legacy, Refurbished and New Surplus

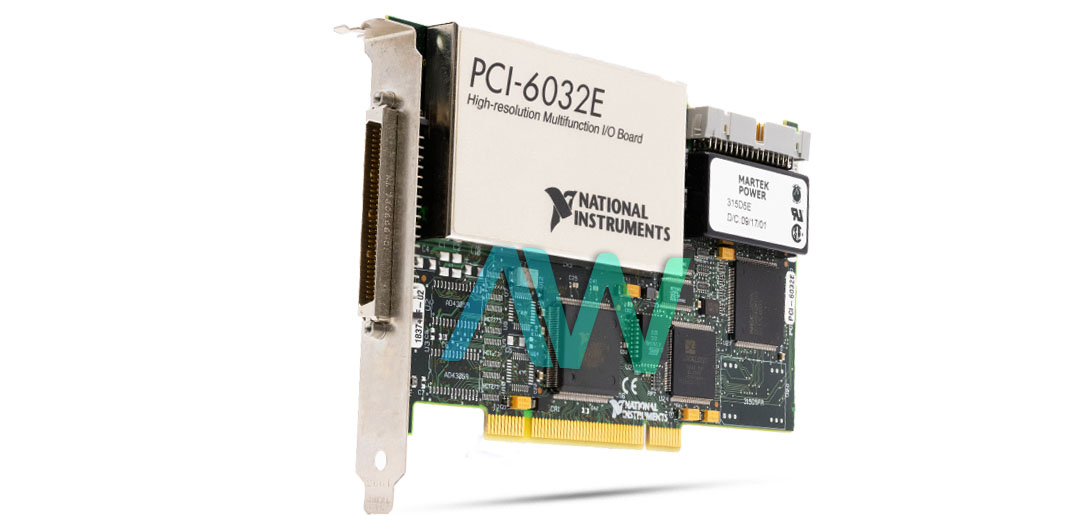

PCI-6032E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6032E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6032E New
PCI-6032E | Legacy, Refurbished and New Surplus

PCI-6032E

4.5/5 | 13 ratings

Modular Systems > National Instruments > E Series

Part Number PCI-6032E
Manufacturer/Brand National Instruments
Description: PCI-6032E, 16-Analog-Input, 16-Bit, Multifunction DAQ
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PCI-6032E Multifunction DAQ

The National Instruments PCI-6032E (Part Number: 777422-01) is a Full-Featured, Multifunction DAQ Device from the E Series. This PCI bus based device comes with 16 SE or 8 DI Analog Inputs, 16-bits Input Resolution, and a sampling rate as fast as 100 kS/s. The input range is ±0.1 to ±10 V. The NI PCI-6032E has no analog outputs, but it supports analog as well as digital triggers. This DAQ device features two 24-bit timers or counters as well. The channel scaling function incorporated in this model allows the user to scale their measurement data (usually voltage data) into other engineering units. For convenient synchronization with other instruments, this model comes with a dedicated RTSI bus.

The   National Instruments PCI-6032E features an onboard temperature sensor that can be used for the monitoring of the device’s operating temperature, ensuring that it is working within the correct temperature range. Another notable feature of this DAQ is its tendency to provide up to 15 input ranges for signals smaller than 50 mV. This model supports DC input coupling and has built-in overvoltage protection on its channels (set at ±25 V).

The National Instruments PCI-6032E Multifunction DAQ comes equipped with a unique internal mechanism for onboard self-calibration. The self-calibration function requires no adjustments and the process is controlled entirely through software. For better resolution performance, this module comes equipped with a specially designed noise floor. To ensure accurate results in harsh environments, the NI PCI 6032E is designed with parts that encounter the impact of temperature changes on measurement results.

ModelPCI-6032E
ManufacturerNational Instruments
Part Numbers777422-01
SeriesE Series
TypeMultifunction DAQ
Channels16 Analog Inputs (16-Bit, 100 kS/s) or 8 differential
8 Digital Inputs/Outputs (5 V/TTL Compatibility)
2 Counter/Timer I/O (24 bits, 20MHz )
I/O Connector68-pin Male SCSI-II type
Power Requirements+5 VDC - 1.5 A
Dimensions6.9 × 4.2 in.
Weight6.5 oz.
Driver SoftwareNI-DAQ7
WarrantyOne Year Warranty
PCI-6032E ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6032E Frequently Asked Questions



Question: Does the PCI-6032E have analog outputs?



Answer: No, the PCI-6032E does not have analog outputs.



Question: What are the power requirements for the NI PCI-6032E?



Answer: The power requirements for the NI PCI-6032E are 1.5 A at +5 VDC (±5%) and +4.65 to +5.25 VDC, 1 A power available at the I/O connector.



Question: Which type of I/O connectors are on the PCI-6032E?



Answer: The PCI-6032E has 68-pin male SCSI-II type I/O connectors.



Question: What is the input range of the NI PCI-6032E?



Answer: The input range of the NI PCI-6032E is ±0.1 to ±10 V.
