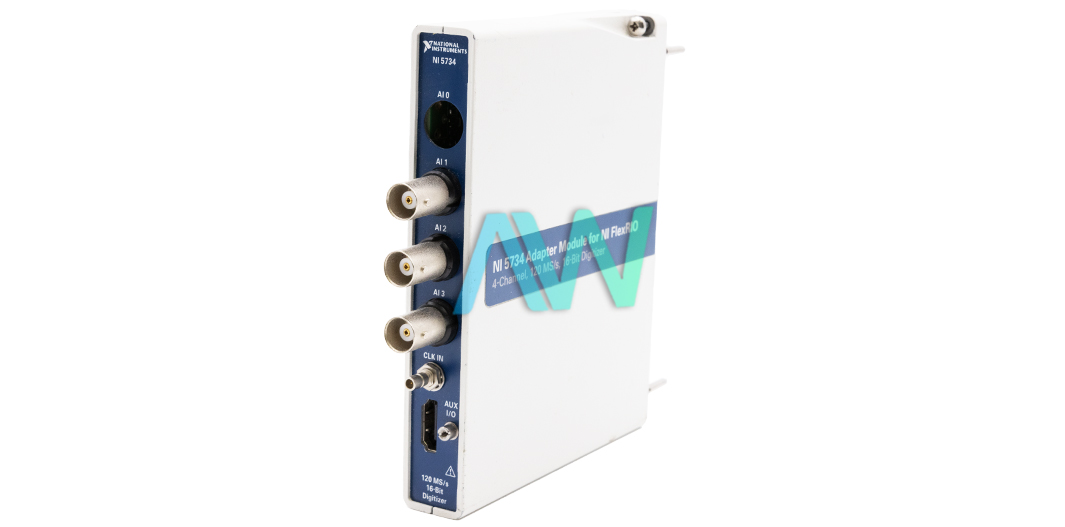

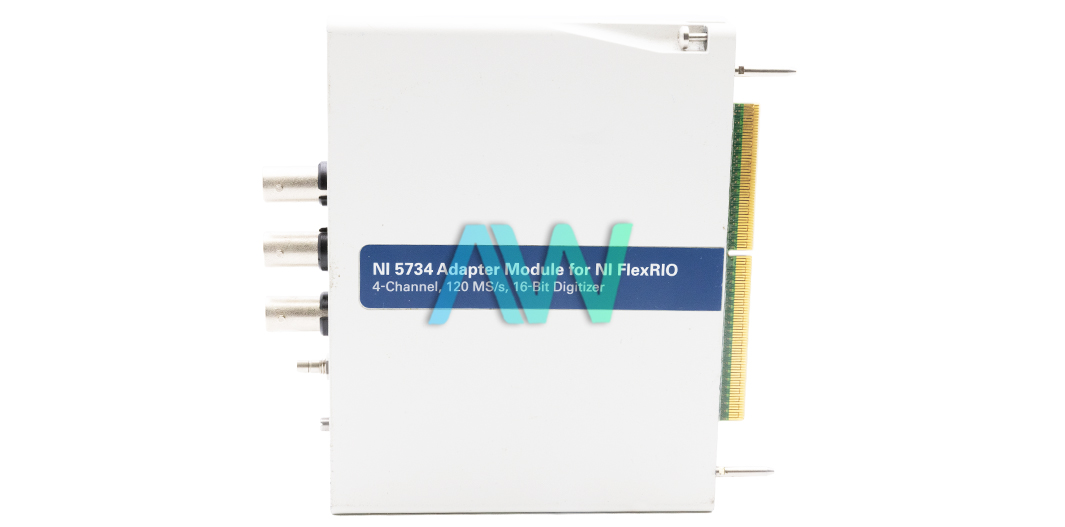

National Instruments NI-5734 Digitizer Adapter Module for FlexRIO

The NI‑5734 (Part number: 781659-04) is a Digitizer Adapter Module for FlexRIO by National Instruments. This module can perform digital measurements swiftly combined with a PXI FPGA Module for FlexRIO. The NI-5734 is easily configurable with a complete PXI System. The NI-5734 Digitizer Adapter Module fulfills the requirements of EMC standards for electrical equipment. These standards are for measurement, control, and laboratory use. The NI-5734 has both AC and DC coupling. The coupling type is selectable and can be changed according to user’s requirements. It has a programmable gain ranging from 0 dB to 12 dB.

The NI 5734 module has 16 bits analog input resolution and can operate at 120 MS/s sample rate per channel through a high-performance Analog to Digital Converter. The NI‑5734 additionally has a Bessel, bypass hardware filters, and a selectable elliptic filter. The NI-5734 module’s filter bypass path allows under sampling input filtering and provides maximum flexibility.

The NI-5734 Digitizer Adapter Module for FlexRIO has two instantaneously sampled channels. The NI-5734 can perform real time streaming and processing for analog information. The NI-5734 module’s elliptic filter helps increase flat bandwidth; this filter is suitable for frequency-domain applications. The NI-5734 module’s selectable Bessel filter decreases group delay over the input bandwidth and is used for time domain application. This Digitizer Adapter Module for FlexRIO is well-suited for applications which require organized high-performance solutions. This module is also great for applications such as in-line data handling and high data streaming rates.

ModelNI-5734
ManufacturerNational Instruments
Part Number781659-04
TypeDigitizer Adapter Module for FlexRIO
Voltage Input Channels4
Maximum Sample Rate120 MS/s
Analog Input Resolution16 bits
Dimensions5.1 x 0.8 x 4.7 in.
Weight11.7 oz.
WarrantyOne Year Warranty
NI-5734 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-5734 Frequently Asked Questions



Question: What are the required accessories for the NI 5734?



Answer: The required accessories for the NI 5734 are a NI FPGA Module and a BNC Cable. Optional accessories include a SHH19-H19-AUX Shielded Single-Ended Cable, a SCB-19 Connector Block, and a SMB Cable.



Question: What is the analog input bandwidth of the NI-5734?



Answer: The analog input bandwidth of the NI-5734 is 117 MHz.



Question: What is the ADC DC offset on the NI 5734?



Answer: The ADC DC offset on the NI 5734 is ±7.1 mV.



Question: What is the total power of the NI-5734 in typical operation?



Answer: The total power of the NI-5734 in typical operation is 4.5 W.
