PXIe-7975R

4.7/5 | 7 ratings

Modular Systems > National Instruments > R Series

Part Number PXIe-7975R
Manufacturer/Brand National Instruments
Description: PXIe-7975R, Kintex-7 410T FPGA, PXI FPGA Module for FlexRIO
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

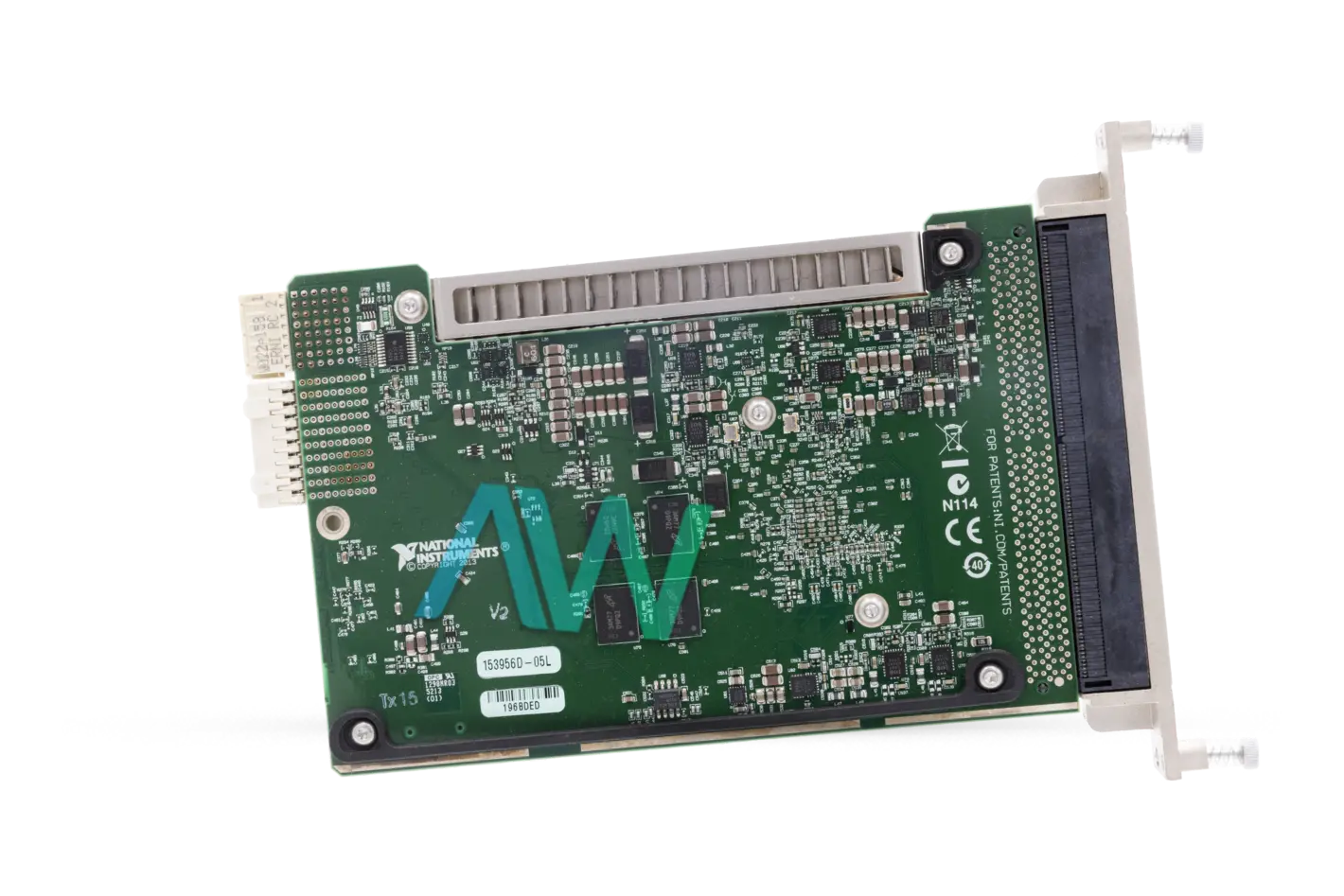

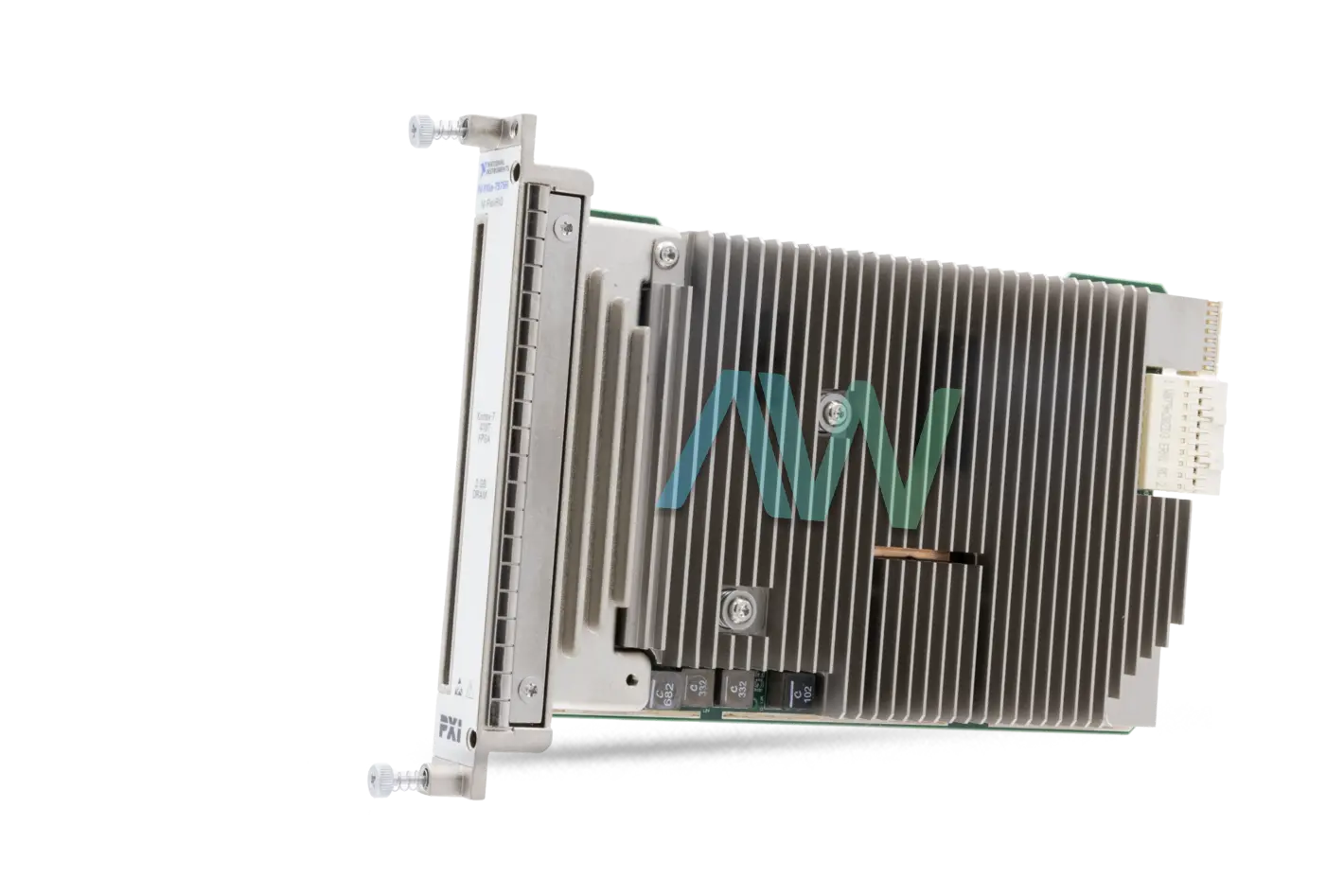

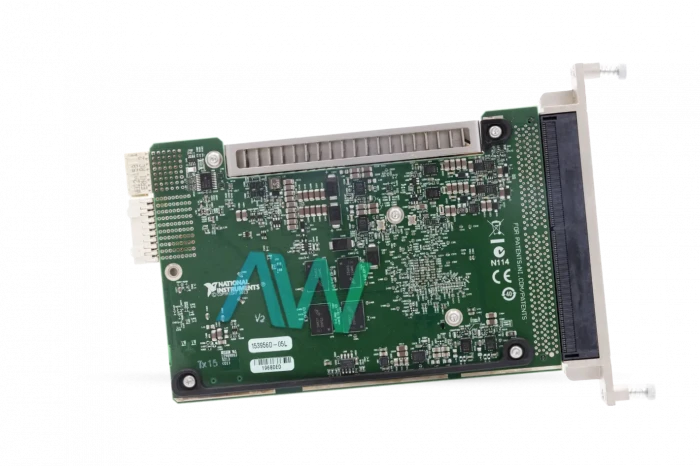

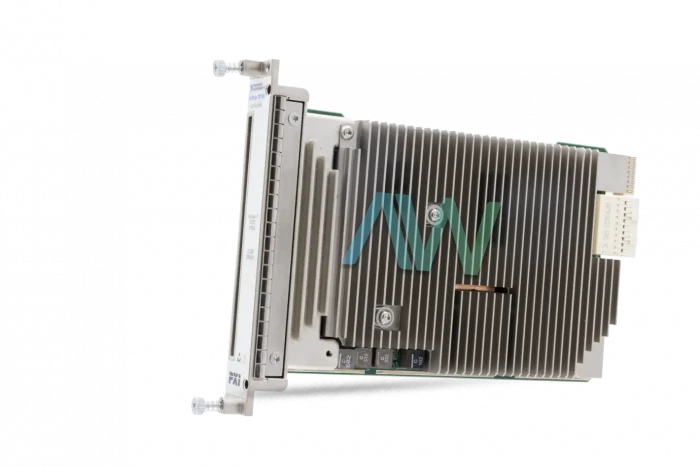

National Instruments PXIe-7975R PXI FPGA Module for FlexRIO

Featured with 68 general-purpose I/O and multiple DMA channels, the PXIe-7975R (Part Number: 782955-01) is a PXI Express-based FPGA Module for FlexRIO. This module belongs to the NI R Series and is also known as the PXIe-7975. The National Instruments PXIe-7975R PXI FPGA Module for FlexRIO is powered by a Kintex-7 FPGA (XC7K410T). There are 1540 DSP slices in the module and 63550 FPGA slices. The NI PXIe-7975R supports single-ended configuration rates up to 400 Mb/s. The 2 GB onboard DRAM of this module enables it to operate at a maximum data rate of 10.5 GB/s.

The reconfigurable FPGA of the PXIe-7975R has 32 DMA (Direct Memory Access) channels and supports multiple modes of data transfer, programmed I/O, interrupts, and DMA. The general-purpose I/O of the NI PXIe-7975R are grouped into three banks. Bank 0 and Bank 1 have 48 channels, whereas Bank 2 has 40 channels. This module is designed in the x4 PXIe form factor and is compliant with specification v2.1. The National Instruments PXIe-7975R PXI FPGA Module for FlexRIO is compatible with x4, x8, and x16 PXIe, or hybrid PXI slots. The PXIe-7975R weighs 6.7 oz and has dimensions of 7.4 x 5.1 in. without the connectors. This PXI FPGA Module for FlexRIO consumes 3 A current at +3.3 VDC and +12 V.

ModelPXIe-7975R
ManufacturerNational Instruments
Part Number782955-01
TypePXI FPGA Module for FlexRIO
FPGAKintex-7 410T
General-Purpose Channels136
Onboard DRAM2 GB single bank
Form Factorx4 PXI Express, specification v2.1 compliant
Dimensions7.4 x 5.1 in.
Weight1 lb.
WarrantyOne Year Warranty
PXIe-7975R ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.
