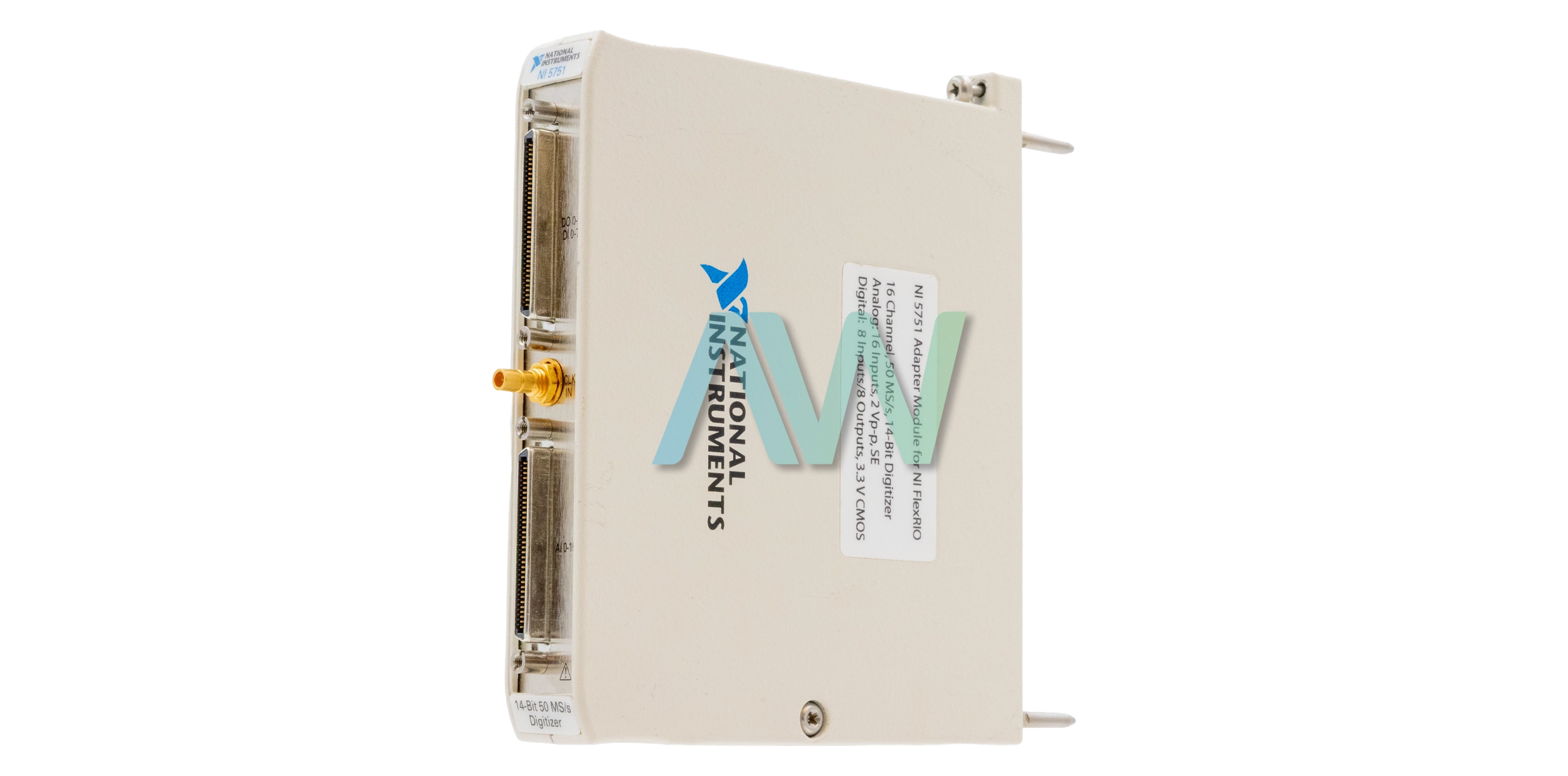

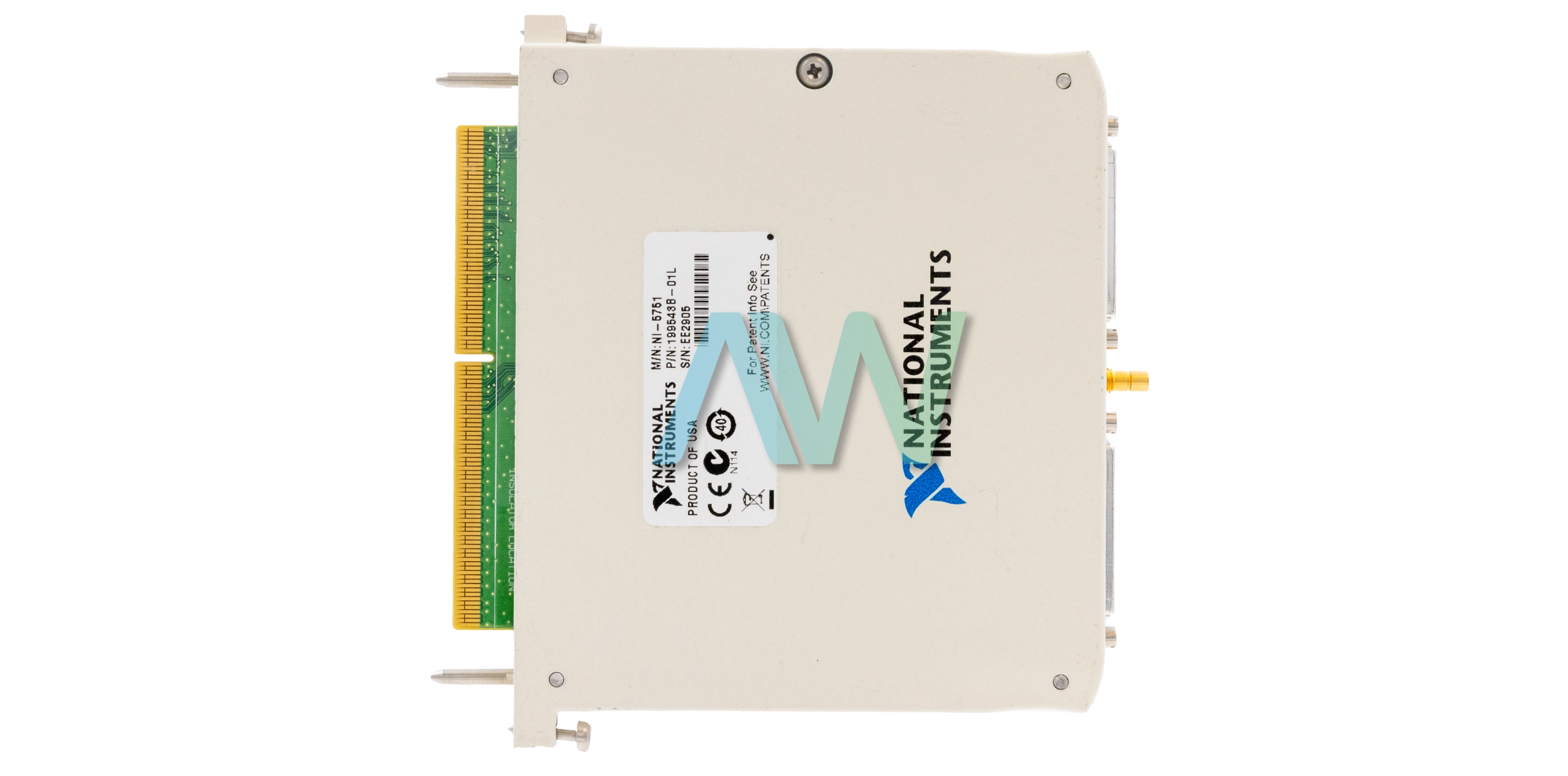

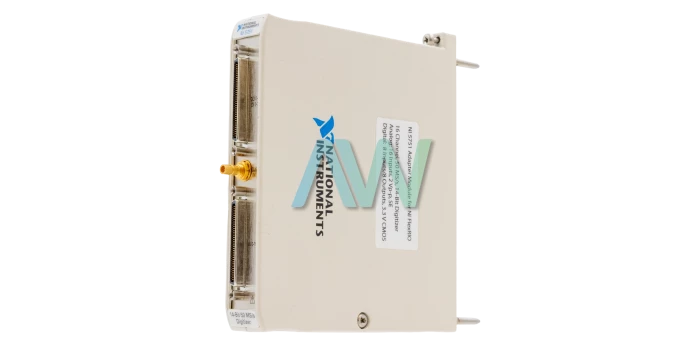

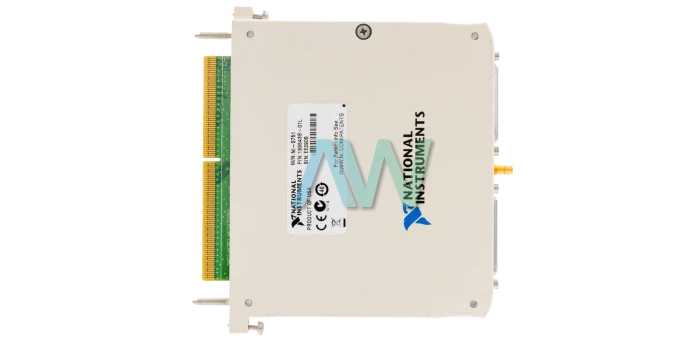

NI-5751 National Instruments Digitizer Adapter Module for FlexRIO | Apex Waves | Image NI-5751 National Instruments Digitizer Adapter Module for FlexRIO | Apex Waves | ImageNI-5751NI-5751 | Legacy, Refurbished and New Surplus
NI-5751 National Instruments Digitizer Adapter Module for FlexRIO | Apex Waves | Image
NI-5751 National Instruments Digitizer Adapter Module for FlexRIO | Apex Waves | Image
NI-5751 New
NI-5751 | Legacy, Refurbished and New Surplus

NI-5751

4.7/5 | 20 ratings

Modular Systems > National Instruments > FlexRIO

Part Number NI-5751
Manufacturer/Brand National Instruments
Description: NI-5751, 16-Channel, Digitizer Adapter Module for FlexRIO
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments NI-5751 Digitizer Adapter Module for FlexRIO

The NI-5751 is a Digitizer Adapter Module for FlexRIO from National Instruments. This module is available under the manufacturer’s part number 781356-01. The NI-5751 module can create a high-speed digitizer. This digitizer supports parallel sampling. The NI-5751 provides high-speed analog I/O for digitization. To interface with external hardware, digital I/O channels are provided in the NI-5751 module.

The NI-5751 module has 16 analog input channels. The analog inputs have a VHDCI type connector. These input channels are single-ended and DC-coupled. The input voltage range is -1 V to 1 V. This module has 14-bit pipelined ADC. The bandwidth of analog input is 26 MHz. The NI-5751 provides a sample rate up to 50 MS/s. These analog channels are parallel, so the NI-5751 module samples all input channels simultaneously.

This module provides online data processing and analog data streaming. The Digitizer Adapter Module for FlexRIO is interfaced with high-performance A/D converters for these tasks. The NI-5751 is used in pair with a PXI FPGA Module for FlexRIO. This module can also be used to create instruments with customizable firmware. The Controller for FlexRIo is paired with the NI-5751 to create such an instrument. The NI-5751 module features 8 digital input and 8 digital output terminals. The connector type for the digital I/O terminals is VHDCI.

The NI 5751 is ideal for a broad range of applications. This module is widely used in precision applications like experimental physics, applications where deployed high-performance solutions are needed, medical imaging in the medical field, and in ND ultrasound testing.

ModelNI-5751
ManufacturerNational Instruments
Part Number781356-01
TypeDigitizer Adapter Module for FlexRIO
Voltage Input Channels16
Maximum Sample Rate50 MS/s
Analog Input Resolution14 bits
Dimensions5.1 x 0.8 x 4.7 in.
Weight10 oz.
WarrantyOne Year Warranty
NI-5751 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-5751 Frequently Asked Questions



Question: Which accessories are required to operate the NI 5751?



Answer: To operate the NI 5751, the user needs a FPGA module, a Connector Block, and a I/O Cable.



Question: What is the total power required for the NI-5751 module?



Answer: The total power required for the NI-5751 module is 5.37 W.



Question: Which types of front panel connectors are on the NI 5751?



Answer: The NI 5751 has three 68-pin VHDCI connectors and one SMB connector on the front panel.



Question: Which FlexRIO FPGA modules are compatible with the NI-5751?



Answer: The NI-5751 is compatible with the PXI-795xR and PXIe-796xR modules.
