National Instruments PXIe-7962 PXI FPGA Module for FlexRIO

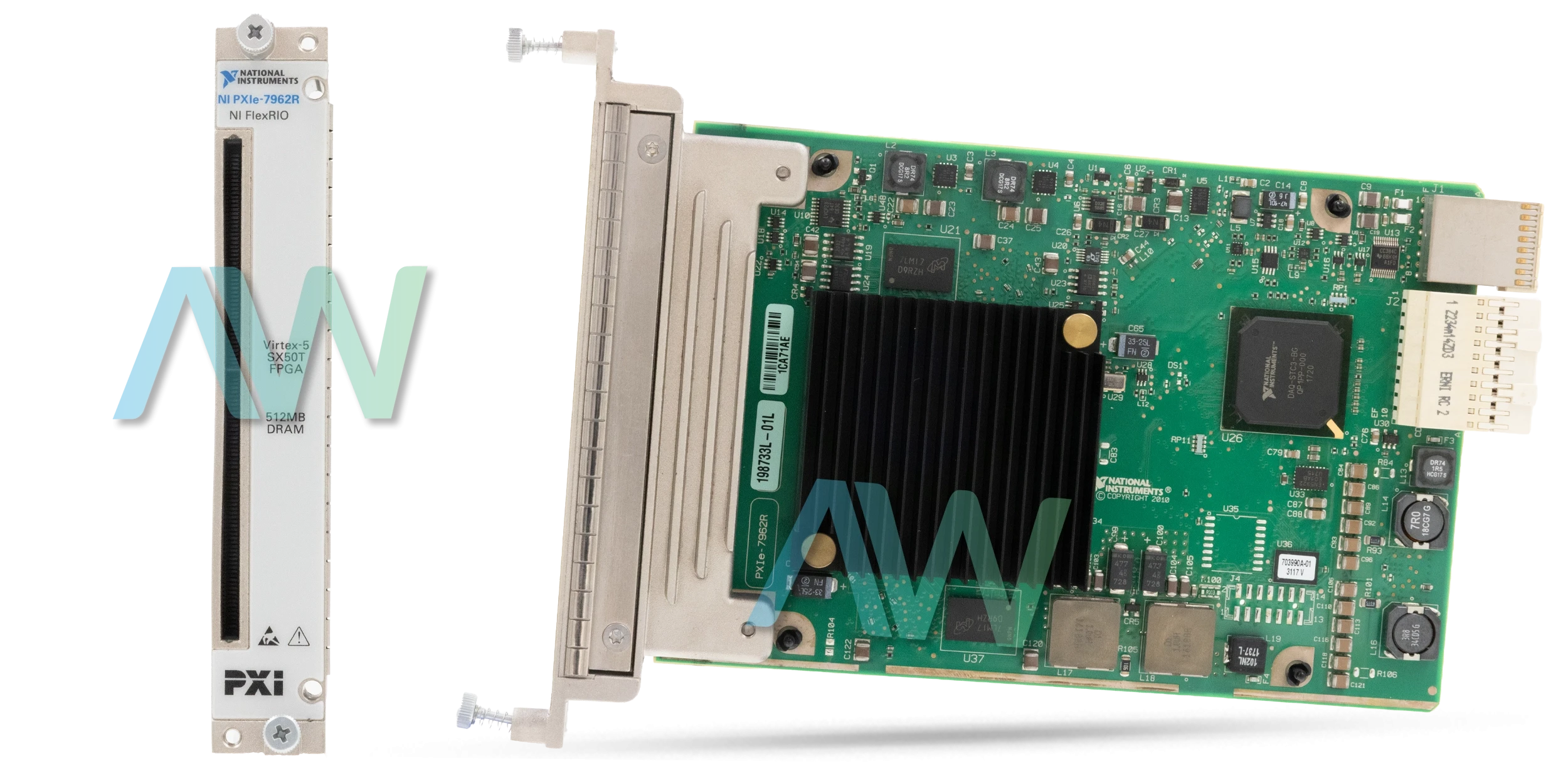

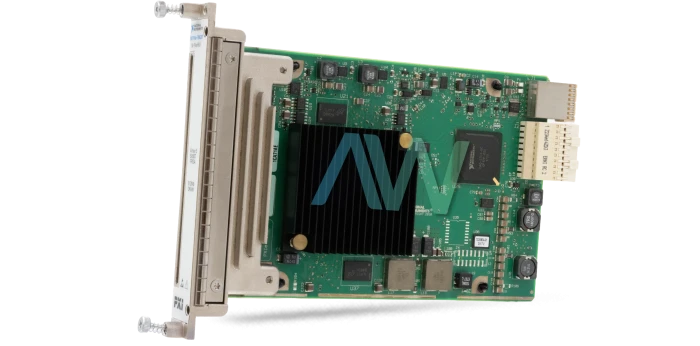

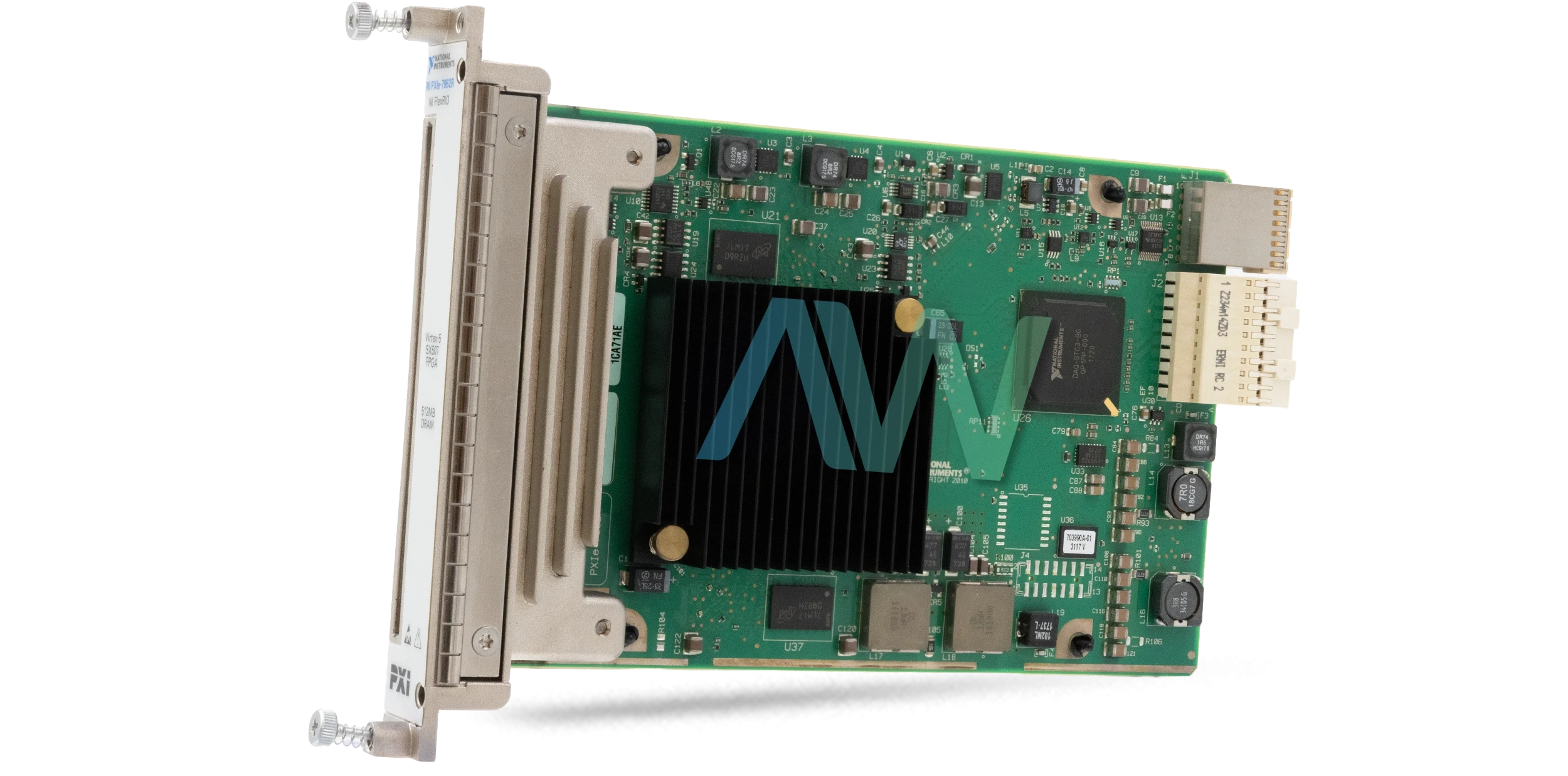

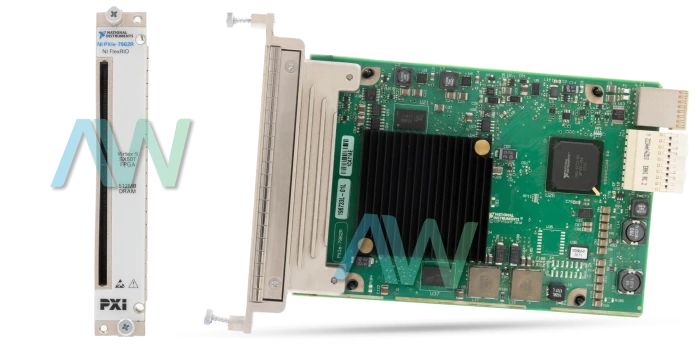

The PXIe-7962 (Part Number: 781206-01) PXI FPGA Module for FlexRIO gives adaptable and adjustable I/O for LabVIEW FPGA. This module incorporates 132 single-ended I/O lines, which are configurable as 66 differential pairs. The device is run using the NI-RIO driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabVIEW FPGA module LabVIEW Real-Time module (optional), and the NI FlexRIO adapter module support. The user can pair the NI PXIe-7962 with FlexRIO connector modules. Together, the two modules make a reconfigurable instrument that can be programmed with LabVIEW FPGA software. This model is compatible with point-to-point transmission, which transfers data directly between various FPGA modules or chooses PXI Express modules without sending information to the host processor. With this component, the user can add FPGA capacities to NI superior digitizers with NIST traceable alignment or expand their FPGA algorithms across multiple FPGAs for computationally requesting applications.

The National Instruments PXIe-7962 PXI FPGA Module includes the most recent in FPGA innovation and elite bus interfaces. National Instruments offers NI FlexRIO connector modules. Users can create their own connector modules utilizing the NI FlexRIO Adapter Module Development Kit (MDK). With custom connector modules, the user can actualize the correct analog and digital I/O application, alongside graphical FPGA programming gave by LabVIEW.

This PXI FPGA Module includes a Xilinx Virtex-5 SXT FPGA with 8,160 slices, a block RAM (BRAM) of 4,752 kbit, and up to 512MB of locally available DRAM, which the user can access at bus capacities up to 3.2 GB/s. In addition to general-purpose reconfigurable logic, SXT FPGAs are streamlined for fast digital signal processing (DSP), with up to 640 DSP cuts for single-cycle increase and separating capacities. The PXIe-7962 PXI FPGA Module for FlexRIO also highlights the NI STC-3 application-specific incorporated circuit (ASIC) to provide an optimized, high-bandwidth PCI Express x4 communications link to the backplane of the PXI Express chassis.

The NI device weighs 7.5 oz, and measures 6.3 x 4.3 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of –20 °C to 70 °C.
