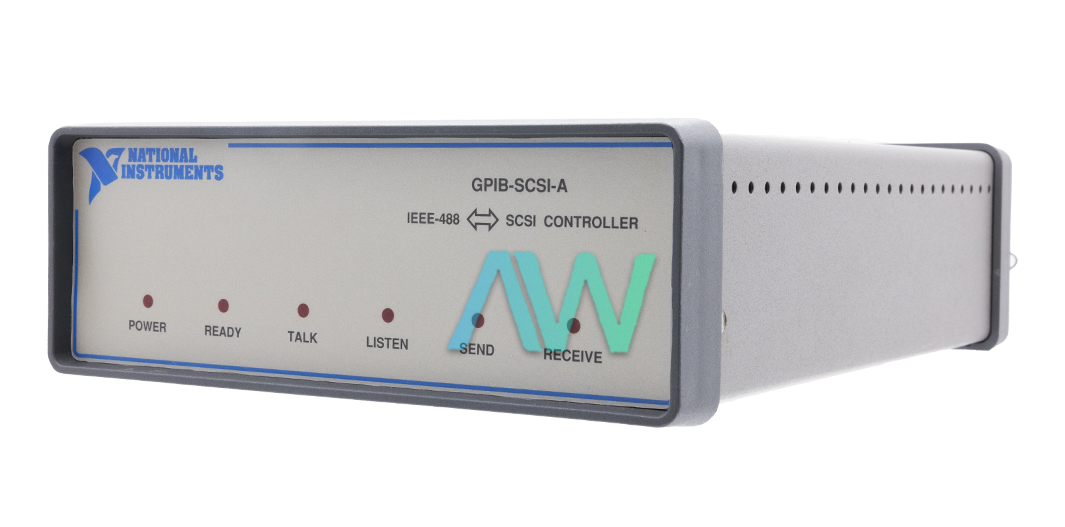

National Instruments GPIB-SCSI-A GPIB SCSI Controller

The GPIB-SCSI-A (Part Numbers: 776569-01, 776569-02, 776569-03, 776569-04, 776569-05, 776569-06) is a GPIB SCSI Controller. The controller has been developed by National Instruments. The NI GPIB-SCSI-A can communicate with and control up to 14 GPIB instruments. In addition, seven SCSI devices can be controlled through a computer with a GPIB port. This GPIB SCSI Controller offers two modes of control: SCSI(S) and GPIB(G). If SCSI(S) mode is implemented, it enables a user to convert a personal computer with an SCSI port to a GPIB controller. If GPIB(G) mode is implemented, the NI GPIB-SCSI-A interface enables the user to include an SCSI device into the GPIB system.

This GPIB SCSI Controller has asynchronous data transfer characteristics available at the SCSI port. The GPIB-SCSI-A can implement the full functions of IEEE-488.2 to act as either a talker, listener, or controller on the GPIB port. The addresses for the SCSI on the NI GPIB-SCSI-A interface are software selectable. The maximum transfer rates for both SCSI and GPIB ports depend on the application associated with the memory read/write commands. The maximum transfer rate for SCSI/GPIB read into buffer memory is 1.0 Mbytes/s. The transfer rate for SCSI reads and GPIB reads from buffer memory is 800 kbytes/s. The straight-through transfers (no buffering) rate for SCSI reads/GPIB writes is 600 kbytes/s.

The interface GPIB-SCSI-A is available in a wide range of input voltage options (120-240 VAC). The GPIB-SCSI-A also offers an input RAM buffer of 256 kbytes/s. The maximum current requirement of the interface is 90 mA at 120 VAC. The GPIB-SCSI-A interface comes with a standard 24 pin IEEE-488 connector for the GPIB port, while two 50-pin SCSI shielded I/O connectors are available for the SCSI port.

ModelGPIB-SCSI-A
ManufacturerNational Instruments
Part Numbers776569-01, 776569-02, 776569-03,
776569-04, 776569-05, 776569-06
TypeGPIB SCSI Controller
RAM Buffer256 KB
Driver SoftwareNI-488.2
SCSI I/O ConnectorsTwo shielded 50-pin SCSI-1
Dimensions9.9 x 7.5 x 2.9 in.
Weight4 lb.
WarrantyOne Year Warranty
GPIB-SCSI-A ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

  GPIB-SCSI-A PDF Manuals


Why Buy From Apex Waves:

Apex Waves Youtube Video


Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page:
Common Typos: HPIB-SCSI-A, NPIB-SCSI-A, GPIB-SDSI-A, GPIB-SFSI-A, GPIB-SCZI-A

GPIB-SCSI-A


GPIB-SCSI-A

GPIB-SCSI-A, 256 KB RAM Buffer, GPIB SCSI Controller

Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing













Call now for best pricing
1-800-915-6216

National Instruments GPIB-SCSI-A GPIB SCSI Controller

The GPIB-SCSI-A (Part Numbers: 776569-01, 776569-02, 776569-03, 776569-04, 776569-05, 776569-06) is a GPIB SCSI Controller. The controller has been developed by National Instruments. The NI GPIB-SCSI-A can communicate with and control up to 14 GPIB instruments. In addition, seven SCSI devices can be controlled through a computer with a GPIB port. This GPIB SCSI Controller offers two modes of control: SCSI(S) and GPIB(G). If SCSI(S) mode is implemented, it enables a user to convert a personal computer with an SCSI port to a GPIB controller. If GPIB(G) mode is implemented, the NI GPIB-SCSI-A interface enables the user to include an SCSI device into the GPIB system.

This GPIB SCSI Controller has asynchronous data transfer characteristics available at the SCSI port. The GPIB-SCSI-A can implement the full functions of IEEE-488.2 to act as either a talker, listener, or controller on the GPIB port. The addresses for the SCSI on the NI GPIB-SCSI-A interface are software selectable. The maximum transfer rates for both SCSI and GPIB ports depend on the application associated with the memory read/write commands. The maximum transfer rate for SCSI/GPIB read into buffer memory is 1.0 Mbytes/s. The transfer rate for SCSI reads and GPIB reads from buffer memory is 800 kbytes/s. The straight-through transfers (no buffering) rate for SCSI reads/GPIB writes is 600 kbytes/s.

The interface GPIB-SCSI-A is available in a wide range of input voltage options (120-240 VAC). The GPIB-SCSI-A also offers an input RAM buffer of 256 kbytes/s. The maximum current requirement of the interface is 90 mA at 120 VAC. The GPIB-SCSI-A interface comes with a standard 24 pin IEEE-488 connector for the GPIB port, while two 50-pin SCSI shielded I/O connectors are available for the SCSI port.

ModelGPIB-SCSI-A
ManufacturerNational Instruments
Part Numbers776569-01, 776569-02, 776569-03,
776569-04, 776569-05, 776569-06
TypeGPIB SCSI Controller
RAM Buffer256 KB
Driver SoftwareNI-488.2
SCSI I/O ConnectorsTwo shielded 50-pin SCSI-1
Dimensions9.9 x 7.5 x 2.9 in.
Weight4 lb.
WarrantyOne Year Warranty
GPIB-SCSI-A ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

GPIB-SCSI-A PDF Manuals & Diagrams

  GPIB-SCSI-A PDF Manuals

ARCHIVED DUAL RACK MOUNT KIT FOR GPIB-SCSI-A INSTALLATION GUIDE.PDF

ARCHIVED GETTING STARTED WITH LABWINDOWS CVI.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND NI 488.2 FOR SOLARIS AND SPECIFICATIONS.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488.2 SOFTWARE FOR MACINTOSH AND SPECIFICATIONS.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488.2 SOFTWARE FOR MACOS AND SPECIFICATIONS.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488.2M SOFTWARE FOR SOLARIS 2 AND SPECIFICATIONS.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488.2M SOFTWARE FOR THE SUN SPARCSTATION AND SPECIFICATIONS.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488M SOFTWARE FOR SILICON GRAPHICS CHALLENGE SERVERS RUNNING IRIX 5.X 6.X AND SPECIFICATIONS.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488M SOFTWARE FOR THE SILICON GRAPHICS INDIGO 2 INDY RUNNING IRIX.PDF

ARCHIVED GETTING STARTED WITH YOUR GPIB-SCSI-A AND THE NI 488M SOFTWARE FOR THE SILICON GRAPHICS IRIS INDIGO PERSONAL IRIS RUNNING IRIX 4.X AND SPECIFICATIONS.PDF

ARCHIVED GPIB-SCSI-A _AMP_ NI 488M FOR SGI RUNNING IRIX 5.X AND SPECIFICATIONS.PDF

ARCHIVED GPIB-SCSI-A USER MANUAL.PDF

ARCHIVED INSTALLING YOUR GPIB-SCSI-A AND NI 488.2 FOR SOLARIS INSTALLATION GUIDE.PDF

ARCHIVED LABVIEW 5.1 ADDENDUM.PDF

ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF

ARCHIVED LABVIEW INSTRUMENT I O VI REFERENCE MANUAL.PDF
