National Instruments PCIe-GPIB/LP GPIB Instrument Control Device

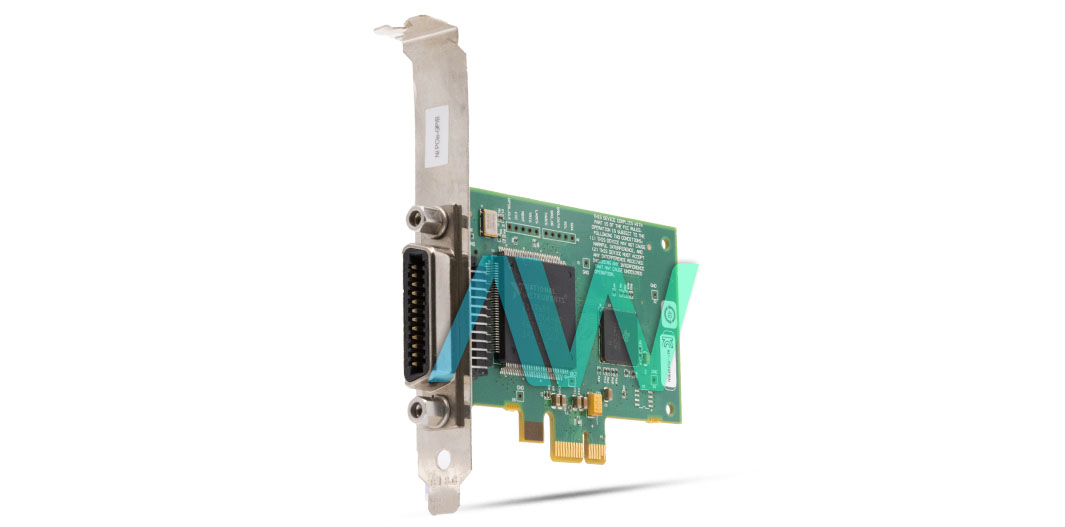

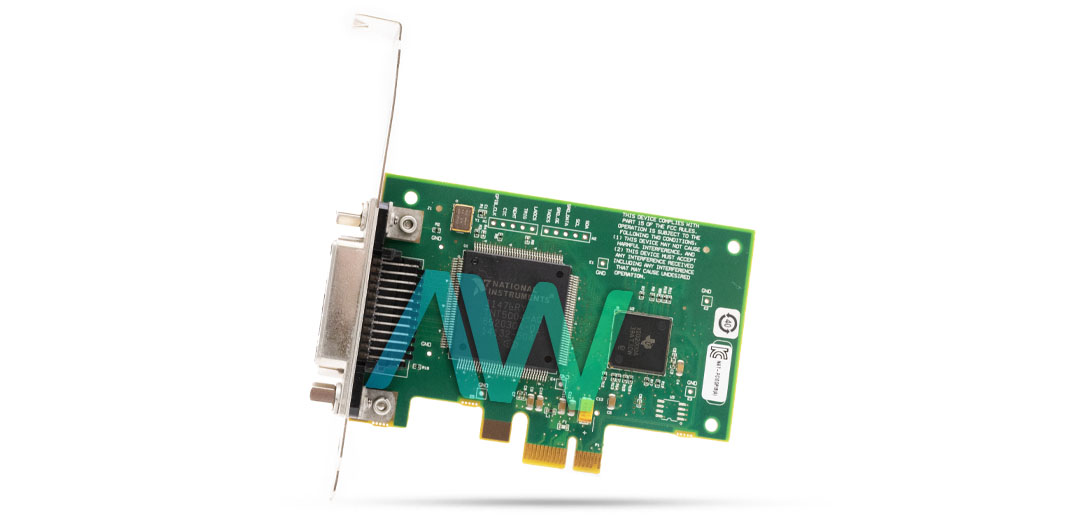

Featured with FIFO buffers to decouple PCI Express Transfers from GPIB Transfers and PCIe 1.0a compatibility, the National Instruments PCIe-GPIB/LP (Part number: 780575-01) is a GPIB Instrument Control Device for PCI Express. The NI TNT ASIC incorporated in this model makes the NI PCIe-GPIB/LP the most efficient IEEE 488.2 interface available on the market. The NI TNT ASIC performs various basis IEEE 488 listen, talk, and control functions. This device comes with an ability to use HS488 as well. The HS488 is a high-speed GPIB protocol that increases the maximum data transfer capability. Moreover, this model has other key components, including a PCI Express Bridge (TI XI02000a).

The TI XI02000a comes with an x1 PCIe interface that can operate in full compliance with the PCIe base specs Rev 1.0a. With this model, the user can achieve up to 1.5 MB/s in IEEE 488 interlocked handshake mode and 7.9 MB/s in HS488 handshake mode. This model comes equipped with a standard 24-pin (female) IEEE connector and standard x1 PCIe connector. The NI PCIe-GPIB/LP GPIB Instrument Control Device is offered with NI-488.2 driver software. This device is fully compatible with almost all the leading software products, including: LabVIEW, Measurement Studio, LabWindows/CVI, etc.

This GPIB Instrument Control Device can be operated in various environments. This device only requires 1.1 watts of power in typical conditions (0 to 55 degrees C). This model comes in a PCIe form factor and has dimensions of 9.8 by 6.9 cm.

ModelPCIe-GPIB/LP
ManufacturerNational Instruments
Part Number780575-01
TypeGPIB Instrument Control Device
Maximum GPIB Transfer Rates3-wire: 1670 kbytes/s
HS488: 7980 kbytes/s
CompatibilityIEEE 488.1, IEEE 488.2
PCI Express CompatibilityPCI Express 1.0a
ConnectorsGPIB: IEEE 488 24-pin connector
PCIe: x1
Power Requirements+3.3 VDC - 1.1 W
Dimensions3.8 by 2.7 in.
Software DriverNI‑488.2
WarrantyOne Year Warranty
PCIe-GPIB/LP ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCIe-GPIB/LP Frequently Asked Questions



Question: What’s the difference between the NI PCIe-GPIB and the NI PCIe-GPIB/LP?



Answer: The NI PCIe-GPIB and the NI PCIe-GPIB/LP have the same functionality, but the PCIe-GPIB/LP is a low-profile version. The newer version has a lower power consumption and a wider operating temperature.



Question: What does the LP at the end of PCIe-GPIB/LP stand for?



Answer: The LP at the end of the PCIe-GPIB/LP product name means “low profile.”



Question: Why does the PCIe-GPIB/LP seem too small for my Dell desktop? The expansion head will not reach the motherboard.



Answer: The PCIe-GPIB/LP has a shorter bracket in order to fit slim desktops. If it’s too short for your computer, you need to get the PCIe-GPIB.
