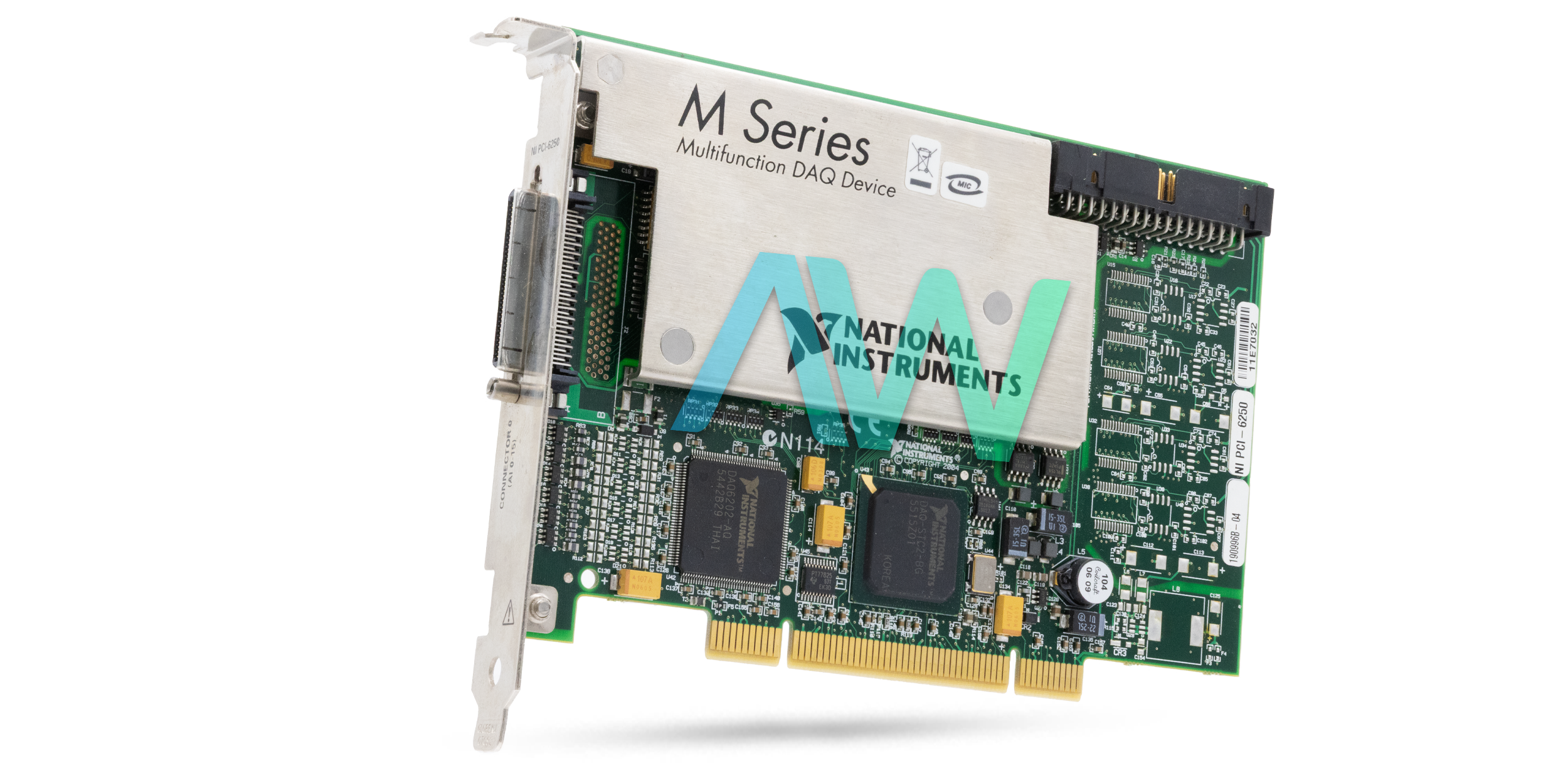

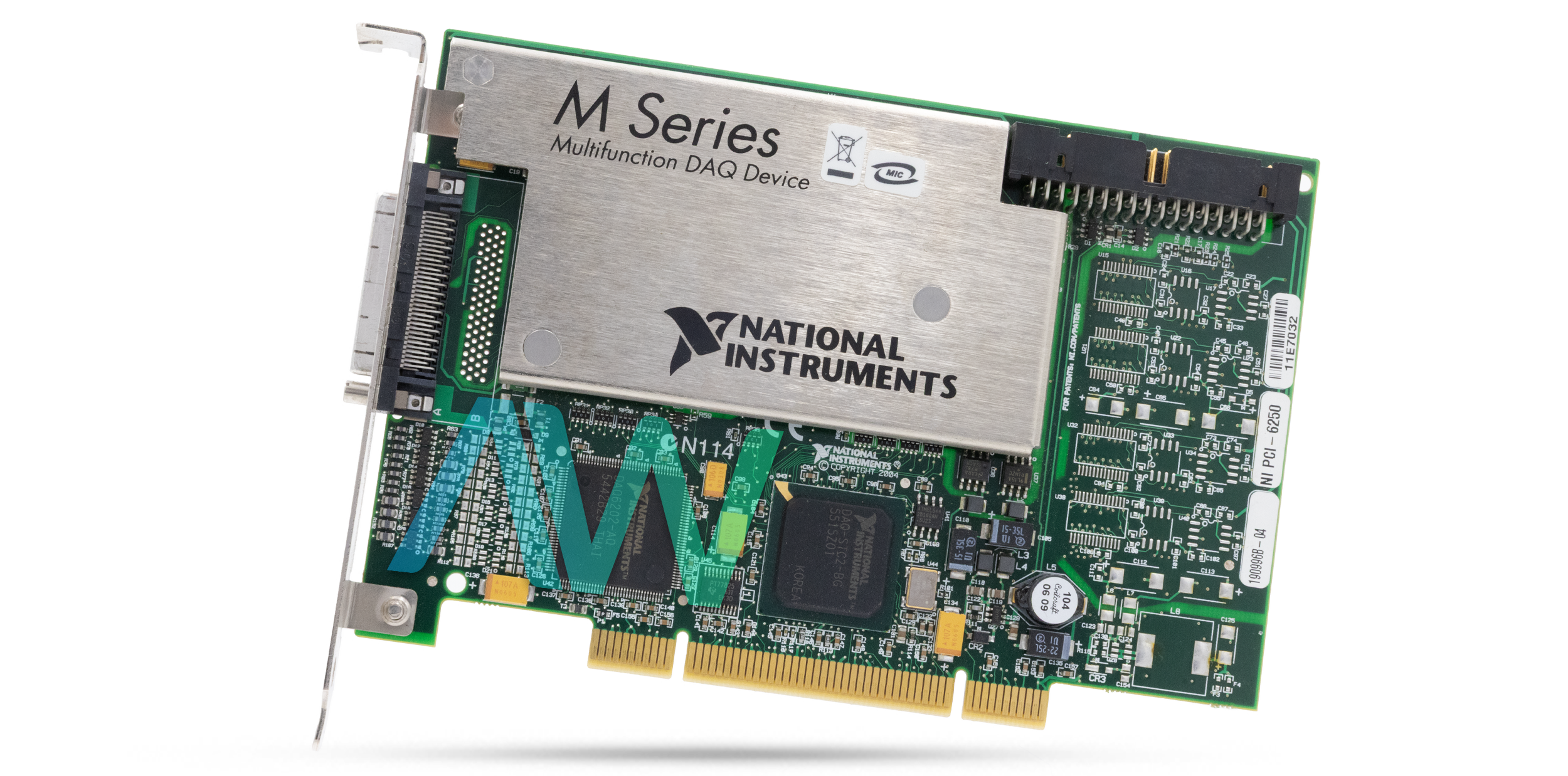

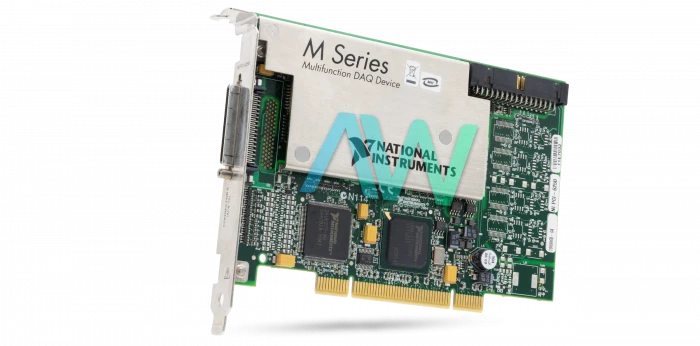

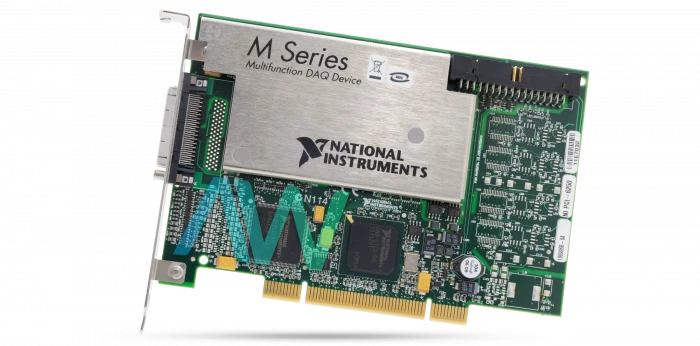

National Instruments PCI-6250 Multifunction DAQ
The PCI-6250 (Part number: 779069-01) is an efficient Multifunction DAQ by National Instruments. This device is specifically designed to read high-speed data with accuracy. The PCI-6250 device is an M-series DAQ board. This device incorporates NI-MCal calibration technology, which increases the accuracy of measurements. The PCI-6250 device has an onboard NI-PGIA 2 amplifier. This amplifier offers high accuracy when the device is reading samples from all channels at the highest sampling rate. The PCI-6250 I/O device supports NI-DAQmx driver software. The data-logging software supported by this device is NI LabVIEW.
The PCI-6250 Multifunction DAQ has eight differential analog input channels. These inputs can be programmed to work as 16 single-ended channels. The timing resolution of the input channels is 50 ns. The device has a maximum rate of sampling of 1.25 MS/sec in single-channel sampling mode. It reduces 1 MS/s per channel during the multichannel sampling mode. The input voltage range of the PCI-6250 is from +0.1 V to +10 V. The maximum working voltage of the PCI-6250 is +11V. The input FIFO memory is 4095 samples. In addition to the above, this device also has 24 digital input/output channels. The digital channels are independent and can be selected as both inputs or outputs.
The PCI-6250 Multifunction DAQ has two general-purpose counters/timers. The counters have a resolution of 32 bits. The PCI-6250 has two types of clock sources, internal and external. The internal base clocks have fixed frequencies of 0.1 MHz, 20 MHz, and 80 MHz. The frequency range of the external base cock is 0-20 MHz.
PCI-6250 Legacy Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-6250 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779069-01 |
| Series | M Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 16 (16-Bit, 1.25 MS/s) or 8 differential |
| Analog Output Channels | 0 |
| Digital Input/Output | 24 |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| I/O Connector | 1 68-pin VHDCI |
| Power Requirements | +5 V, +3.3 V, +12 V -- 0.03 A, 0.725 A, 0.35 A |
| Dimensions | 3.8 × 6.1 in. |
| Weight | 5 oz. |
| Driver Software | NI-DAQmx, NI-DAQmx Base |
| Warranty | 2-3 Year Warranty |
| PCI-6250 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for thePCI-6250:
190996B-04, 190996C-04L, 190996C-96, 190996D-04L, 190996E-04L, 190996F-04L, 190996G-04L, 779069-01
National Instruments PCI-6250 Frequently Asked Questions
Question: What is the input FIFO size of the NI PCI-6250 M Series DAQ?
Answer: The input FIFO size of the NI PCI-6250 M Series DAQ is 4,095 samples.
Question: What is the NI PCI-6250 driver called?
Answer: The NI PCI-6250 driver is NI-DAQmx.
Question: What is the ground reference for the digital I/O on the NI PCI 6250?
Answer: The ground reference for the digital I/O on the NI PCI 6250 is D GND.
Question: Does the PCI 6250 need to be calibrated?
Answer: Yes, the PCI 6250 has a calibration interval of two years.
PCI-6250 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6250 DEVICE SPECIFICATIONS.PDF
PCI PXI 625X LETTER OF VOLATILITY.PDF
