PXIe-8399, 2-Port, PXI Remote Control Module

Rated 4.7/5 | 16 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

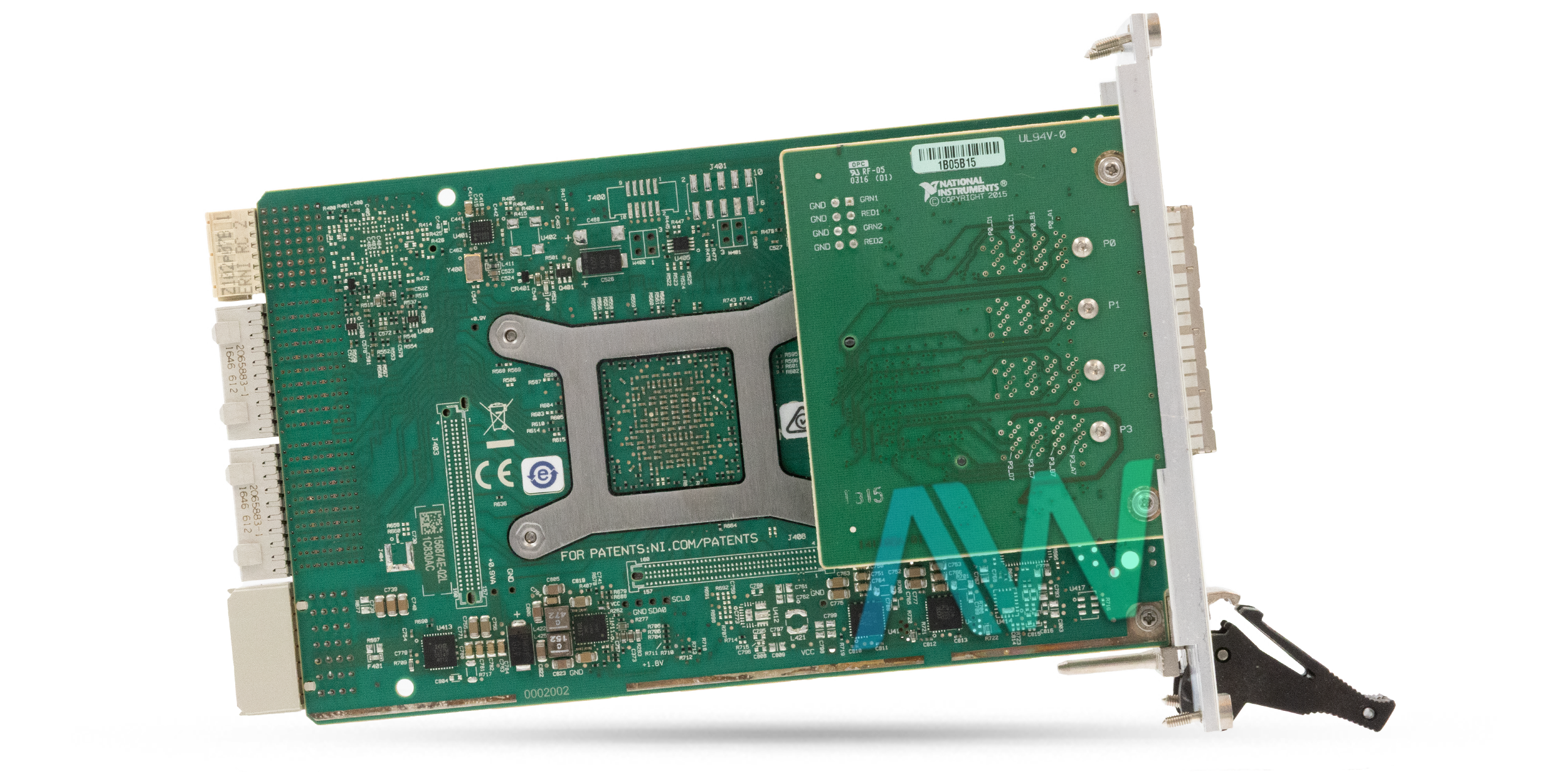

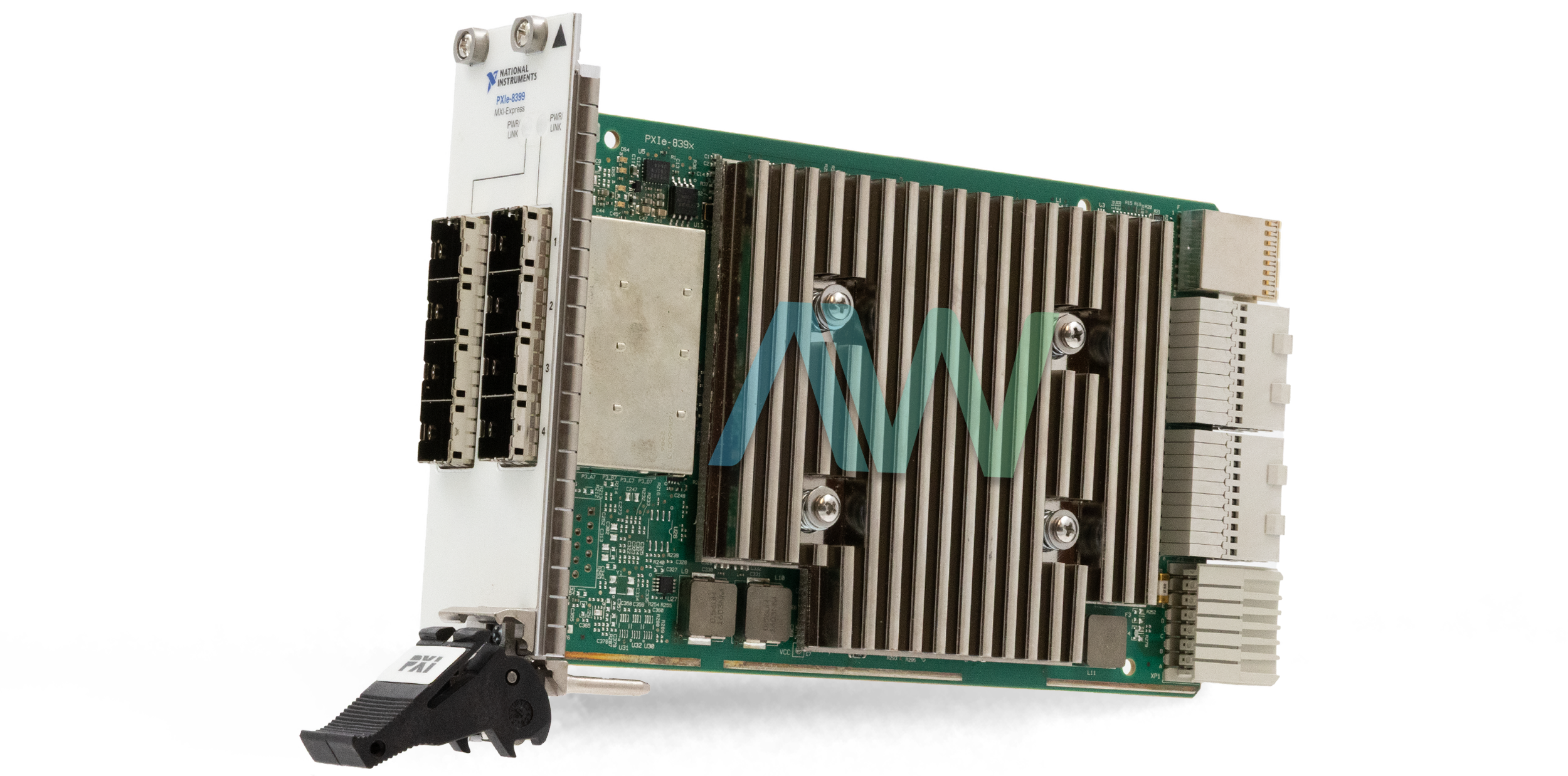

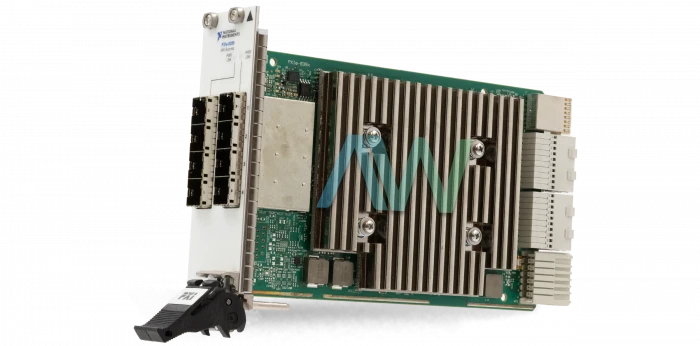

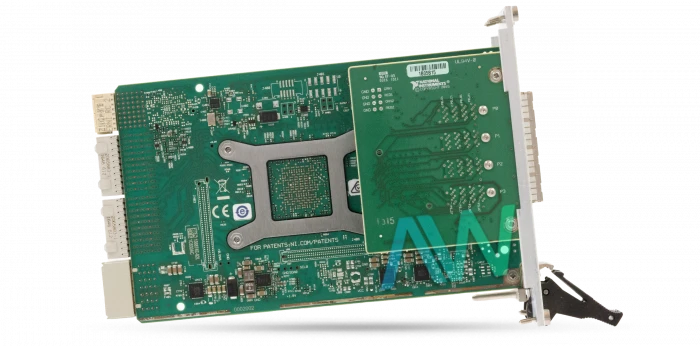

National Instruments PXIe-8399 PXI Remote Control Module

The PXIe-8399 (Part Number: 784180-01) is a National Instruments PXI Remote Control Module Gen 3, x16, with 2 ports. This module enables users to control a PXI Express case from an outer server, that includes a work area PC, rack mount controller, or first-class master case. Through this instrument’s interface, this module gives up to 16 GB/s of information exchange between the frame and the server through a copper link association. An extra port permits serial association for numerous chassis designs.

The NI PXIe-8399 has two x16 interfaces on its front board, which can be associated to an extra suspension. For instance, the user could set up two bodies utilizing a PCIe-8398 in the PC host cabled to a PXIe-8399 in the principal chassis. This module's first chassis would likewise be cabled to a PXIe-8398 in the second chassis. If a third chassis is wanted, the second chassis could utilize another NI PXIe-8399 Remote Control Module.

This high-data transfer capacity arrangement of chassis and controllers is a critical piece of the NI community that designers can use to fabricate more astute test frameworks. These test frameworks benefit from more than 600 PXI items extending from DC to mmWave and highlight high-throughput information development utilizing PCI Express bus interfaces and sub-nanosecond organization with incorporated planning and activation. Upheld by a great family of associates, IP add-on and applications designers, the NI platform helps drastically bring down the cost of test, lessens time to market, and future-evidence analyzers for tomorrow's difficult prerequisites.

ModelPXIe-8399
Part Number784180-01
ManufacturerNational Instruments
TypePXI Remote Control Module
MXI Communication LevelMXI-Express Gen3 x16
Supported Cable TypeCopper
MXI Bandwidth16 GB/s
Dimensions4.4 x 6.9 in.
Weight0.99 lb.
Warranty2-3 Year Warranty
PXIe-8399 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-8399:

National Instruments PXIe-8399 Frequently Asked Questions



Question: What is the maximum cable length for the PXIe-8399?



Answer: The PXIe-8399 has a maximum cable length of 3 m.



Question: What are the slot requirements for the NI PXIe-8399?



Answer: The NI PXIe-8399 requires one system slot and one controller expansion slot.



Question: Which types of cables does the PXIe-8399 support?



Answer: The PXIe-8399 supports MXI-Express x8 and MXI-Express x4 cables.



Question: How many lanes does the NI PXIe-8399 have?



Answer: The NI PXIe-8399 has 32 lanes.
