NB1
Modular Systems > National Instruments > NI Cables
| Description: | NB1, 50-Pin, Female IDC, Ribbon Cable |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

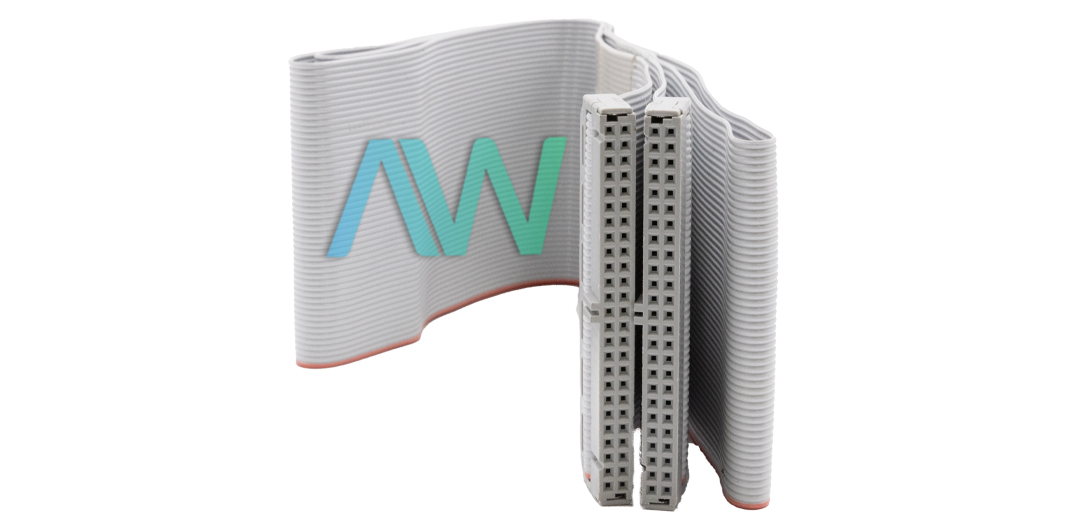

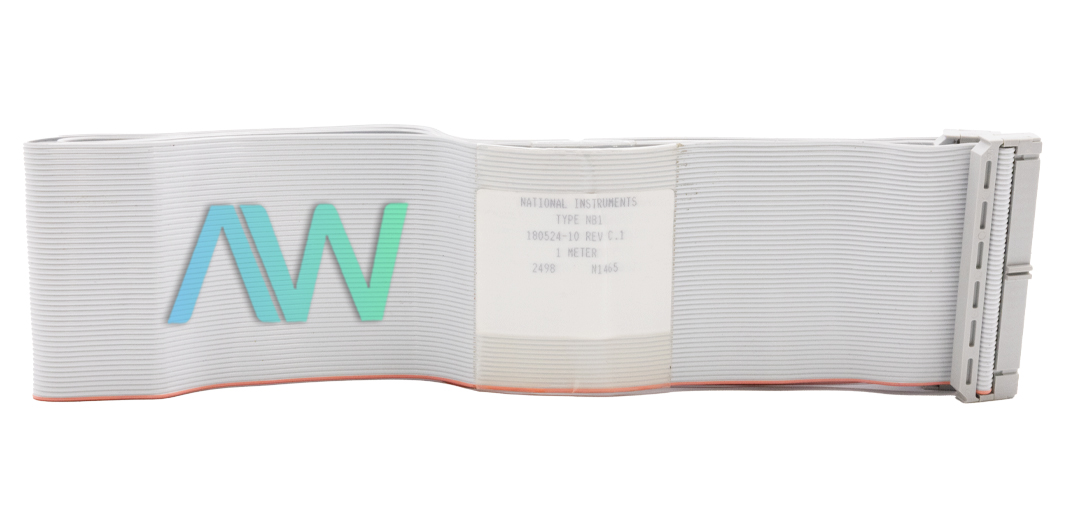

National Instruments NB1 Ribbon Cable
The National Instruments NB1 is a 50-Pin, Female IDC Ribbon Cable. This cable is used to connect 50-pin accessories to 50-pin DAQ (data acquisition boards). The NI NB1 Cable has two 50-pin female connections. This cable can be considered for a variety of applications since it can be used with any 50-pin DAQ board or card. The National Instruments NB1 Ribbon Cable has 1 ribbon connection and does not have twisted pairing. This Ribbon Cable is available in 7 lengths 0.2 m (Part Number: 180524-02), 0.4 m (Part Number: 180524-04), 0.5 m (Part Number: 180524-05), 1 m (Part Number: 180524-10), 2 m (Part Number: 180524-20), 3 m (Part Number: 180524-30), and 5 m (Part Number: 180524-50).
The NB1 has a simple design, but offers better performance than the other 50-pin direct connectivity cables available. Each of the 50-pins on the connectors terminates into the corresponding pin of the other connector. The NB1 Cable also comes as an integral part of the R6850 Cable Assembly Kit.
| Model | NB1 |
|---|---|
| Part Numbers | 180524-02, 180524-04, 180524-05, 180524-10, 180524-20, 180524-30, and 180524-50 |
| Manufacturer | National Instruments |
| Type | Ribbon Cable |
| Cable Lengths | 0.2 m, 0.4 m, 0.5 m, 1 m, 2 m, 3 m, or 5 m |
| Back-End Connection | 50-Pin, Female IDC |
| Front-End Connection | 50-Pin, Female IDC |
| Twisted Pairing | No |
| Number of Ribbon Connections | 1 |
| Warranty | 2-3 Year Warranty |
| NB1 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the NB1:
180524-01, 180524-02, 180524-04, 180524-05, 180524-06, 180524-10, 180524-15, 180524-20, 180524-25, 180524-30, 180524-50
Associated NSNs for the NB1:
5995-01-477-6462 (5995014776462)
