SH1006868
Modular Systems > National Instruments > NI Cables
| Description: | SH1006868, Two 68-Pin, Shielded, 0.050 Series D-Type Connectors, Cable |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

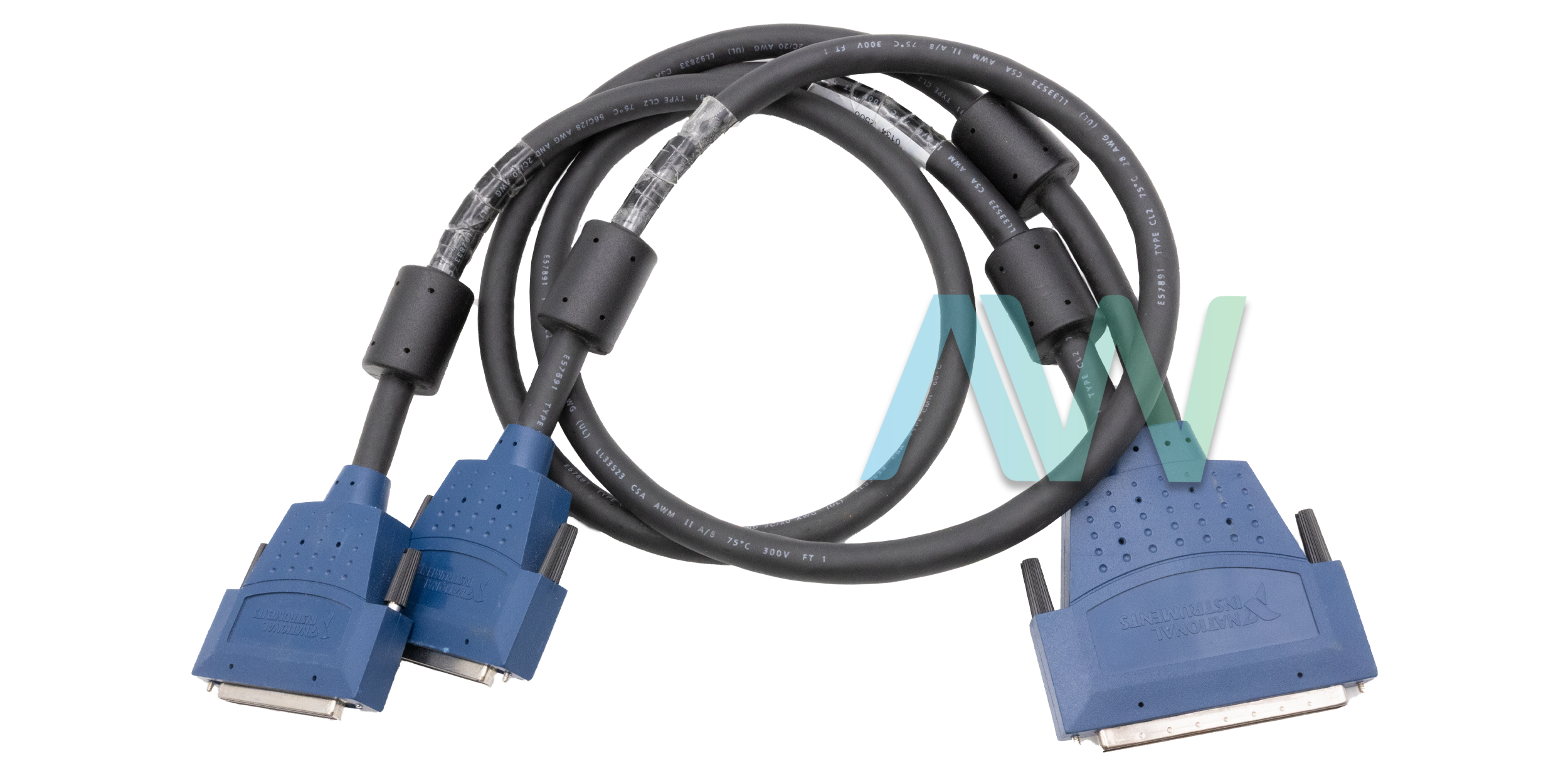

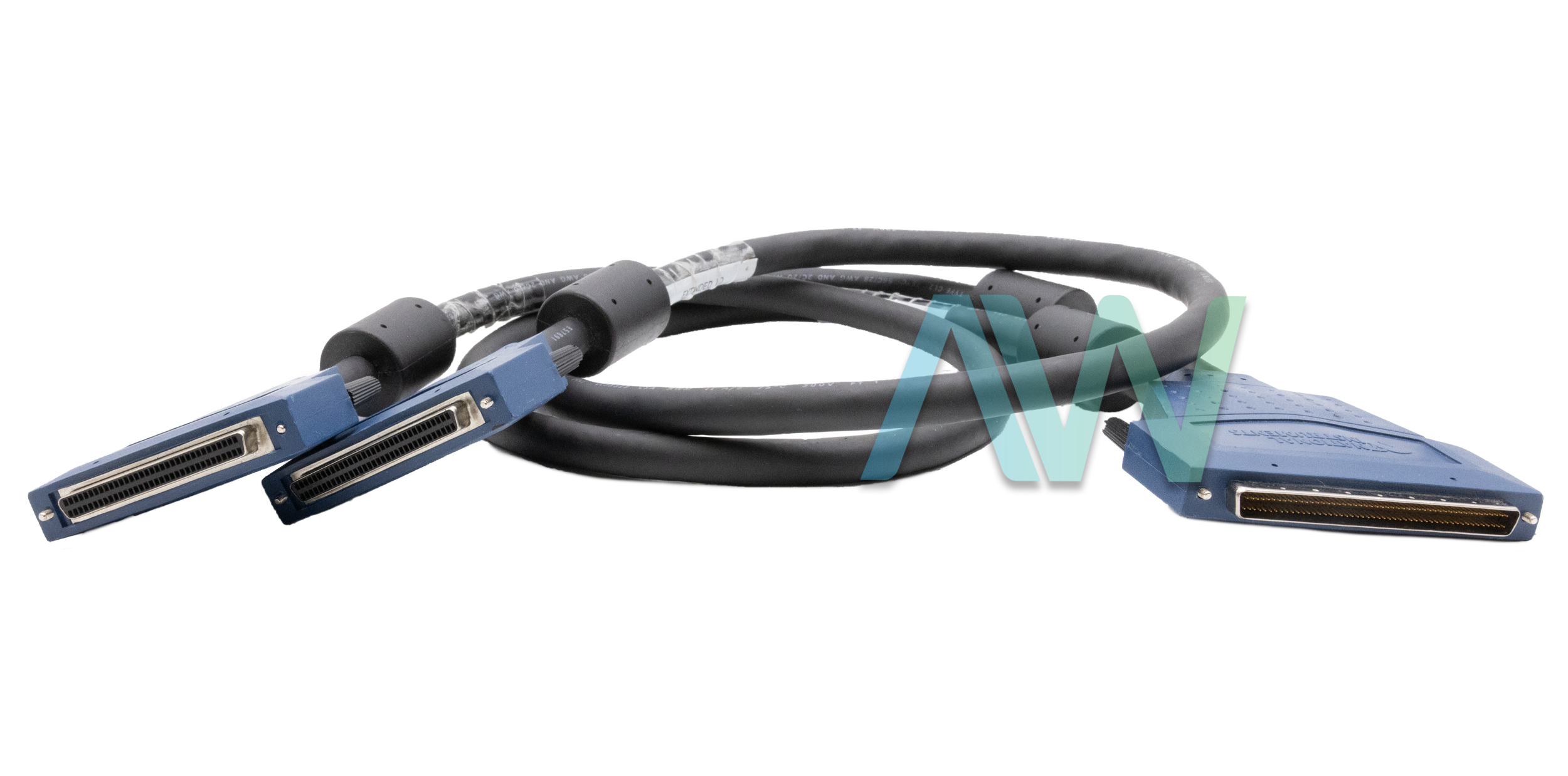

National Instruments SH1006868 Cable
The National Instruments SH1006868 (Part Numbers: 182849-01, 182849-02, 182849-05, 182849-10) is a Shielded Cable. This shielded cable is designed to provide connectivity to 100-pin E Series devices. The SH1006868 comes equipped with two female 68-pin 0.050 series D-type connectors. The SH1006868 comes in a variety of lengths; including 1m (part number 182849-01), 2m (part number 182849-02), 5m (part number 182849-05), and 10m (part number 182849-10).
This cable can be used with a variety of 100-pin devices from the E Series, including the NI-6071E, NI-6031E, NI-6033E, etc. With this cable, you will be able to incorporate a broad range of accessories into your system, such as the BNC-2115, BNC-2120, BNC-2090, TBX-68, CB-68LP, and others. In addition to devices with 64 analog input channels, the SH1006868 is compatible with devices which have 16 analog input channels and 32 digital I/O lines, such as the NI PCI-6025E. Since it is a shielded cable, the SH1006868 can be considered for applications where electrical noise or interference remains an issue.
| Model | SH1006868 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 182849-01, 182849-02, 182849-05, 182849-10 |
| Type | Cable |
| Connectors | Two 68-pin 0.050 series D-type connectors |
| Cable Length | 1, 2, 5, or 10 m |
| Shielded | Yes |
| Warranty | Three Year Warranty |
| SH1006868 Manual | User Manual and Maintenance Manual Available for Download |
Associated NSNs for the SH1006868:
6150-01-565-9330 (6150015659330)
National Instruments SH1006868 Frequently Asked Questions
Question:
SH1006868 PDF Manuals
E SERIES CALIBRATION PROCEDURE.PDF
SH1006868 DECLARATION OF CONFORMITY PART NUMBER 182849 01.PDF
SH1006868 DECLARATION OF CONFORMITY PART NUMBER 182849 02.PDF
SH1006868 DECLARATION OF CONFORMITY PART NUMBER 182849 05.PDF
SH1006868 DECLARATION OF CONFORMITY PART NUMBER 182849 10.PDF
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
SH1006868
Modular Systems > National Instruments > NI Cables
SH1006868, Two 68-Pin, Shielded, 0.050 Series D-Type Connectors, Cable
(expedited shipping options available)
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

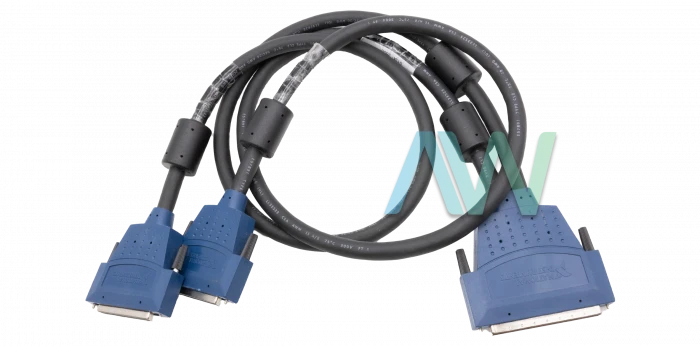

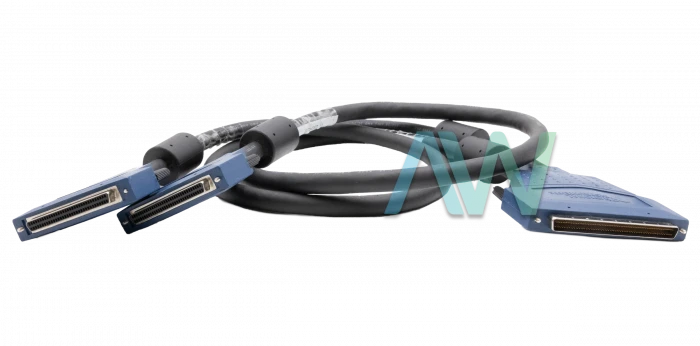

National Instruments SH1006868 Cable
