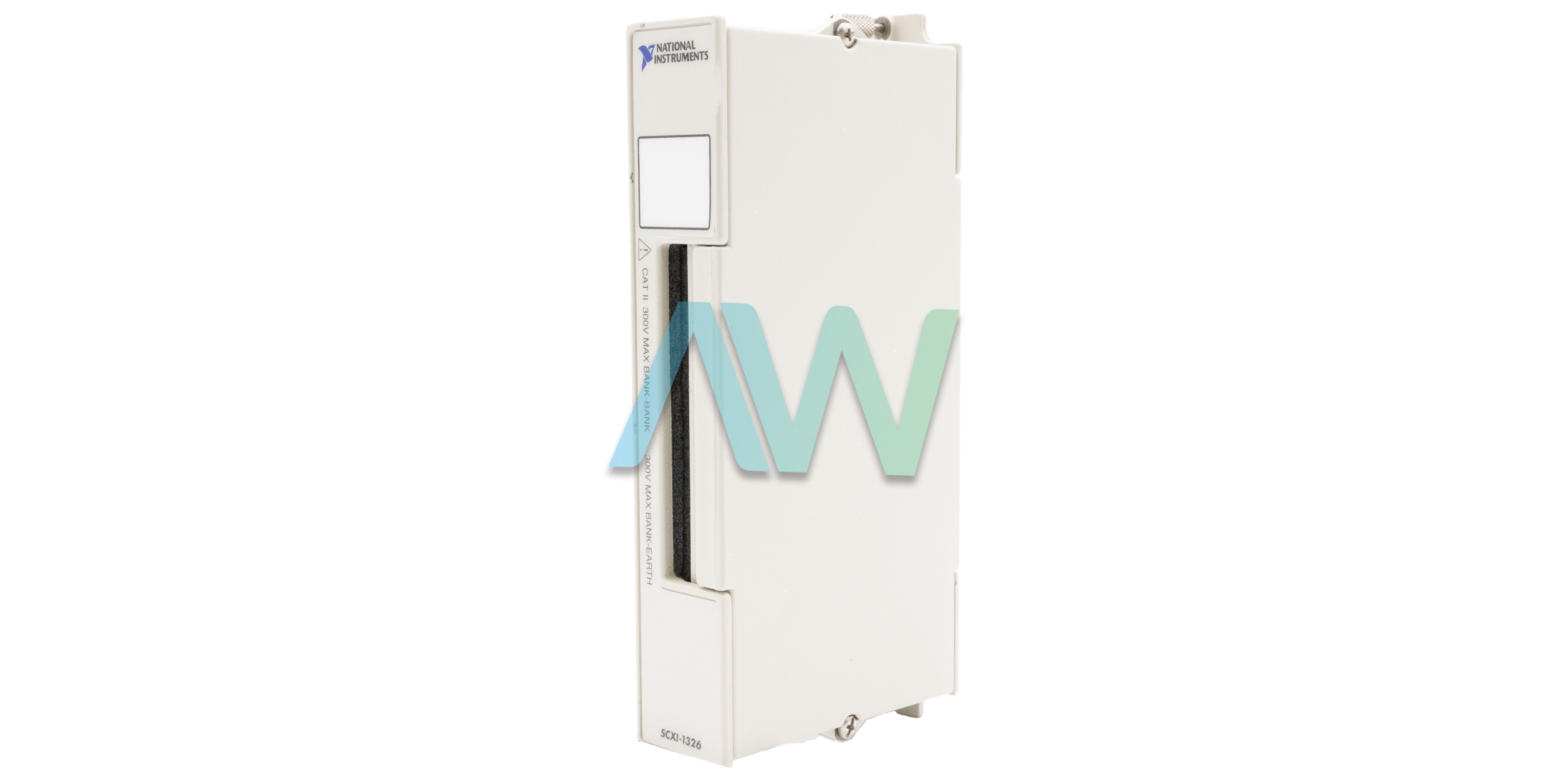

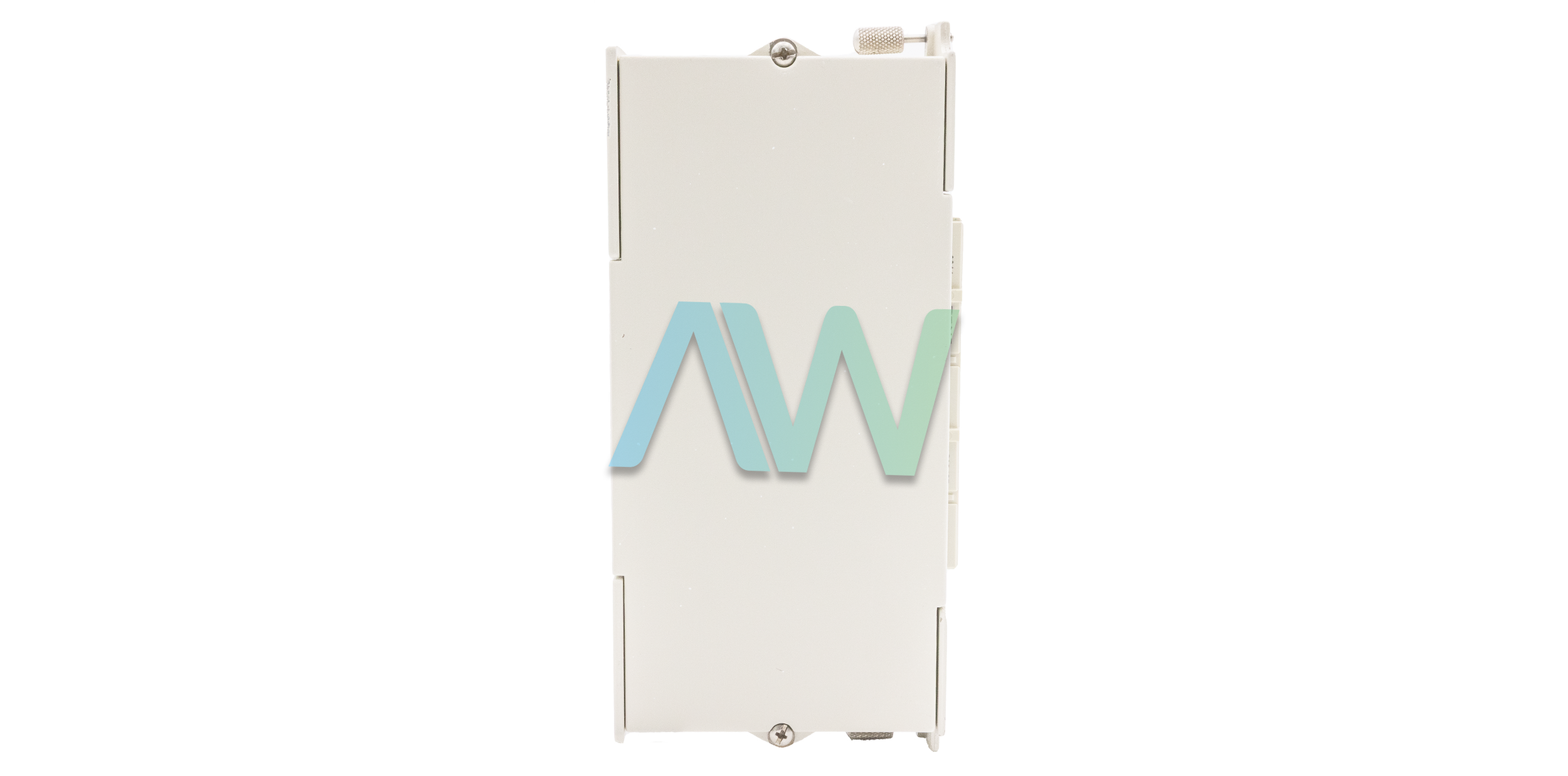

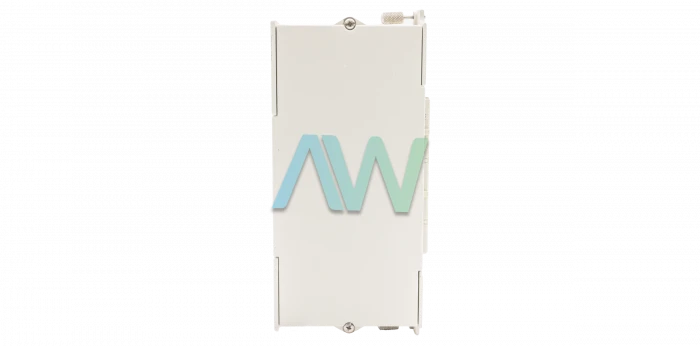

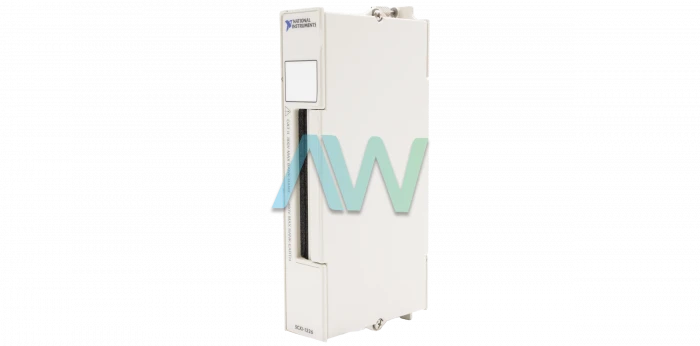

SCXI-1326 National Instruments Terminal Block | Apex Waves | Image SCXI-1326 National Instruments Terminal Block | Apex Waves | ImageSCXI-1326
SCXI-1326 National Instruments Terminal Block | Apex Waves | Image
SCXI-1326 National Instruments Terminal Block | Apex Waves | Image
SCXI-1326 New

SCXI-1326

4.5/5 | 19 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1326
Manufacturer/Brand National Instruments
Description: SCXI-1326, 48 Screw Terminals, High-Voltage Terminal Block
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments SCXI-1326 High-Voltage Terminal Block

The NI SCXI-1326 (Part Number: 777687-26) is a High-Voltage Screw Terminal Block with supports to link to the SCXI-1162, SCXI-1162HV, SCXI-1163, and SCXI-1163R modules’ front connector. The National Instruments SCXI-1326 is designed for high-voltage digital input or digital output applications. This Terminal Block is also well-suited for temperature or voltage applications with a large quantity of channels. The NI SCXI-1326 is a shielded Terminal Block, which allows for swift, easy signal connections. The SCXI 1326 has a maximum voltage of 300 V and is a Cat II model.

The NI  SCXI 1326 has 48 screw terminals positioned in eight groups, with six terminals in each group. Every group is separate from the others. The six terminals in a group are comprised of the following terminals: a VCC, GND, and four channels. The utilization of the terminals is based on the module. For example, the VCC terminals on the SCXI-1326 are not utilized with the SCXI-1162HV or the SCXI-1163R modules. In addition, the GND terminals are not utilized on the SCXI-1162. The VCC terminals on the SCXI-1162 are power/reference voltage, where as they are for the power supply 5 V ±0.5 V on the SCXI-1163, which is referenced to GND. GND refers to ground reference for the SCXI-1162HV, ground for the SCXI-1163, and common pole for the SCXI-1163R. Lastly, CHAN(x) is the digital input for the SCXI-1162, the input signal for the SCXI-1162HV, the digital output for the SCXI-1163, and the relay inputs for the SCXI-1163R module.

SCXI-1326 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1326
Part Number777687-26
ManufacturerNational Instruments
TypeHigh-Voltage Terminal Block
Screw Terminals48
For Use With:SCXI-1162/1162HV/1163/1163R Modules
Common-mode Isolation300 Vrms
WarrantyOne Year Warranty
SCXI-1326 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1326 Frequently Asked Questions



Question: What is the common-mode isolation of the SCXI-1326?



Answer: The common-mode isolation of the SCXI-1326 is 300 Vrms for bank to bank and bank to earth.



Question: How does the National Instruments SCXI-1326 connect to the SCXI-1162, SCXI-1162HV, SCXI-1163 and SCXI-1163R modules?



Answer: The National Instruments SCXI-1326 mounts to the front of the module with the screw terminals.



Question: Does the NI SCXI-1326 have a CJC?



Answer: No, the NI SCXI-1326 does not have  CJC.
