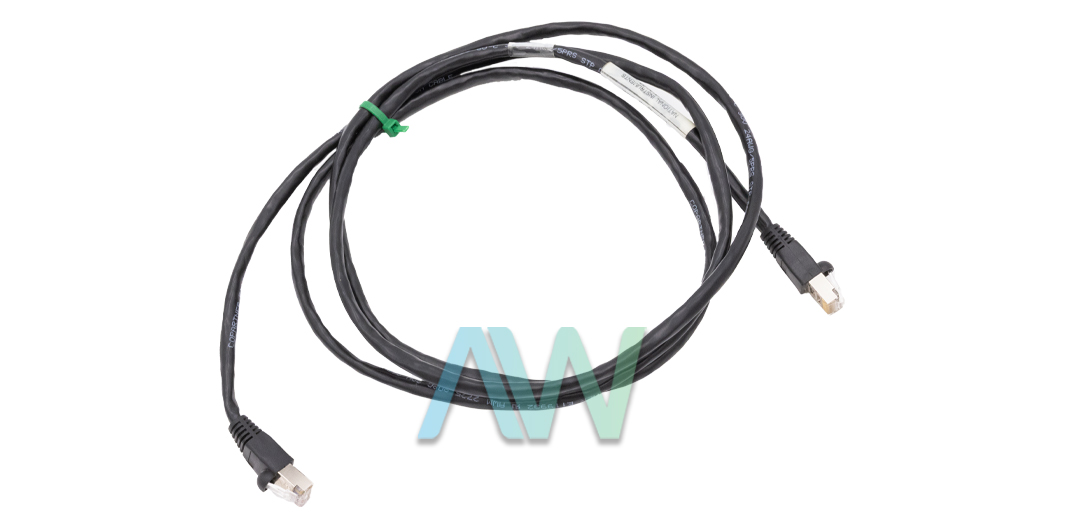

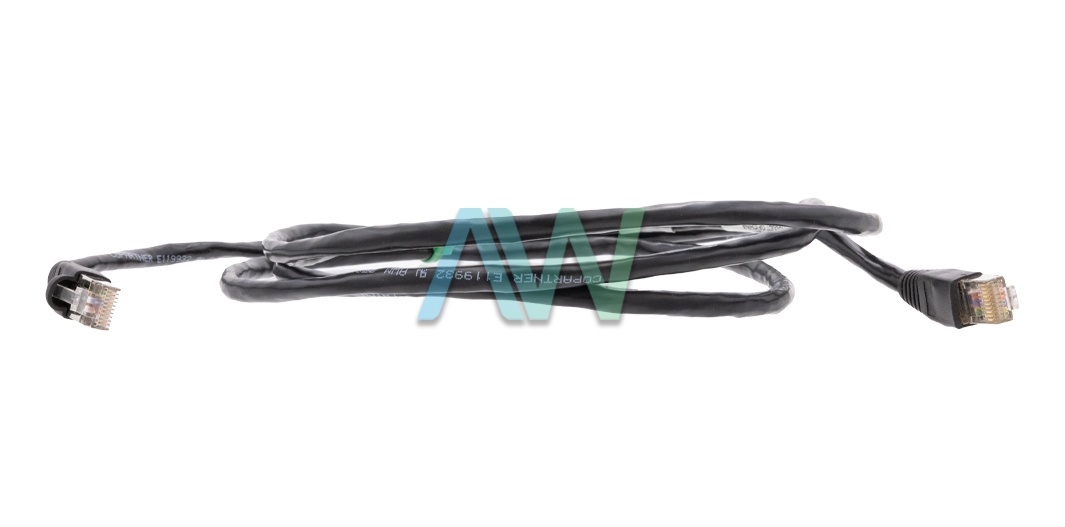

National Instruments cRIO RJ50 Cable
The cRIO RJ50 Cable (Part Numbers: 194612-02, 194612-10, 195950-02, 195950-10) is designed by National Instruments. This cable is used in the construction of cRIO based measurement, monitoring, or control systems. The cRIO RJ50 Cable is designed for the C Series modules which come with an RJ50 front end connection, which includes the NI-9237 and NI-9949.
The NI cRIO RJ50 Cable has four variations with different lengths and connectors. Part number 194612-02 is 2 m with a 10-Pin Modular Plug to 10-Pin Modular Plug. Part number 194612-10 is also a 10-Pin Modular Plug to 10-Pin Modular Plug, but is a 10 m cable. The third variation, part number 195950-02, is a 2 m, 10-Pin Modular Plug to Pigtail Wires. The last variation, part number 195950-10, is a 10-Pin Modular Plug to Pigtail Wires Cable as well, but is 10 m.
This type of cable is widely used in the construction of customized systems. The cRIO RJ50 Cable is designed to provide communication over a single channel. Thus, multiple cables will be needed for C Series modules with multiple channels. This cable can also be used for connectivity between a module and a compatible accessory.
| Model | cRIO RJ50 Cable |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 194612-02, 194612-10, 195950-02, 195950-10 |
| Type | RJ50 Cable |
| Cable Lengths | 2 m and 10 m |
| Quantity | 1 or 4 |
| Front End Connection | 10-Pin Modular Plug |
| Back End Connection | 10-Pin Modular Plug or Pigtail Wires |
| Compatible Models | NI-9237 and NI-9949 |
| cRIO RJ50 Cable Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for cRIO RJ50 Cable:
National Instruments cRIO RJ50 Frequently Asked Questions
Question: How do I determine which pin of my module corresponds to which color of the cRIO RJ50 cable?
Answer: Colors can be verified by looking through the clear connector on the cRIO RJ50 cable.
Question: Can I use this cable for the NI-9237?
Answer: If your load cell has a DB-9 connection, you can use the cRIO RJ50 to DB-9 cable to connect to the NI-9237.
Question: What kind of ports does the cRIO RJ50 have?
Answer: The cable has 10-pin modular jack ports
