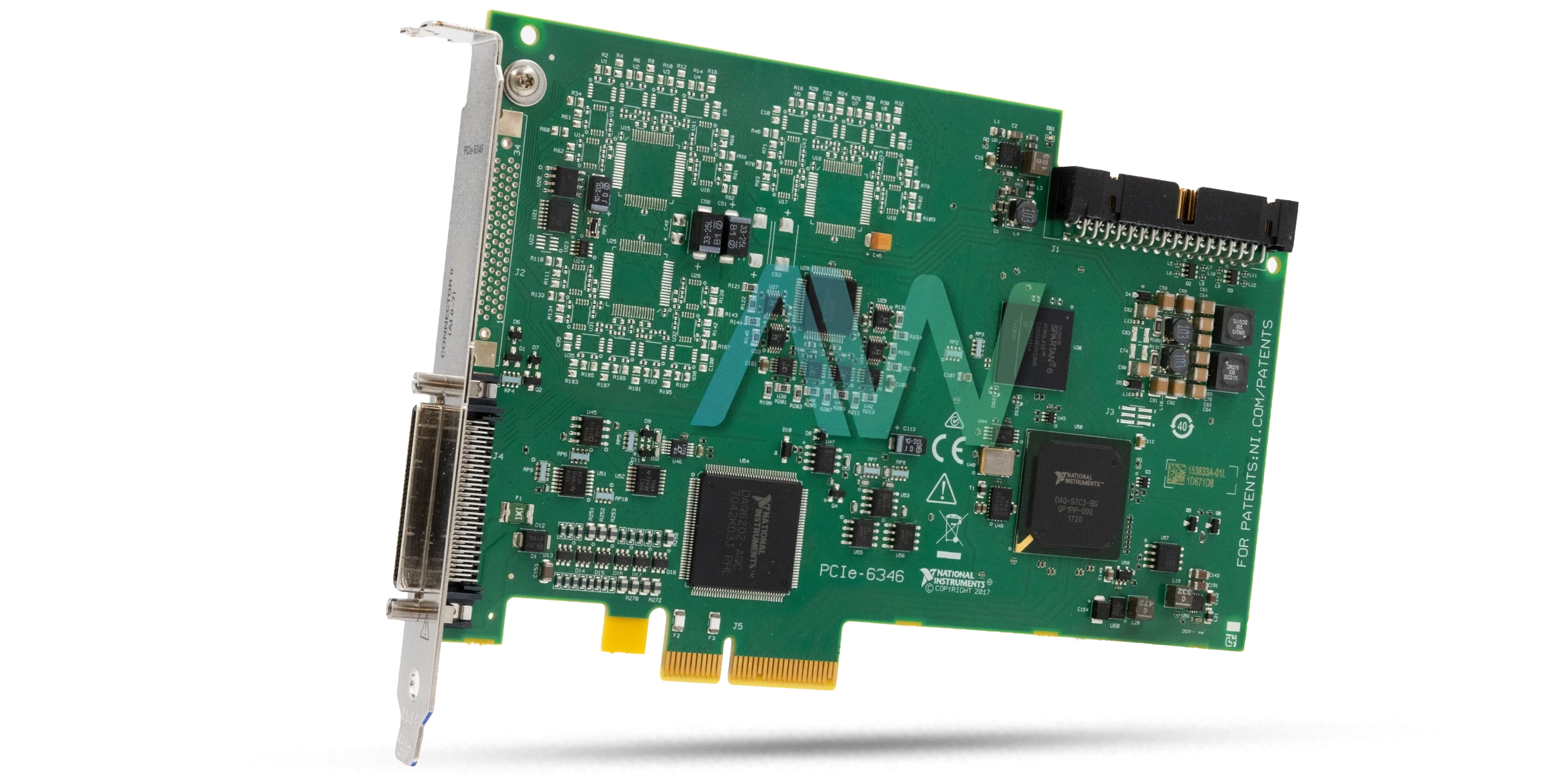

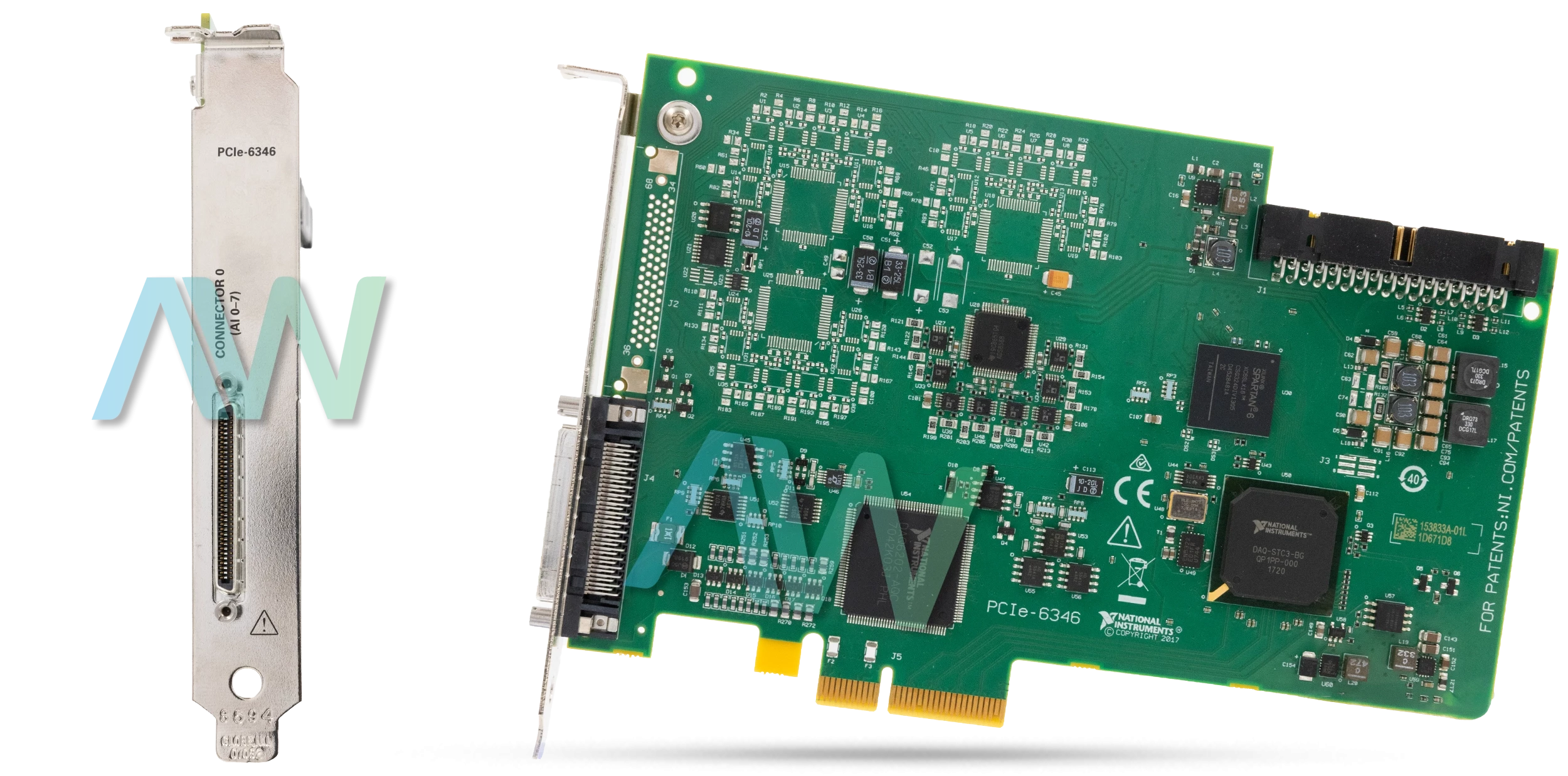

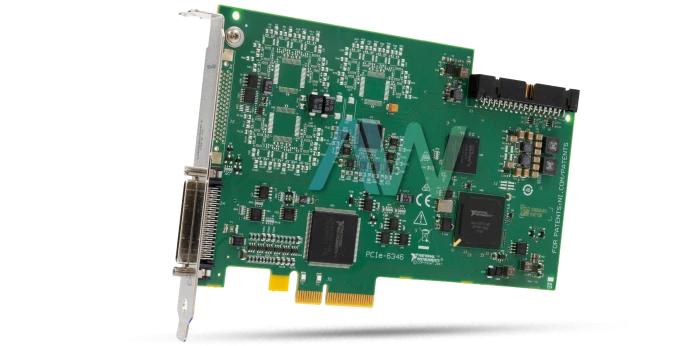

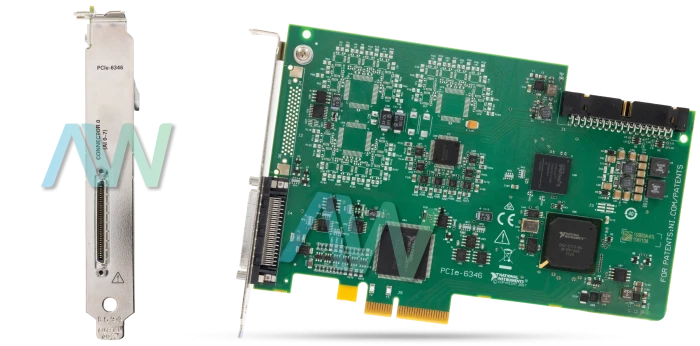

National Instruments PCIe-6346 Multifunction I/O Device
Featured with 8 analog inputs, 2 analog outputs, and 24 DIO, the NI PCIe-6346 (Part Number: 785813-01) is a Multifunction I/O Device from National Instruments. This device features 4 general purpose 32-bit counters/timers. The PCIe-6346 is designed to deliver high-performance leveraging the multi-core optimized driver and high-throughput PCI Express bus. The multi-ADC architecture of this Multifunction I/O Device makes it capable of offering simultaneous sampling.
The NI-STC3 technology incorporated in the NI PCIe-6346 Multifunction I/O Device allows the device to deliver advanced synchronization and timing functionality, including retriggerable measurement tasks and independent digital and analog timing engines. All these features make the PCIe-6346 an ideal solution for a versatile range of applications, from control and test automation to basic data logging. This Multifunction I/O Device is offered with the NI-DAQmx driver. You can easily configure your device with the help of the configuration utility offered with NI-DAQmx.
The National Instruments PCIe-6346 Multifunction I/O Device can acquire samples at rates up to 500 kS/s/ch simultaneously through all the analog input channels with 10 ns timing resolution. The two analog output channels can operate at a maximum update rate of 840 kS/s with both channels updating simultaneously. For analog outputs, the NI PCIe-6346 comes equipped with Digital-to-Analog converters. This device features 8191 samples sized analog output FIFO that is shared among channels. The frequency generator has 1 channel and 20 MHz, 100 kHz and 10 MHz base clocks. These bases can operate with a maximum accuracy of 50 ppm.
| Model | PCIe-6346 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 785813-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 8 |
| Maximum Sample Rate | 500 kS/s/ch |
| Analog Input Resolution | 16 bits |
| Analog Output Channels | 2 |
| Maximum Update Rate | 900 kS/s |
| Dimensions | 6.60 × 4.38 in. |
| Weight | 3.6 oz. |
| PCIe-6346 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCIe-6346:
PCIe-6346 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-PCIE-6346-LETTER-OF-VOLATILITY.PDF
PCIE-6346-LETTER-OF-VOLATILITY.PDF
PCIE-6346-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
