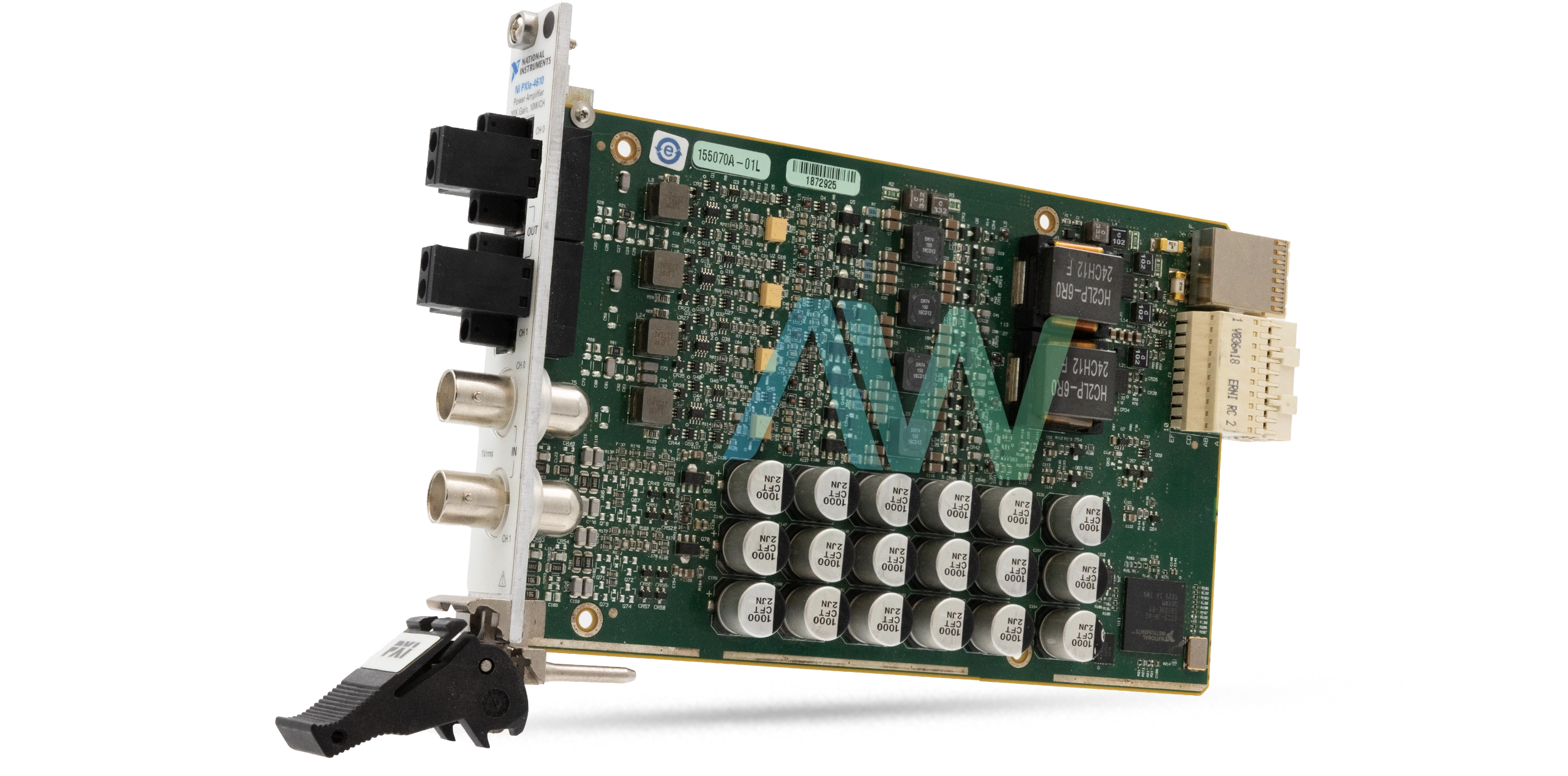

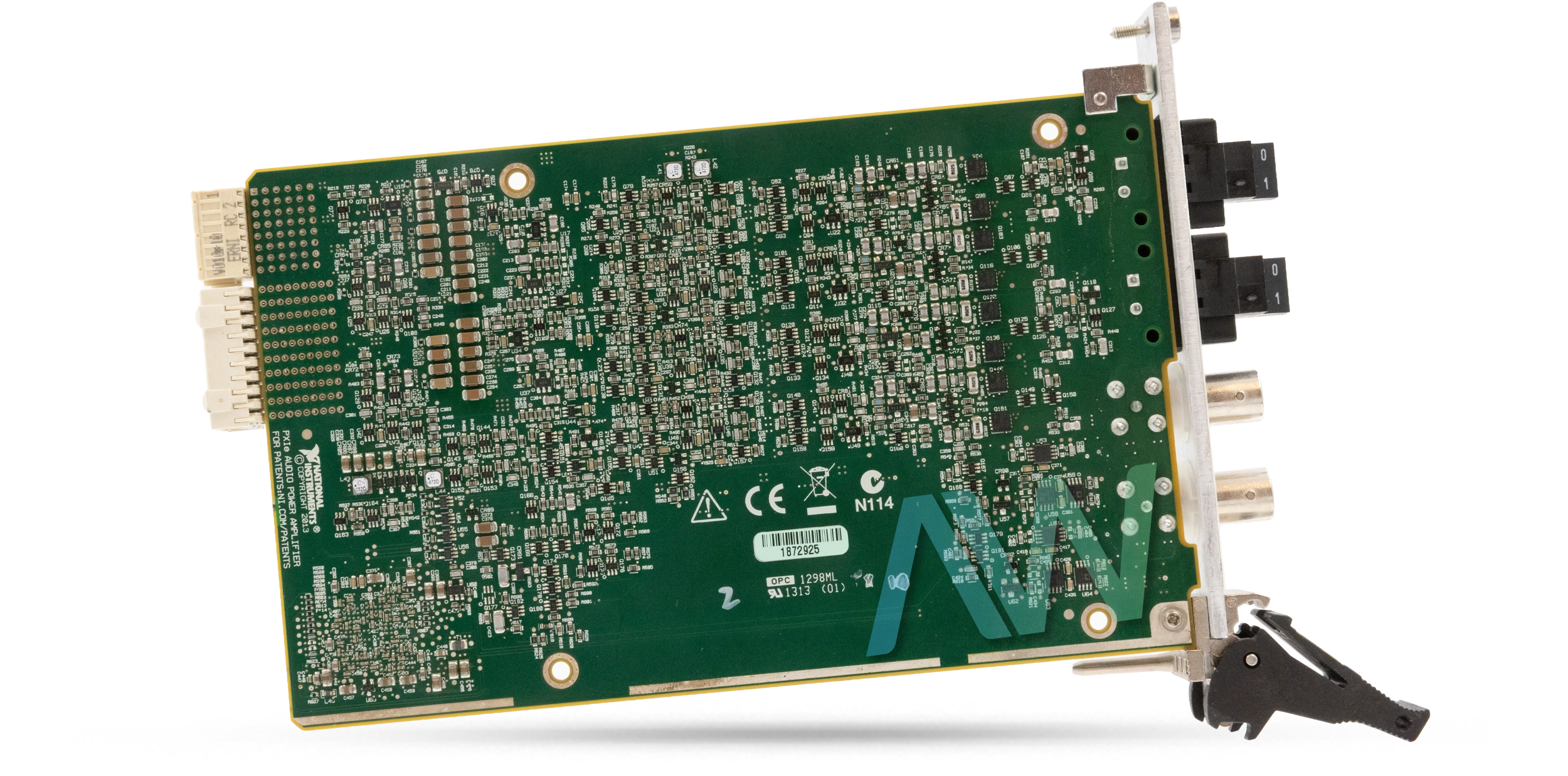

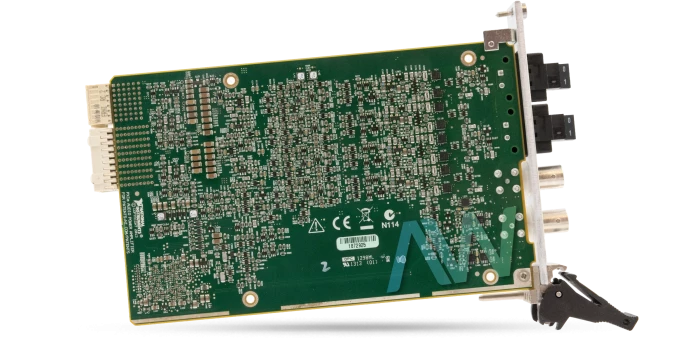

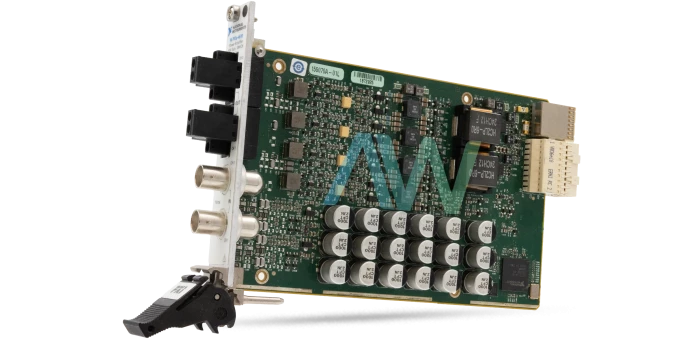

PXIe-4610 National Instruments PXI Amplifier Module | Apex Waves | Image
PXIe-4610 National Instruments PXI Amplifier Module | Apex Waves | Image
PXIe-4610 New
PXIe-4610 | Legacy, Refurbished and New Surplus

PXIe-4610

4.8/5 | 17 ratings

Modular Systems > National Instruments > PXI Amplifiers

Part Number PXIe-4610
Manufacturer/Brand National Instruments
Description: PXIe-4610, 2-Channel, PXI Amplifier Module
Request for Availablility
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXIe-4610 PXI Amplifier Module

The PXIe4610 (Part Number: 782834-01) Power Amplifier Module is a low-distortion and low-noise amplifier that gives an adaptable output signal capable of driving both test frameworks and certifiable loads, such as speakers. The NI PXIe4610 produces the most reduced noise conceivable while amplifying the power from a single PXI Express slot. The PXIe4610 offers a simple to utilize option to interfacing dynamic signal sources to outside intensifiers. This intensifies little signals with the goal that they can be analyzed and processed by other input modules in the PXI framework or to consider driving of real world loads in test frameworks.

The National Instruments PXIe-4610 Amplifier Module gives distinctive sorts of amplification and signal conditioning. The user can choose from a guarding functionality that enables the module to make 6-wire resistance estimations, various input channels with integrated grounding, and a low-distortion and low-noise analog output. Associating a ground-referenced load or instrument to an NI PXIe-4610 output adequately short-circuits one output terminal to ground, which initiates the short circuit protection and causes the watched voltage spikes.

At low example rates, between the base rate for the DSA gadget and 25.6 kS/s, the counter associating channels of DSA gadget AI channels may not totally dismiss the full scale of band signals. The inward digital channel of the delta-sigma ADC cannot suppress signals with frequencies close to the multiples of the oversample rate (test rate increased by oversample factor).

ModelPXIe-4610
Part Number782834-01
ManufacturerNational Instruments
TypePXI Amplifier Module
Power Amplifier Channels2
Input CouplingAC
Output CouplingDC
Input ConnectorsBNC female
Weight7.1 oz.
WarrantyOne Year Warranty
PXIe-4610 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-4610 Frequently Asked Questions



Question: What type of output connectors does the PXIe-4610 have?



Answer: The PXIe-4610 has 2-terminal detachable screw-terminal output connectors.



Question: What is the dynamic range of the NI PXIe-4610?



Answer: The dynamic range for the NI PXIe-4610 is 114 dB.



Question: What type of input configuration does the PXIe-4610 have?



Answer: The PXIe-4610 has differential inputs.



Question: What is the maximum output for the NI PXIe-4610?



Answer: The maximum output of the NI PXIe-4610 is 10 V RMS.
