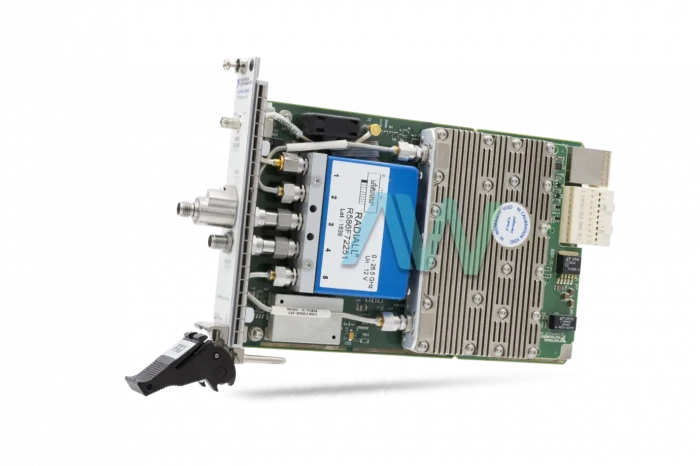

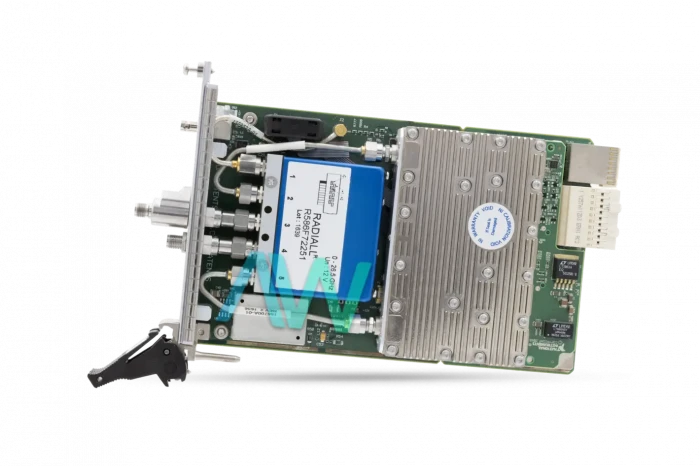

PXIe-5698 National Instruments PXI RF Amplifier | Apex Waves | Image
PXIe-5698 National Instruments PXI RF Amplifier | Apex Waves - Wiring Diagram Image
PXIe-5698 New
PXIe-5698 | Legacy, Refurbished and New Surplus

PXIe-5698

4.7/5 | 17 ratings

Modular Systems > National Instruments > PXI Amplifiers

Part Number PXIe-5698
Manufacturer/Brand National Instruments
Description: PXIe-5698, 26.5 GHz, PXI RF Amplifier
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

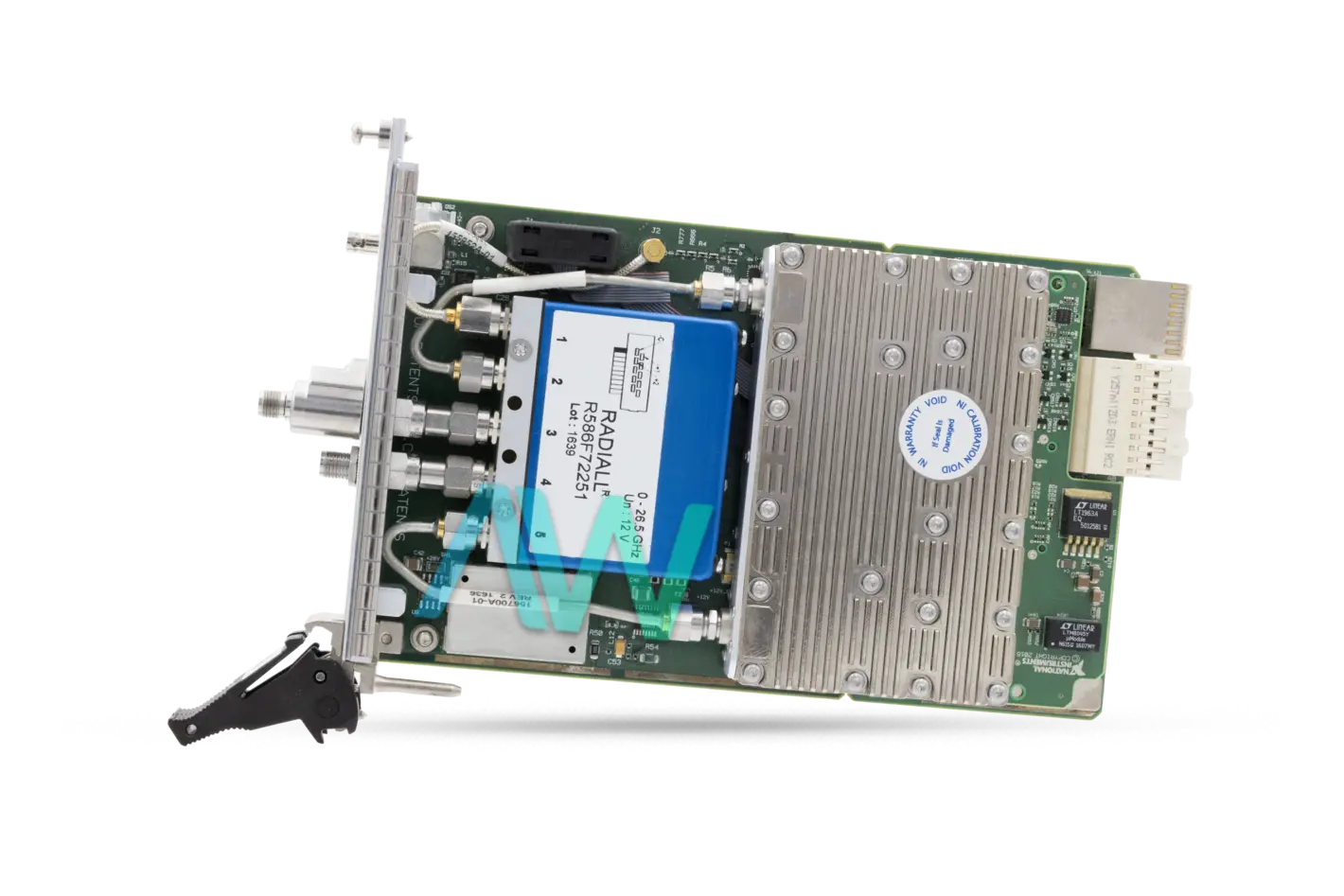

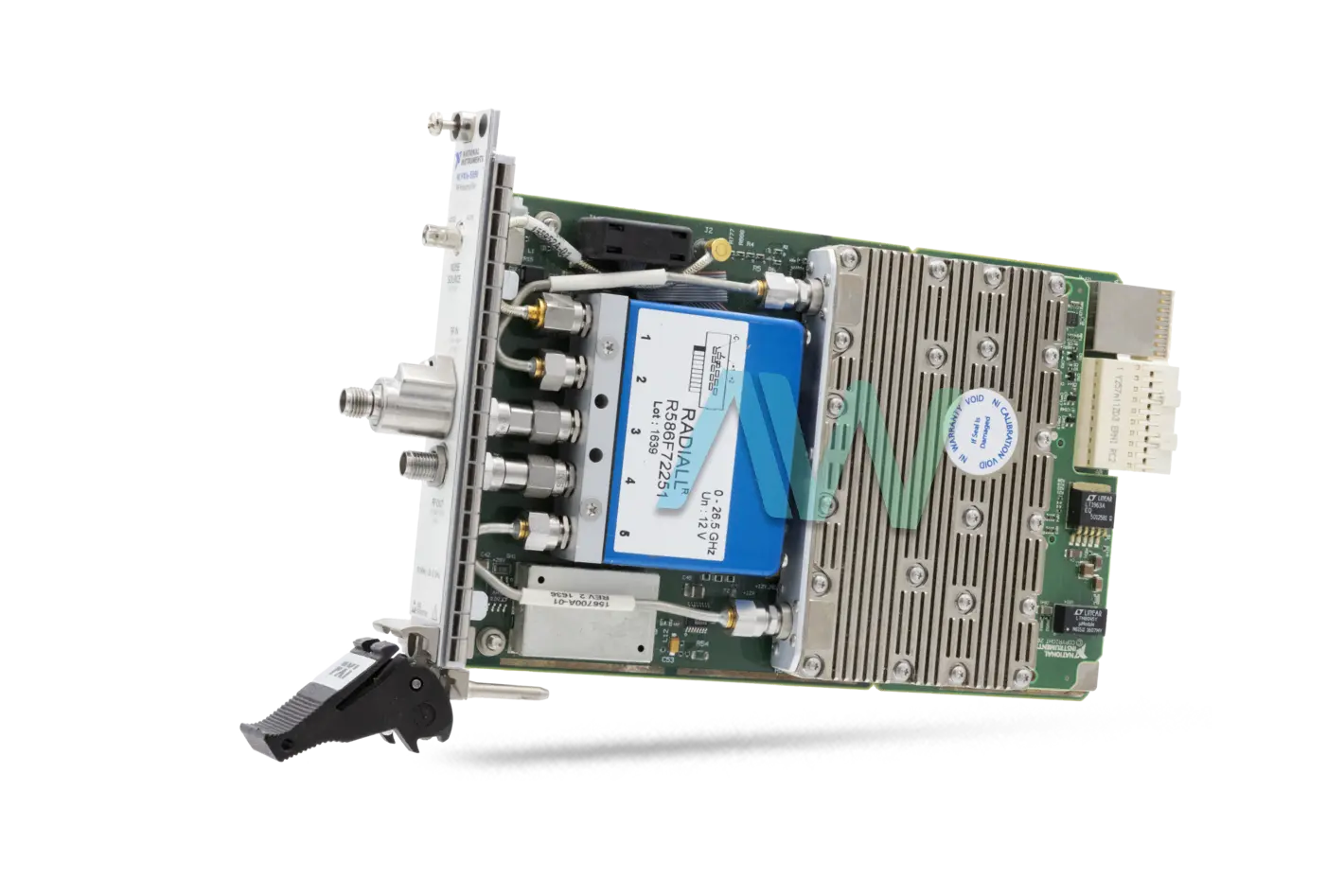

National Instruments PXIe-5698 PXI RF Preamplifier Module

The PXIe-5698 (Part Number: 784096-01) is a single-slot RF Preamplifier Module from National Instruments. The module is designed to work with the NI-5668R Vector Signal Analyzer. It helps boost low-level signals to the receiver. The PXIe-5698 also functions as a stand-alone Preamplifier. The frequency range of the NI PXIe-5698 is 10 MHz to 26 GHz, while the noise figure value ranges between ≤ 3.1 ~ ≤17.7. This module uses 2.92 mm female connectors. The maximum input voltage on the connectors is ±10 V DC. The maximum voltage on the source connectors is +28V DC.

The National Instruments PXIe-5698 RF Preamplifier Module has three modes of Operation: the preamplifier mode, the preamplifier bypass mode, and the enable calibration tone mode. By default, the preamplifier mode of the PXIe-5698 module is disabled. It can be enabled in the NI-RFSA driver. The preamplifier mode can further be classified into the high band or low band modes. A specified mode of operation (high band or low band) is selected by NI-RFSA. This can be accomplished by using a specified center frequency. The default setting of the center frequency is 1 GHz.

The NI PXIe-5698 is equipped with a mechanical relay, which provides an additional RF signal bypass path. Thus, the Preamplifier can be removed without reconnecting the system. The enabled calibration tone mode is basically a power check. It ensures the system is cabled properly. The calibration tone frequency is fixed at 3.6 GHz. The PXIe-5698 RF Preamplifier Module is also equipped with a noise source, which can be enabled or disabled for noise figure measurement. By default, it is disabled.

ModelPXIe-5698
Part Number784096-01
ManufacturerNational Instruments
TypePXI RF Preamplifier Module
Frequency Range20 MHz to 26.5 GHz
Microwave Gain30 dB
DriverNI-RFSA
Dimensions8.5 x 0.8 x 5.1 in.
Weight17.6 oz.
Warranty2-3 Year Warranty
PXIe-5698 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXIe-5698:

156312A-01L, 156312B-01L, 158127C-01L, 158127D-01L, 158130C-01L, 784096-01, 787487-01

National Instruments PXIe-5698 Frequently Asked Questions



Question: What type of RF IN and RF OUT front panel connectors are on the PXIe-5698?



Answer: The PXIe-5698 has 2.92 mm female RF IN and RF OUT front panel connectors.



Question: What are the power requirements for the NI PXIe-5698?



Answer: The NI PXIe-5698 requires 6.93 W at +3.3 VDC and 26.4 W at +12 VDC, for a total of 33.33 W.



Question: Which module can be used with the PXIe-5698?



Answer: The PXIe-5668 Vector Signal Analyzer can be used with the PXIe-5698 to boost low level signals to the receiver.



Question: What type of coupling does the NI PXIe-5698 support?



Answer: The NI PXIe-5698 supports AC and DC coupling.
