PXIe-5840
Modular Systems > National Instruments > PXI Vector Signal Transceivers
| Description: | PXIe-5840, 1 GHz Bandwidth, RF PXI Vector Signal Transceiver |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

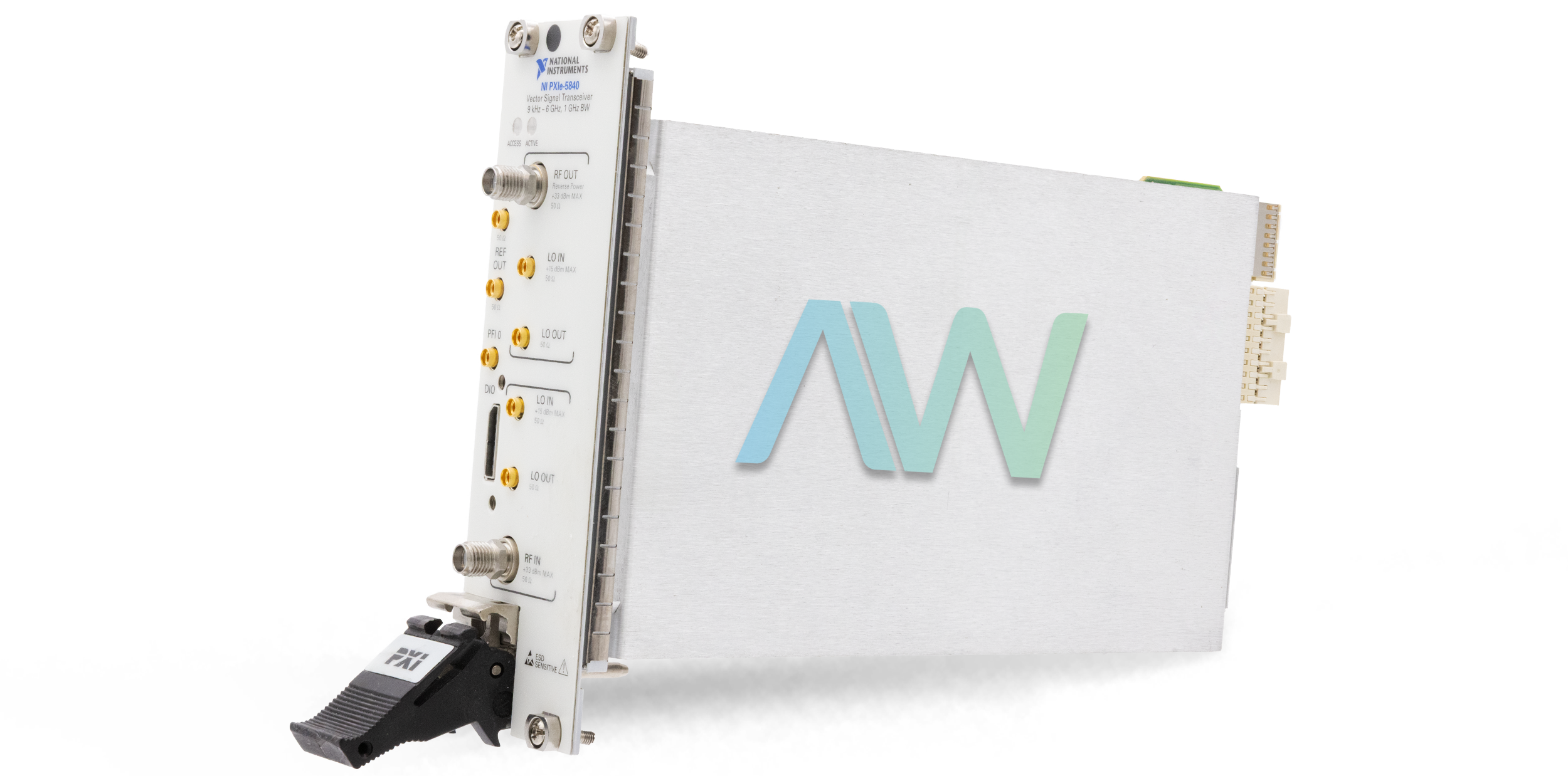

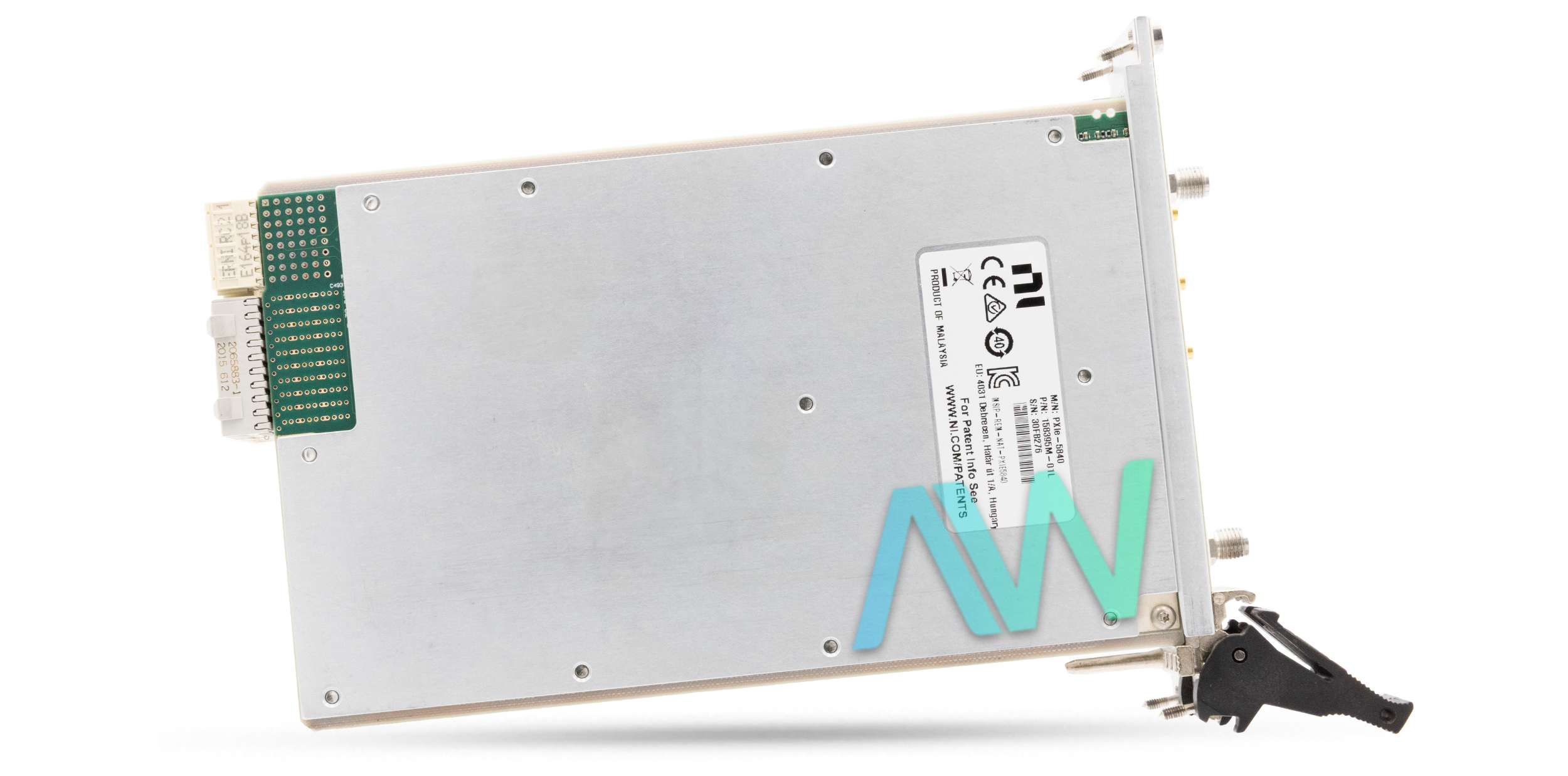

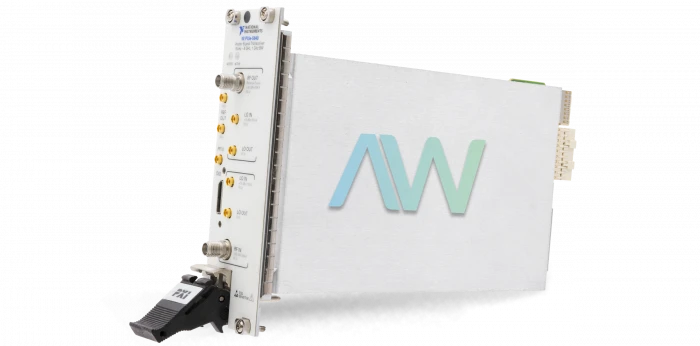

National Instruments PXIe-5840 PXI Vector Signal Transceiver
The PXIe-5840 (Part Number: 783966-01) is a 2U, 2 Slot Vector Signal Transceiver (VST) developed by National Instruments. The NI PXIe-5840 is structured with 1 GHz real-time bandwidth on both the VSA and VSG. When compared to the first generation, there is a lot of space for other functionalities in this module. The PXIe 5840 has a high-speed serial interface, ranging up to 12.5GB. It can be used for passing data in and off the device. This module has an open FPGA. LabVIEW FPGA software can be used for a range of different applications, whether it is a digital pre-distortion or custom radar IP that can be deployed onto the device. It also has extended the frequency range up to 9 kilohertz.
The National Instruments PXIe-5840 VST has Analog to Digital Converters with 14 bits resolution and a sample rate of 1.25 GS/s. For Digital to Analog Converters, the resolution is 16 bits and the sample rate is 1.25 GS/s. This module’s I/Q data rate is from 19 KS/s up to 1.25 GS/s for both converters. The operating temperature from is 0 °C to 45 °C with a relative humidity range from 10% to 90%.
The NI PXIe-5840’s design is fully capable of solving the most challenging RF design. The PXle-5840 VST meets all safety standards for measurement, control, and laboratory use. This module also meets the Electromagnetic Compatibility electrical equipment standards. It has the dimensions of 4.1 cm × 12.9 cm × 21.1 cm and weighs 794 grams.
| Model | PXIe-5840 |
|---|---|
| Part Number | 783966-01 |
| Manufacturer | National Instruments |
| Type | PXI Vector Signal Transceiver |
| Bandwidth | 1 GHz |
| Frequency Range | 9 kHz to 6 GHz |
| Generator Tuning Time | 250 us (typical) |
| Dimensions | 1.6 x 5.6 x 8.3 in. |
| Weight | 28.0 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-5840 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-5840:
14116.3, 14116.4, 141163B-01, 141163C-01, 141163D-01, 141163F-01, 141164B-01, 141164F-01, 141172A-01, 141172B-01, 141172C-01, 145421A-01, 145421B-01, 154962D-02L, 154962E-02L, 154962E-03L, 154962E-51L, 154962F-02L, 154962G-02L, 154962H-02L, 156396C-01L, 156396D-01L, 156396E-01L, 156396J-01L, 156396J-02L, 158395A-01L, 158395D-01L, 158395E-01L, 158395F-01L, 158395G-01L, 158395G-11L, 158395H-01L, 158395H-04L, 158395H-11L, 158395H-51L, 158395H-99L, 158395J-01L, 158395J-04L, 158395J-11L, 158395J-51L, 158395K-01L, 158395K-04L, 158395K-11L, 158395L-01L, 158395L-04L, 158395L-11L, 158395M-01L, 158395M-04L, 158395M-11L, 194928A-01L, 200094A-01, 783966-01, 785353-01, 785505-01, 785841-01, 785886-01, 785937-01, 785938-01
National Instruments PXIe-5840 Frequently Asked Questions
Question: Which driver software types can be used with the PXIe-5840 VST?
Answer: The PXIe-5840 VST can be used with NI-RFmx, NI-RFSA, and NI-RFSG driver software.
Question: What type of onboard FPGA does the PXIe-5840 Vector Signal Transceiver have?
Answer: The PXIe-5840 Vector Signal Transceiver has a Xilinx Virtex-7 X690T FPGA.
Question: How many DMA channels does the NI PXIe-5840 have?
Answer: The NI PXIe-5840 has 56 DMA channels.
Question: What type of LO OUT (RF IN and RF OUT) connectors are on the NI PXIe-5840 VST?
Answer: The NI PXIe-5840 VST has MMPX female LO OUT (RF IN and RF OUT) connectors.
PXIe-5840 PDF Manuals
BLUETOOTH TEST TOOLKIT PRODUCT FLYER.PDF
IOT DEVICE MANUFACTURING TEST SOLUTION FLYER.PDF
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI PXIE 5840 GETTING STARTED GUIDE.PDF
POWER SERVOING IP REFERENCE.PDF
PXI VECTOR SIGNAL TRANSCEIVERS PRODUCT FLYER.PDF
PXIE 5840 CALIBRATION PROCEDURE.PDF
PXIE 5840 LETTER OF VOLATILITY.PDF
VEHICULAR RADAR TEST SYSTEM GETTING STARTED GUIDE.PDF
WIRELESS TEST SYSTEM SPECIFICATIONS.PDF
Driver Downloads for PXIe-5840
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-5840
Modular Systems > National Instruments > PXI Vector Signal Transceivers
PXIe-5840, 1 GHz Bandwidth, RF PXI Vector Signal Transceiver
(expedited shipping options available)
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers

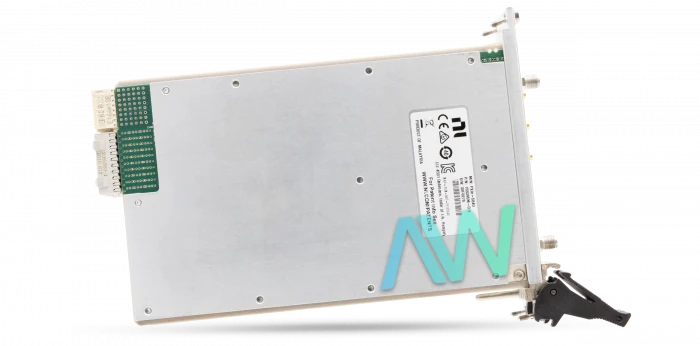

National Instruments PXIe-5840 PXI Vector Signal Transceiver
