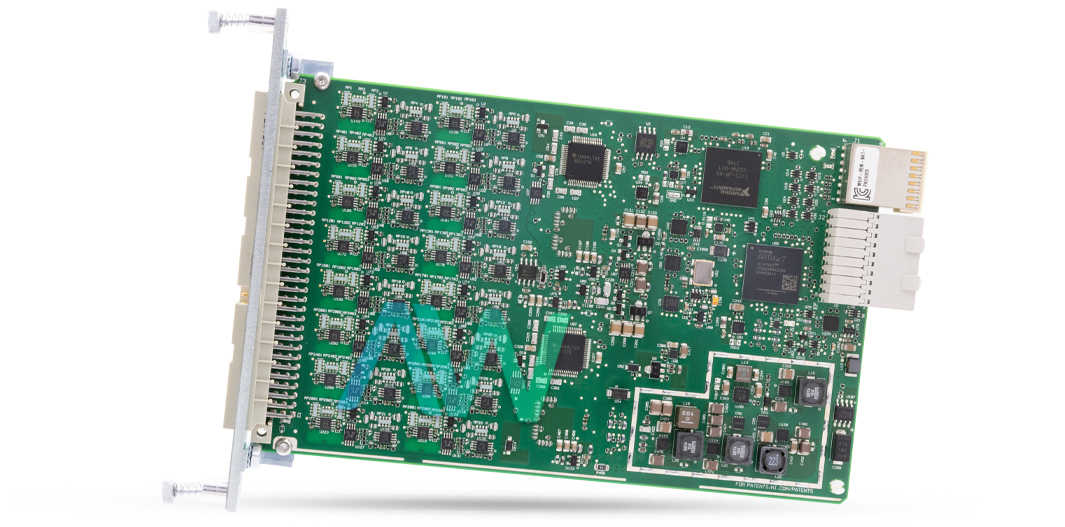

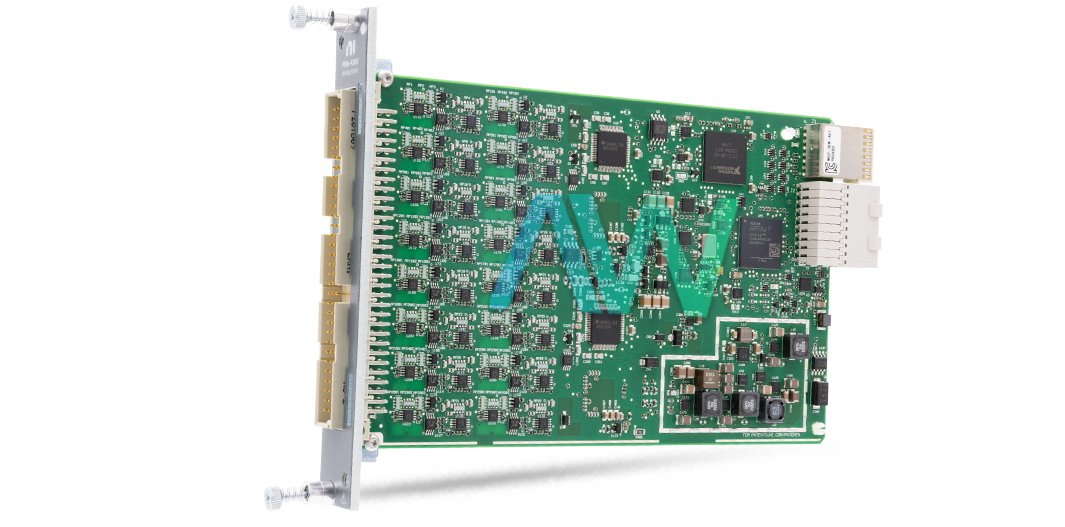

National Instruments 783868-01 PXI Analog Input Module.
The part number 783868-01 from National Instruments is the identifying part number for the PXIe-4305 PXI Analog Input Module. This PXI analog input module features 32 differential analog input channels with a delta sigma type ADC of resolution 24 bits. Its sample rate ranges from 1 S/s to 5 kS/s with a resolution less than 181.9 µS/s. Its input coupling is DC offering a variety of input voltage ranges of ±42 V nominal and maximum. It has a FIFO buffer memory size of 1,023 samples with a data transfer method of DMA and programmed I/O.
The 783868-01 PXI Analog Input Module has analog input triggers that is configurable through 0 to 31 and has modes of rising-edge, rising-edge with hysteresis, falling-edge, falling-edge with hysteresis, entering window, and leaving window. It also has digital triggers with a minimum pulse width of 100 ns for PXI trigger lines configurable through 0 to 7. To operate this module, its power requirements are 1.3 A at +12 V and 1.1 A at +3.3 V.
This analog input module has compact structure with dimensions of 16 cm × 10 cm (6.3 in. × 3.9 in.) and weighs 156 g (5.5 oz). It is compatible with Standard 3U PXIe form. It has 96-pin male DIN I/O connector that allows easy integrations into other digital devices. This module is made in such a way that it can be mounted at maximum altitude of 2000 meters and has pollution degree of 2.
This module is designed to be used in ambient temperature of 0 degrees Celsius to 55 degrees Celsius with operating relative humidity of 10% to 90%, noncondensing and storage temperature of -40 degrees Celsius to 71 degrees Celsius with storage relative humidity of 5% to 95%, noncondensing. It is designed to work under critical conditions with operating shocks of 30 g peak, half-sine, 11 ms pulse (Tested in accordance with IEC 60068-2-27) standard and random operating vibrations of 5 Hz to 500 Hz, 0.3 grms with nonoperating vibrations of 5 Hz to 500 Hz, 2.4 grms (Tested in accordance with IEC 60068-2-64) standard.
| Part Number | 783868-01 |
| Model Name | PXIe-4305 |
| Part Type | PXI Analog Input Module |
| Number of Input Channels | 32 differential analog input channels |
| ADC Resolution | 24 bits |
| Type of ADC | Delta-Sigma |
| Dimensions | 16 cm × 10 cm (6.3 in. × 3.9 in.) |
| Weight | 156 g (5.5 oz) |
| Maximum Altitude | 2000 m |
| Pollution Degree | 2 |
783868-01 PDF Manuals
NI PXIE 4304 4305 CALIBRATION PROCEDURE.PDF
NI PXIE 4304 4305 DEVICE SPECIFICATIONS.PDF
NI PXIE 4304 4305 LETTER OF VOLATILITY.PDF
NI PXIE 4304 4305 USER MANUAL.PDF
NI PXIE 4304 4305 AND TB 4304 USER GUIDE AND TERMINAL BLOCK SPECIFICATIONS.PDF
