PXIe-4310

4.8/5 | 9 ratings

Modular Systems > National Instruments > PXI Analog Input Modules

Part Number PXIe-4310
Manufacturer/Brand National Instruments
Description: PXIe-4310, 8-Channel, 16-Bit, PXI Analog Input Module
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

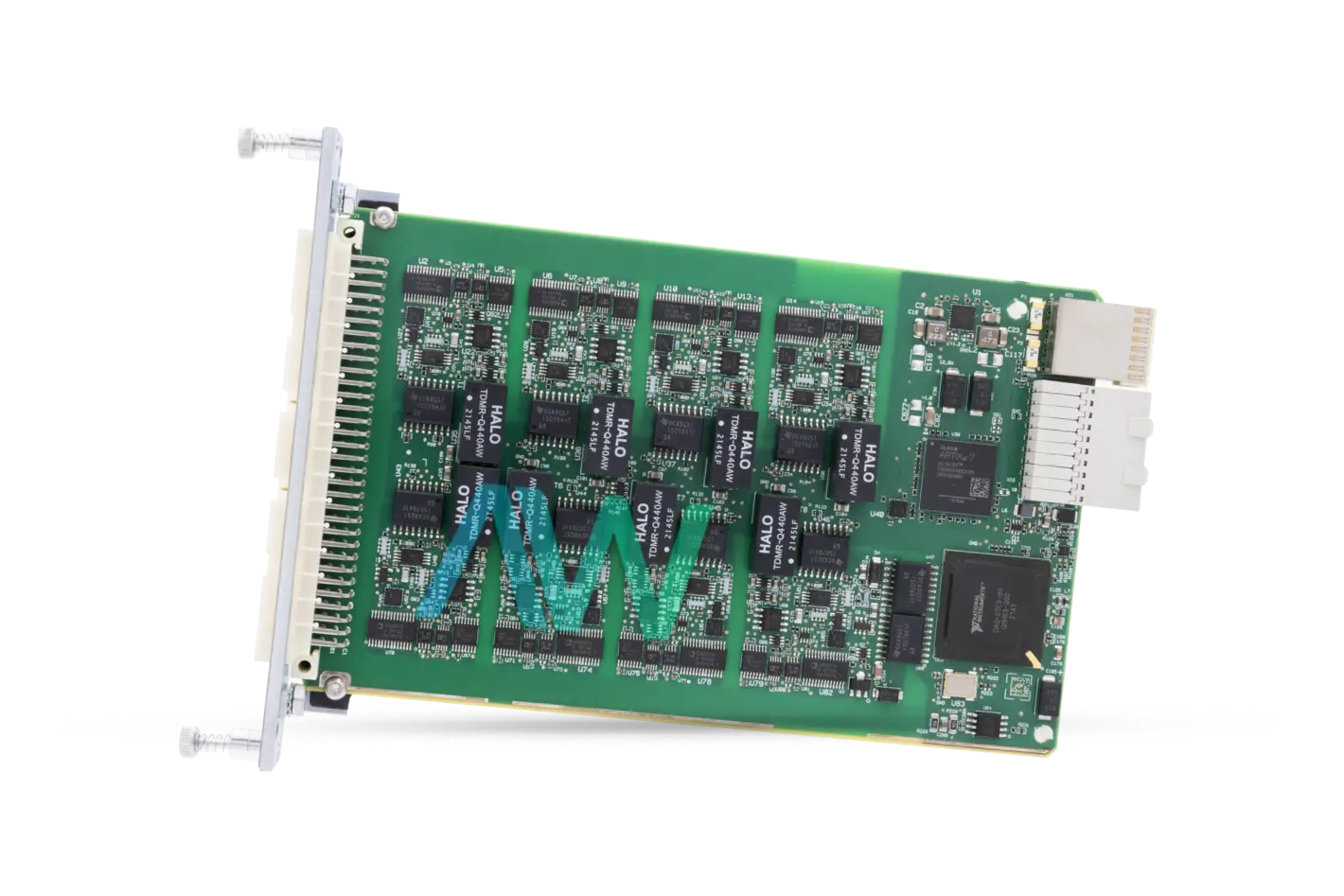

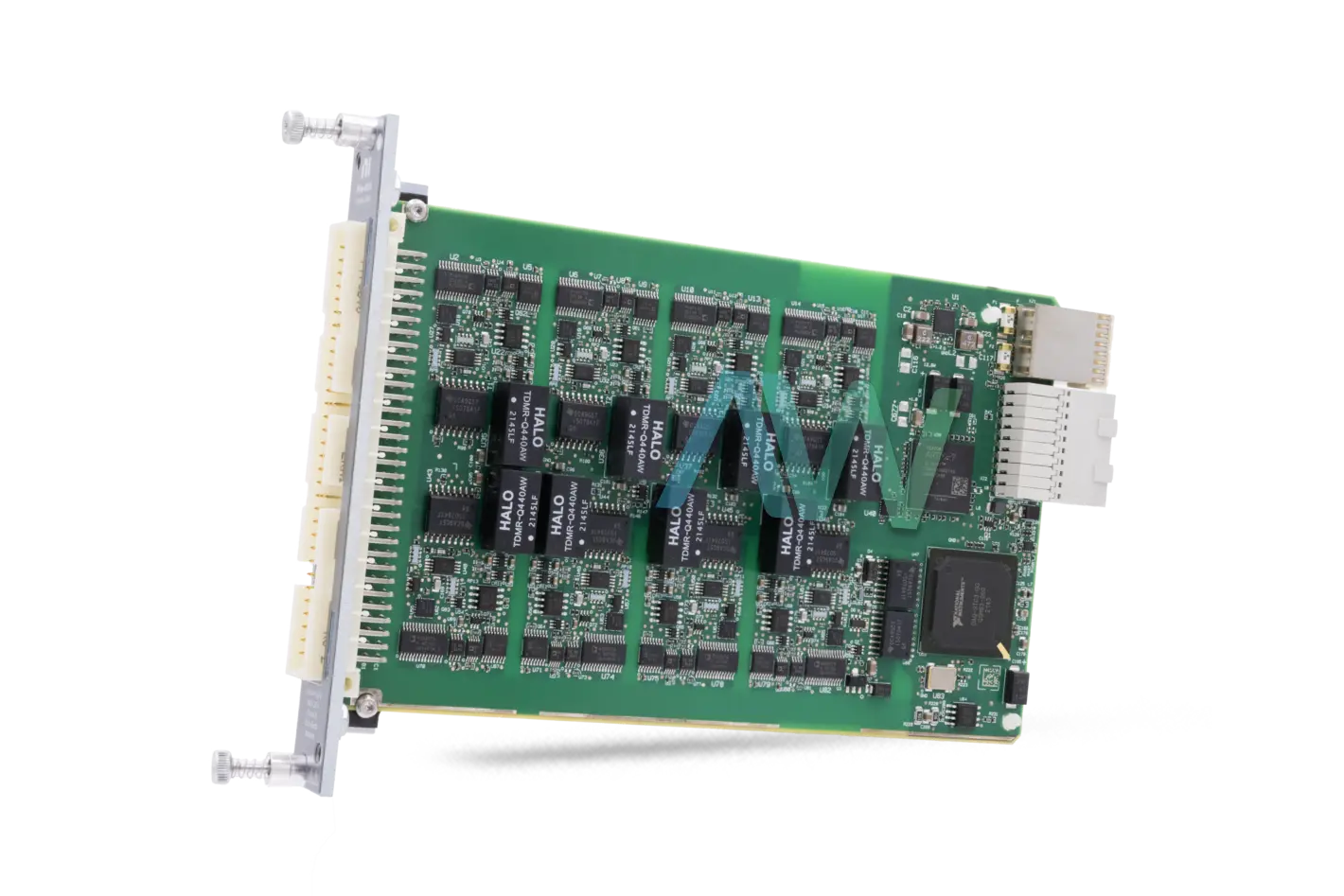

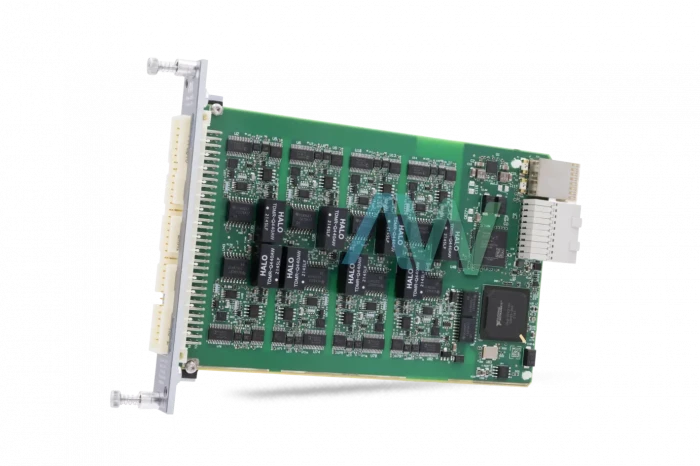

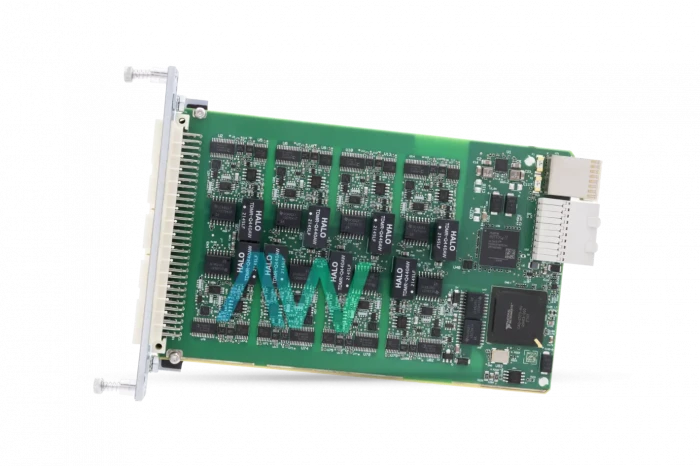

National Instruments PXIe-4310 PXI Analog Input Module

The PXIe-4310 (Part Number: 784813-01) is an advanced Analog Input Module from National Instruments with 8 Analog Input Channels. The NI PXIe-4310 module offers a maximum sample rate up to 400ks/s per channel. This module can create four different input ranges, which enables the PXIe 4310 to trigger configurations simultaneously at the output. The PXIe-4310 Analog Input Module also has the ability to choose an analog filter per channel. It improves the performance and measurement accuracy of the module.

The NI PXIe-4310 is structured with eight simultaneously sampled analog input channels. All these channels have channel-to-earth and channel-to-channel isolation. The maximum Analog Input Isolation is ranged up to 600 V channel to channel. A driver NI-DAQmx can be used for measurement and simplifies hardware configuration. The range of the PXIe-4310 can be enhanced up to 10 V maximum with the assistance of TB-4310 (10V).  It can be further expanded to 600 V with the assistance of TB-4310 (600V). Triggering/clocking is executed by using two inputs PFI lines. One of the key features of the NI PXIe-4310 Analog Input Module is self-calibration, which measures the onboard reference voltage of the module and prevents any errors caused by short-term fluctuations in the environment.

The National Instruments PXIe-4310 PXI Analog Input Module's dimensions are 6.3 x 3.9 inches. The instrument weighs 6.0 oz. The power requirement of the device is +3.3 volts at 2.9 watts and +12 volts at 7.1 Watts. The NI PXIe-4310 Analog Input Module also complies to industrial safety standards.

ModelPXIe-4310
Part Number784813-01
ManufacturerNational Instruments
TypePXI Analog Input Module
Differential Analog Input Channels8
Maximum Sample Rate400 kS/s
Analog Input Resolution16 bits
Dimensions6.3 x 3.9 in.
Weight6.0 oz.
Warranty2-3 Year Warranty
PXIe-4310 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXIe-4310:

141950A-01L, 141950B-01L, 141950C-01L, 141950D-01L, 200196A-01, 200270A-01, 200418A-01, 200673A-01, 784813-01

National Instruments PXIe-4310 Frequently Asked Questions



Question: What is the analog input isolation of the PXIe-4310 module?



Answer: The analog input isolation of the PXIe-4310 module is 600 V Ch-Ch Isolation.



Question: What is the minimum sampling rate for the NI PXIe-4310?



Answer: There is not a minimum sampling rate for the NI PXIe-4310.



Question: Which terminal blocks can be utilized with the PXIe-4310?



Answer: The TB-4310 (10V) and TB-4310 (600V) can be utilized with the PXIe-4310.



Question: What lowpass filter settings are available for the NI PXIe-4310?



Answer: The NI PXIe-4310 has three lowpass filter settings: 10 kHz, 100 kHz, and Disable.

  PXIe-4310 PDF Manuals

Driver Downloads for PXIe-4310






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
