PXI-1011, 4-Slot PXI / 8-Slot SCXI, PXI Chassis
Need an Official Quote?
National Instruments PXI-1011 PXI Chassis

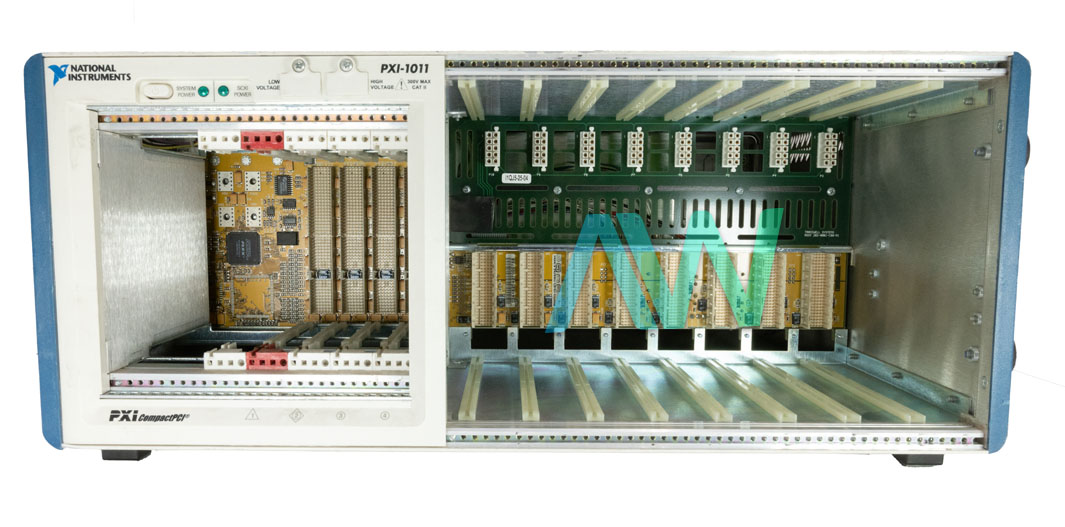

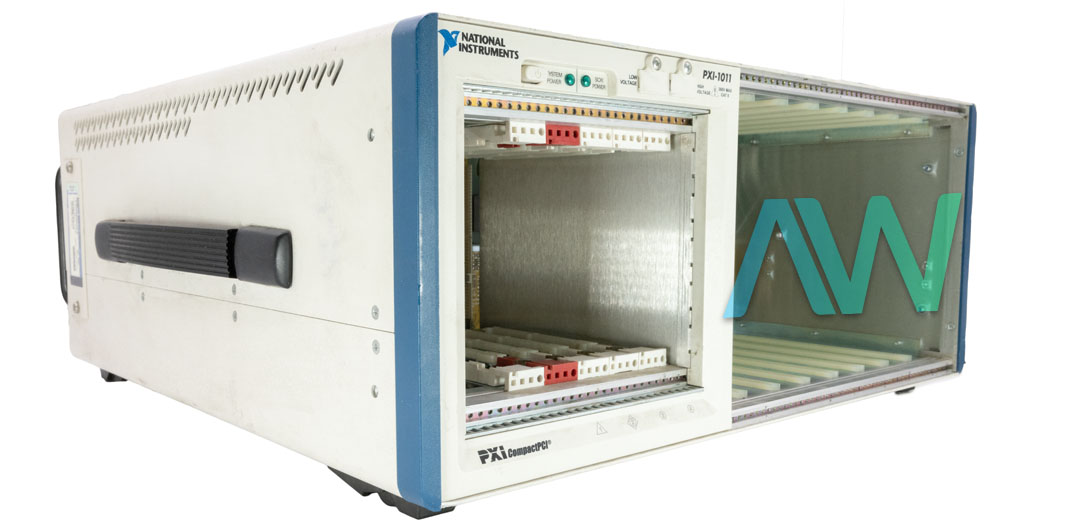

The National Instruments PXI-1011 Chassis (Part Number: 777965-01) is a smart integration of an 8-slot SCXI subsystem with a high-performance 4-slot PXI subsystem to offer a comprehensive solution for signal switching and conditioning applications. The PXI section of this Chassis is designed to accept an MXI-3 interface, an embedded controller, or a wide range of modules, such as digital I/O (DIO), multifunction I/O (MIO), and computer-based instrument modules. With this Chassis, the user can utilize the 8 SCXI slots for the integration of multiple signal conditioning modules into the PXI infrastructure. These modules can provide digital and analog input conditioning, isolation, and a variety of other functions. The device has a maximum sampling rate of 333 KS/s.
The National Instruments PXI-1011 Chassis also allows the user to daisy chain an additional SCXI chassis to achieve addition of even more signal-conditioning channels. This Chassis has a structural design and can be considered a viable solution for a broad range of applications. The NI PXI 1011 supports advanced synchronization and timing features. The PXI 1011 also has integrated overcurrent and overvoltage protection features.
This Chassis comes equipped with an integrated interconnection between the SCXI and PXI subsystems that allows the installation of a DAQ/DMM module in the 4th PXI slot. This arrangement enables user the controlling of an SCXI subsystem without any additional cabling. This PXI Chassis can be operated over a broad input voltage range of 100 to 240 VAC and offers 140 Watts of PXI maximum useable power. The NI PXI-1011 can be utilized in an instrument rack or on a bench, allowing the user flexibility with the chassis for their specific application requirements. The device has an AC input voltage range of 100 to 240 VAC and an AC input frequency range of 47 to 440 Hz. The device weighs 20 lbs., and measures 17.6 x 17.3 x 7.0 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 70 °C.
PXI-1011 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
Model | PXI-1011 |
---|---|
Part Number | 777965-01 |
Manufacturer | National Instruments |
Type | PXI Chassis |
PXI Slots | 4 |
SCXI Slots | 8 |
Maximum Sampling Rate | 333 kS/s |
Dimensions | 17.6 x 17.3 x 7 in. |
Weight | 20 lb. |
Warranty | ThreeYear Warranty |
PXI-1011 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-1011:
186224A-01, 186224C-01, 188347A-01, 188488A-01, 745770-01, 777965-01, 777965-02, 777965-03, 777965-04, 777965-05, 777965-06, 777965-07
National Instruments PXI-1011 Frequently Asked Questions
Question: What is the overcurrent protection for the PXI-1011 Chassis?
Answer: The PXI-1011 Chassis has a 5 A circuit breaker overcurrent protection.
Question: What is the input voltage range of the NI PXI 1011?
Answer: The NI PXI 1011 has an input voltage range from 100 to 240 VAC.
Question: What is the PXI maximum usable DC output power on the PXI 1011?
Answer: On the PXI 1011, the PXI maximum usable DC output power is 140 W.
PXI-1011 PDF Manuals
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED NI PXI 8184 8185 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED NI PXI 8186 8187 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED NI PXI 8186 USER MANUAL.PDF
ARCHIVED PXI-1011 CHASSIS INFORMATION NOTE TO USERS.PDF
ARCHIVED PXI-1011 CHASSIS RACK MOUNT KIT INSTALLATION GUIDE.PDF
ARCHIVED PXI-1011 CHASSIS USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
NI PXI 1052 USER MANUAL AND SPECIFICATIONS.PDF
NI SWITCHES GETTING STARTED GUIDE FOR NI SCXI SWITCH MODULES.PDF
PXI EXPRESS CHASSIS PRODUCT FLYER.PDF
SCXI 1126 USER MANUAL AND SPECIFICATIONS.PDF
SCXI 1127 1128 USER MANUAL.PDF
SCXI 1346 SHIELDED MULTI CHASSIS CABLE ADAPTER INSTALLATION GUIDE.PDF
Driver Downloads for PXI-1011
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
