PXIe-1082DC In Stock | Ships in 5-10 Days
PXIe-1082DC, 8-Slot, PXI Chassis
Need an Official Quote?

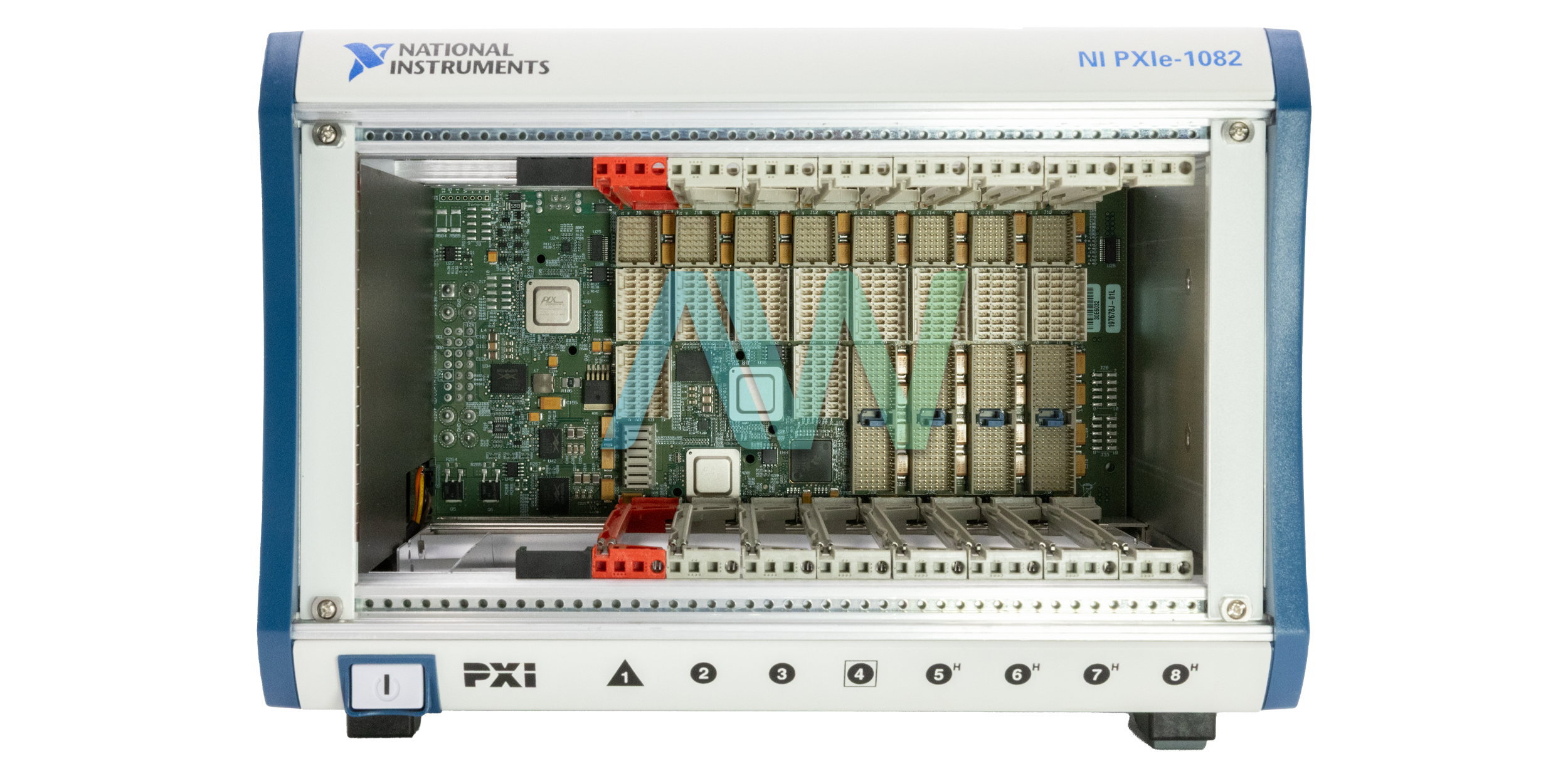

National Instruments PXIe-1082DC PXI Chassis
The National Instruments NI PXIe-1082DC (Part Number: 782946-01) Chassis features a high-bandwidth backplane and accepts PXI Express modules in every slot and supports standard PXI hybrid-compatible modules in as many as 4 slots. The Chassis is one out of the two NI PXIe-1082 options, which supports DC inputs from 11 V to 32 V.
The NI PXIe 1082 DC Chassis combines a high-performance 8-slot PXI Express backplane with a high-output power supply and a structural design that has been optimized for maximum usability in a wide range of applications. The Chassis has a low mean time to repair (MTTR) as its modular design ensures a high level of maintainability.

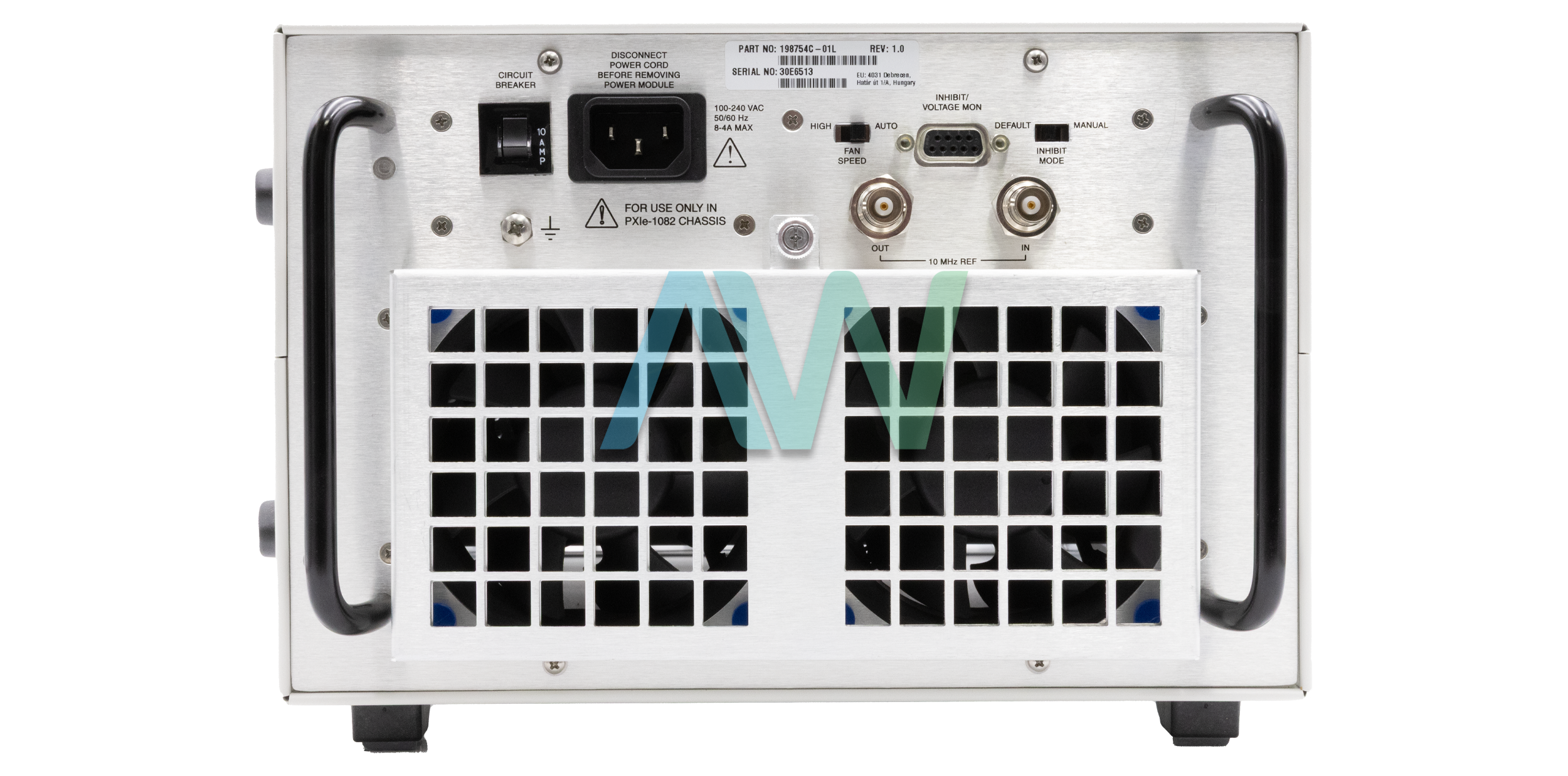

This model comes equipped with a remote power-inhibit control and variable speed fan controller that optimizes cooling and acoustic emissions. Its 38 W per slot cooling meets increased PXIe cooling requirements. The PXIe-1082DC power supply, temperature, and fan monitoring features are highly reliable, as the device is HALT tested for increased reliability. It has quiet operation for 0 to 30 °C at 48.7 dBA. One of the key features of this model is a low-jitter internal 10 MHz/100 MHz reference clock for PXI/ PXIe slots with ± 25 ppm stability, respectively.
The Chassis operates on an extended temperature range of up to 55 °C for applications in demanding environments. All the features of the latest PXI specifications, including support for both PXI and PXI Express modules, and built-in timing and synchronization features are combined into this chassis.
Model | PXIe-1082DC |
---|---|
Part Number | 782946-01 |
Manufacturer | National Instruments |
Type | PXI Chassis |
Slot Count | 8 |
Maximum System Bandwidth | 8 GB/s |
Chassis Power Supply Type | DC |
Dimensions | 6.97 x 10.68 x 15.61 in. |
Weight | 19.4 lb. |
Warranty | 2-3 Year Warranty |
PXIe-1082DC Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-1082DC:
152115E-01L, 155865A-01, 155865B-01, 782946-01
National Instruments PXIe-1082DC Frequently Asked Questions
Question: Is a fan filter included with the PXIe-1082DC?
Answer: All PXIe Chassis, including the PXIe-1082DC, do not come with a fan filter. The fan filters are an optional accessory.
Question: Are there any accessories that are required to operate the NI PXIe-1082DC?
Answer: The NI PXIe-1082DC only requires a DC power cord to operate. The part number for the power cord is 782950-01.
Question: Which devices can be used in the PXIe-1082DC?
Answer: The following devices can be used in the PXIe-1082DC: regular CompactPCI peripheral devices, PXI Express compatible devices, PXI peripheral devices, CompactPCI Express compatible 4-Link system controller devices, and CompactPCI Express compatible Type-2 peripheral devices.
Question: Does the NI PXIe-1082DC have a redundant HW?
Answer: No, the NI PXIe-1082DC does not have a redundant HW.
PXIe-1082DC PDF Manuals
8 SLOT PXI BACKPLANE INSTALLATION GUIDE.PDF
NI PXIE 1082DC LETTER OF VOLATILITY.PDF
NI PXIE 1082DC USER MANUAL.PDF
PXI EXPRESS CHASSIS PRODUCT FLYER.PDF
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-1082DC
Modular Systems > National Instruments > PXI Chassis
PXIe-1082DC, 8-Slot, PXI Chassis
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

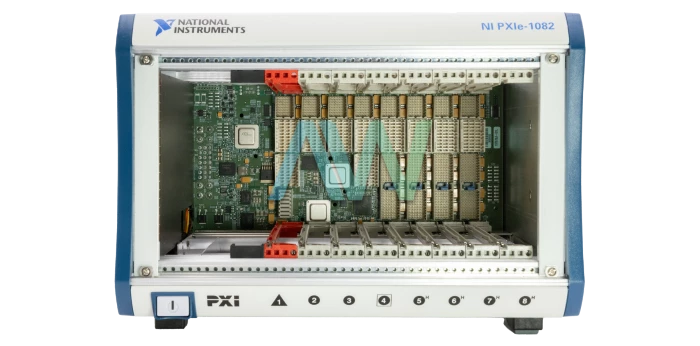

National Instruments PXIe-1082DC PXI Chassis
The National Instruments NI PXIe-1082DC (Part Number: 782946-01) Chassis features a high-bandwidth backplane and accepts PXI Express modules in every slot and supports standard PXI hybrid-compatible modules in as many as 4 slots. The Chassis is one out of the two NI PXIe-1082 options, which supports DC inputs from 11 V to 32 V.
The NI PXIe 1082 DC Chassis combines a high-performance 8-slot PXI Express backplane with a high-output power supply and a structural design that has been optimized for maximum usability in a wide range of applications. The Chassis has a low mean time to repair (MTTR) as its modular design ensures a high level of maintainability.

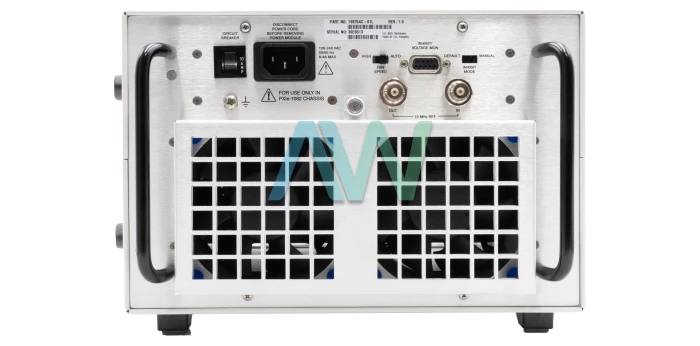

This model comes equipped with a remote power-inhibit control and variable speed fan controller that optimizes cooling and acoustic emissions. Its 38 W per slot cooling meets increased PXIe cooling requirements. The PXIe-1082DC power supply, temperature, and fan monitoring features are highly reliable, as the device is HALT tested for increased reliability. It has quiet operation for 0 to 30 °C at 48.7 dBA. One of the key features of this model is a low-jitter internal 10 MHz/100 MHz reference clock for PXI/ PXIe slots with ± 25 ppm stability, respectively.
