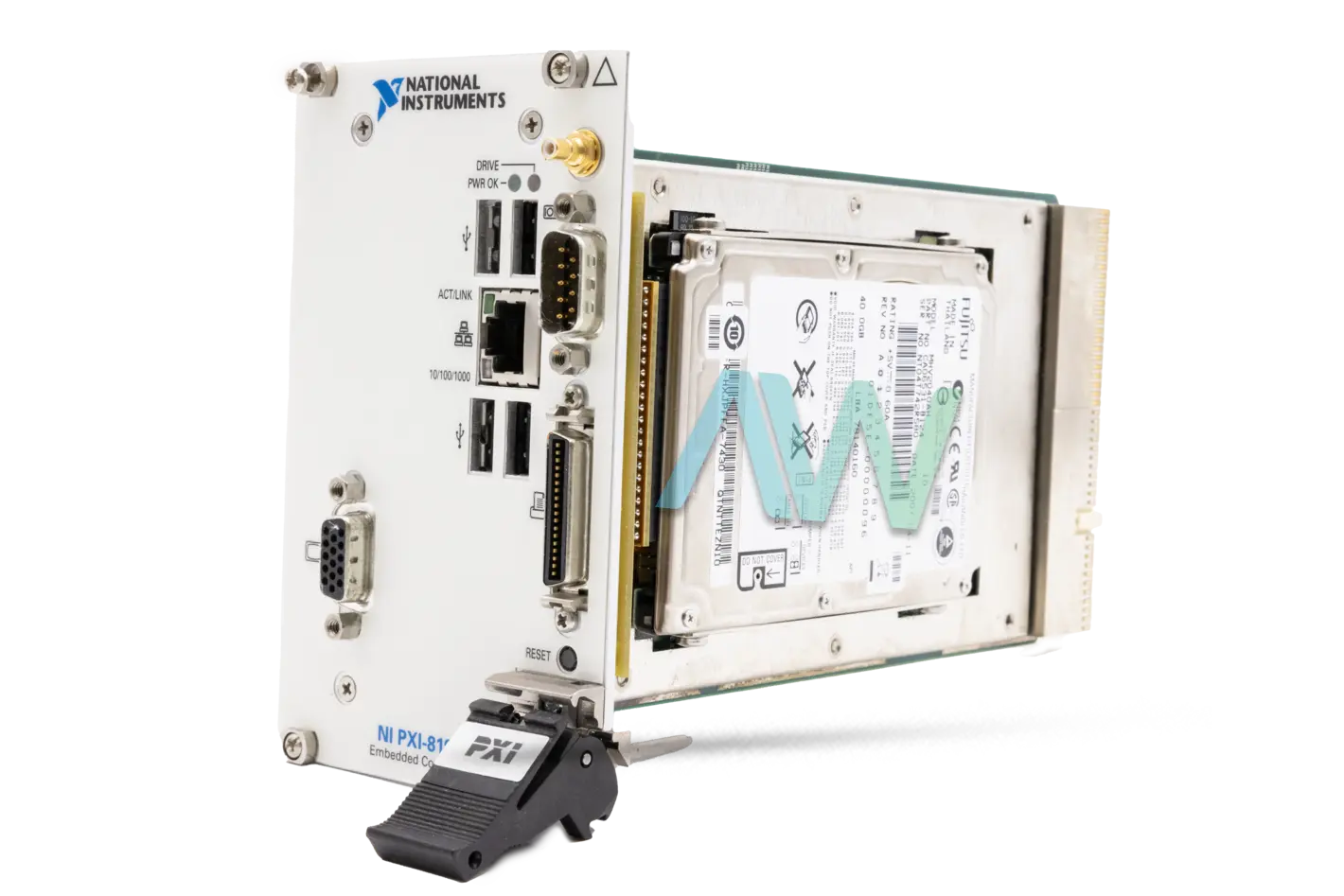

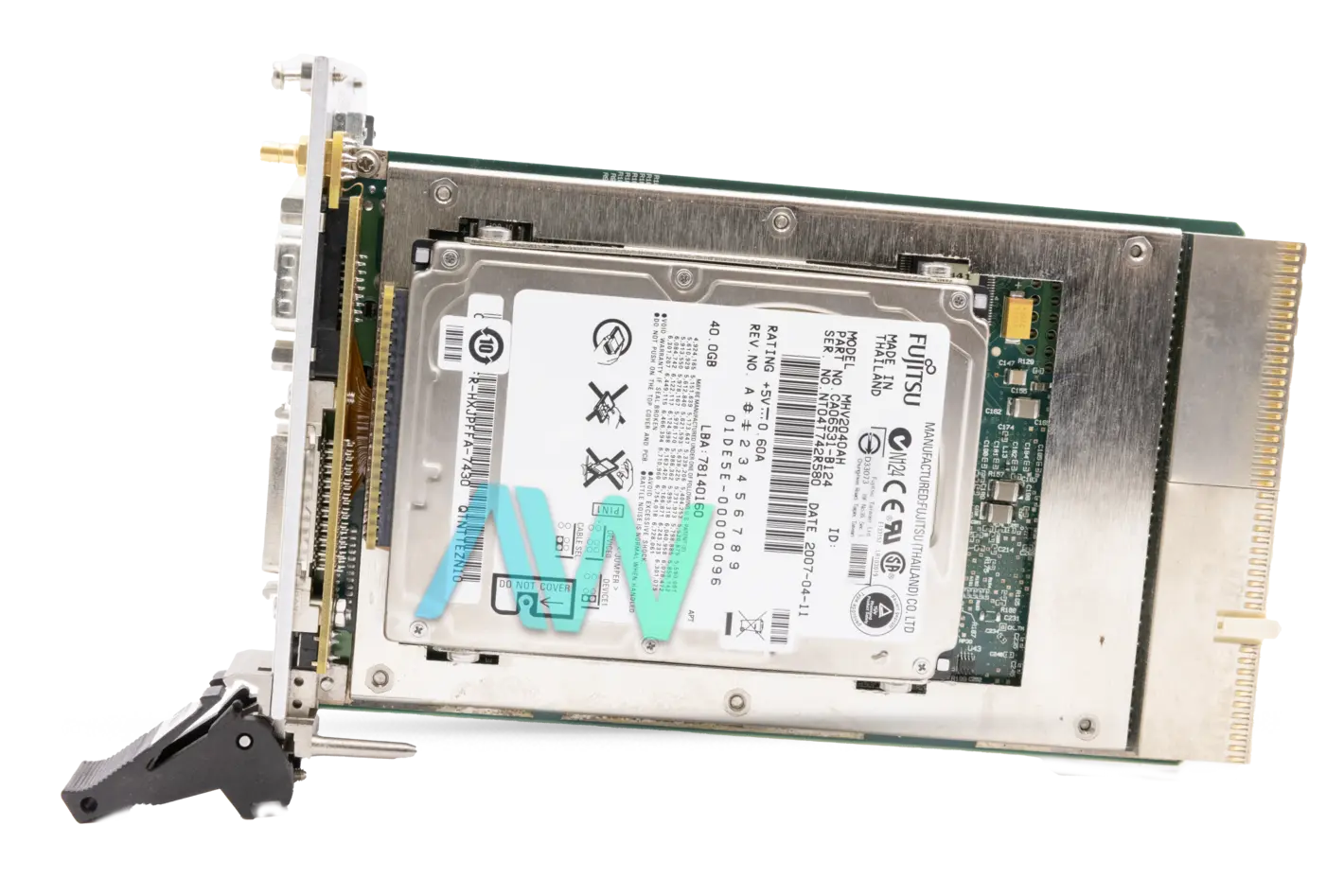

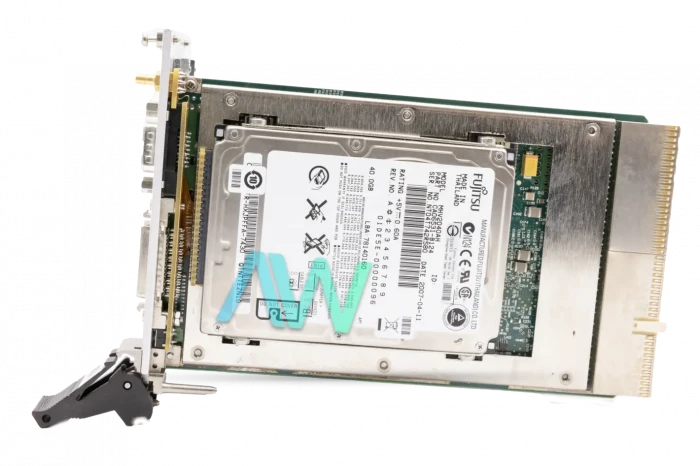

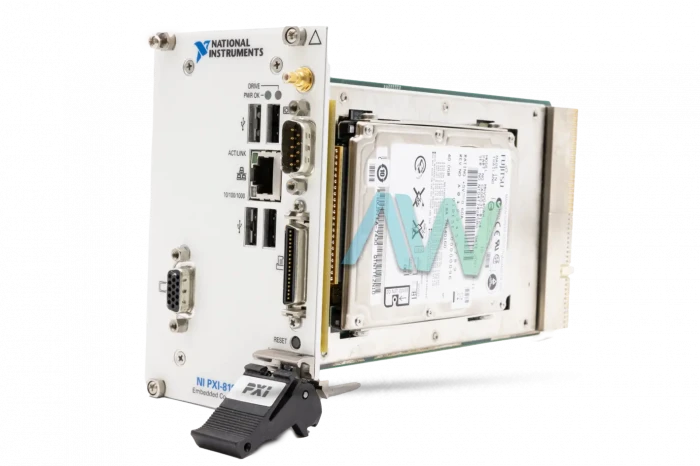

National Instruments PXI-8195 PXI Controller

Featured with a 1.5 GHz Celeron M 370 Processor, 256 MB RAM, and 40 GB Internal hard drive, the National Instruments PXI-8195 (Part Numbers: 779910-00 and 779910-01) is an Embedded Controller for use in PXI systems. The processor utilized in this model comes with the new Pentium M architecture that provides the highest possible mobile performance, while operating at clock rates lower than earlier Intel processors. By performance, the NI PXI-8195 is equivalent to that of a Pentium 4 system with 3.0 GHz clock rate.

This Embedded Controller also uses the Mobile Intel 915GM Express chipset to provide maximum stability, flexibility, and performance. In addition, the 915GM Express chipset comes with the PCI Express bus which brings full-rate Gigabit Ethernet and ExpressCard interface.

As far as its peripheral’s profile is concerned, the National Instruments PXI-8195 has almost everything onboard, including: 10/100/1000 BaseTX Ethernet, a GPIB (IEEE 488.2) Interface, a Serial Port, a Parallel Port, USB 2.0 Ports, an ExpressCard/34 Slot, a Watchdog/Trigger SMB, and a PS/2 Keyboard/Mouse Connector. With this model, the user will be able to add another Gigabit Ethernet port or additional peripheral I/O, such as Bluetooth, IEEE 1394, 802.11 wireless LAN, and various other memory adaptors by utilizing the ExpressCard/34 slot.

The National Instruments PXI-8195 can boot from various sources, including: the internal IDE hard drive, a network PXE server (should be on the same subnet), an external SCSI hard drive, an external CD-ROM (through an SCSI adapter), and an external USB mass storage device (such as a CD-ROM or a USB hard drive).

PXI-8195 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8195
Part Numbers779910-00, 779910-01
ManufacturerNational Instruments
TypePXI Controller
Slot Requirements1 system slot and 3 controller expansion slots
CPU1.5 GHz Celeron M 370
Standard RAM256 MB
Dimensions3.2 x 5.1 x 8.5 in.
Weight1.7 lb.
WarrantyOne Year Warranty
PXI-8195 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8195 Frequently Asked Questions



Question: What is the difference between the two part numbers for the PXI-8195?



Answer: The PXI-8195 has two part numbers because there is a different operating system installed on each part. Part number 779910-01 has Windows XP (English) installed, while part number 779910-00 has Localized OS installed.



Question: What is the minimum hard drive size for the NI PXI-8195?



Answer: The minimum hard drive size for the NI PXI-8195 is 40 GB.



Question: How many USB 2.0 ports are on the PXI-8195?



Answer: The PXI-8195 has four USB 2.0 ports.



Question: What is the size of the L2 Cache on the NI PXI-8195?



Answer: The L2 Cache on the NI PXI-8195 is 1,024 KB.
