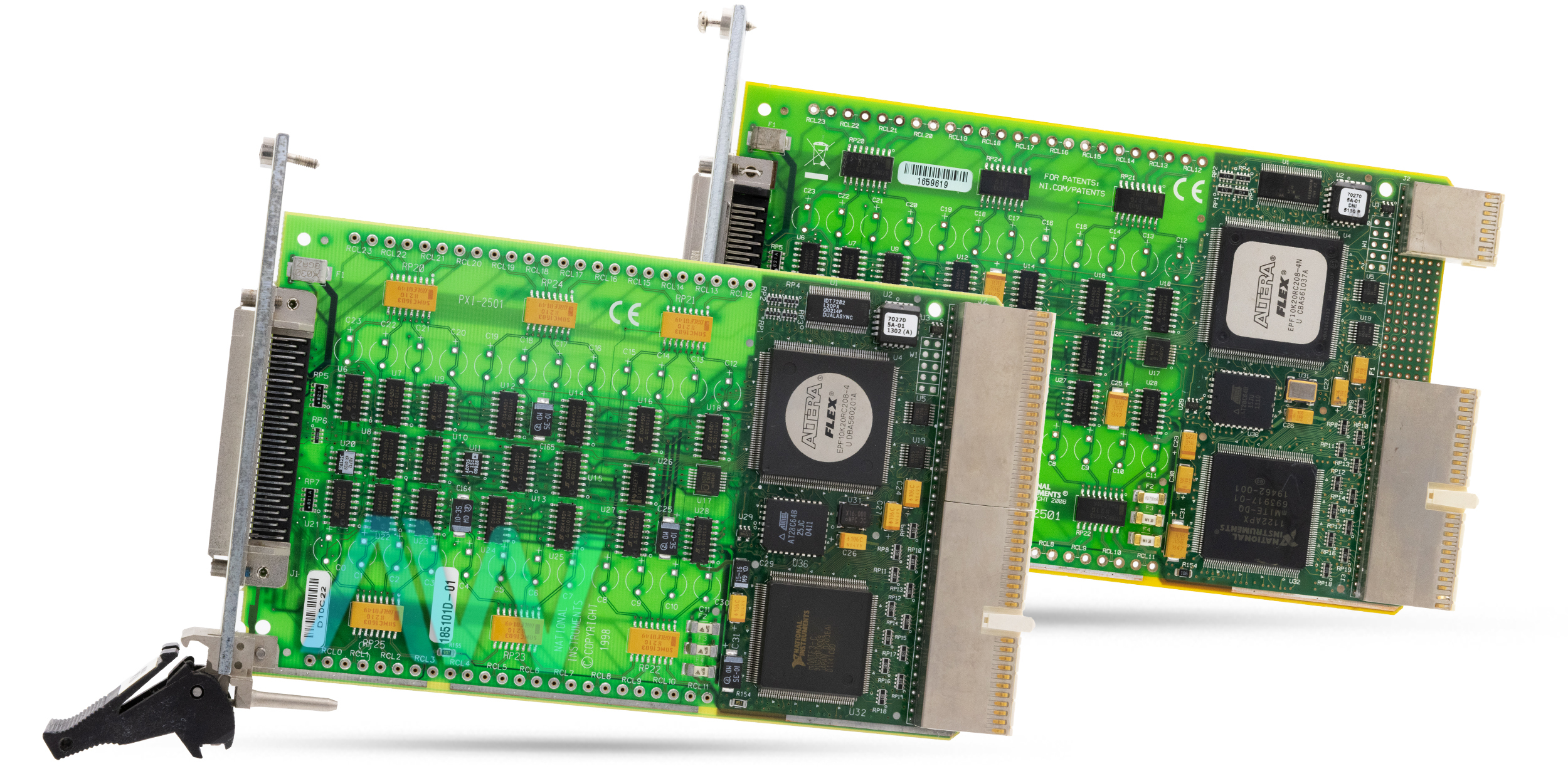

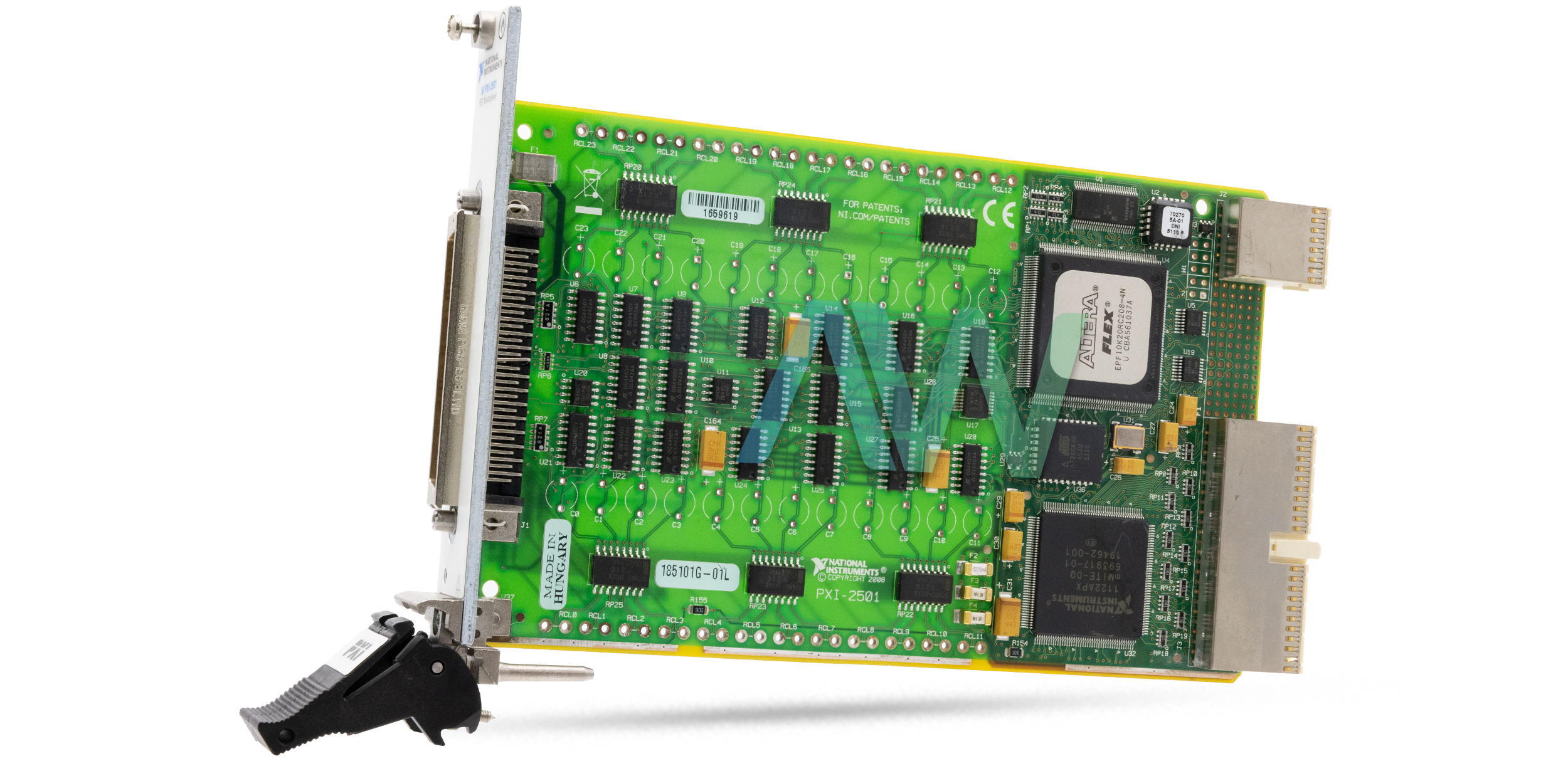

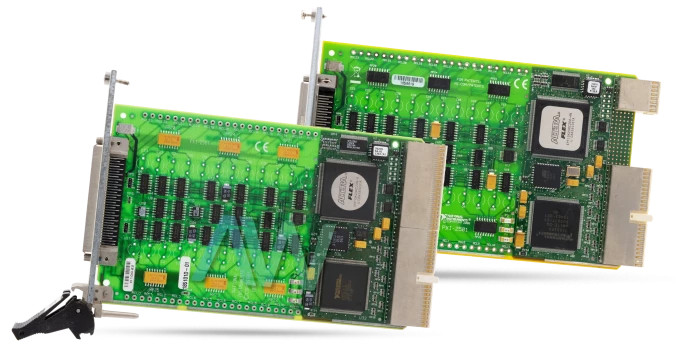

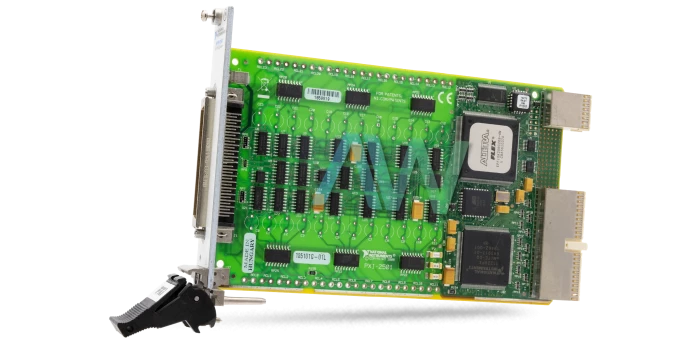

PXI-2501 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2501 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2501 NewPXI-2501 | Legacy, Refurbished and New Surplus
PXI-2501 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2501 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2501 New
PXI-2501 | Legacy, Refurbished and New Surplus

PXI-2501

5/5 | 13 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2501
Manufacturer/Brand National Instruments
Description: PXI-2501, 48-Channel, PXI Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXI-2501 PXI Multiplexer Switch Module

The National Instruments PXI-2501(Part Number: 777696-01, 185101G-01L) is a 1-, 2-, or 4-Wire, 48-Channel, FET based PXI Multiplexer Switch Module. By using different terminal block accessories, the user can configure this Switch Module as a matrix switch or a multiplexer switch. This model is ideal for the fast inspecting of LV signals as it utilizes FET switches with brief settling times. For deterministic scanning, the PXI-2501 comes equipped with a scan list capable of 1,024s steps as well.

With this model, the user can achieve a maximum scan rate of 15,000 channels/s. For handling I/O connections, the PXI-2501 comes equipped with a 68-pin male SCSI connector. This Multiplexer Switch has dimensions of 21.6 cm × 2.0 cm × 13.0 cm and weighs around 6.1 oz. As far as its trigger characteristics are concerned, this switch can handle 70 ns PXI trigger lines and 500 ns front panel trigger lines. This model can generate output trigger through <0...7> PXI trigger lines and front panel at 1 μs pulse width.

This switch card is offered in two-wire configuration mode by default. In this mode, the CHx+ and COMx+, similar to the CHx– and COMx– channels, are switched together for the corresponding bank. However, the user can also have this module operated in one-wire, three-wire, and four-wire configurations.  In typical conditions, the four-wire mode of the PXI-2501 is considered for resistance measurements. In addition to these modes, the National Instruments PXI-2501 can also be configured as a 2-wire, 6 by 4 crosspoint matrix. To have this module configured in matrix mode quickly, the TB-2606 terminal block is known to be a viable solution.

ModelPXI-2501
ManufacturerNational Instruments
Part Numbers777696-01, 185101G-01L
TypePXI Multiplexer Switch Module
Banks1, 2, or 4
Channels6, 12, 24, 48
Switch Bandwidth400 kHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight6.1 oz.
WarrantyThree Year Warranty
PXI-2501 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2501:

18510.1, 185101-01, 185101A-01, 185101B-01, 185101C-01, 185101D-01, 185101F-01, 185101G-01L, 185101H-01L, 777696-01

National Instruments PXI-2501 Frequently Asked Questions



Question: What type of I/O connector does the PXI-2501 have?



Answer: The PXI-2501 has a 68-pin male SCSI connector.



Question: What is the scan rate of the NI PXI-2501?



Answer: The NI PXI-2501 has a scan rate of 15,000 cycles/s.



Question: What type of wire modes does the PXI-2501 have available?



Answer: The PXI-2501 has 1-wire, 2-wire, and 4-wire modes.



Question: What is the maximum DC switching voltage and current for the NI PXI-2501?



Answer: The NI PXI-2501 has a maximum switching voltage DC of 10 V and maximum switching current of 3 mA.

  PXI-2501 PDF Manuals

  PXI-2501 Diagrams

Driver Downloads for PXI-2501






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
