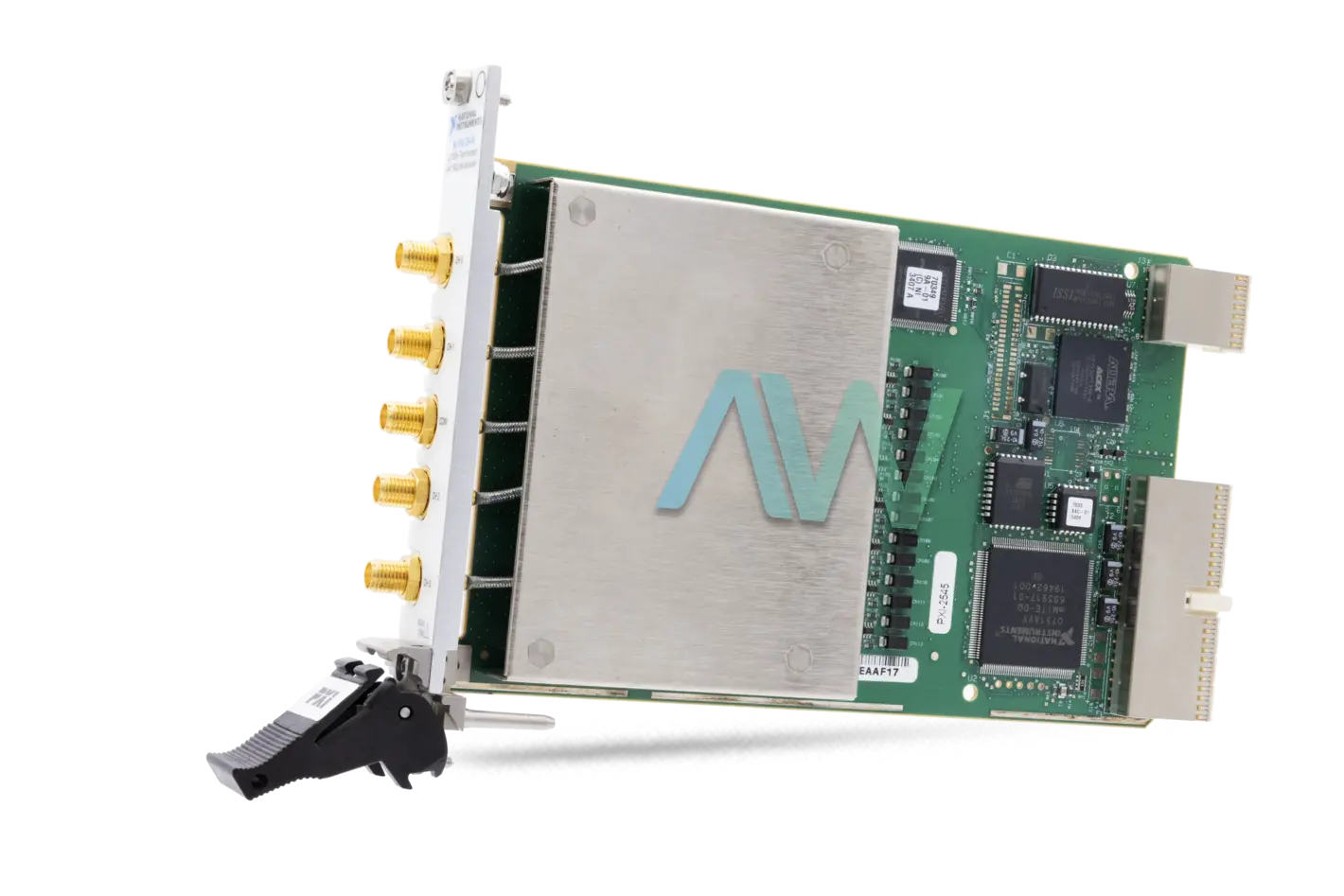

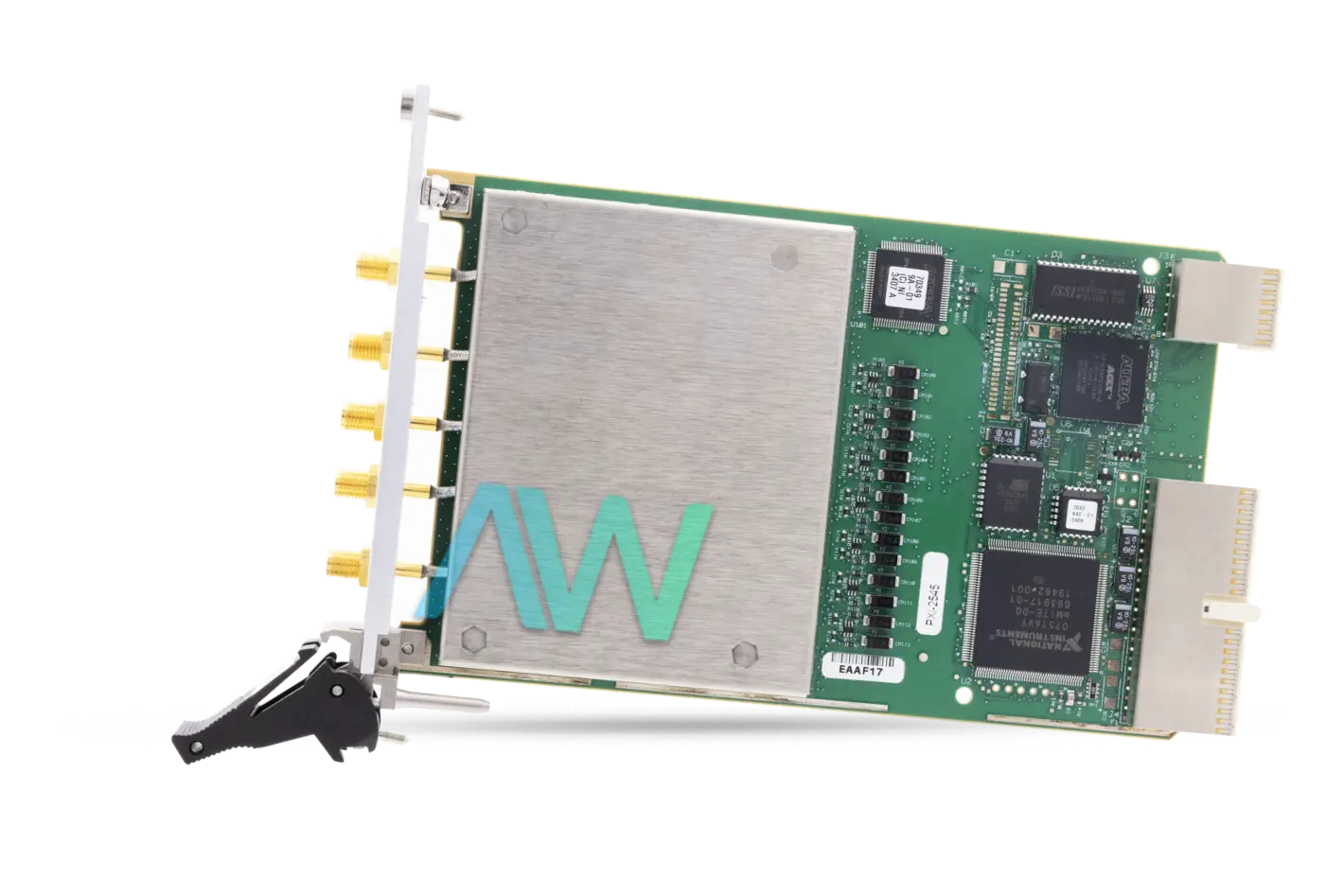

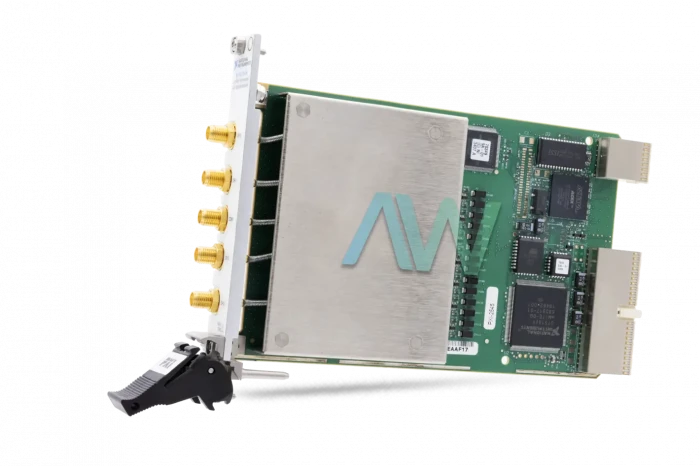

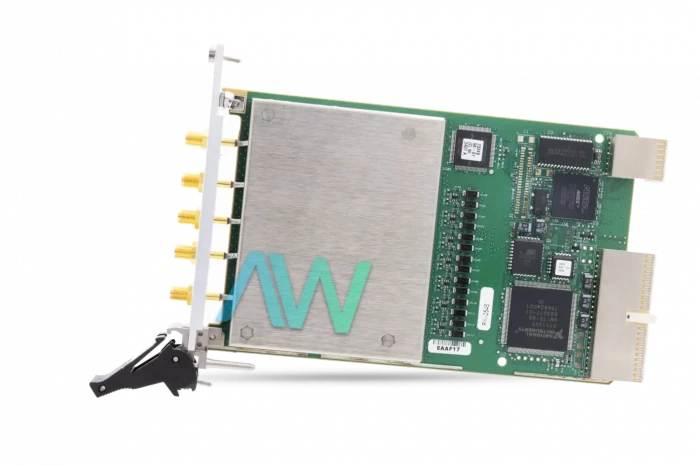

National Instruments PXI-2545 PXI RF Multiplexer Switch Module

The National Instruments PXI-2545 (Part Number: 778572-45) is an RF Signal Multiplexer Switching Module. The inside termination of the PXI-2545, which helps prevent high-power reflections that emerge from open channels in the module, makes it perfect for use with RF applications where reflections can harm the source. The module likewise gives amazing insertion loss, changeless voltage wave ratio (VSWR), and isolation parameters to limit signal degradation. The user can utilize the inner capacity for relay account tracking to anticipate the life of the relay and lessen the dead time in the framework.  It associates various inputs to a single output or different outputs to a single input, to simplify wiring in automated test frameworks.

The PXI-2545 RF Switching Multiplexer Module is perfect for applications with an expansive number of channels or that need to interface estimation or signal generation instruments with a few test focuses in devices or units under test (DUTs or UUTs). PXI RF Multiplexer Switching Modules utilize an assortment of relay types, including armored-type electromechanical relays, reed relays, field-effect transistor relay (FET) and solid-state relays, each with its own advantages enabling the user to pick a multiplexer that meets their necessities. To program the switches, it is possible to utilize the NI-SWITCH controller software compatible with IVI, supplement with help documentation, sample programs, and a front-board application for intelligent control of switches. For clever administration of complex exchanging frameworks, NI Switch Executive gives extra programming devices to enable the user to design, create, and implement their switching framework.

ModelPXI-2545 (778572-45)
ManufacturerNational Instruments
TypePXI RF Multiplexer Switch Module
Banks1
Channels4
Switch Bandwidth2.7 GHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight9 oz.
Warranty2-3 Year Warranty
PXI-2545 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2545:

19621.4, 196214A-01, 196214B-01, 196214C-01, 196214C-01L, 196214D-01, 196214F-01, 196214F-01L, 196214G-01L, 196214H-01L, 196214J-01L, 778572-45

National Instruments PXI-2545 Frequently Asked Questions



Question: What type of relays does the National Instruments PXI-2545 have?



Answer: The National Instruments PXI-2545 has electromechanical relays.



Question: What is the maximum insertion loss of the PXI-2545?



Answer: The PXI-2545 has a maximum insertion loss of -2 dB.



Question: What is the rise time (10% to 90%) of the NI PXI-2545?



Answer: The rise time of the NI PXI-2545 is 93 ps, typical.



Question: What is the maximum relay operating time for the PXI-2545?



Answer: The maximum relay operating time for the PXI-2545 is 10.4 ms.
