Part Number PXI-2599
Manufacturer/Brand National Instruments
Description: PXI-2599, 26.5 GHz, PXI RF Relay Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

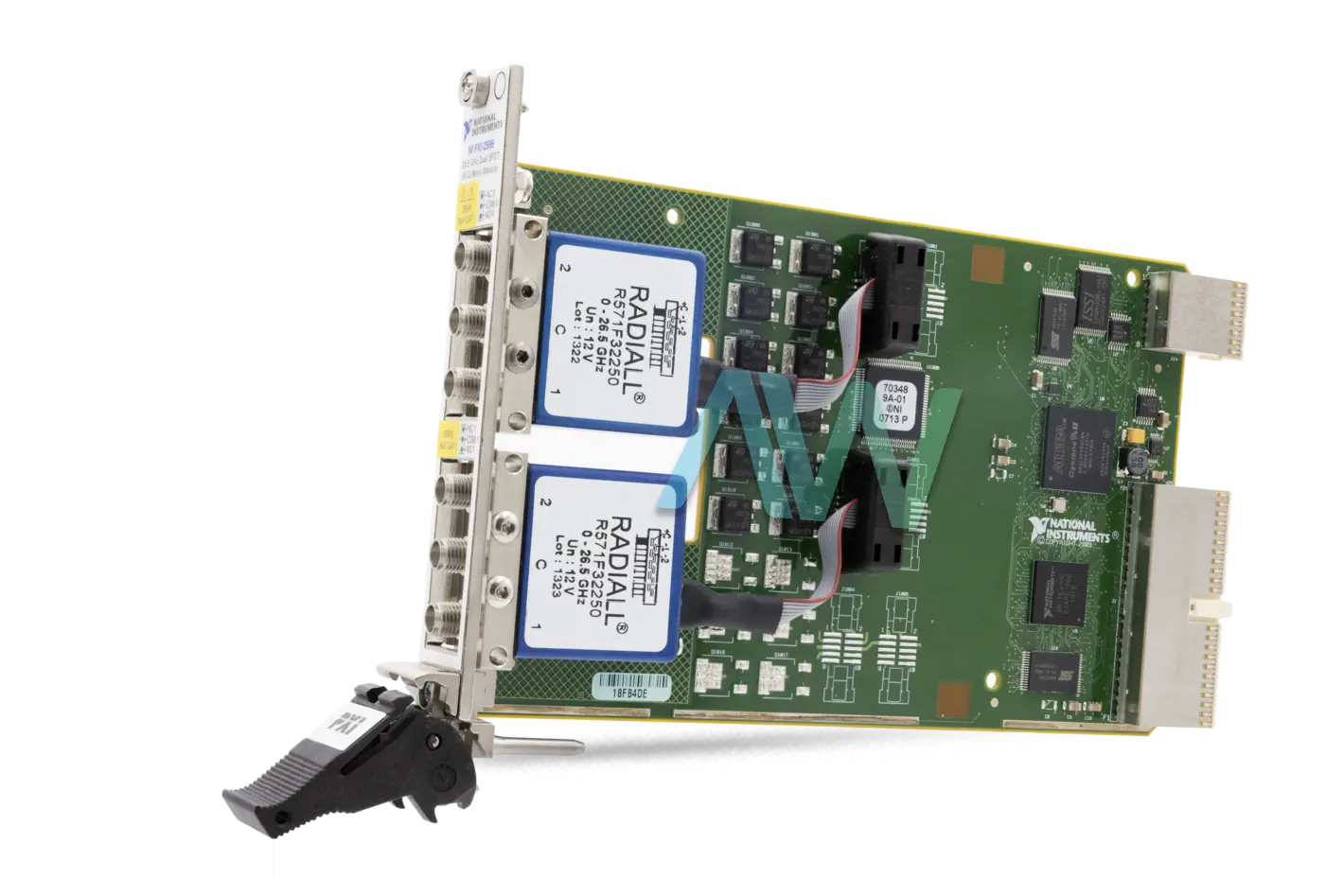

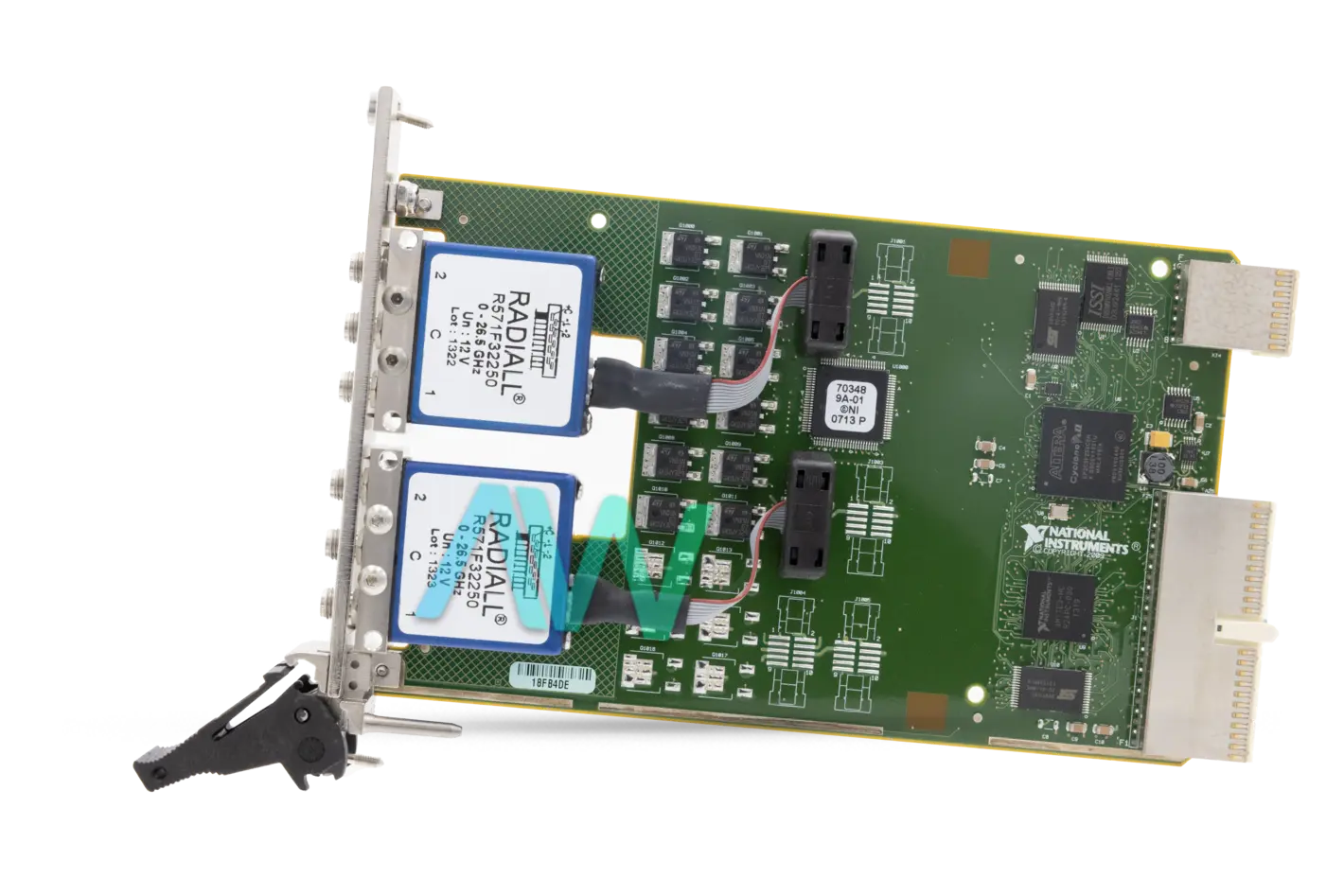

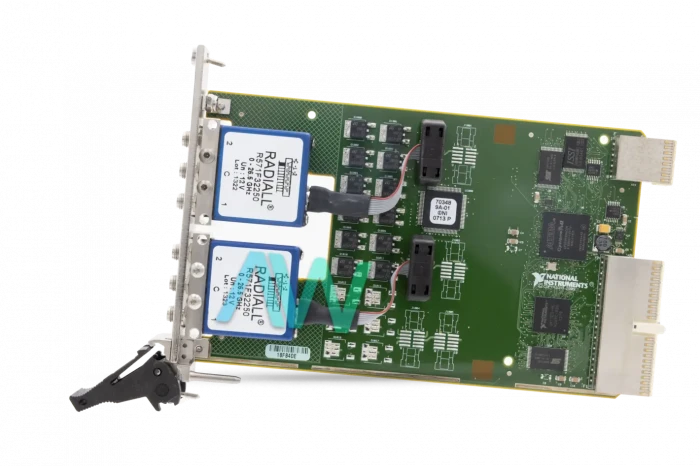

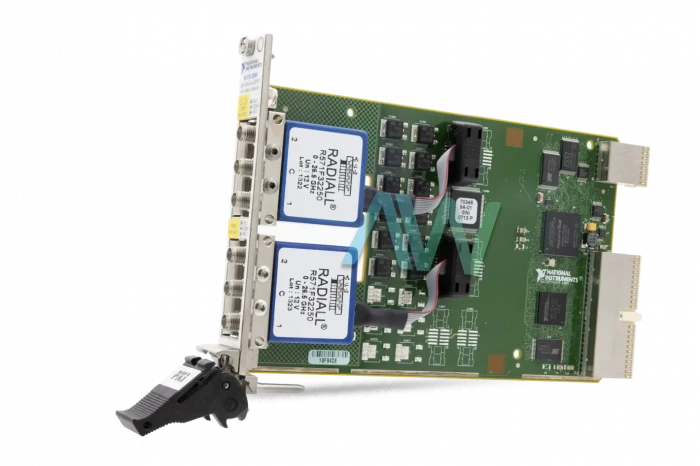

National Instruments PXI-2599 PXI RF Relay Module

The National Instruments PXI-2599 (Part Number: 778572-99) is a Dual SPDT, 26.5 GHz, 50 Ω PXI RF Relay Module. This general-purpose RF Relay Module is designed for routing microwave or RF signals in automated test applications. The NI PXI-2599 comes with an integrated relay count tracking feature that can be utilized for the prediction of relay lifetime, as well as to reduce unexpected downtimes. This module offers 1.73 Arms maximum carry current (per channel), 150 W maximum RF carry power (at 50 Ω load), and -35 dBm minimum switch load.

The NI PXI-2599 comes equipped with latching type electromechanical relays. As far as its RF performance characteristics are concerned, this model incurs <0.7 dB insertion loss, <1.7 voltage standing wave ratio, >55 dB open channel isolation, and 25 W RF carry power while operating at ≤26.5 GHz frequency. The National Instruments PXI-2599 RF Relay Module is a Measurement Category I rated device. Thus, it is designed to carry signal voltages ≤ 100 V. However, it can withstand up to 500 V surge voltages.

 The recommended cycle speed for this Relay Module is 5 channels/s. The relays utilized in this module are made of a Beryllium copper, gold-plated contact material. These relays have an expected mechanical relay life of 1 × 107 cycles. Weighing around 260 g (9.2 oz.), the NI PXI-2599 is a 3U, one slot, PXI module with physical dimensions of 21.6 cm × 2.0 cm × 13.0 cm. This module can receive and output trigger signals through PXI trigger lines <0...7>.

ModelPXI-2599 (778572-99)
ManufacturerNational Instruments
TypePXI RF Relay Module
Banks2
Switch Bandwidth26.5 GHz
Characteristic Impedance50 Ohm
Dimensions8.5 x 0.8 x 5.1 in.
Weight9.2 oz.
WarrantyOne Year Warranty
PXI-2599 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2599 Frequently Asked Questions



Question: What type of relay configuration does the PXI-2599 have?



Answer: The PXI-2599 has an SPDT relay configuration.



Question: What is the scan rate of the NI PXI-2599?



Answer: 2 cycles/s is the scan rate of the NI PXI-2599.



Question: How many I/O connectors does the PXI-2599 module have?



Answer: There are six SMA jacks for I/O connectors on the PXI-2599 module.



Question: What are the PXI-2599 module’s relays operating/release time?



Answer: The PXI-2599 module’s relays have an operating/release time of 10 ms.

  PXI-2599 PDF Manuals

  PXI-2599 Diagrams
