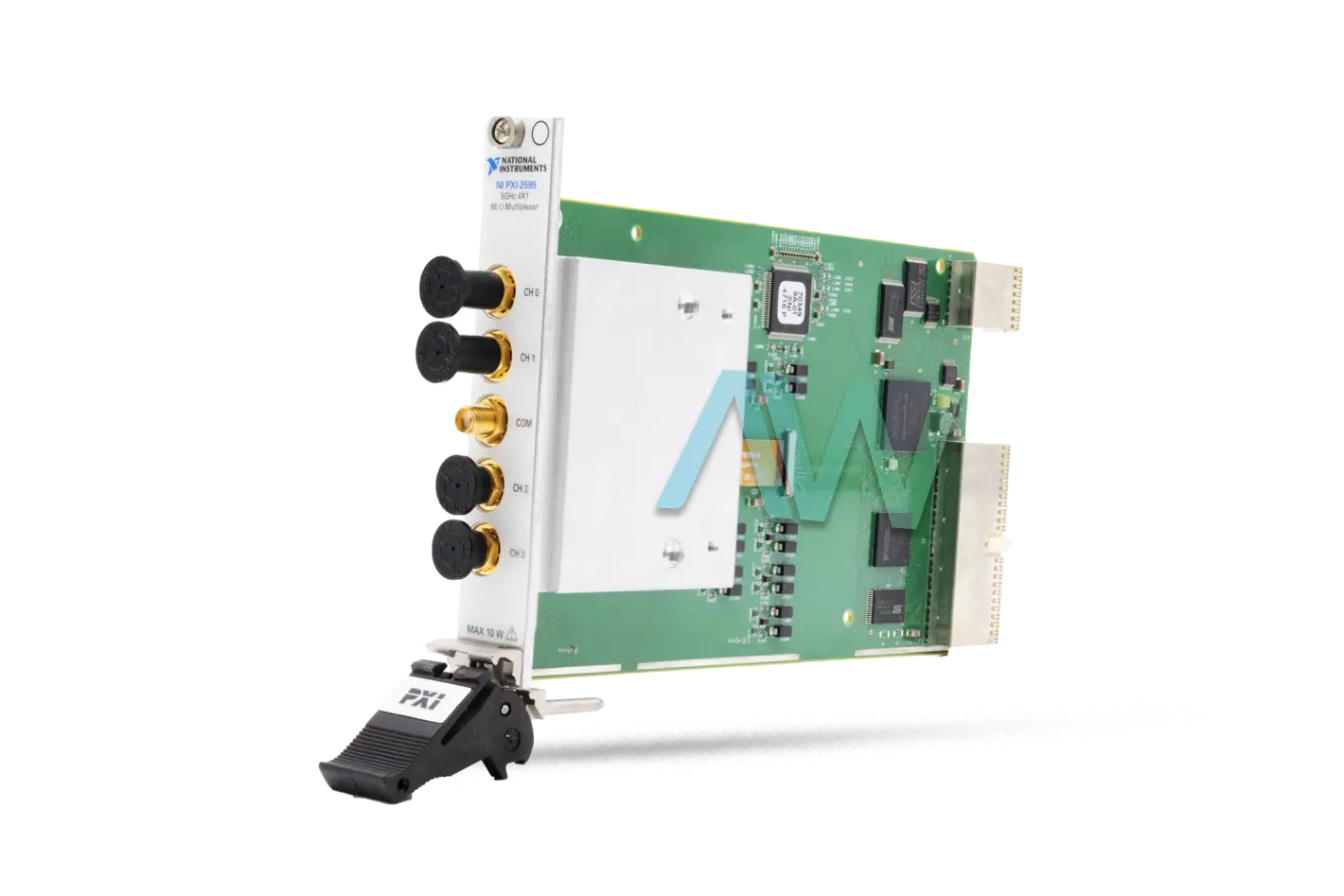

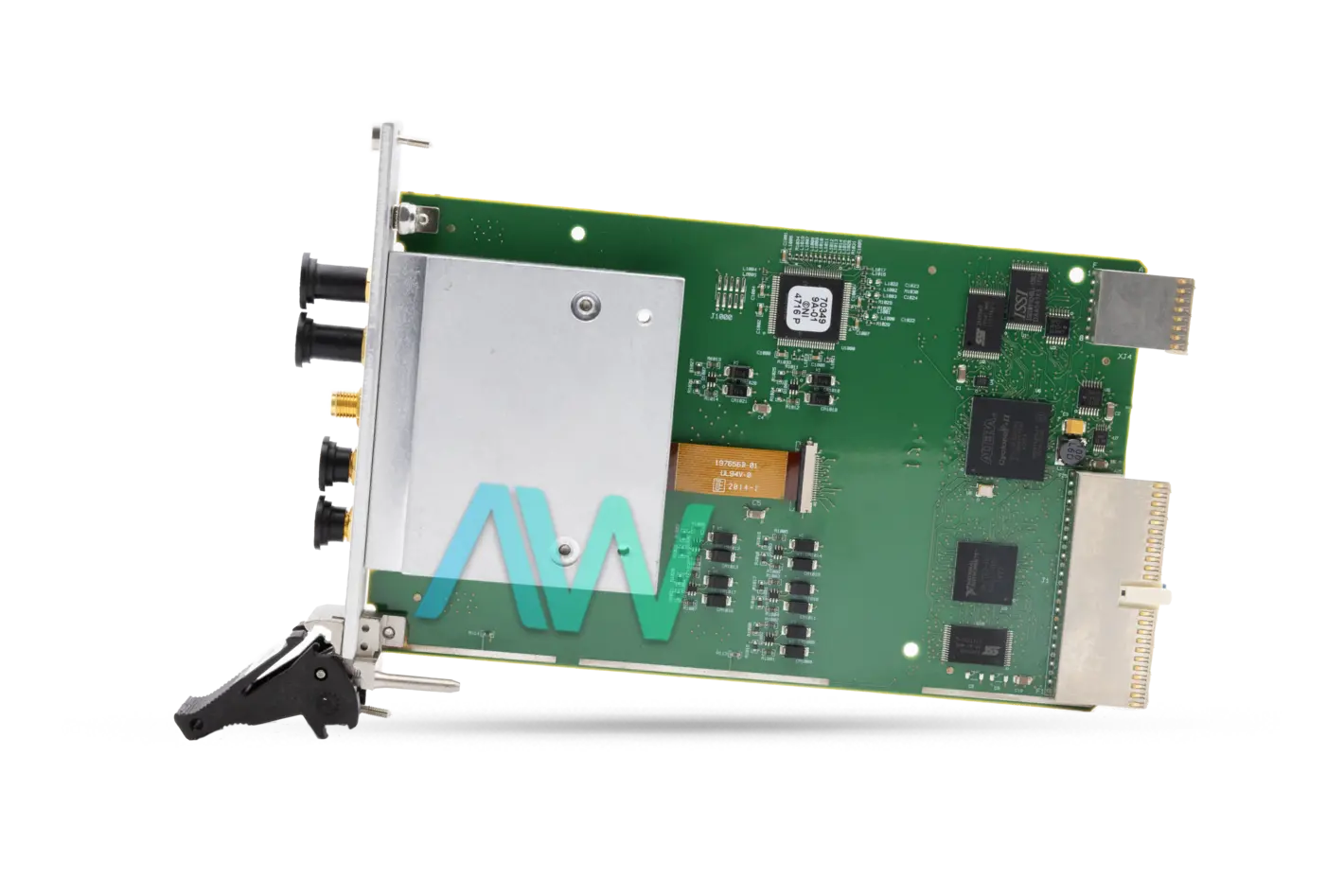

PXI-2595 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2595 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2595 NewPXI-2595 | Legacy, Refurbished and New Surplus

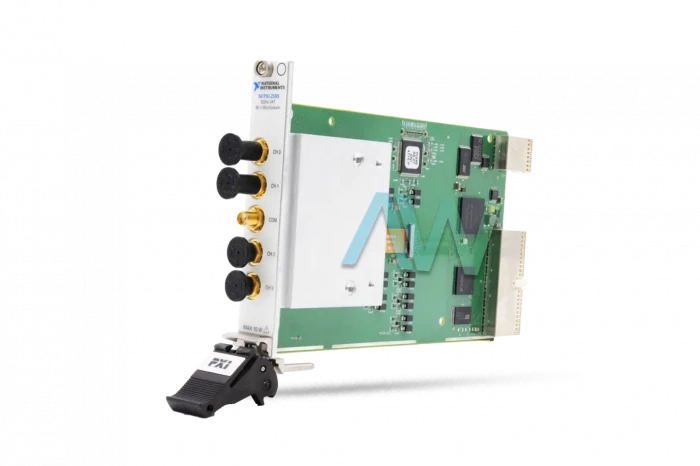

PXI-2595 National Instruments Multiplexer Switch Module | Apex Waves | Image

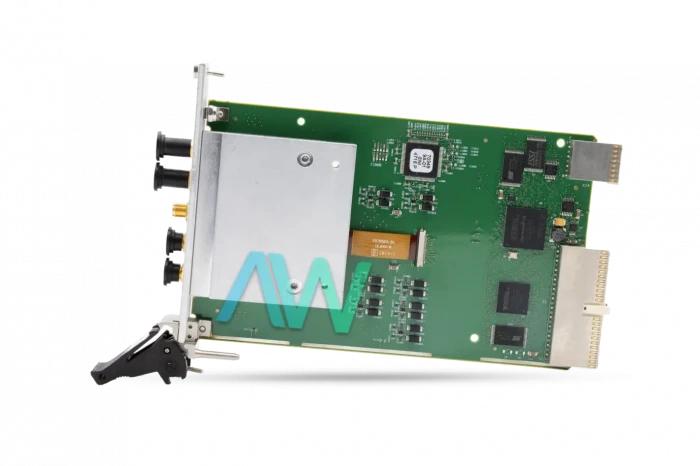

PXI-2595 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2595 New
PXI-2595 | Legacy, Refurbished and New Surplus

PXI-2595

4.7/5 | 19 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2595
Manufacturer/Brand National Instruments
Description: PXI-2595, 5 GHz, 4 Channel, 50 Ohm, PXI RF Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXI-2595 RF Multiplexer Switch Module

The National Instruments PXI-2595 (Part number: 778572-95) RF Multiplexer Switch Module offers a high density, quad 4x1 multiplexing configuration and is equipped for switching signals from DC to 5 GHz. The trademark impedance of this module is 50 Ω. The PXI-2595 count relay has closures on every one of its RF relays. Relay counts are increased each time a relay is actuated. The counts, stored on board the module, are retrievable automatically and can be utilized for predictive maintenance to lessen unforeseen framework downtime.

Every single National Instruments PXI-2595 RF Multiplexer Switch Module is dispatched with NI-SWITCH, an IVI-compliant driver offering complete usefulness for all switch modules. For extra help with arranging, programming, and overseeing higher-channel-count switching frameworks, NI Switch Executive programming offers a simple-to-utilize smart switch management and visual directing environment. The user can employ the NI-SWITCH soft front board for simple relay tasks or debugging switch code/execution.

The NI PXI-2595 module has an adaptable output list architecture that can lessen general data acquisition and test time. A scan list delivers the speediest output conceivable by giving a hardware-timed solution. The user can arrange the module to process the scan list once or to consistently loop through the scan list. Commands in the scan list can open or close relays, wait for an outside trigger, and produce a scanner advanced trigger. The NI device has a maximum switching voltage, maximum switching current, maximum carry current, and maximum RF power of 30 V, 0.5 A, 0.5 A, and 10 A respectively.

This model works with the following software packages:

• Windows 2000/NT/XP

• Linux® Recommended Software

• NI Switch Executive

• LabVIEW

• LabVIEW Real-Time Module

• LabWindows/CVI

• Measurement Studio Other Compatible Software

• Visual Basic

• C/C++Driver/Services Software (included)

• NI-SWITCH

• NI-DAQmx driver software

The NI device weighs 8.8 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C, a non-condensing humidity range of 5% to 85% RH, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 Hz to 500 Hz.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-2595 will enter the NI Maintenance phase on June 30, 2023, it will remain available with Apex Waves. Request your quote today!

ModelPXI-2595
ManufacturerNational Instruments
Part Number778572-95
TypePXI RF Multiplexer Switch Module
Banks1
Channels4
Switch Bandwidth5 GHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight8.8 oz.
WarrantyThree Year Warranty
PXI-2595 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2595:

192868A-01, 192868B-01L, 192868B-02, 778572-95


Associated NSNs for the PXI-2595:

5998-01-626-1970 (5998016261970)

National Instruments PXI-2595 Frequently Asked Questions



Question: Does the NI PXI-2595 have termination?



Answer: No, the NI PXI-2595 does not have termination.



Question: What is the maximum insertion loss for the PXI-2595?



Answer: The maximum insertion loss for the PXI-2595 is -1.7 dB.



Question: What is the typical rise time of the PXI-2595 module?



Answer: The PXI-2595 module has a typical rise time (10% to 90%) of <65 ps.



Question: What is the maximum RF power of the PXI-2595?



Answer: The maximum RF power of the PXI-2595 is 10 W.

  PXI-2595 PDF Manuals

  PXI-2595 Diagrams

Driver Downloads for PXI-2595






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: PXL-2595, PXI-W595, PXI-E595, PXI-2T95, PXI-259R

PXI-2595



Modular Systems > National Instruments > PXI Multiplexer Modules

PXI-2595
4.7/5 | 19 ratings

PXI-2595, 5 GHz, 4 Channel, 50 Ohm, PXI RF Multiplexer Switch Module

In Stock | Ships Today
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

National Instruments PXI-2595 RF Multiplexer Switch Module

The National Instruments PXI-2595 (Part number: 778572-95) RF Multiplexer Switch Module offers a high density, quad 4x1 multiplexing configuration and is equipped for switching signals from DC to 5 GHz. The trademark impedance of this module is 50 Ω. The PXI-2595 count relay has closures on every one of its RF relays. Relay counts are increased each time a relay is actuated. The counts, stored on board the module, are retrievable automatically and can be utilized for predictive maintenance to lessen unforeseen framework downtime.

Every single National Instruments PXI-2595 RF Multiplexer Switch Module is dispatched with NI-SWITCH, an IVI-compliant driver offering complete usefulness for all switch modules. For extra help with arranging, programming, and overseeing higher-channel-count switching frameworks, NI Switch Executive programming offers a simple-to-utilize smart switch management and visual directing environment. The user can employ the NI-SWITCH soft front board for simple relay tasks or debugging switch code/execution.

The NI PXI-2595 module has an adaptable output list architecture that can lessen general data acquisition and test time. A scan list delivers the speediest output conceivable by giving a hardware-timed solution. The user can arrange the module to process the scan list once or to consistently loop through the scan list. Commands in the scan list can open or close relays, wait for an outside trigger, and produce a scanner advanced trigger. The NI device has a maximum switching voltage, maximum switching current, maximum carry current, and maximum RF power of 30 V, 0.5 A, 0.5 A, and 10 A respectively.

This model works with the following software packages:

• Windows 2000/NT/XP

• Linux® Recommended Software

• NI Switch Executive

• LabVIEW

• LabVIEW Real-Time Module

• LabWindows/CVI

• Measurement Studio Other Compatible Software

• Visual Basic

• C/C++Driver/Services Software (included)

• NI-SWITCH

• NI-DAQmx driver software

The NI device weighs 8.8 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C, a non-condensing humidity range of 5% to 85% RH, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 Hz to 500 Hz.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-2595 will enter the NI Maintenance phase on June 30, 2023, it will remain available with Apex Waves. Request your quote today!

ModelPXI-2595
ManufacturerNational Instruments
Part Number778572-95
TypePXI RF Multiplexer Switch Module
Banks1
Channels4
Switch Bandwidth5 GHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight8.8 oz.
WarrantyThree Year Warranty
PXI-2595 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2595 Frequently Asked Questions



Question: Does the NI PXI-2595 have termination?



Answer: No, the NI PXI-2595 does not have termination.



Question: What is the maximum insertion loss for the PXI-2595?



Answer: The maximum insertion loss for the PXI-2595 is -1.7 dB.



Question: What is the typical rise time of the PXI-2595 module?



Answer: The PXI-2595 module has a typical rise time (10% to 90%) of <65 ps.



Question: What is the maximum RF power of the PXI-2595?



Answer: The maximum RF power of the PXI-2595 is 10 W.

PXI-2595 PDF Manuals & Diagrams

  PXI-2595 PDF Manuals

NI PXI-2595 SPECIFICATIONS.PDF

PXI 2594 95 LETTER OF VOLATILITY.PDF

  PXI-2595 Diagrams

CU_PXI-2595.PDF


Software & Drivers





OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version
